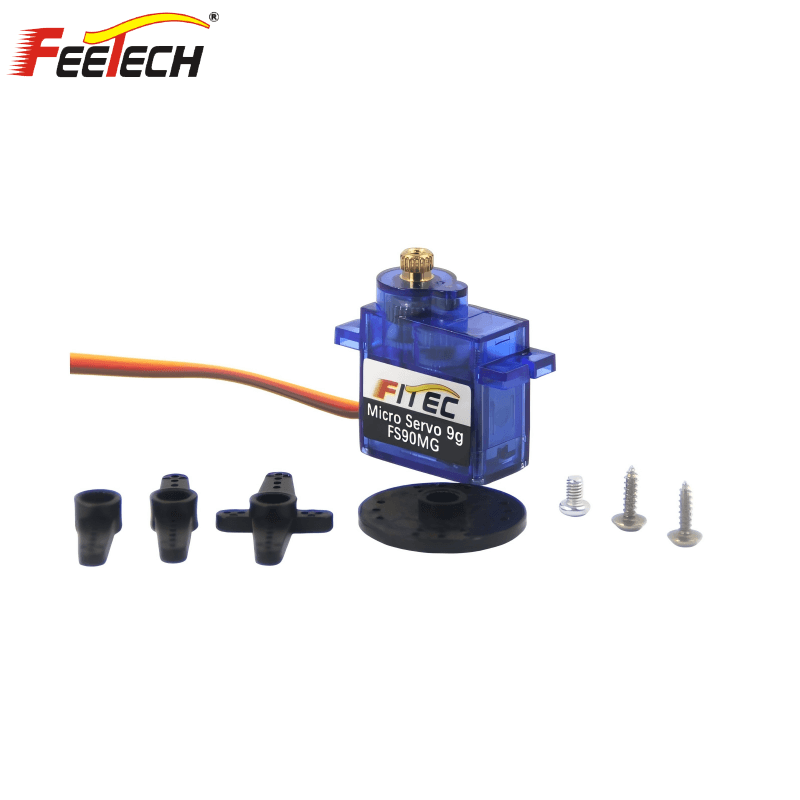

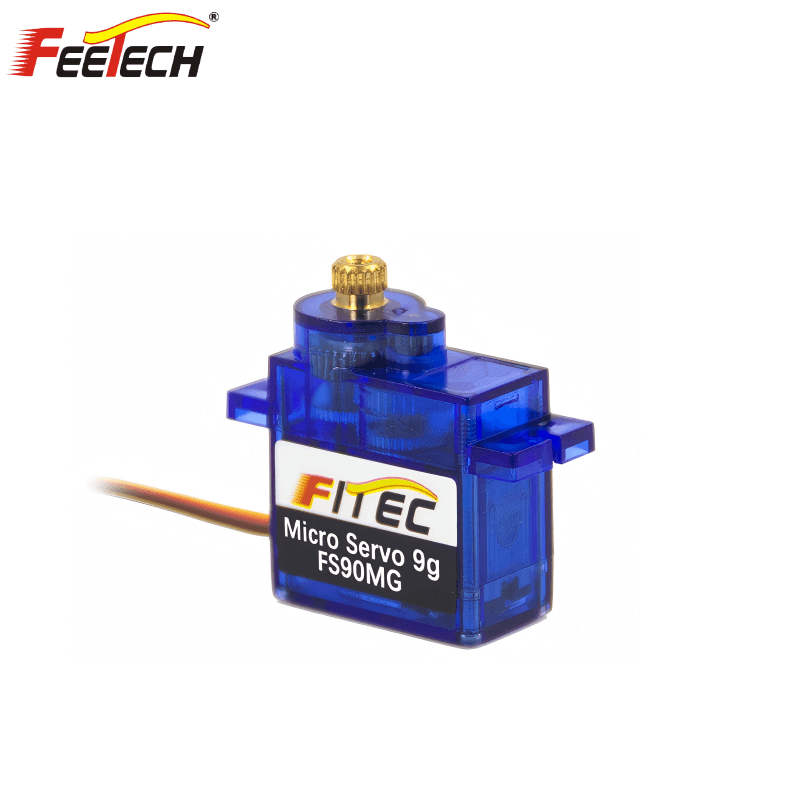

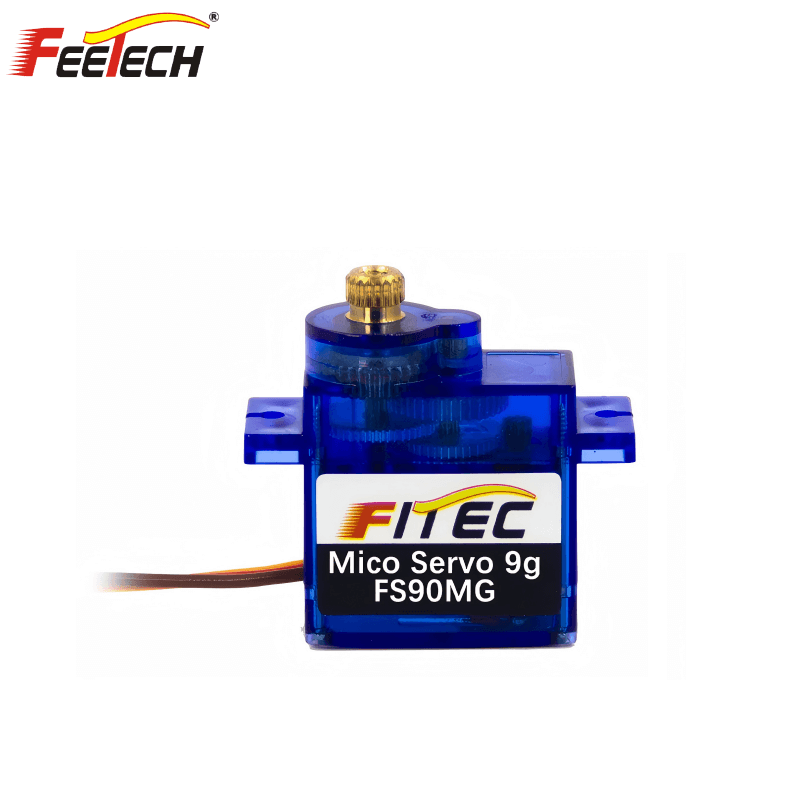

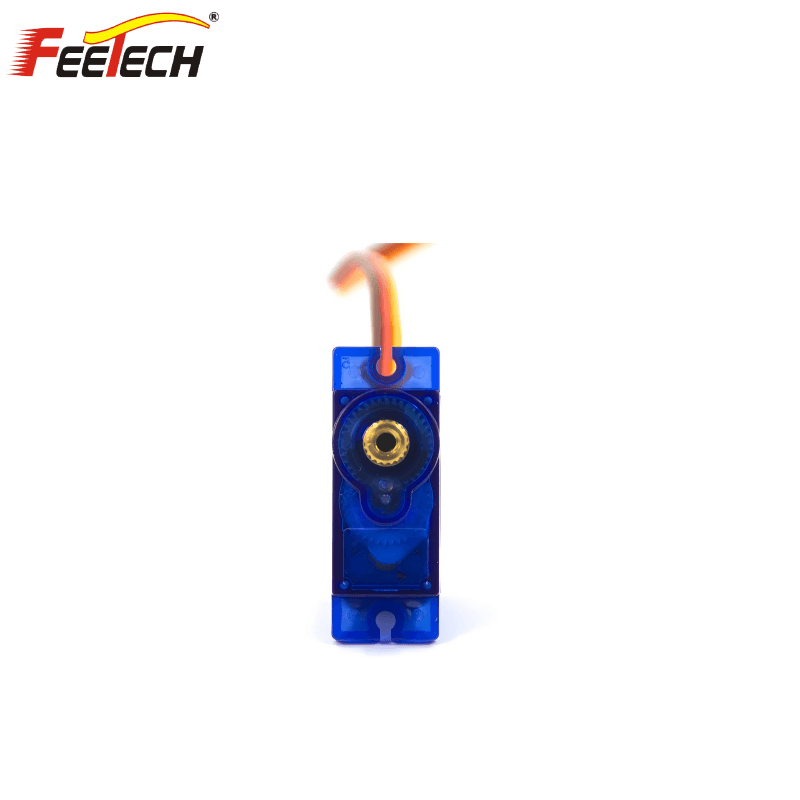

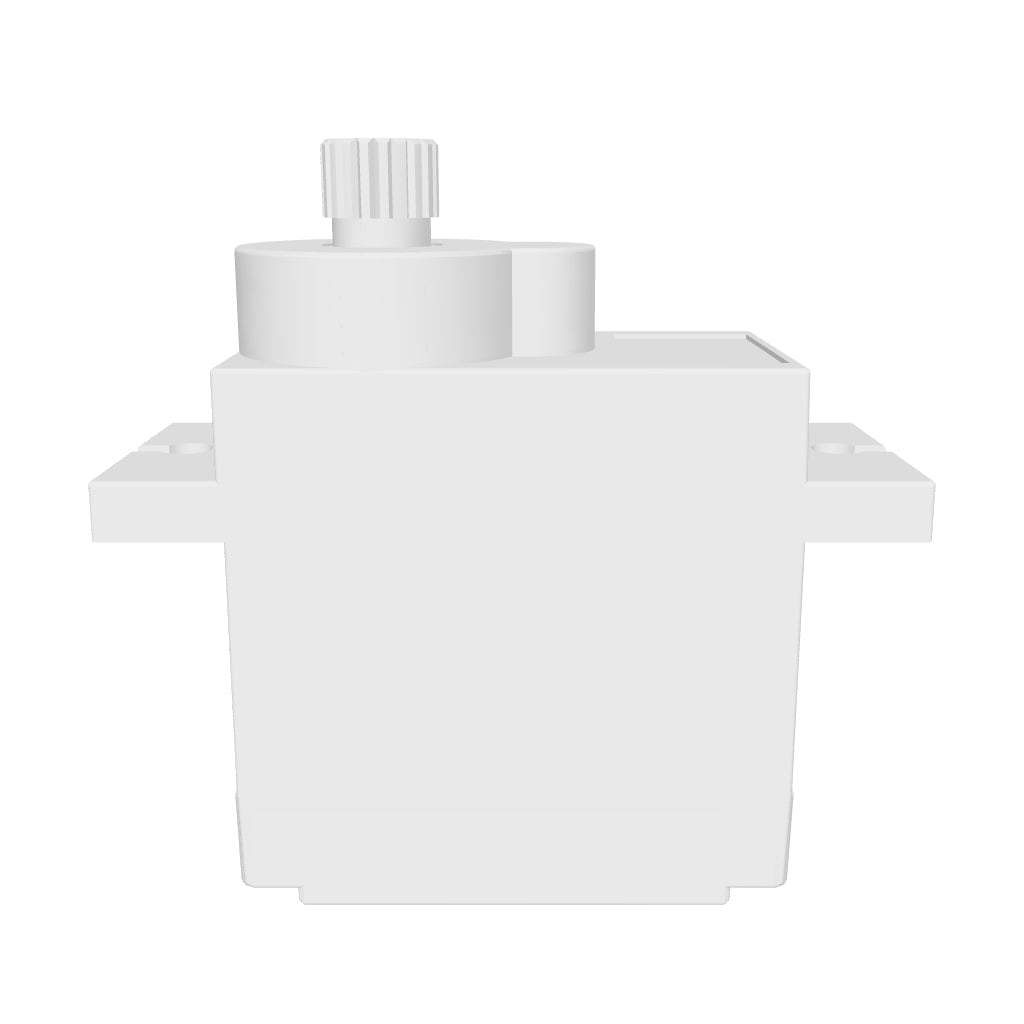

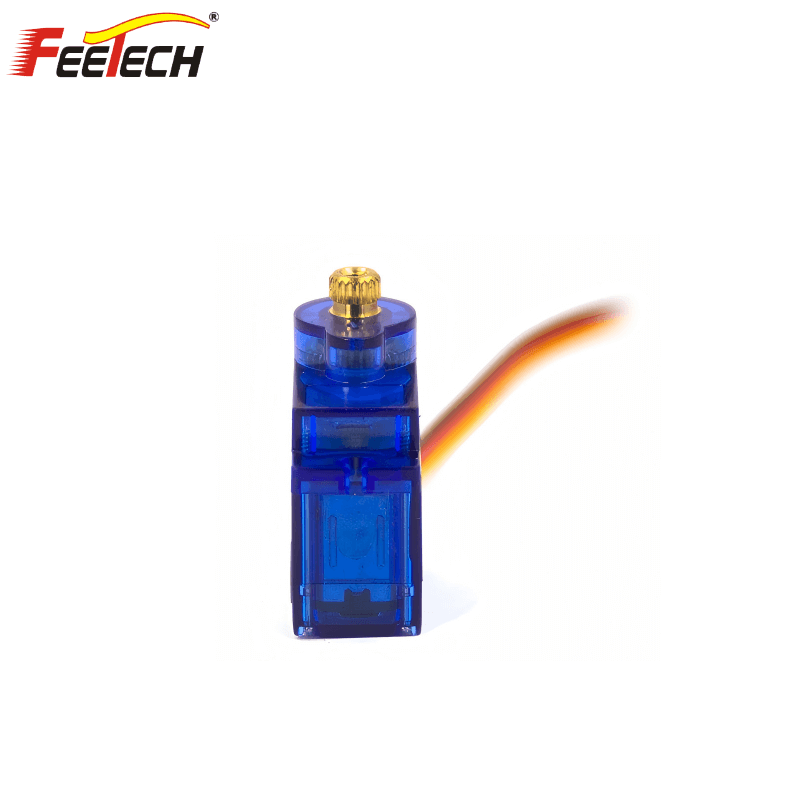

FEETECH FS90MG Servo Motor
Regular price
$20.00
Unit price
FEETECH FS90MG Servo Motor - FS90MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FS90MG Servo Motor
Regular price
$20.00
Unit price
FEETECH FS90MG Servo Motor - FS90MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|
|---|---|---|
| Model | FS90MG | |
| Product Name | 6V 2.2kg.cm Digital Servo | |
| Storage Temperature Range |
-30℃～80℃ |
|
| Operating Temperature Range | -1℃～70℃ | |
| Size | A：22.5mm B：12.1mm C：26.7mm | |
| Weight | 12.7± 1g | |
| Gear type | Copper | |
| Limit angle |
180degree |
|
| Bearing |
NO Ball bearings |
|
| Horn gear spline | 21T | |
| Horn type | Plastic,POM | |
| Case | ABS | |
| Connector wire | 250mm | |
| Motor |
Metal brush motor |
|
| Operating Voltage Range | 4.8-6V | |
| Idle current(at stopped) | 5mA-6mA | |
| No load speed | 0.07sec/60degr@6V | |
| Runnig current(at no load) | 220 mA @6V | |
| Peak stall torque | 2.2kg.cm@6V | |
| Rated torque | 0.7kg.cm@6V | |
| Stall current | 800mA@6V | |
| Running degree | 180°(when 500～2500 μsec) | |
| Rotating direction |
CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
