Direct Drive Tech | SKU:
Direct Drive Tech M1502E_111 Directdrive Motor
Regular price
$359.00
Unit price
Direct Drive Tech M1502E_111 Directdrive Motor - M1502E_111 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

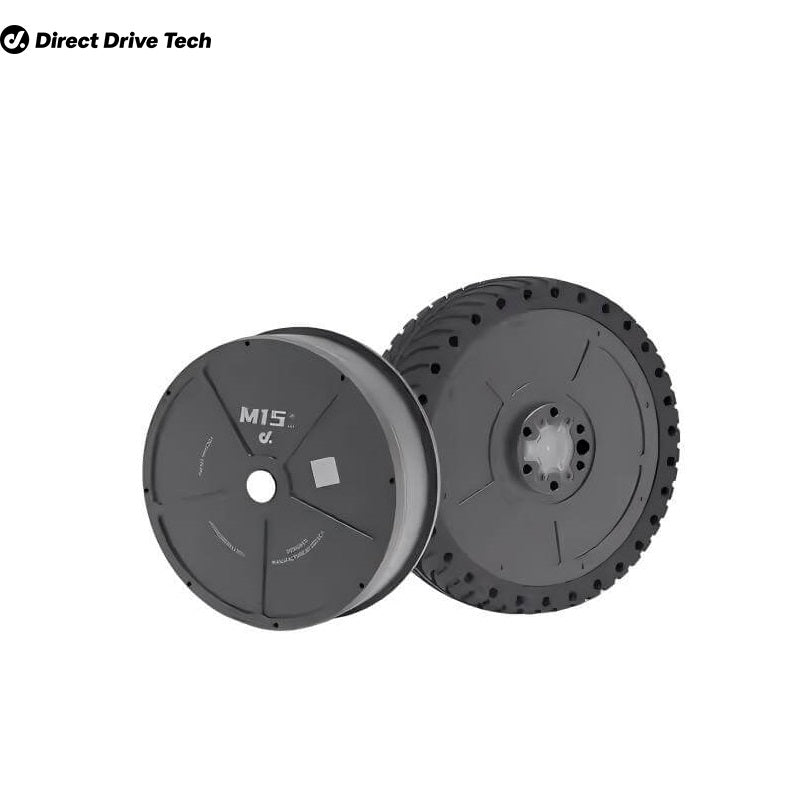

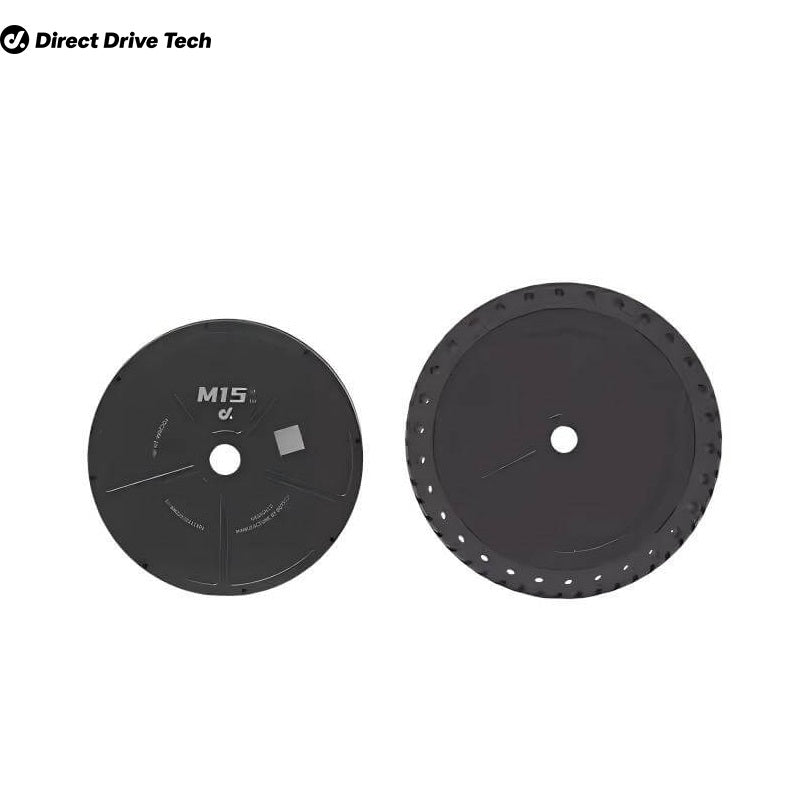

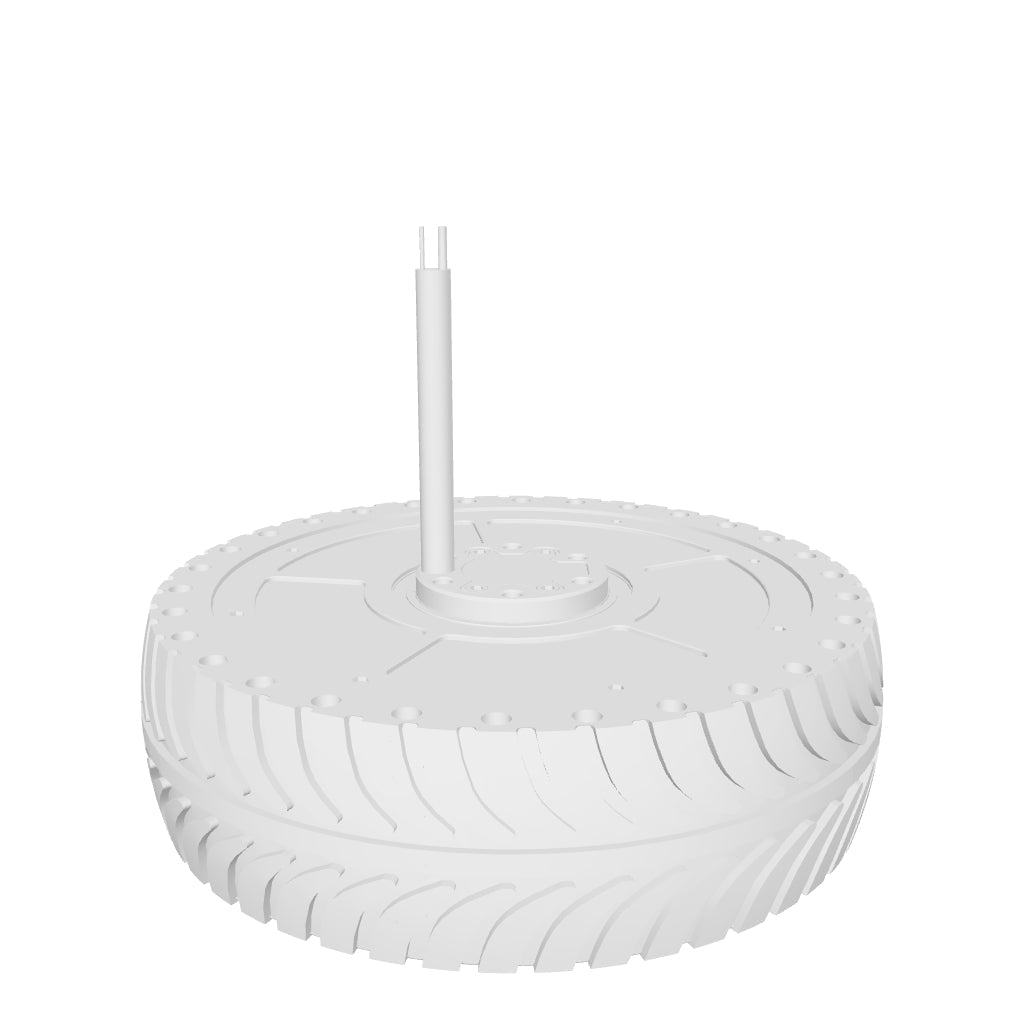

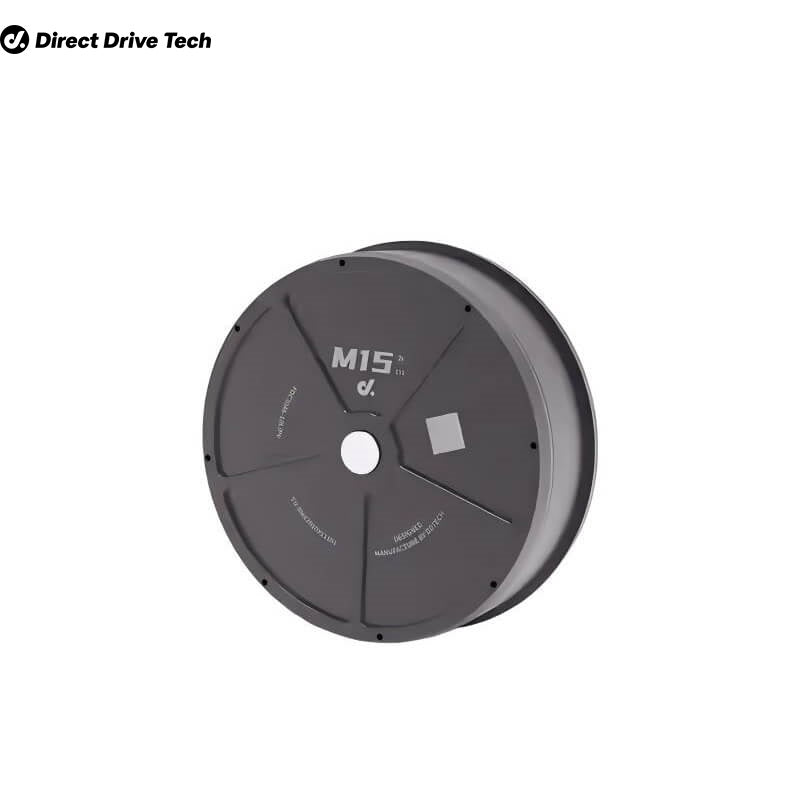

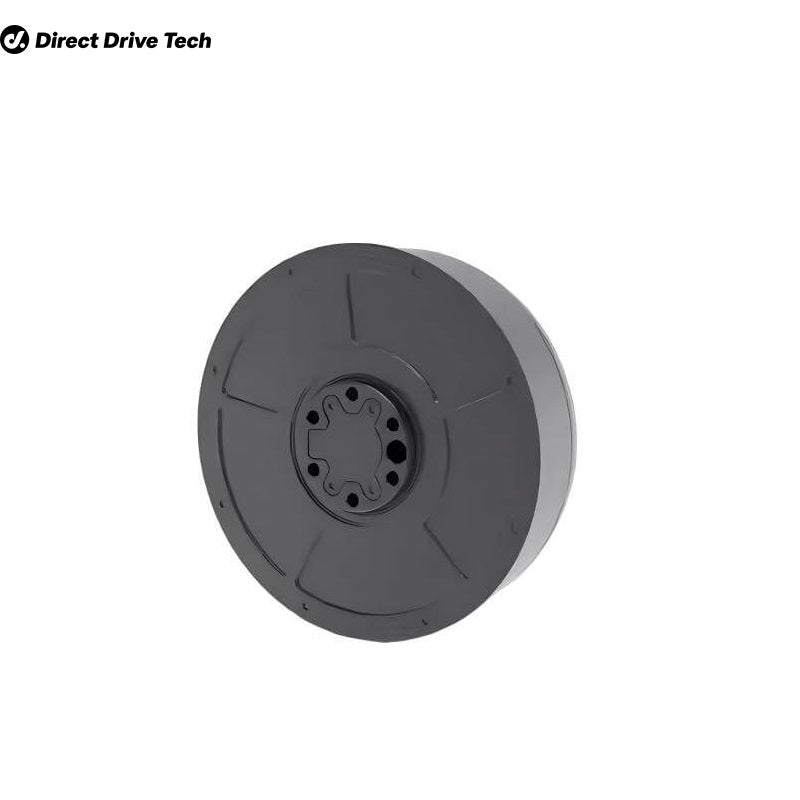

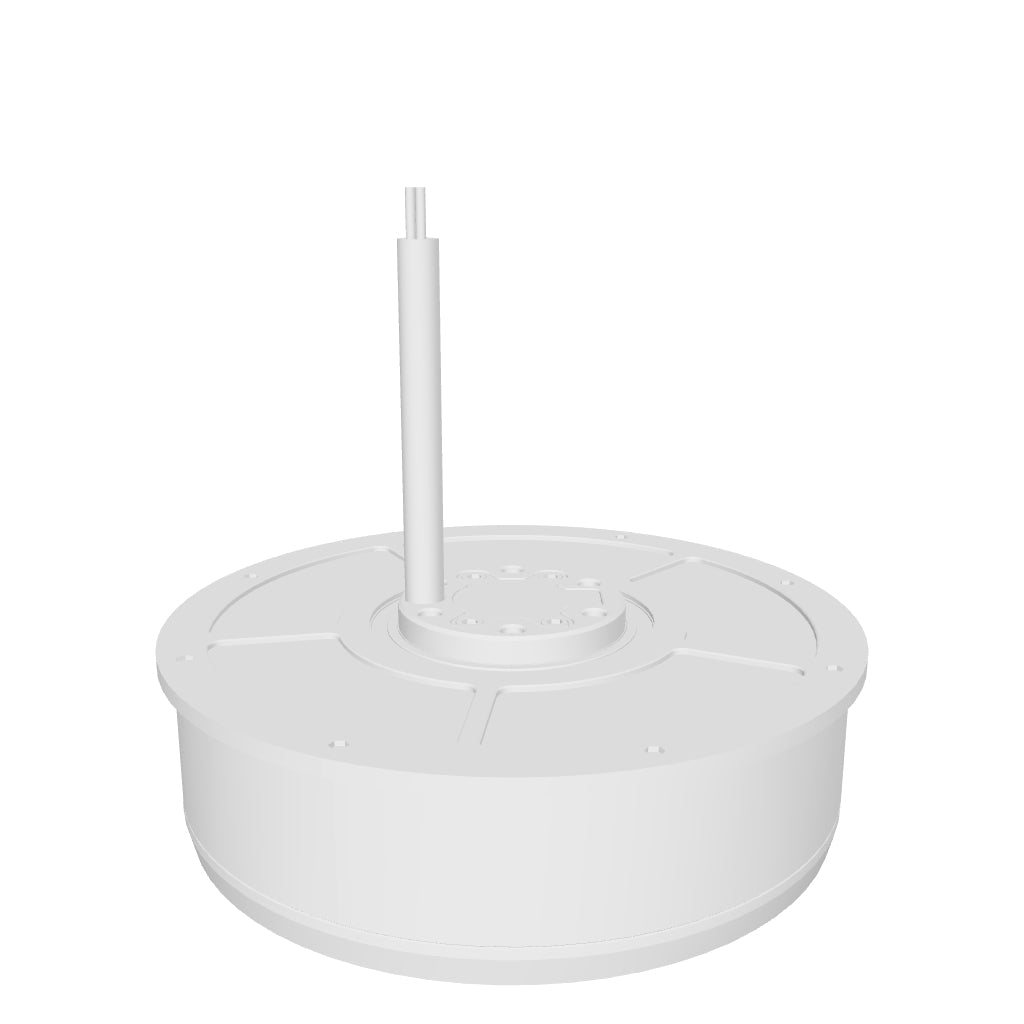

Direct Drive Tech M1502E_111 Directdrive Motor
Regular priceFrom
$359.00
Unit price
Direct Drive Tech M1502E_111 Directdrive Motor - M1502E_111 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| No-load Speed |
210±1rpm
|
| No-load Current | ≤0.85A |
| Rated Speed | 95rpm |
| Rated Torque | 2Nm |
| Rated Current | 1.5±0.1A |
| Maximum Efficiency | ≥58% |
| Stall Torque | ≥10Nm |
| Stall Current | ≤17A |
| Rated Voltage | 24VDC |
| Torque Constant | 1.3Nm/A |
| Speed Constant | 10rpm/V |
| Operating Ambient Temperature | -20°C~45°C |
| Motor Weight | 1.86kg |
| Encoder Resolution | 16384 |
| Absolute Accuracy | 8192 |
| Protection Class | IP65 |
| Noise Level | ≤52dB |
