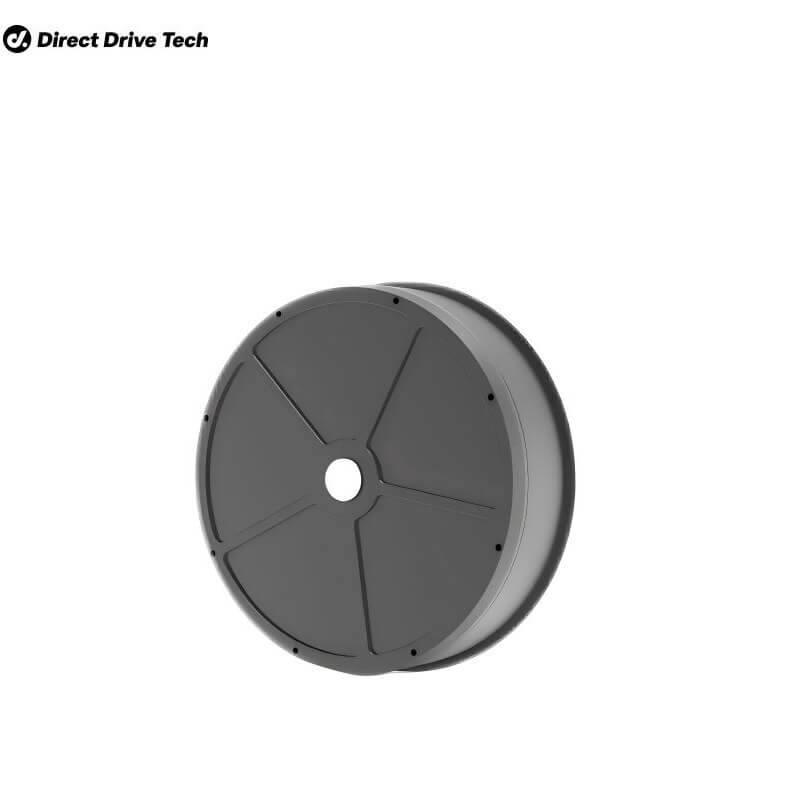

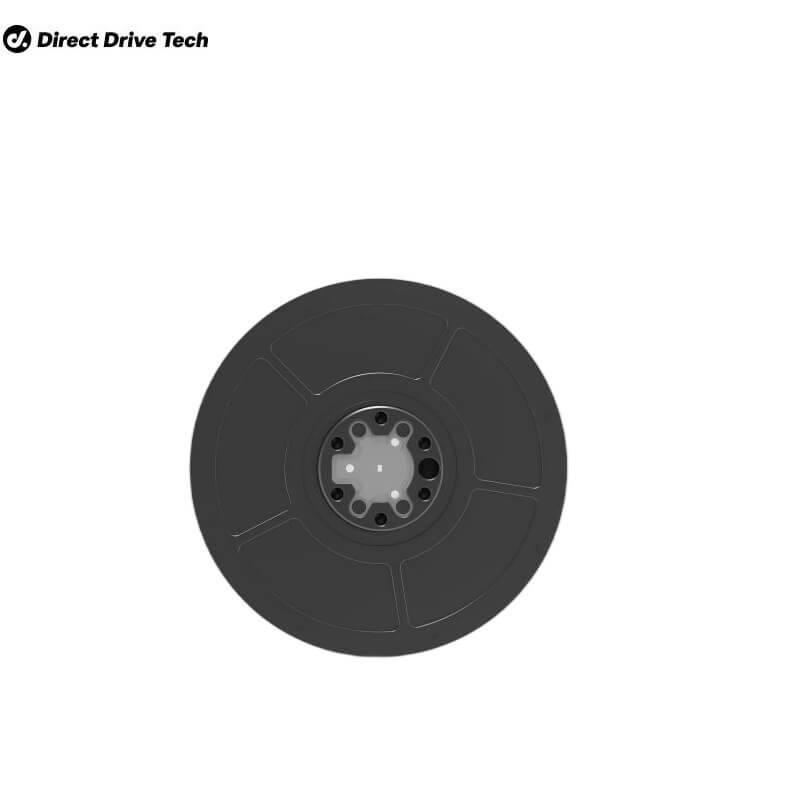

Direct Drive Tech M1502D_133 Directdrive Motor
Regular price
$310.00
Unit price
Direct Drive Tech M1502D_133 Directdrive Motor - M1502D_133 Directdrive Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech M1502D_133 Directdrive Motor - M1502D_133 Directdrive Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| ltem Name | Direct Drive Tech M1502D_133 DirectDrive Motor |
| No-Load Speed |
≥200rpm
|
| No-Load Current |
≤0.5A
|
| Rated Speed | 115rpm |
| Rated Torque |
9.6N·m
|
| Rated Current |
≤11.5A
|
| Rated Voltage |
24VDC
|
| Maximum Efficiency |
≥72%
|
| Stall Torque |
≥17N·m
|
| StallCurrent |
≤21A
|
| Torque Constant |
0.88Nm/A
|
| Speed Constant |
8.3rpm/V
|
| Protection Rating (IP Rating) |
IP55
|
| Noise Level |
≤52dB
|
| Operating Ambient Temperature |
-20℃~45℃
|
| Motor Weight |
2.3KG
|
| Encoder Resolution |
16384
|
| Absolute Accuracy |
8192
|
M1502D_133-Installation_Dimension_Drawing.pdf
