Direct Drive Tech | SKU:
Sold out

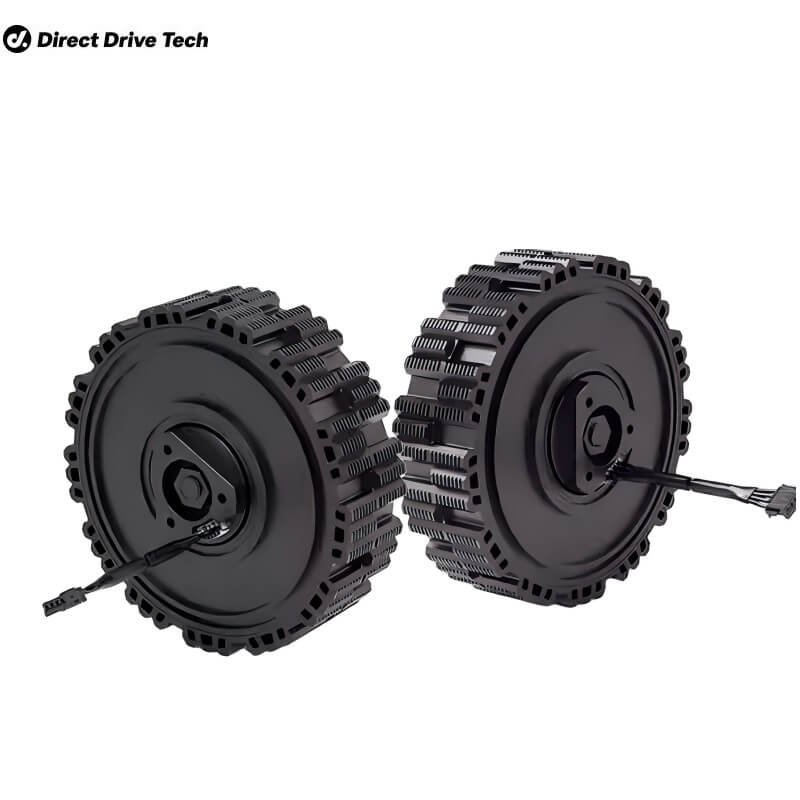

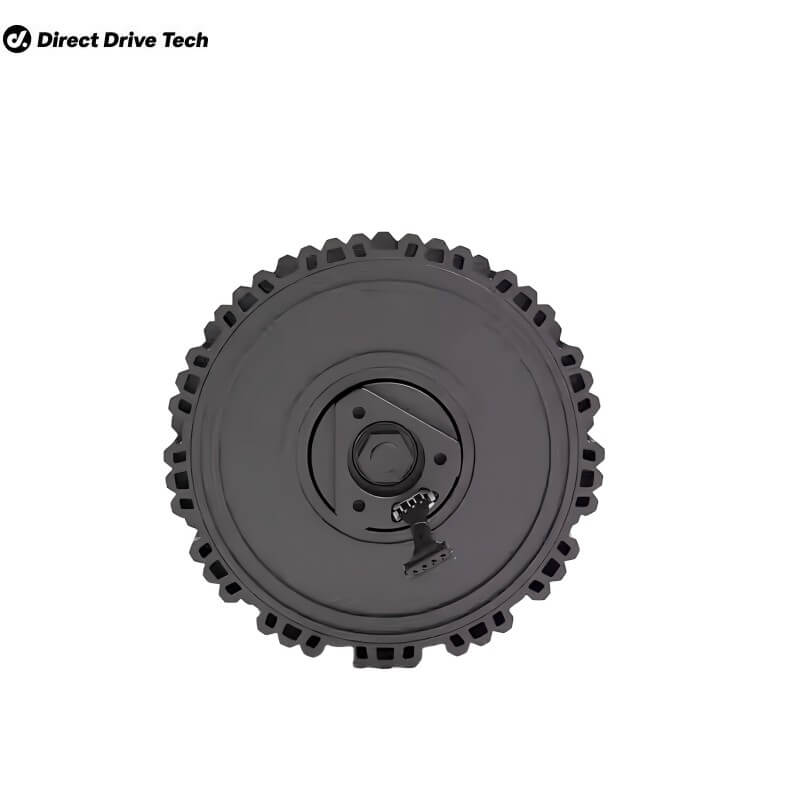

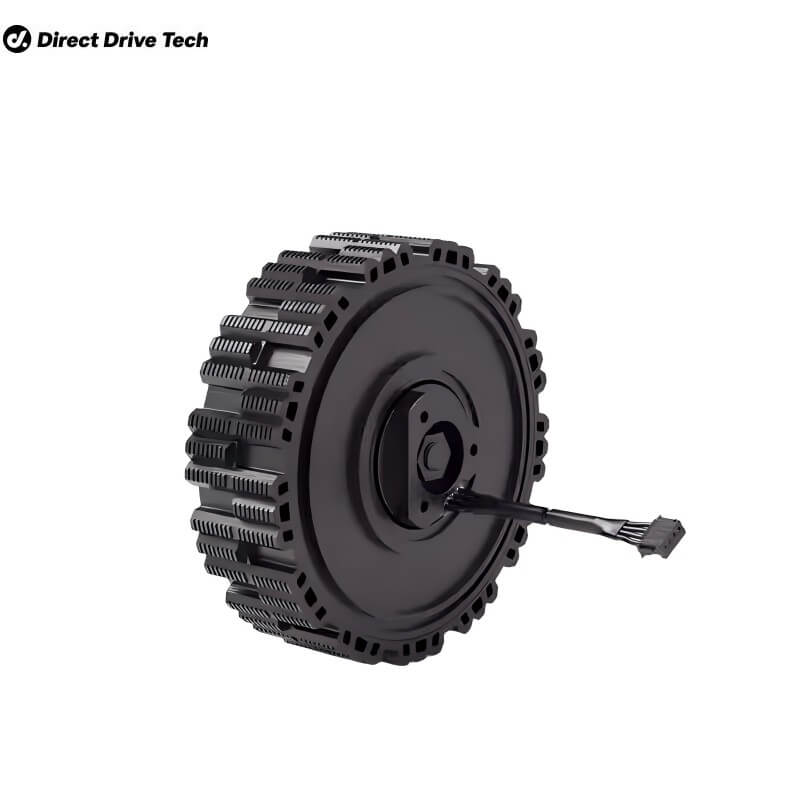

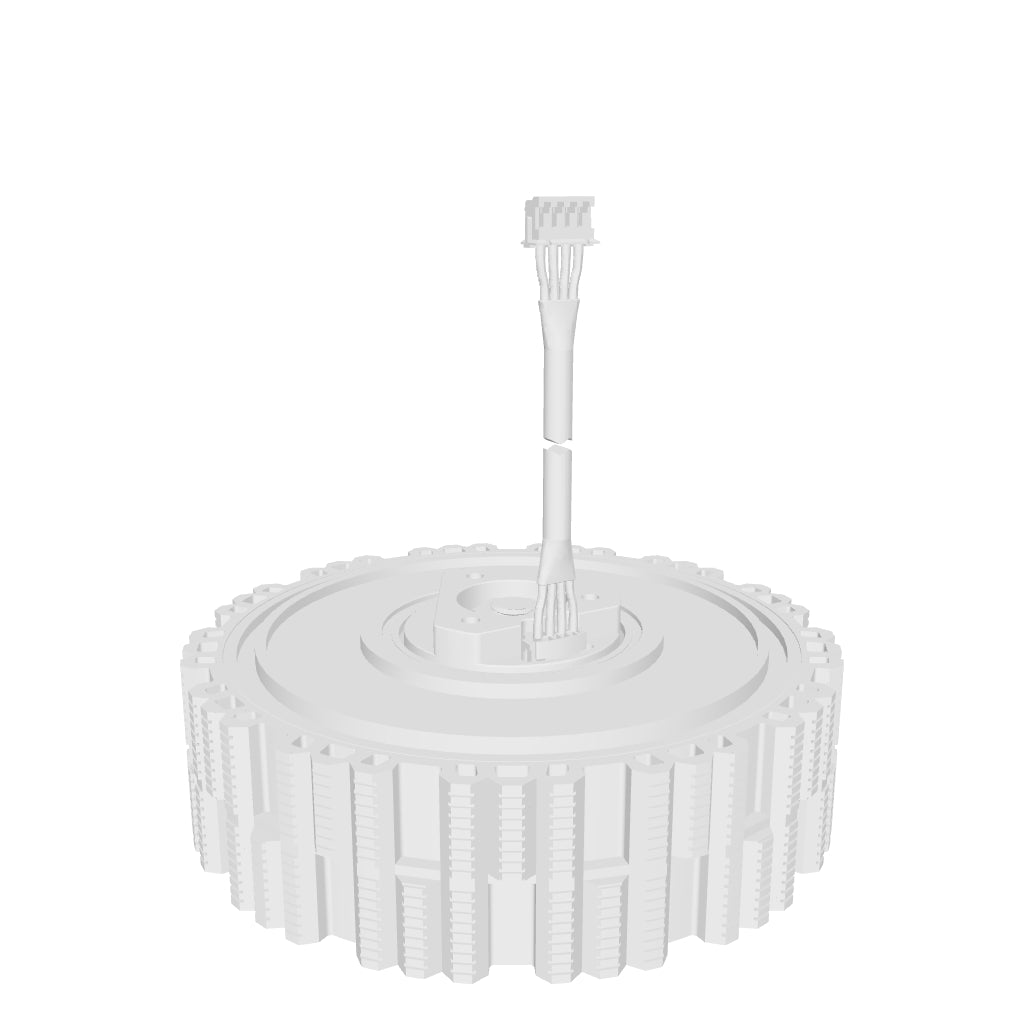

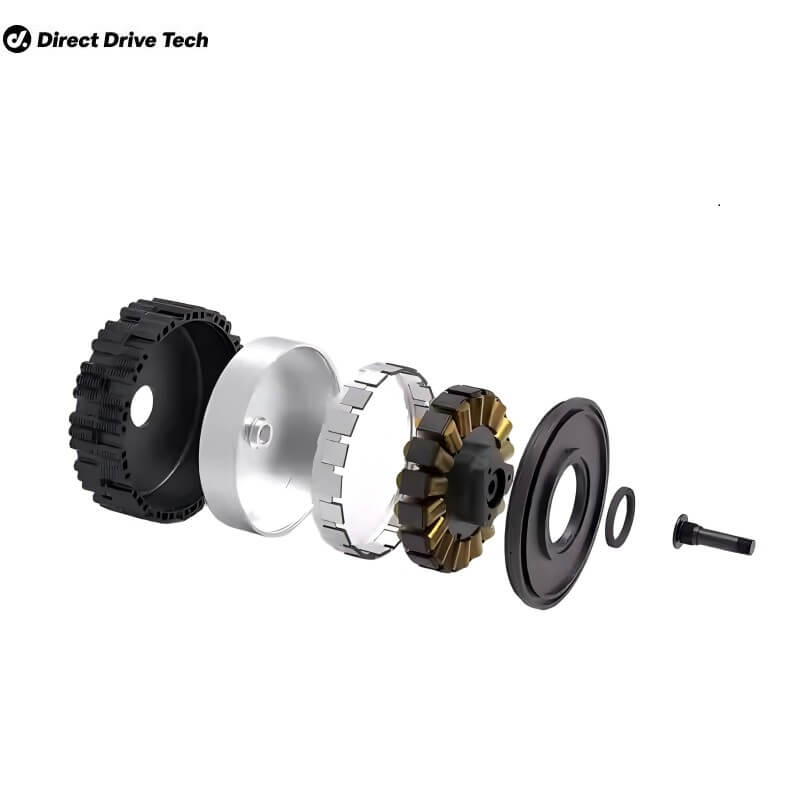

Direct Drive Tech M0603B_224 Directdrive Motor
Regular price
$40.00
Unit price
Direct Drive Tech M0603B_224 Directdrive Motor - M0603B_224 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech M0603B_224 Directdrive Motor - M0603B_224 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
M0603B_224
|
| No-load Speed | 210±15rpm |
| No-load Current | ≤0.15A |
| Rated Speed | 98rpm |
| Rated Torque | 0.25Nm |
| Rated Current | 0.5A |
| Rated Voltage | 14.4VDC |
| Stall Torque | 0.85Nm |
| Stall Current | ≤3A |
| Encoder Resolution | 12-bit |
| Operating Voltage Range | 10.0~28.0VDC |
| Motor Weight | 260g |
| Protection Level |
IPX4 (Reference standard GB/T4942.1-2006, default sealed state of base mounting surface) |
| Noise Level |
≤48db (Reference standard GB/T 10069.1) |
