DAMIAO | SKU:

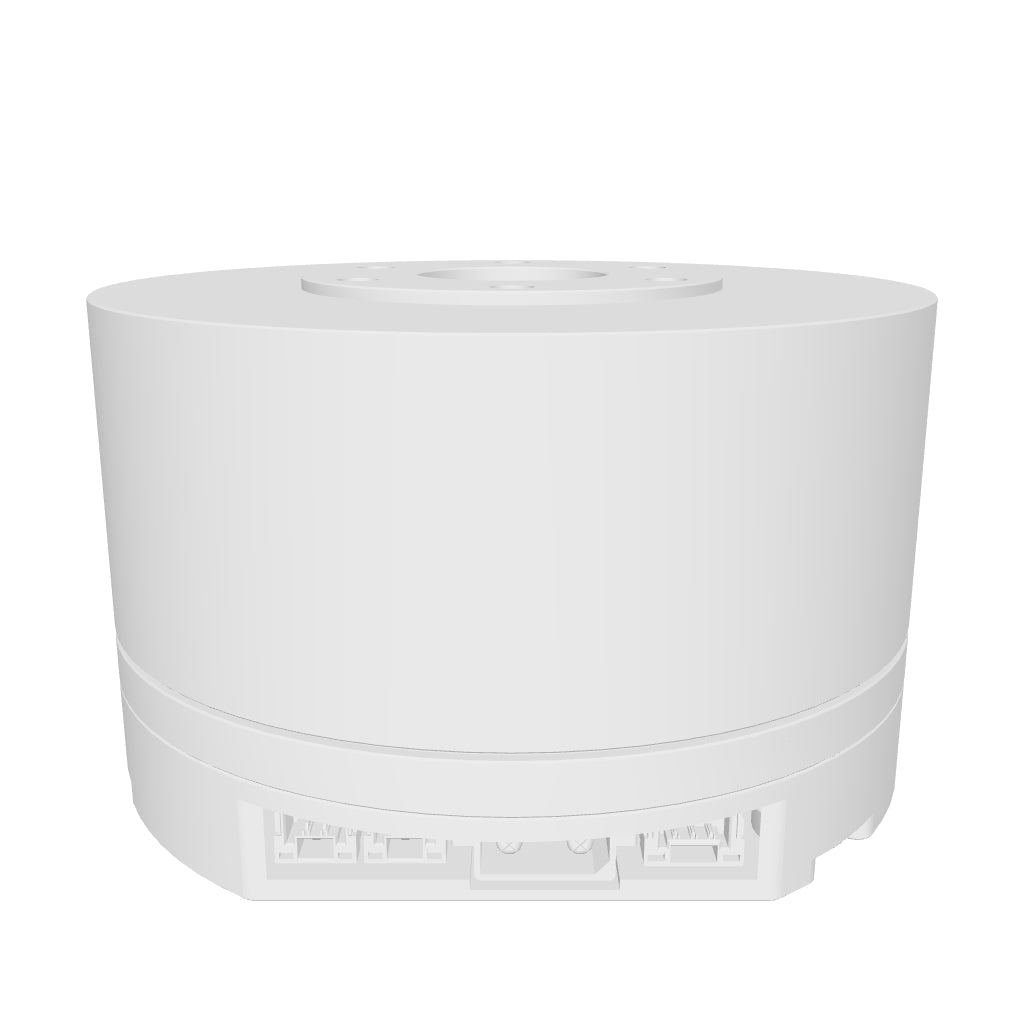

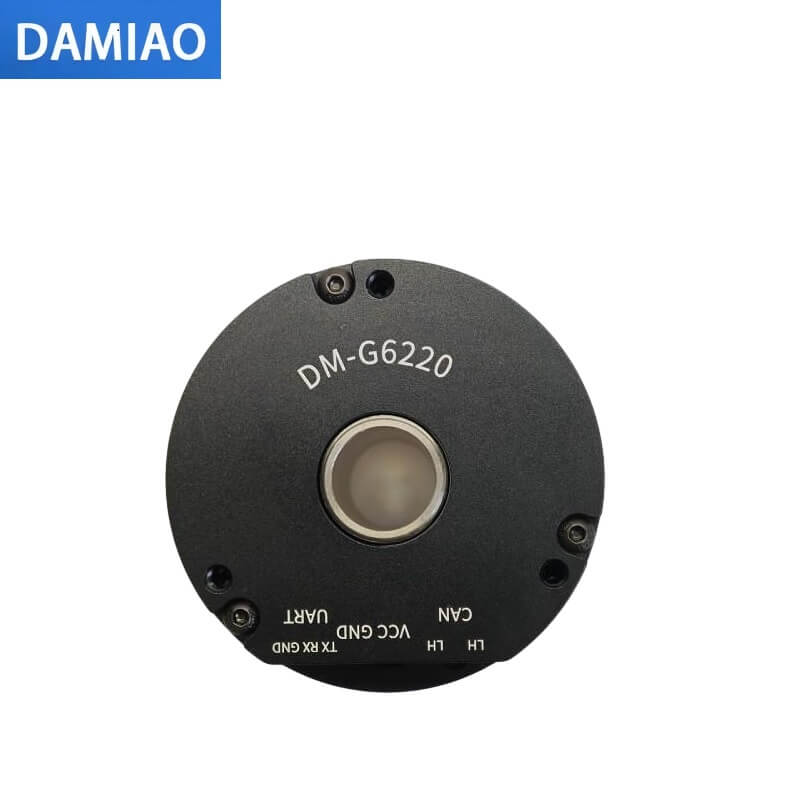

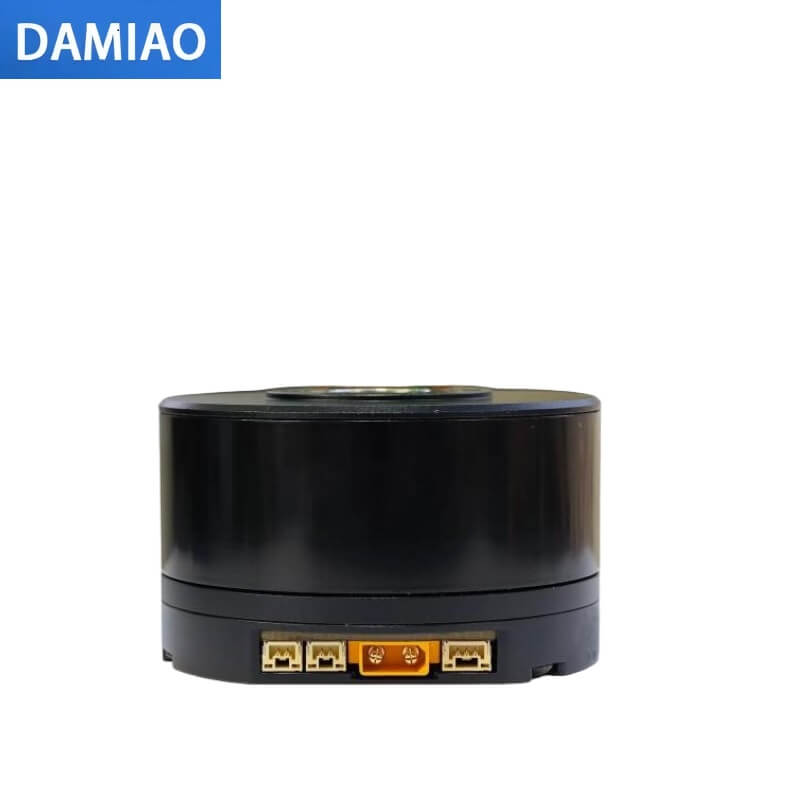

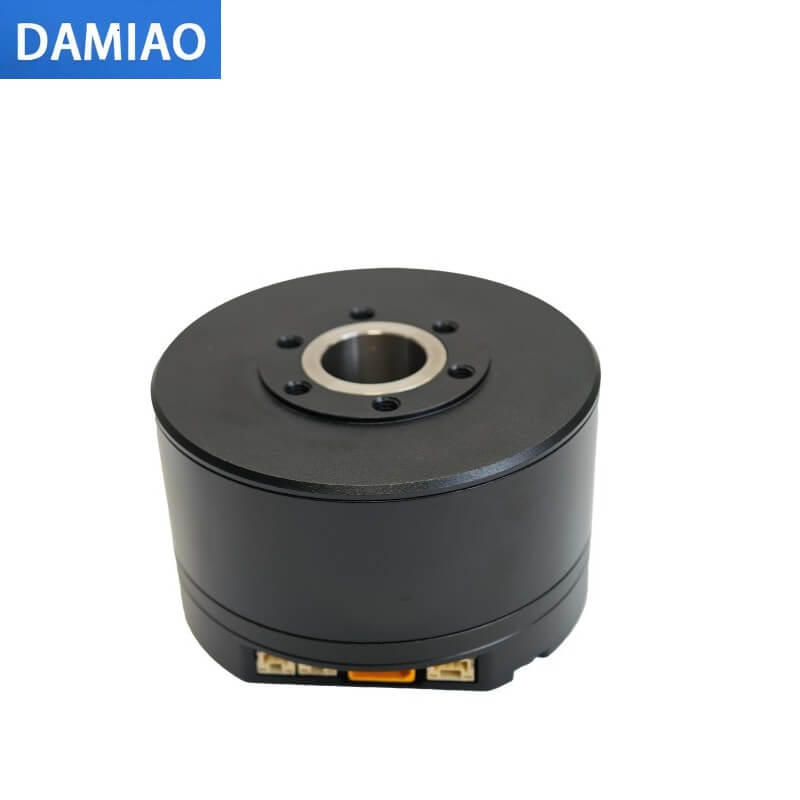

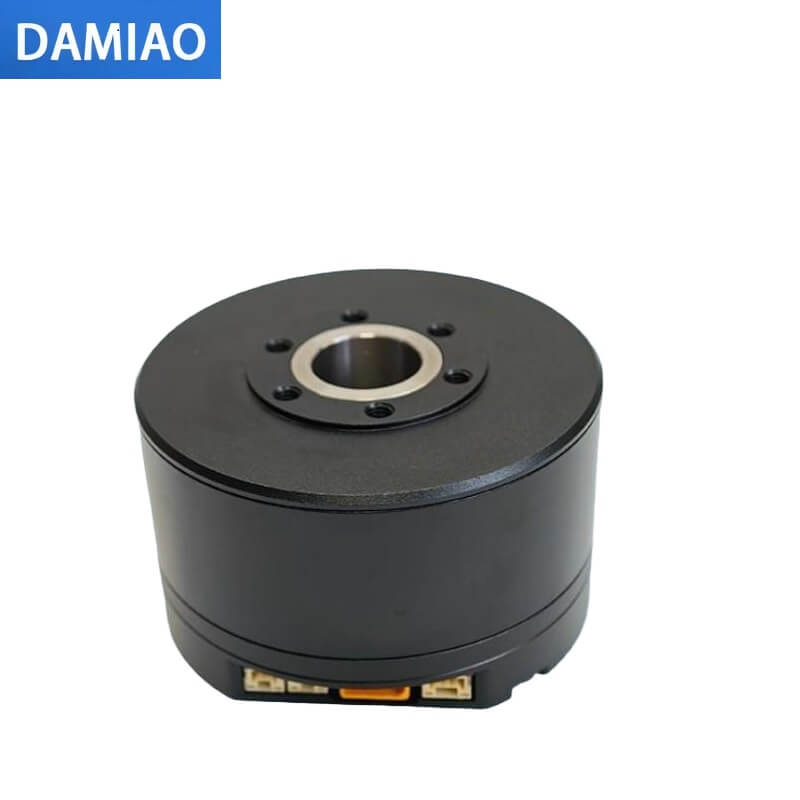

DAMIAO DM-G6220 Motor
Regular price
$110.00
Unit price
DAMIAO DM-G6220 Motor - Include Driver (24V) / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DAMIAO DM-G6220 Motor
Regular priceFrom
$110.00
Unit price
DAMIAO DM-G6220 Motor - Include Driver (24V) / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
DM-G6220
|
| Nominal Voltage | 24V |
| Nominal Current | 2.3A |
| Peak Current | 5.3A |
| Nominal Torque | 1.3N.M |
| Peak Torque | 2.7N.M |
| Nominal Speed |
110rpm |
| Max. No-load Speed | 300rpm |
| Reduction Ratio | 1:1 |
| Pole Pairs | 14 |
| Phase Inductance | 2900μH |
| Phase Resistance | 3.5Ω |
| Outer Diameter | 68mm |
| Height | 41.5mm |
| Motor Weight | 494g |
| Encoder Type |
Magnetic Encoder |
| Control Interface | CAN |
| Configuration Interface | UART@921600bps |
USB_to_CANFD_Module_User_Manual_V1.0.pdf
DAMIAO DM-G6220 Motor Instruction Manual (Wiki)
DAMIAO Host Computer User Manual (Wiki)
