CubeMars | SKU:

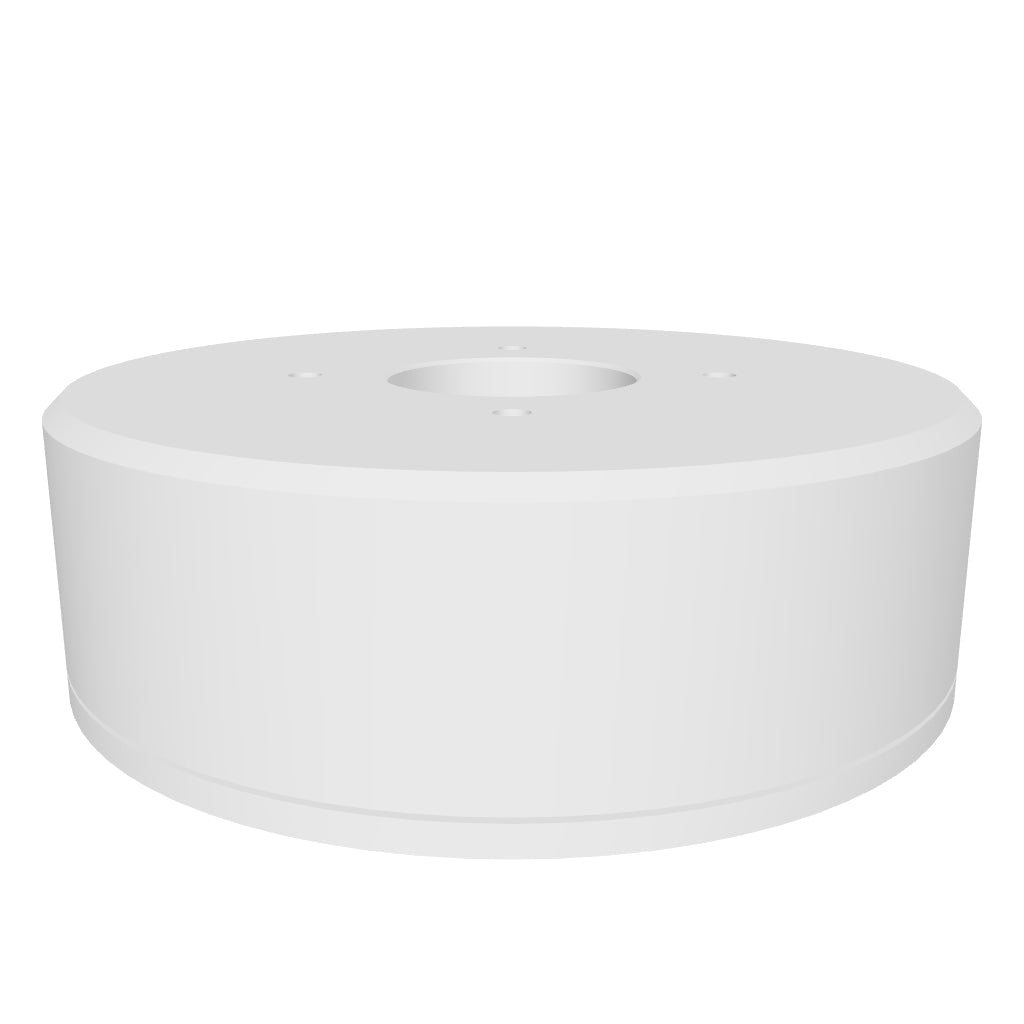

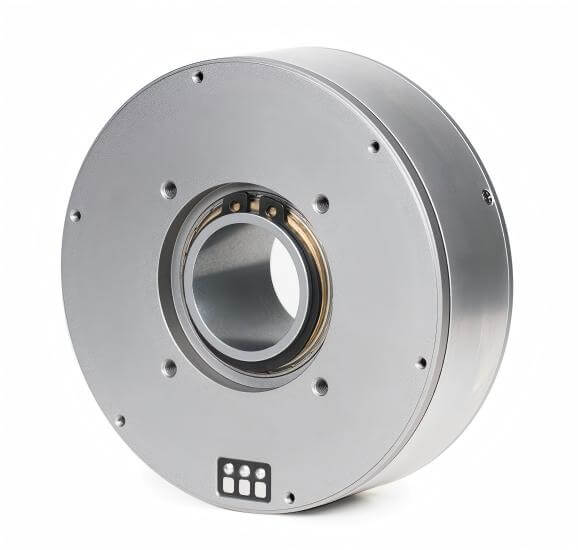

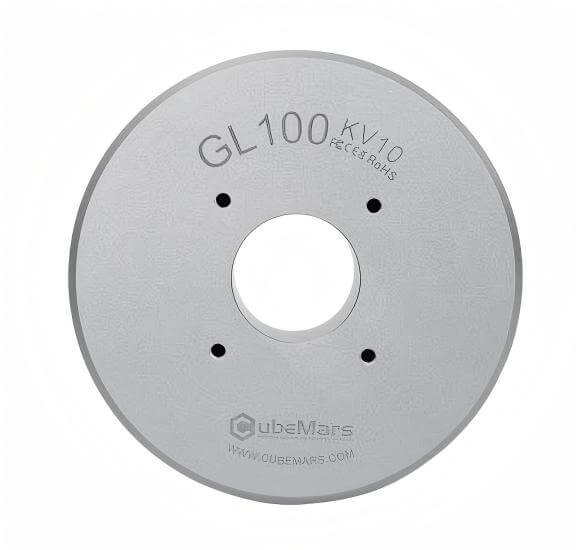

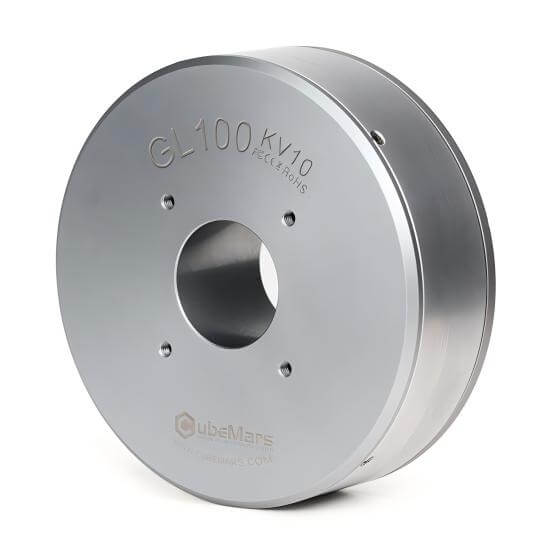

CubeMars GL100 Motor
Regular price
$272.99
Unit price
/
Unavailable
CubeMars GL100 Motor - GL100 KV10 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars GL100 Motor
Regular price
$272.99
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Insulation High-Voltage | 1000V 5mA/2s |
| Insulation Resistance | 1000V 10MΩ |
| Phase | 3 |
| Pole Pairs | 20 |
| Driving Way | FOC |
| Operation Ambient Temperature |
-20℃~50℃ |
| Winding Type | Star |
| Insulation Class |
H |
| Ke |
102.4V/krpm |
| Phase To Phase Resistance | 2650mΩ |
| Phase To Phase Inductace |
2350μH |
| Inertia | 2310gc㎡ |
| Km |
0.63272397Nm/√W |
| Mechanical Time Constant | 0.58ms |
| Electrical Time Constant | 0.89ms |
| Weight | 698g |
| Maximum Torque Weight Ratio | 11.03Nm/Kg |
| Rated Voltage | 24V |
| No-Load Speed |
223rpm |
| Rated Torque | 3N.m |
| Rated Speed | 130rpm |
| Rated Current |
2.9ADC |
| Peak Torque |
7.7N.m |
| Peak Current | 7.8ADC |
| Kv | 9.3rpm/V |
| Kt | 1.030Nm/A |
