CubeMars

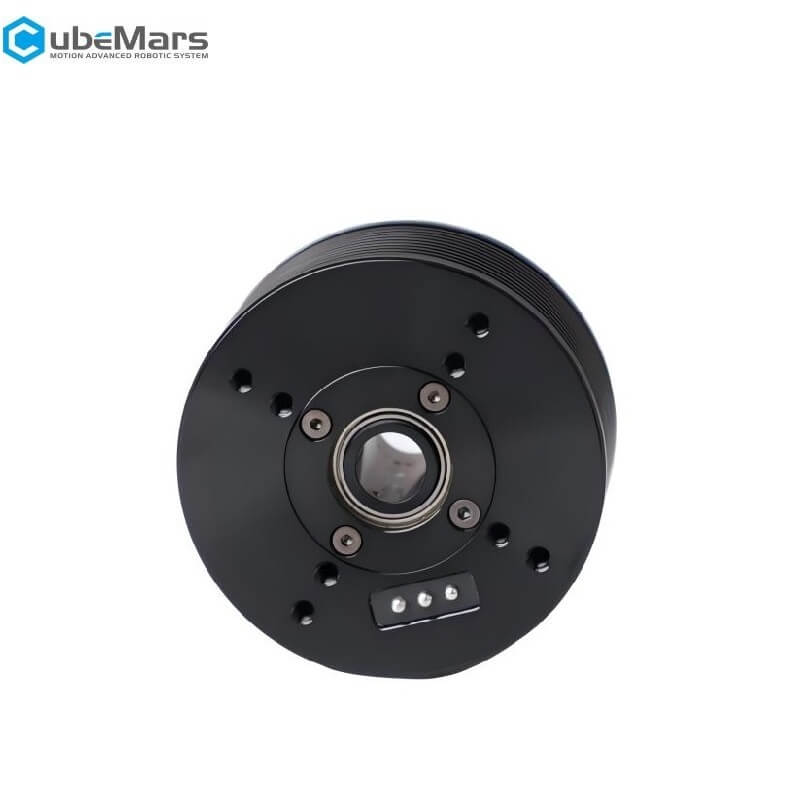

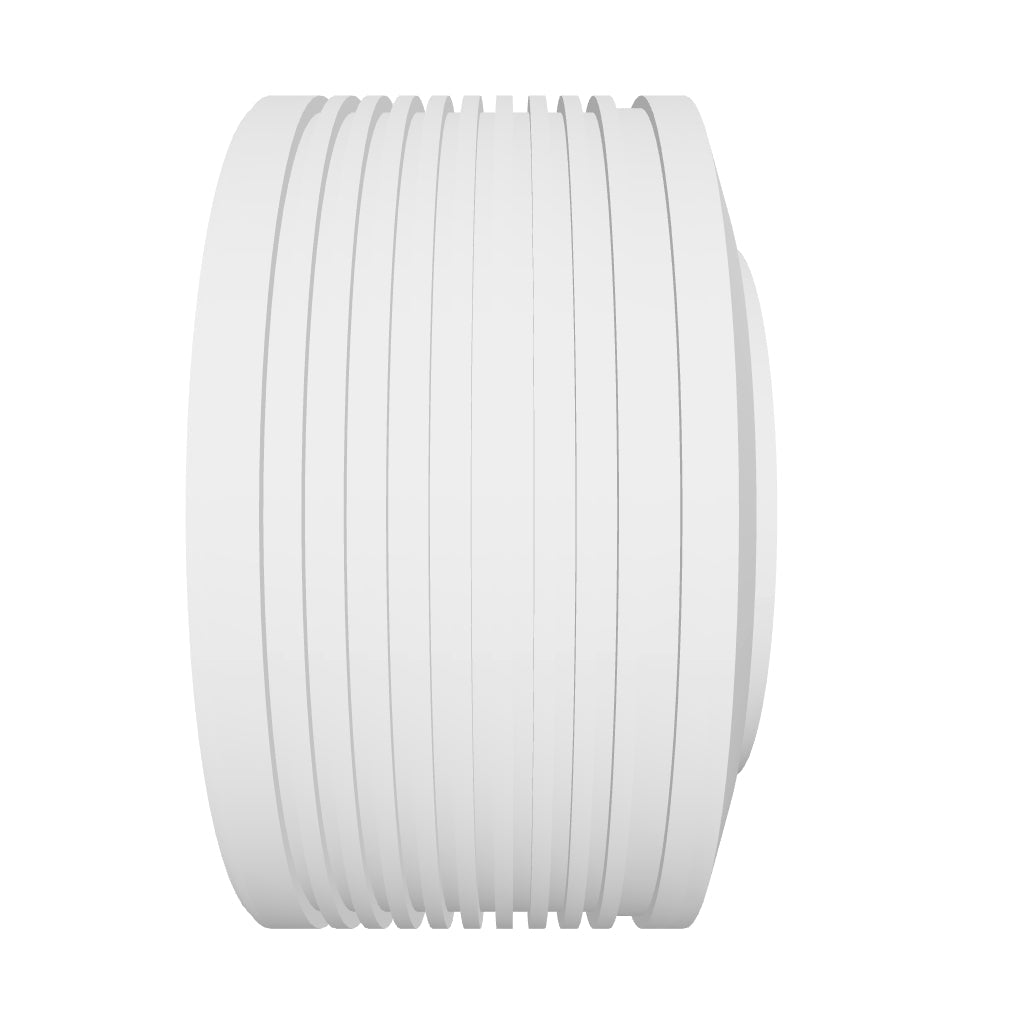

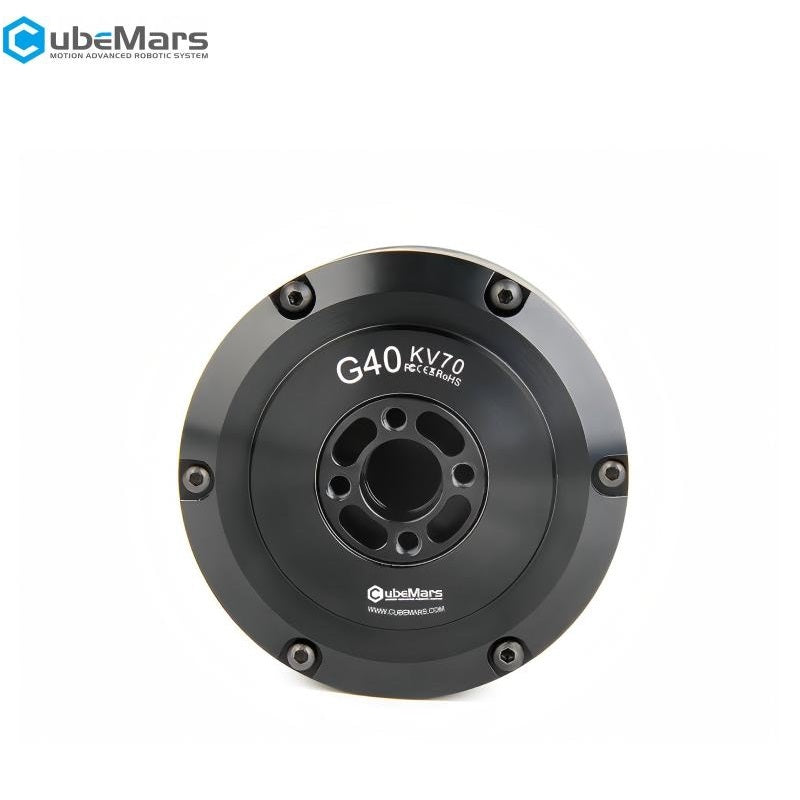

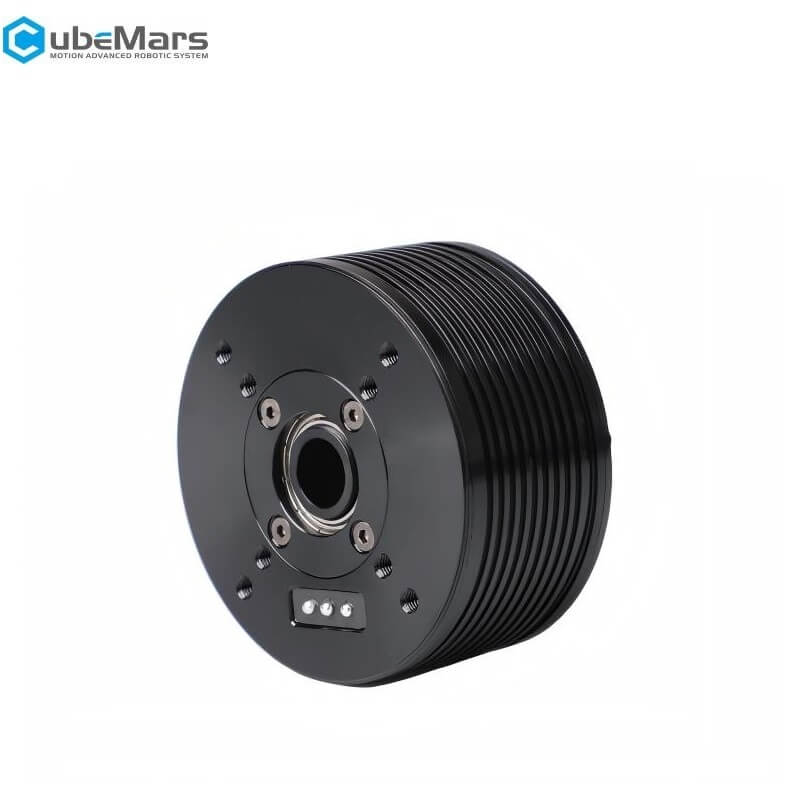

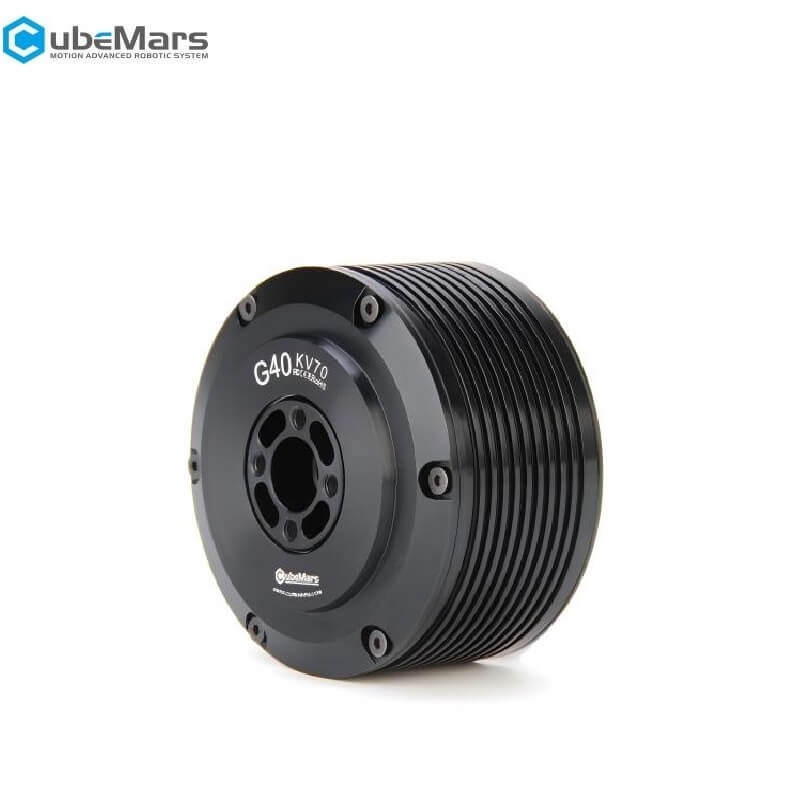

CubeMars G40 Motor

$72.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Technical Specifications

Parameter Value Value
Mode KV70 KV210
Insulation Class H H
Insulation High-Voltage 500V 5mA/2s 500V 5mA/2s
Insulation Resistance 500V 10MΩ 500V 10MΩ
Phase 3 3
Driving Way FOC FOC
Operation Ambient Temperature -20℃~50℃
 -20℃~50℃
Winding Type Star Star
Pole Pairs 14
 14
Ke 15.00V/krpm
 4.88V/krpm
Phase To Phase Resistance 4500mΩ 500mΩ
Phase To Phase Inductace 1800μH
 180μH
Inertia 74gc㎡ 74gc㎡
Km 0.0707Nm/√W
 0.0707Nm/√W
Mechanical Time Constant 1.48ms 1.48ms
Electrical Time Constant 0.40ms 0.36ms
Weight 107g 107g
Maximum Torque Weight Ratio 4.67Nm/Kg 7.01Nm/Kg
Rated Voltage 16V 16V
No-Load Speed 1015rpm
 3120rpm
Rated Torque 0.25N.m 0.25N.m
Rated Speed 430rpm 2100rpm
Rated Current 1.62ADC
 4.9ADC
Peak Torque 0.5N.m
 0.75N.m
Peak Current 3.3ADC 14.9ADC
Kv 70rpm/V 210rpm/V
Kt 0.150Nm/A 0.050Nm/A
