ROBSTRIDE

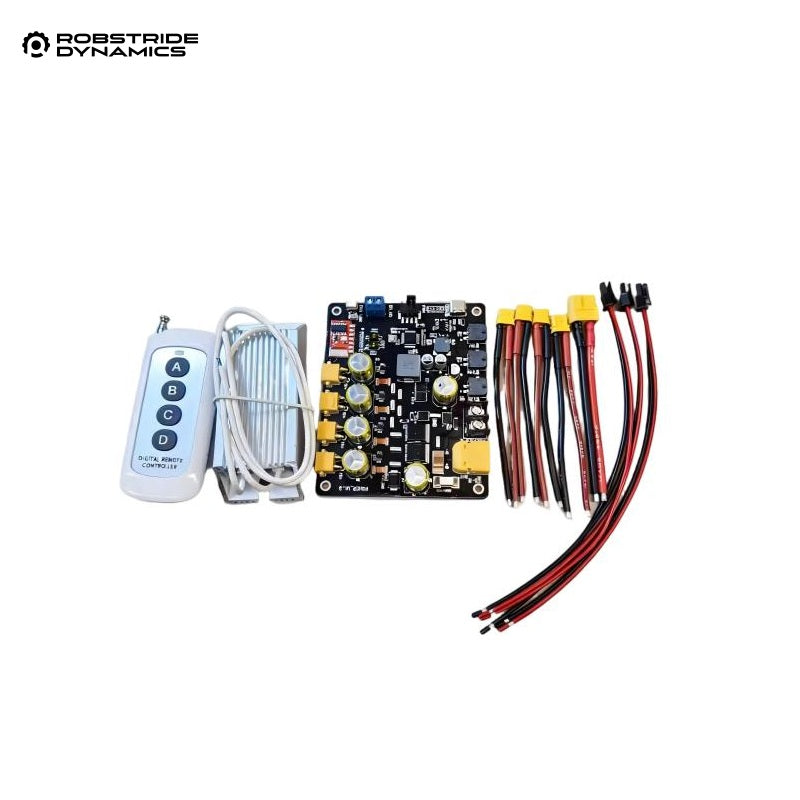

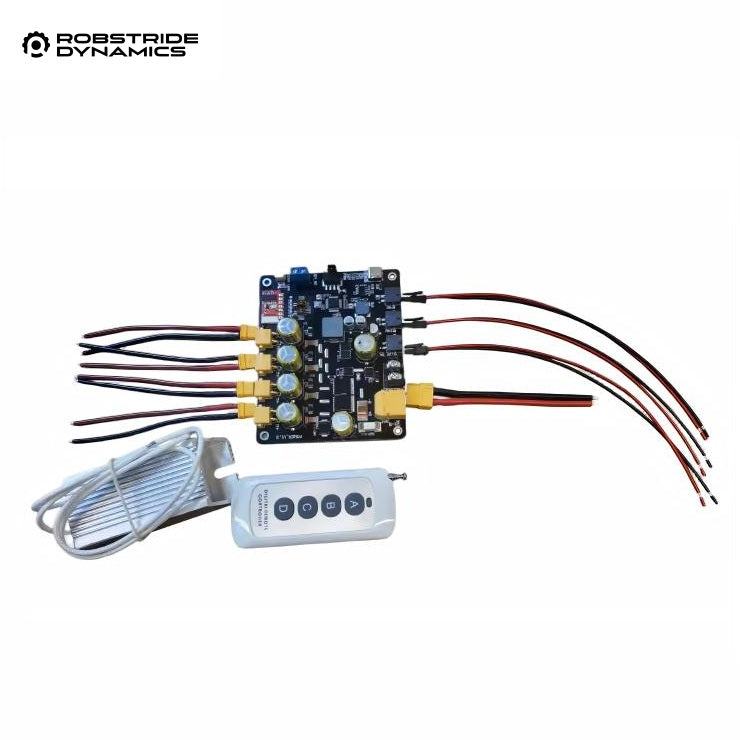

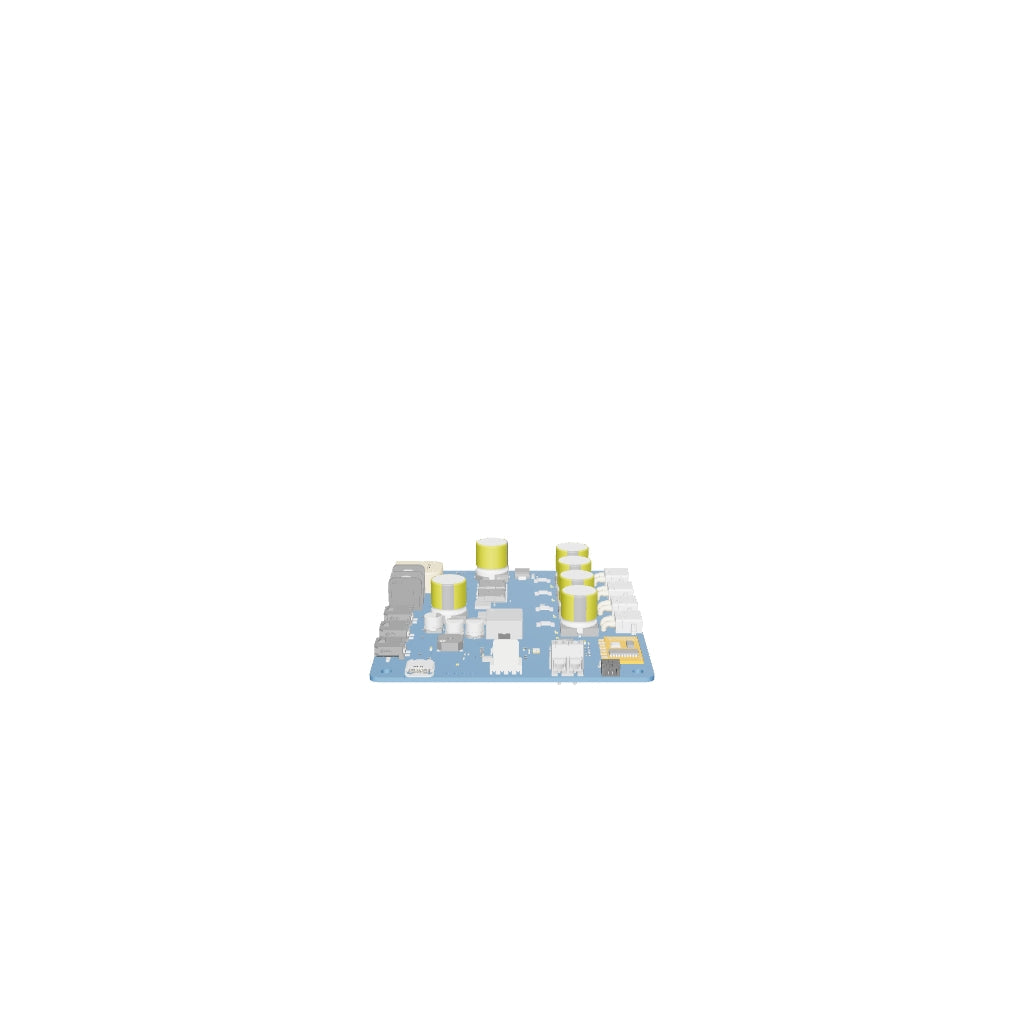

ROBSTRIDE Power-Board

$150.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Technical Specifications

Parameter Value
Product Name Power Board
Max Height 16.5mm
Input Voltage Range 20V~65V (24V output disabled when <30V)
Under‑Voltage Protection <20V (recoverable fault)
Over‑Voltage Protection >65V (non‑recoverable fault)
Main Branch Supply Rated 20A, peak 40A
24V Supply Interface Rated 4A, current limit 6A, short‑circuit protection
12V Supply Interface Rated 2A, current limit 3A, short‑circuit protection
5V Supply Interface Rated 2A, current limit 3A, short‑circuit protection
Main Branch Overcurrent Protection 80A/30ms (software)
100A/1ms (hardware)
150A/1.2us
Main Branch Short‑Circuit Protection Additional disposable fuse A²S=5270
Branch Overcurrent/Short‑Circuit Non‑recoverable fault, requires power cycle to recover
24V/12V/5V Overcurrent/Short‑Circuit Recoverable fault
Over‑Temperature Protection 100°C
Voltage Sampling Accuracy ±1%
Total Current Sampling Accuracy ±2%
Total Current Sampling Accuracy ±1%
Communication Interface CAN communication / COM communication (USB)
Pre‑charge/Bleed Resistor Recommended resistance 3~10Ω/50W+ (power to be adjusted according to actual situation)
Pre‑charge/Bleed Resistor (Configurable) Default turn‑on voltage 64V, turn‑off voltage 60V (configurable)
Remote Pairing Pairing methods: long press pairing button + quick press any button twice, etc.
Power‑up/down Mode MODE00: Default power‑up, 24V, 12V, 5V power up simultaneously, motor power after 1s
MODE01: Default no power, power‑up controlled by remote or communication command
