MUWEIDU | SKU:

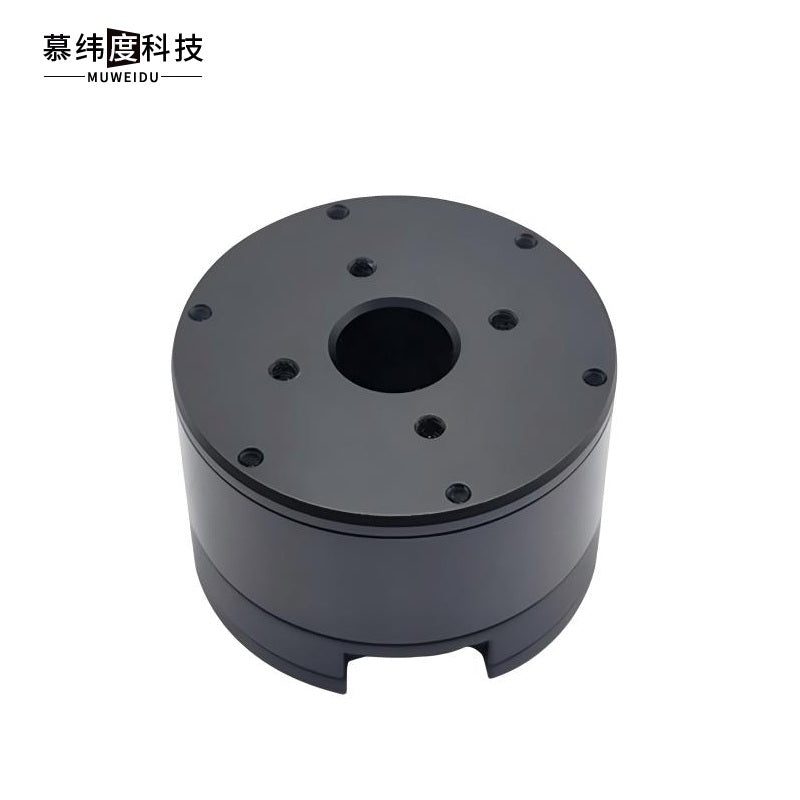

MUWEIDU K9040 Motor
Regular price
$235.00
Unit price
MUWEIDU K9040 Motor - K9040 Motor / RS485 / 16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K9040 Motor
Regular price
$235.00
Unit price
MUWEIDU K9040 Motor - K9040 Motor / RS485 / 16 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K9040 (16/35T) |
| Rated Voltage | 24V |
| Rated Current | 7.03A / 3.34A |
| Peak Power | 120W / 55W |
| Rated Torque | 1.63N.m / 1.67N.m |
| Peak Torque | 3.4N.m / 5N.m |
| Rated Speed | 780rpm / 290rpm |
| Encoder | 18bit |
| Rotor Inertia | 3271gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ89mm×42mm |
| Weight | 660g |
