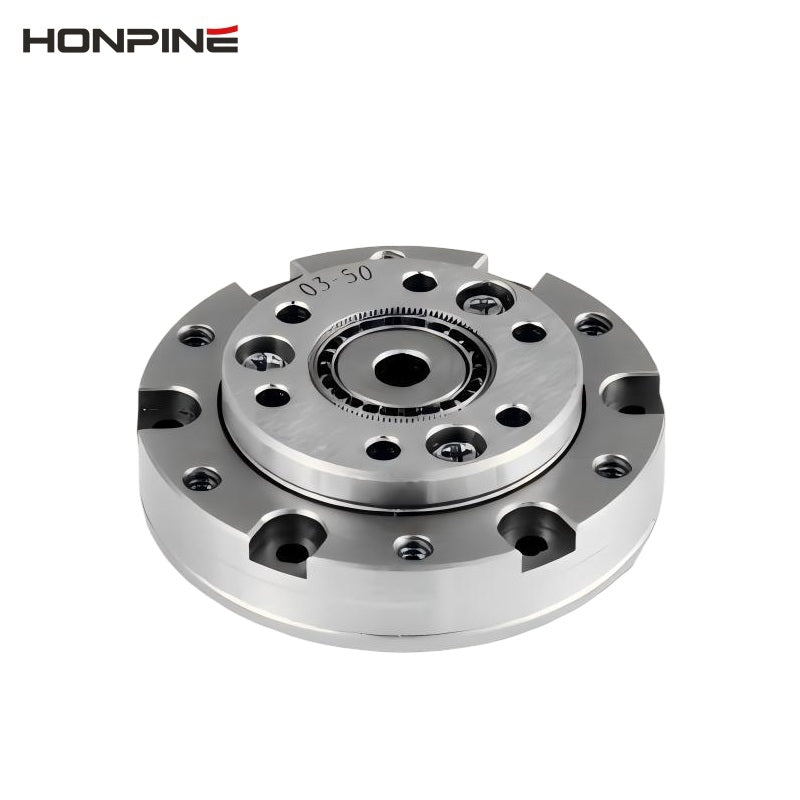

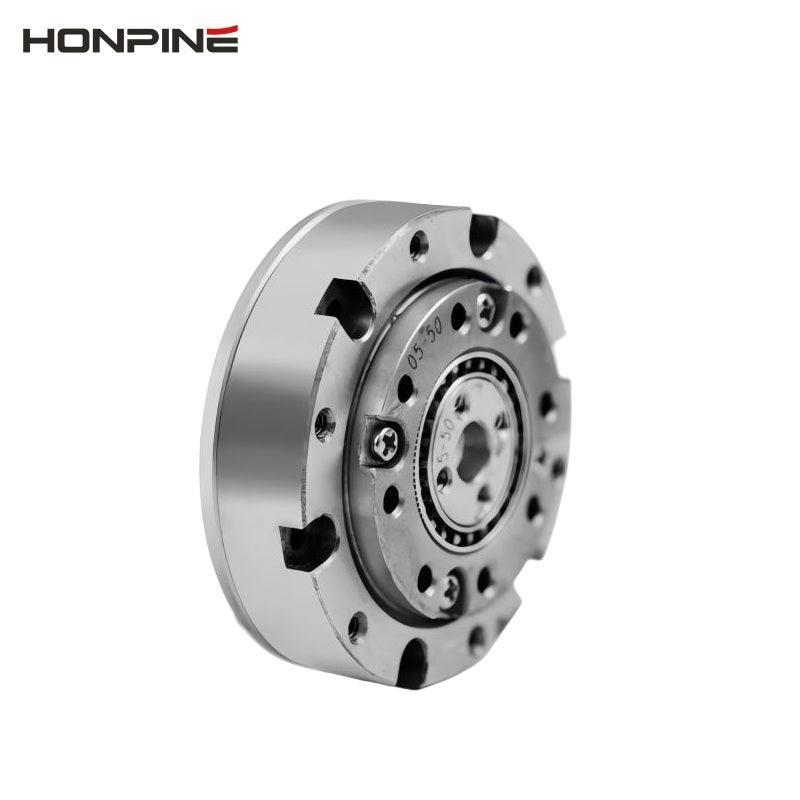

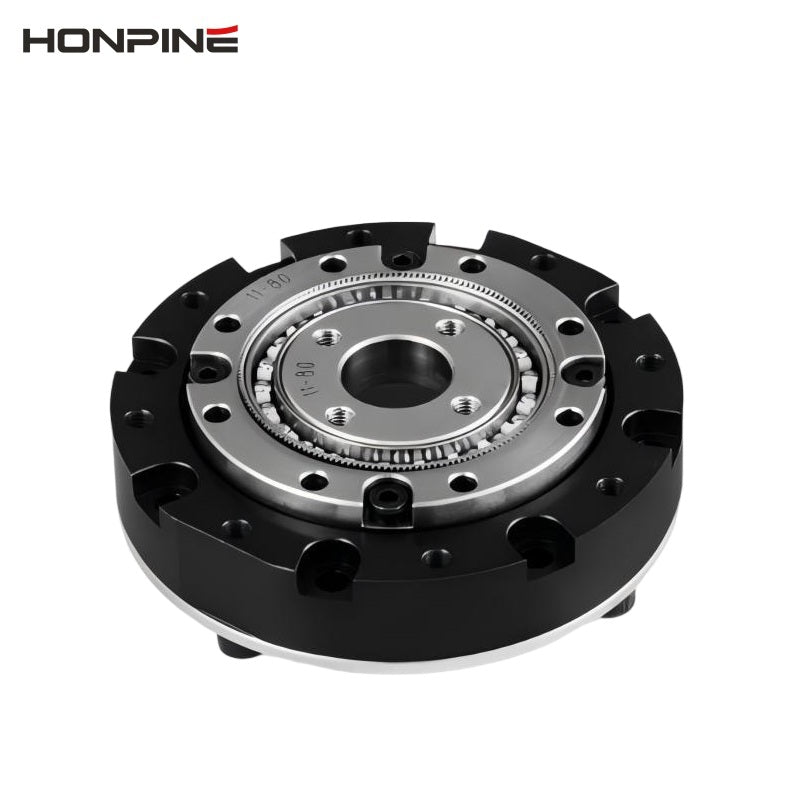

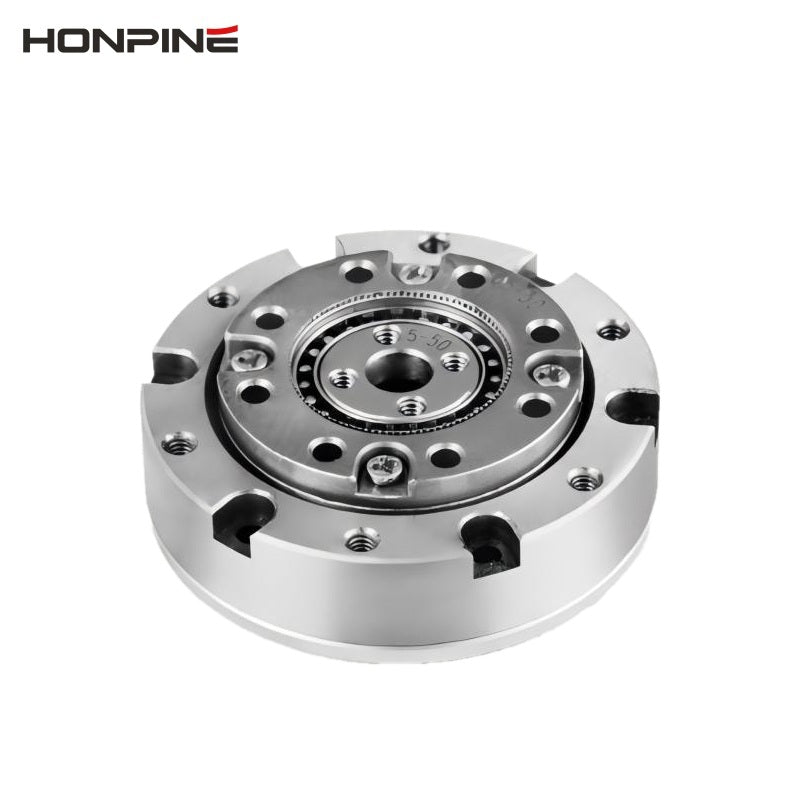

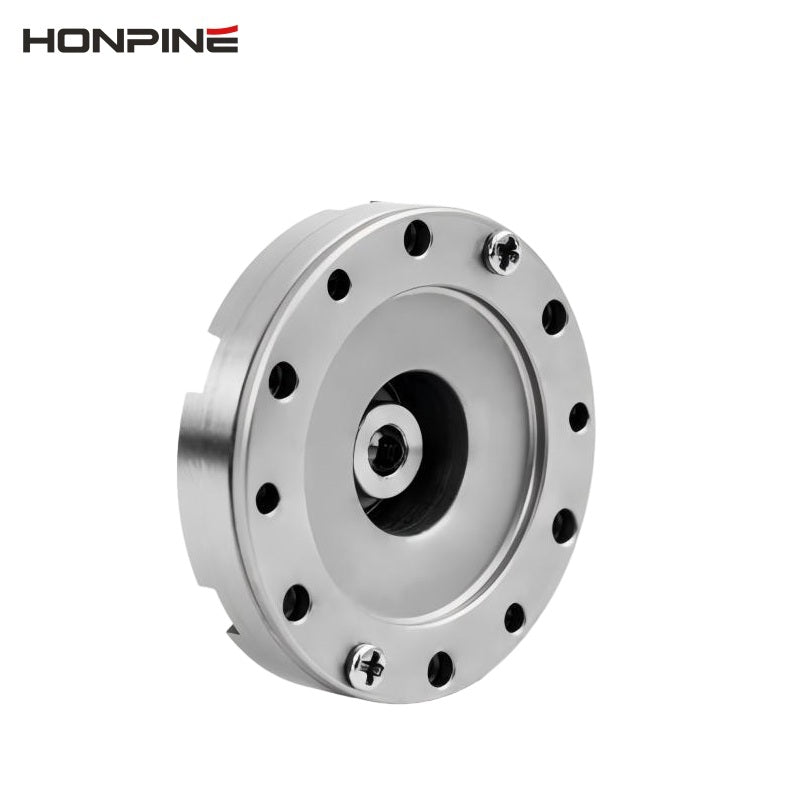

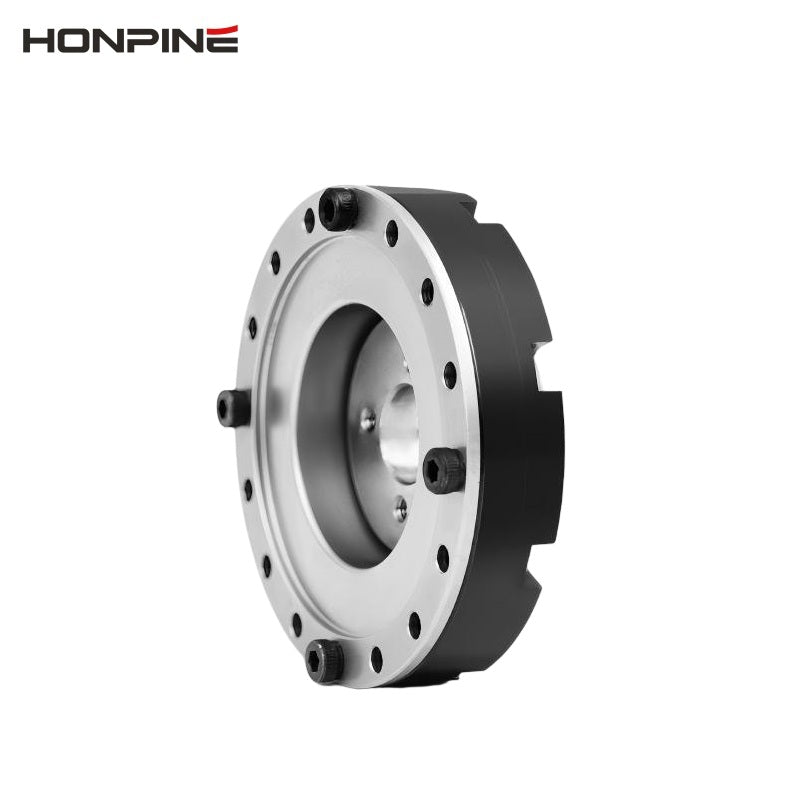

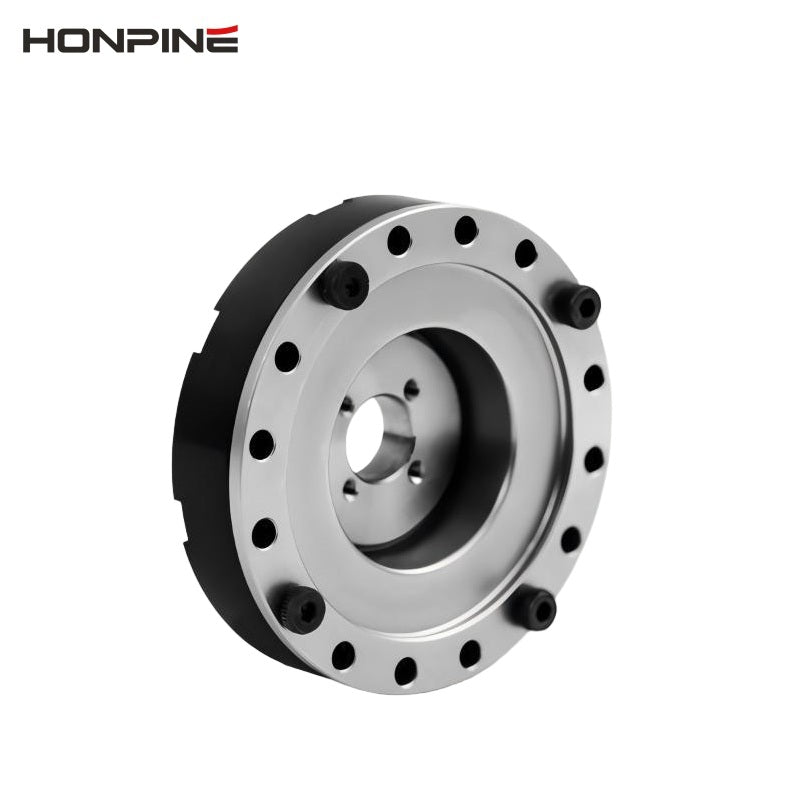

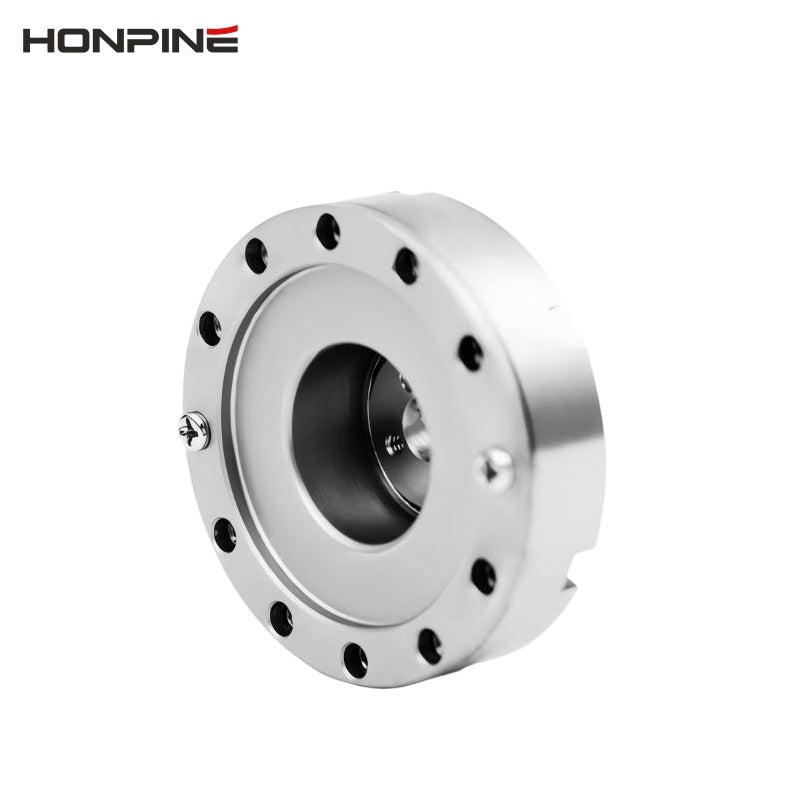

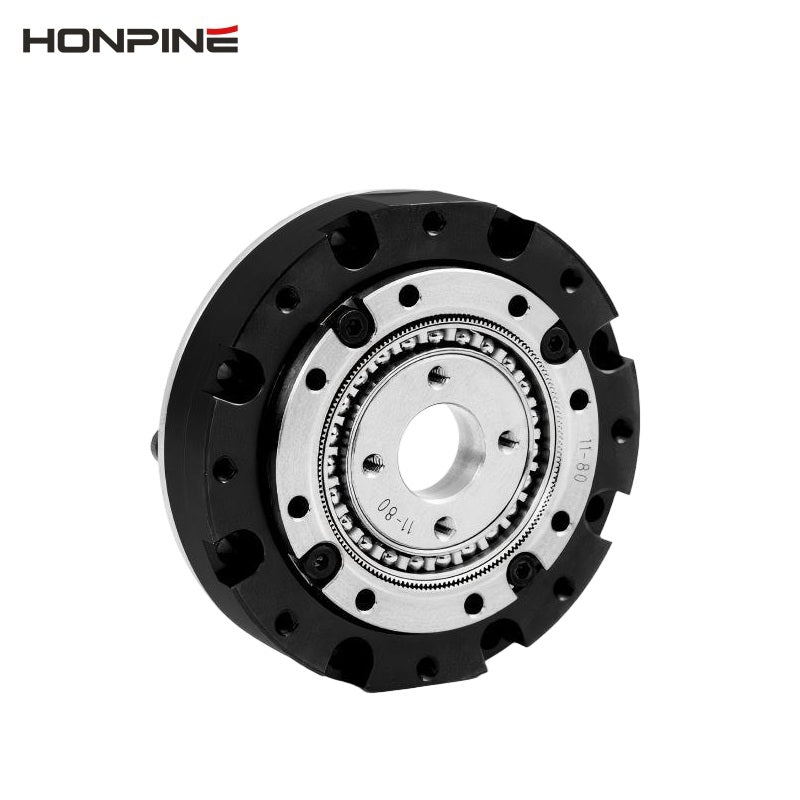

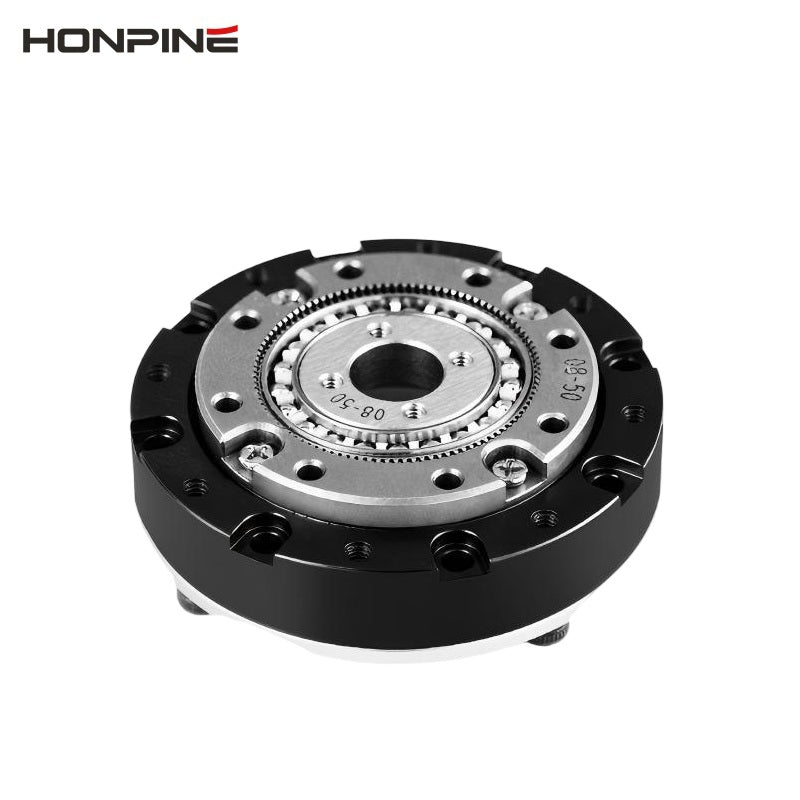

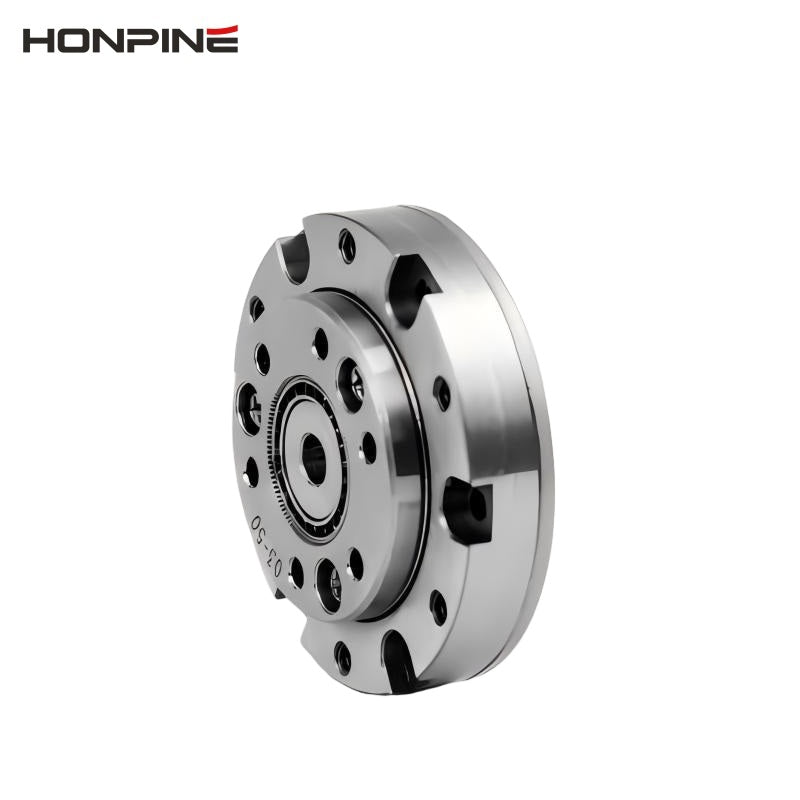

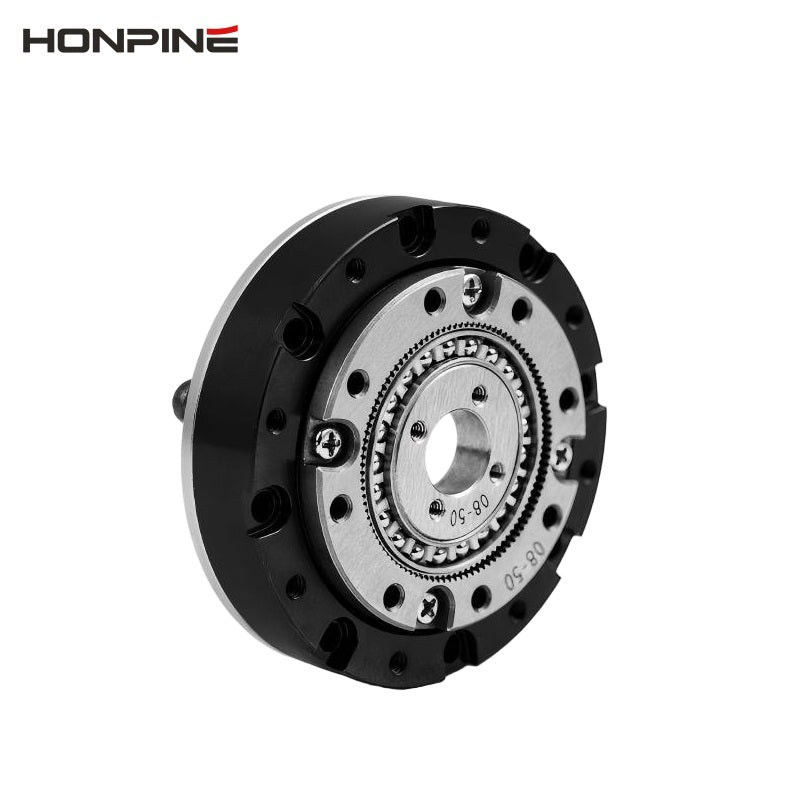

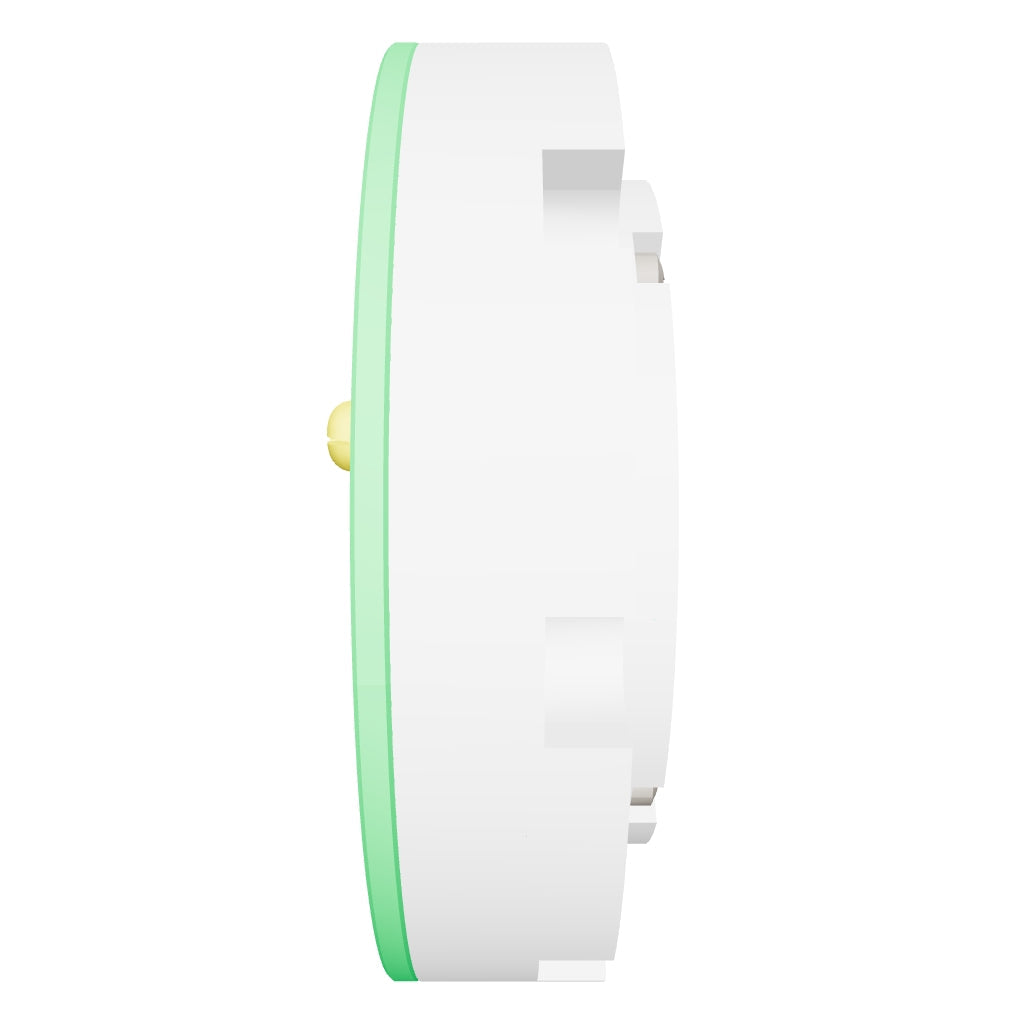

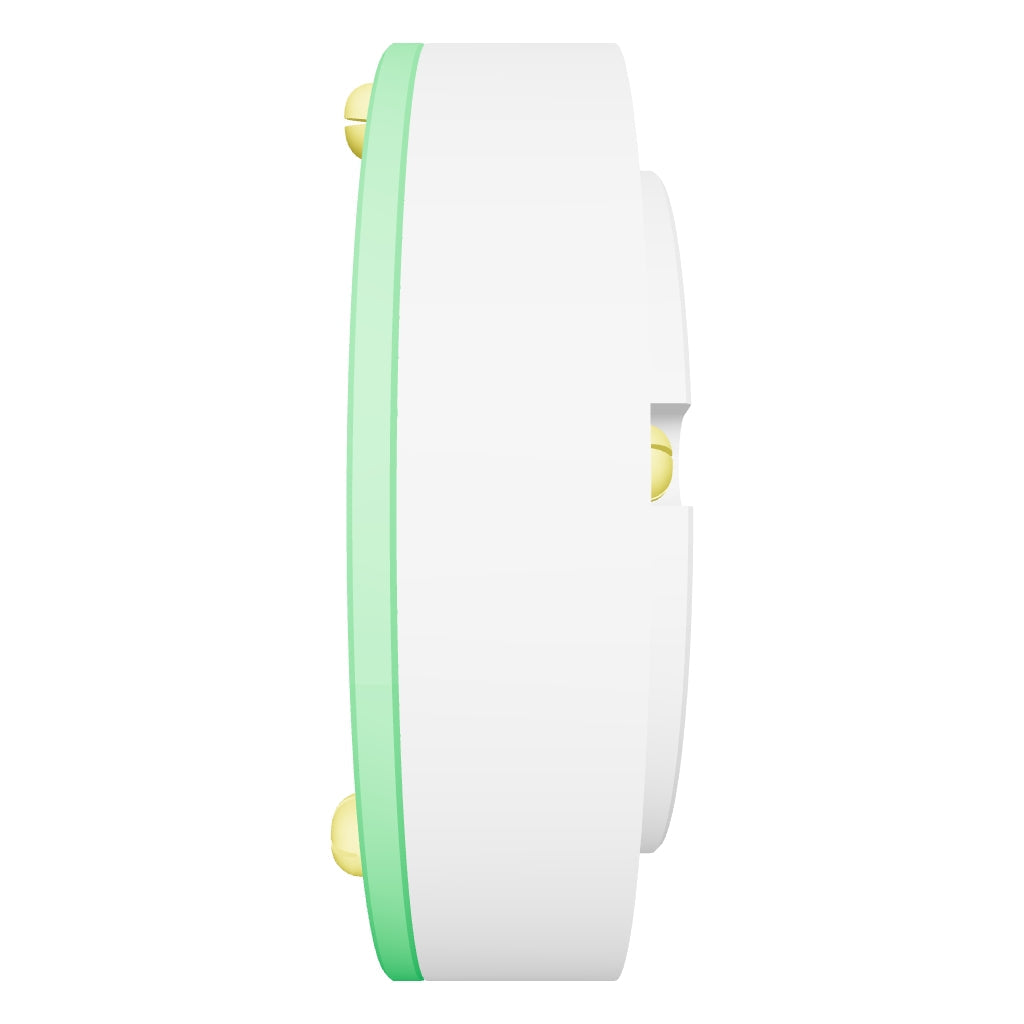

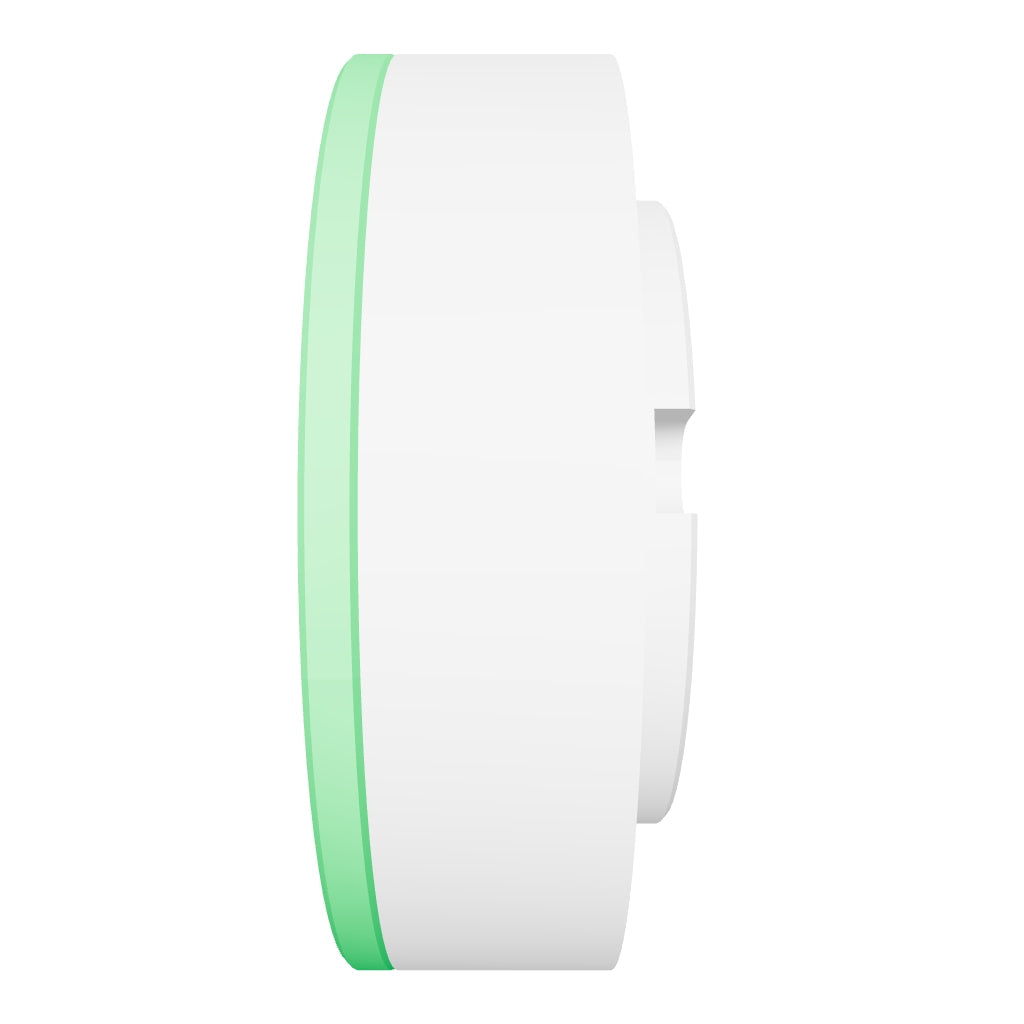

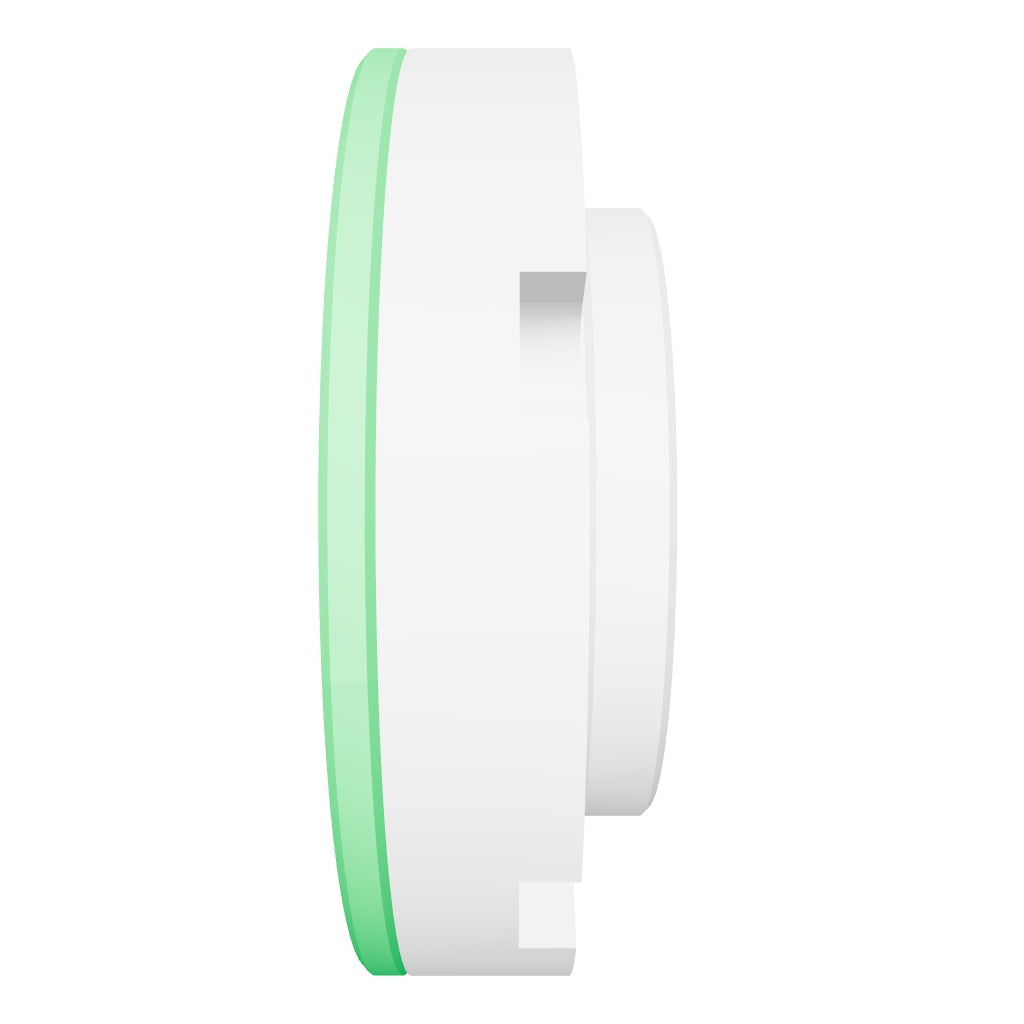

HONPINE SHD Small Harmonic Drive Reducer

$373.00
Version
Model
Gear Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

FHD Series Parameter Table : Sheet 1
Model Gear Ratio Rated torque at input 2000r/min [N.m] Permissible peak torque during starting and stopping [N.m] Maximum allowable value of average load torque [N.m] Maximum instantaneous permissible torque [N.m] Maximum allowable input speed [r/min] Allowable average input speed [r/min] Gear Backlash
(arcsec)		 1/4GD[kgcm2] Mass
(kg)
SHD
Series		 03 30 0.08 0.15 0.12 0.25 10000 6500 ≤20 7.0x10-4 0.016
50 0.13 0.24 0.16 0.5 ≤20
05 30 0.23 0.47 0.35 0.85 10000 6500 ≤20 2.5x10-4 0.040
50 0.38 0.87 0.5 1.7 ≤20
80 0.5 1.2 0.82 2.2 ≤10
08 30 0.8 1.6 1.3 3.2 8500 3500 ≤20 3.2x10-3 0.061
50 1.6 3.16 2.1 6.1 ≤20
80 2.1 4 2.9 7.5 ≤10
100 2.4 4.6 3.2 8.7 ≤10
11 30 2.1 4.1 3.1 8.2 8500 3500 ≤20 1.4x10-2 0.127
50 3.2 7.8 5.1 15 ≤20
80 4.2 9.5 7.2 20 ≤10
100 4.8 10.5 8.7 23 ≤10
14 30 3.8 8.7 6.2 15 8500 3500 ≤20 3.4x10-1 0.312
50 4.8 16 6.8 32 ≤20
80 6.4 22 9.5 45 ≤10
100 7.4 26 10.8 50 ≤10
