HONPINE

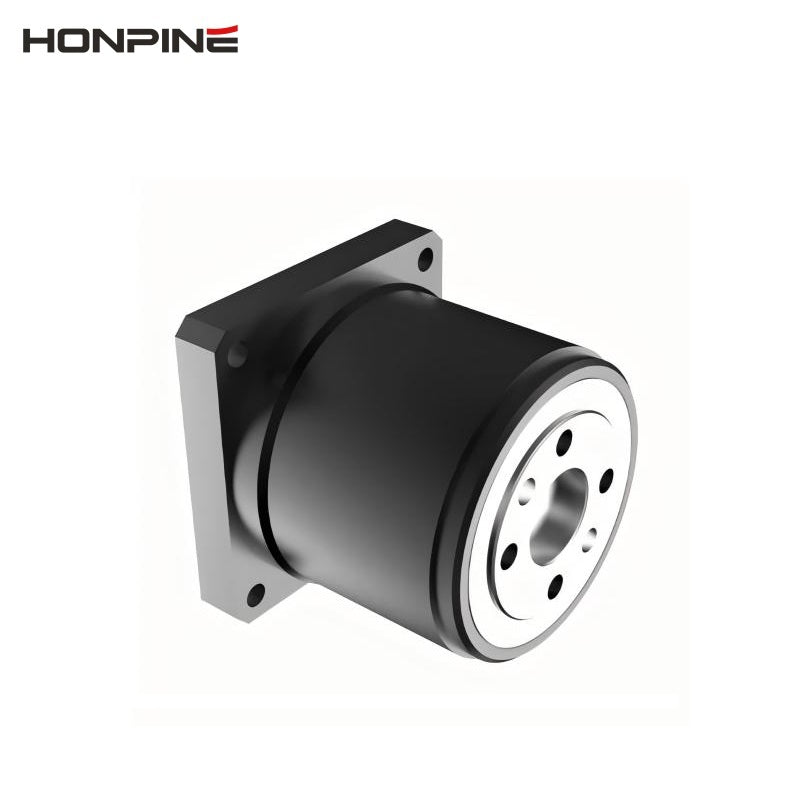

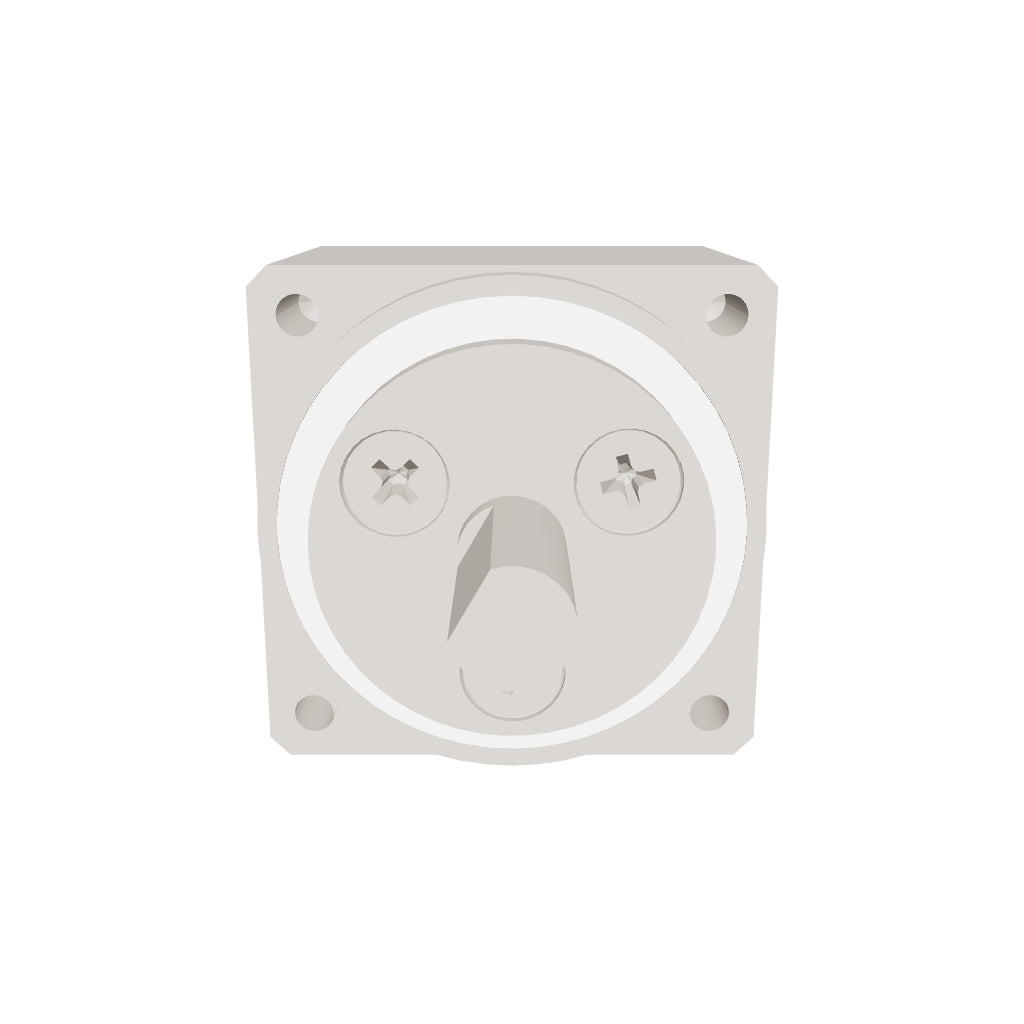

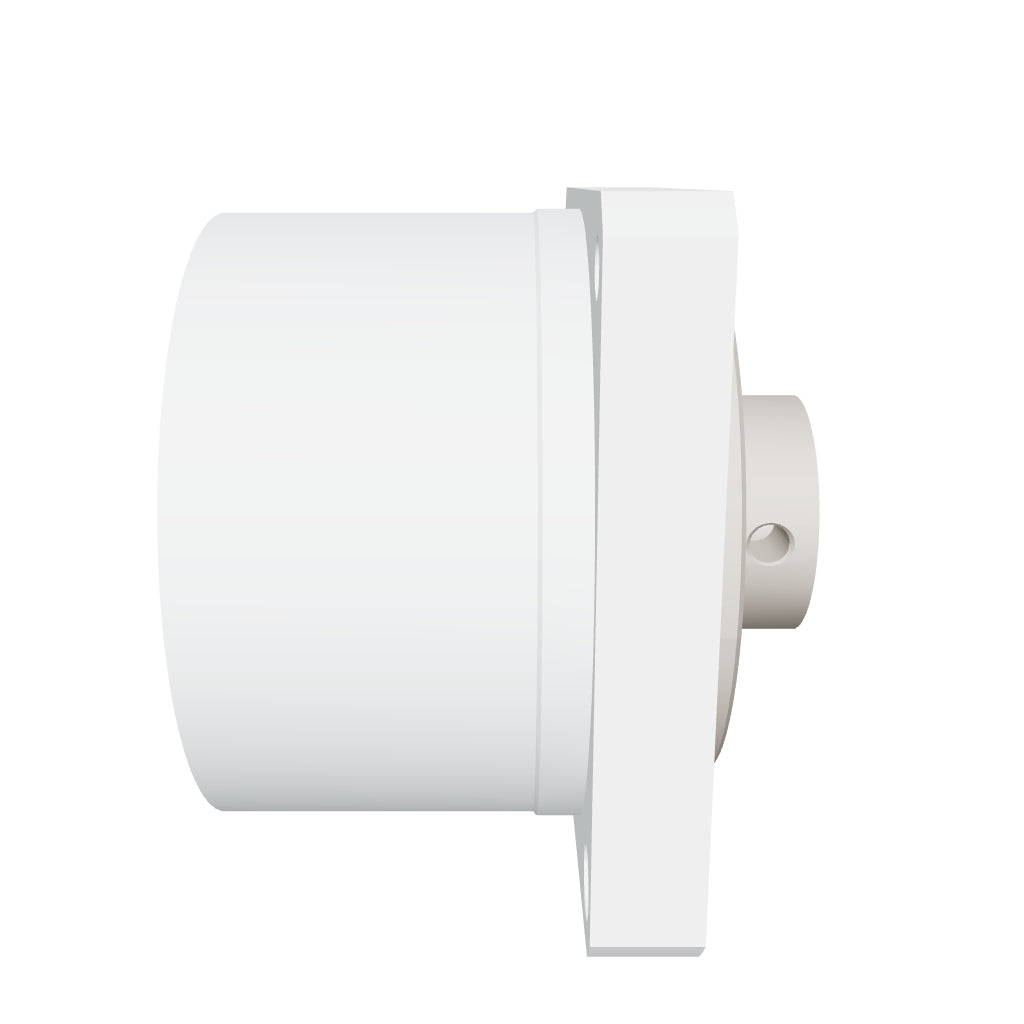

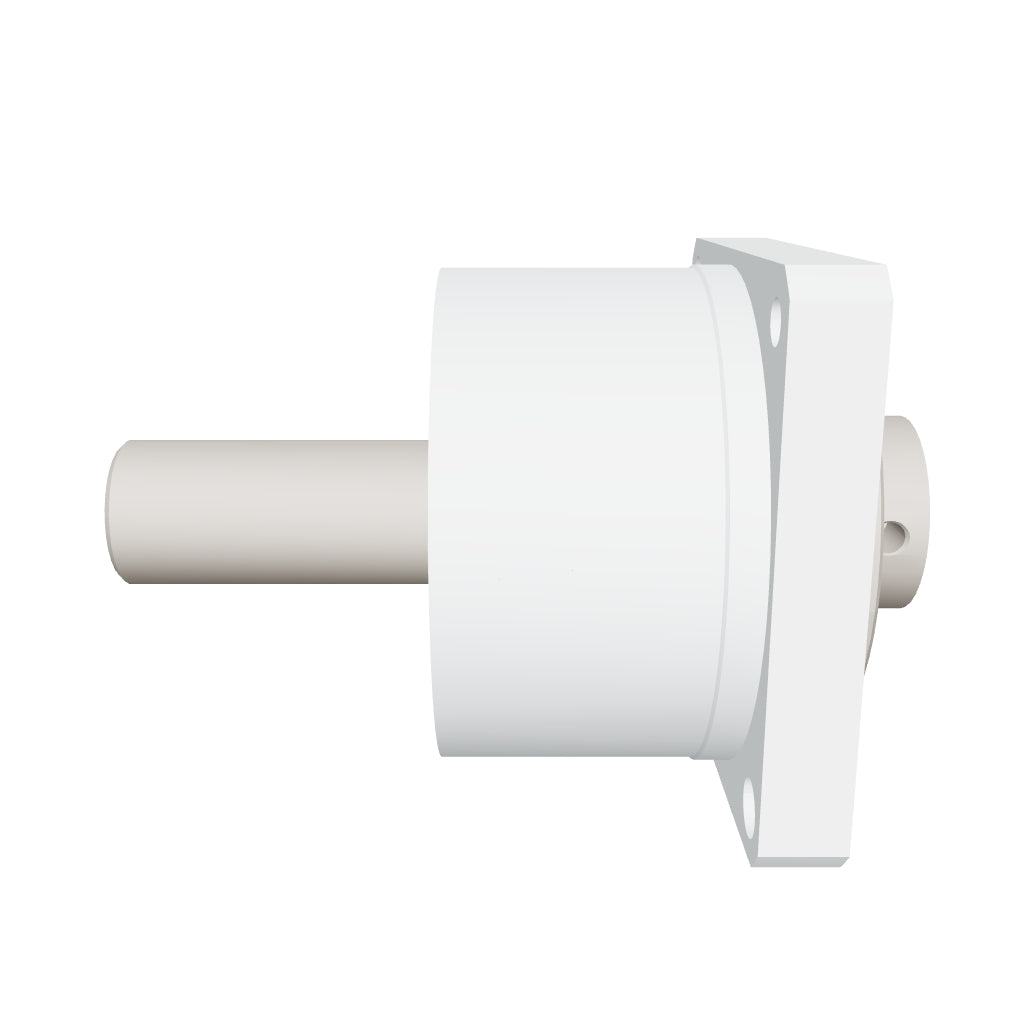

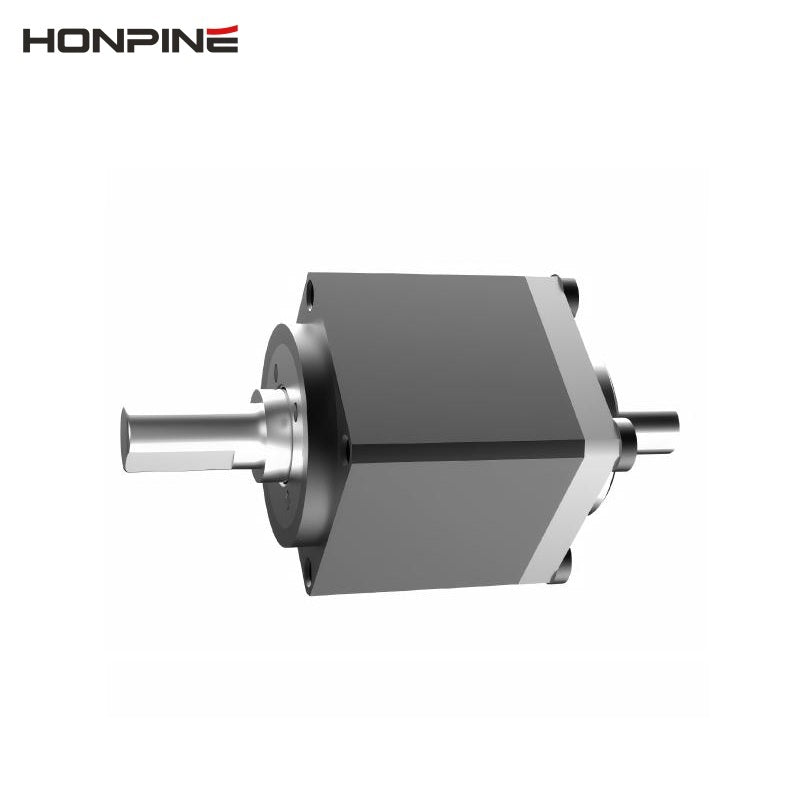

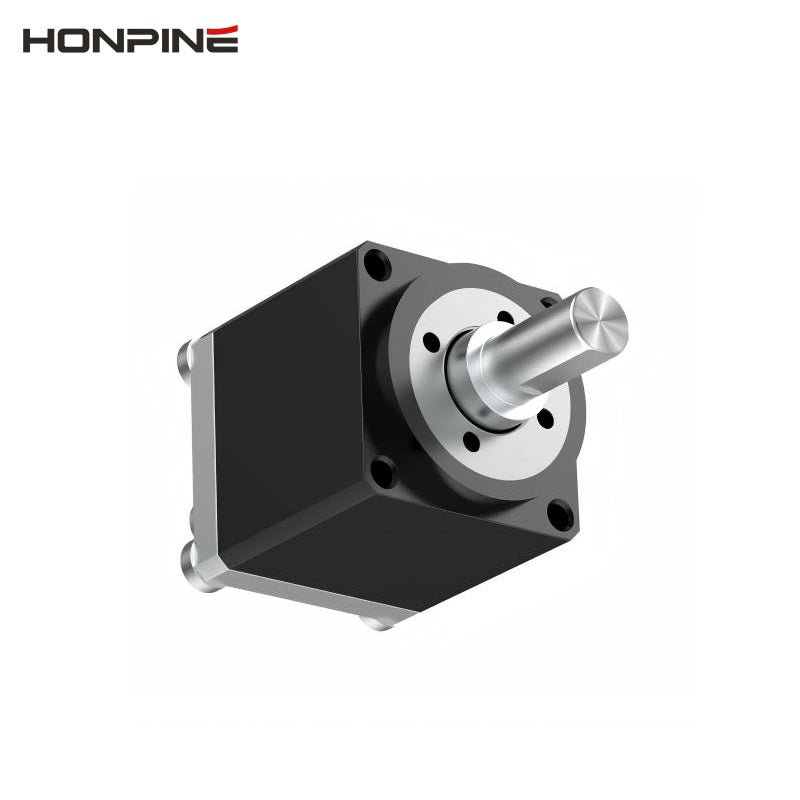

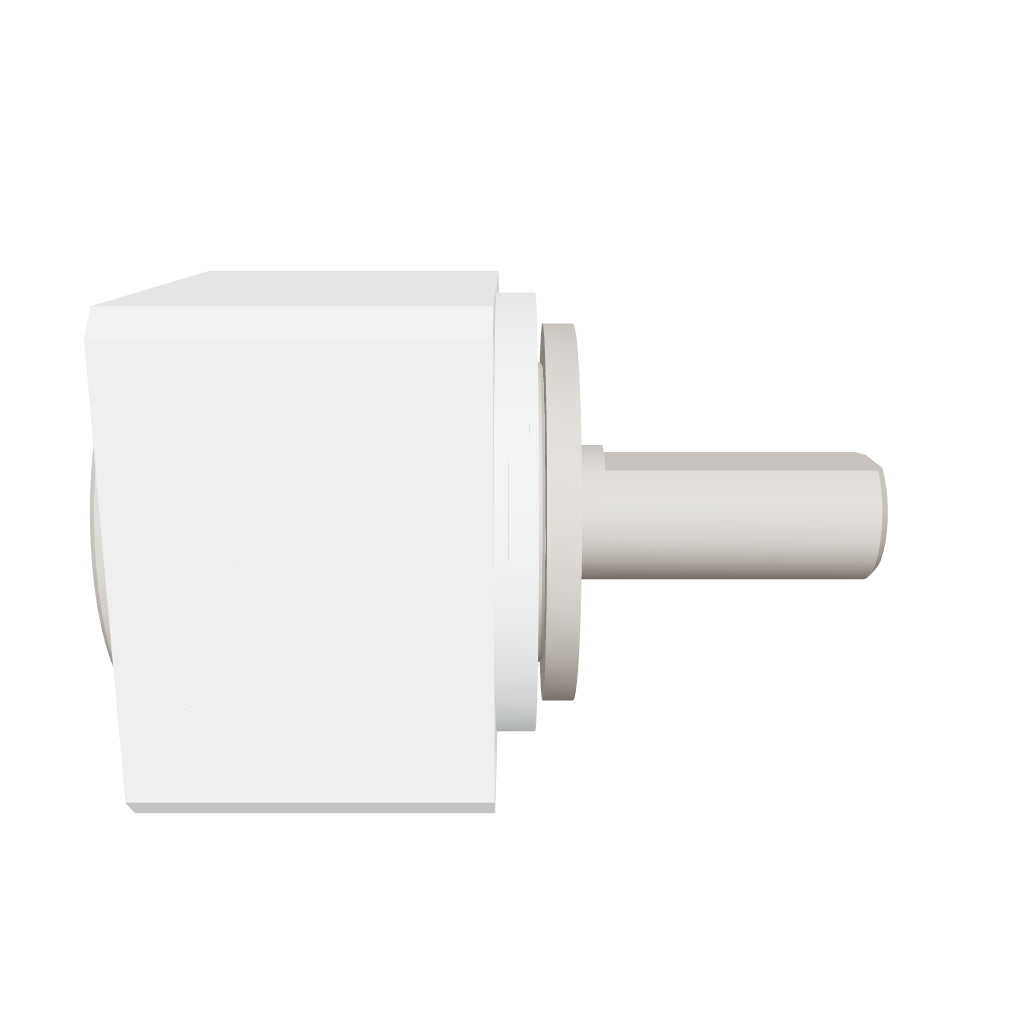

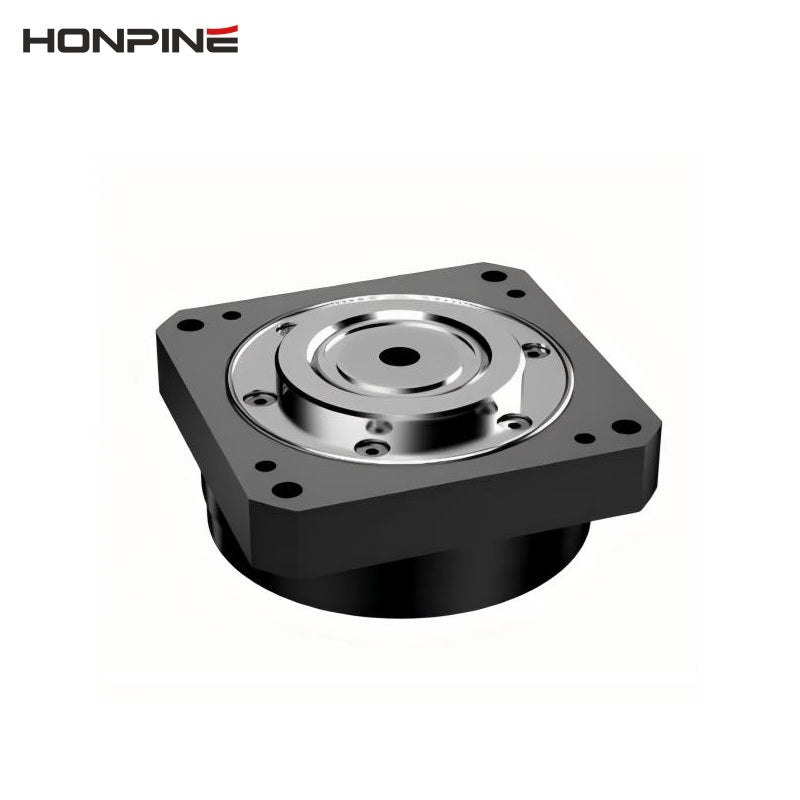

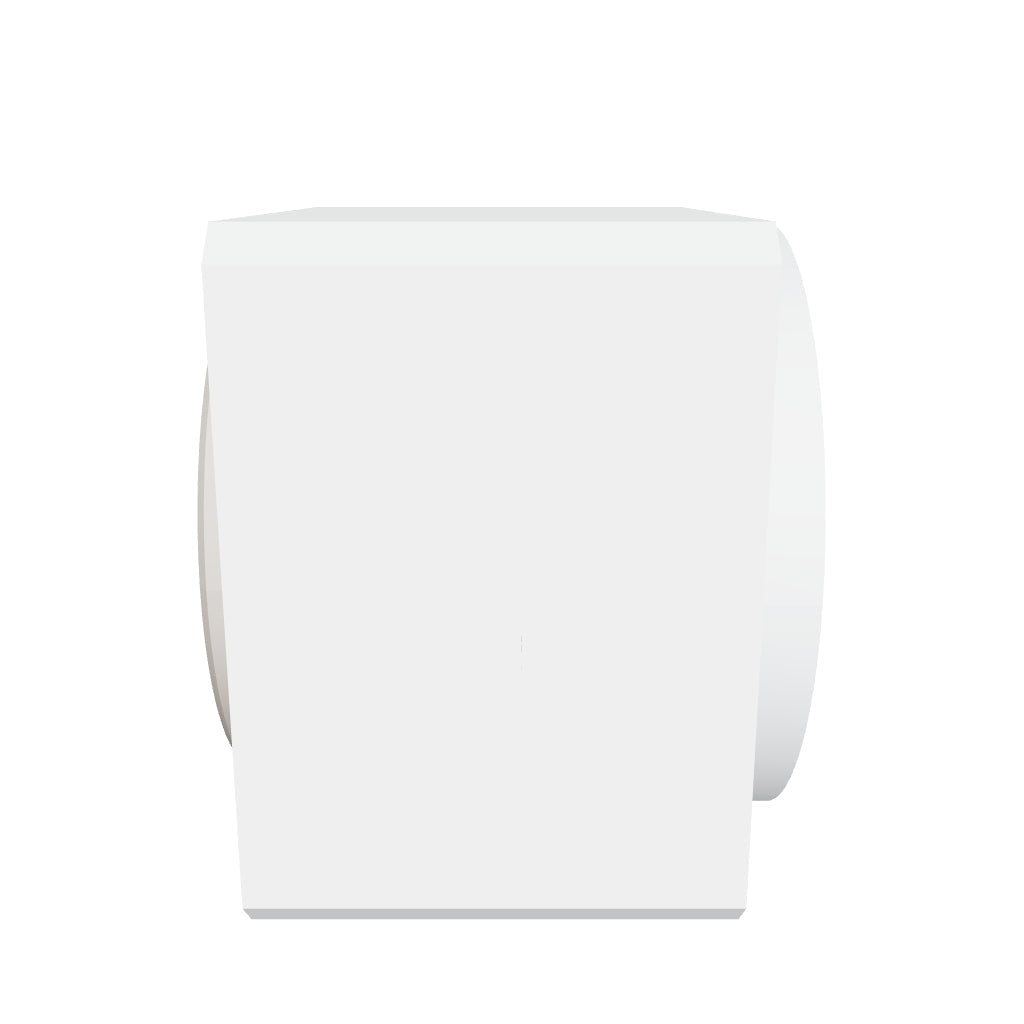

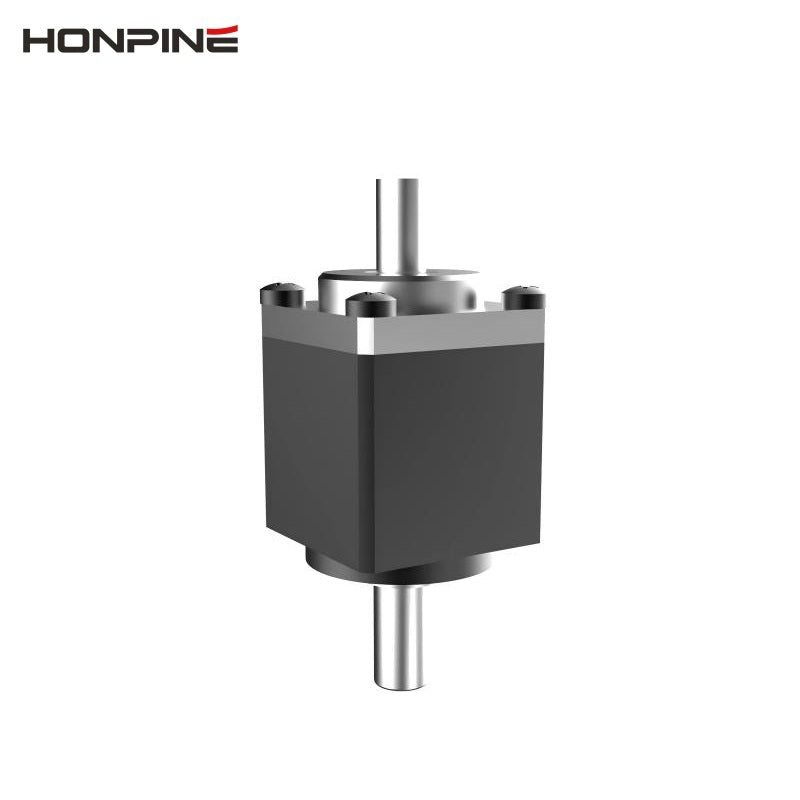

HONPINE CSF Miniature Harmonic Drive Reducer

$405.00
Version
Model
Gear Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

CSF Series Parameter Table

Model  		Gear Ratio

Rated torque at input 2000r/min
(N.m)

 Permissible peak torque during starting and stopping    (N.m) Maximum allowable value of average load torque (N.m) Maximum instantaneous permissible torque  (N.m) Maximum allowable input speed (r/min) Allowable average input speed (r/min) Gear Backlash (arcsec) 1/4GD
(kgcm2) 		Mass
(kg)

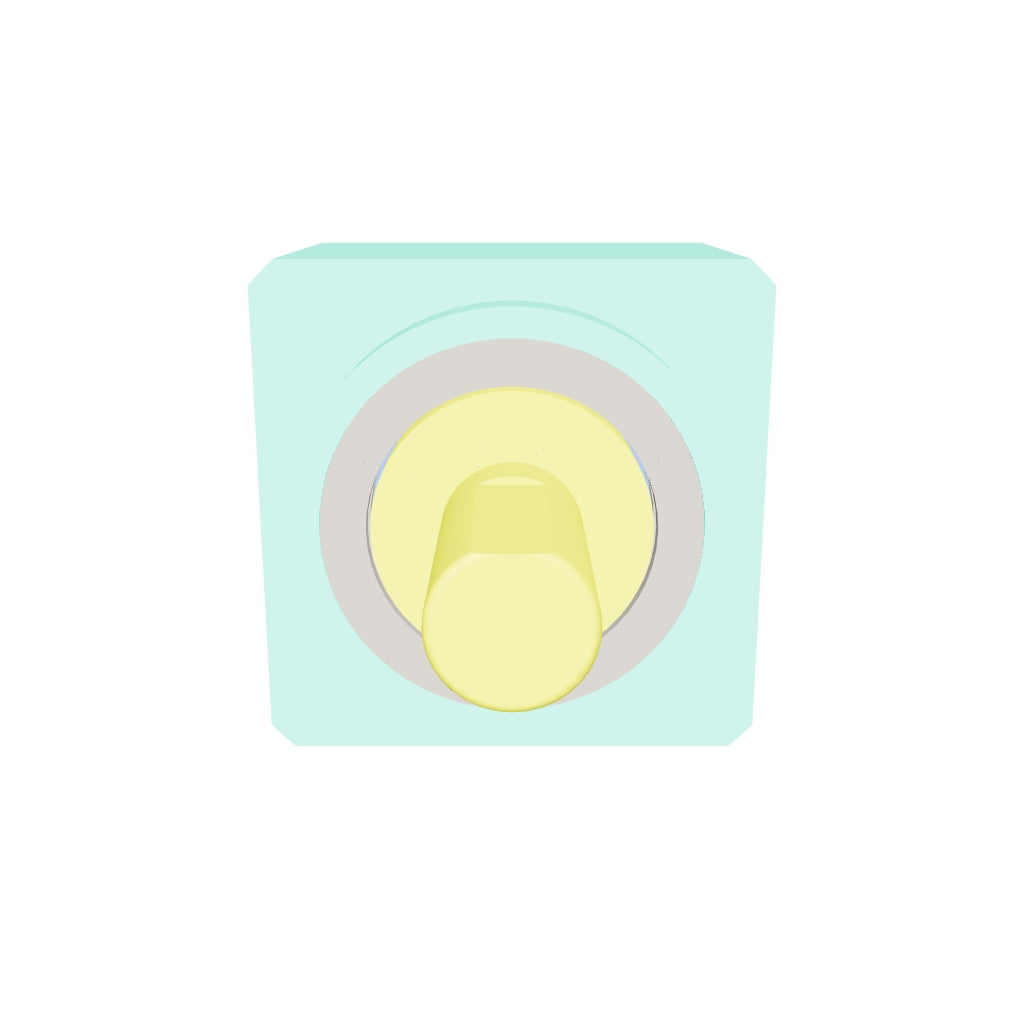

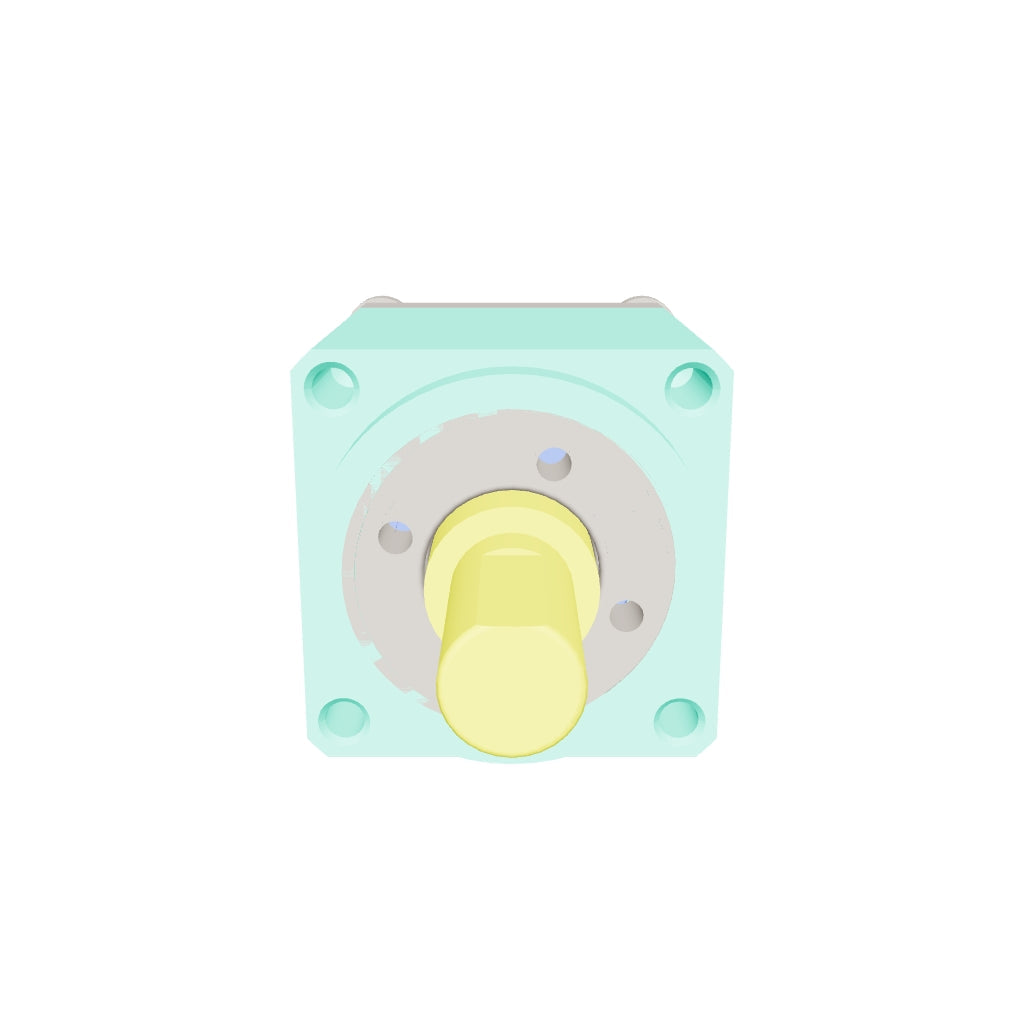

    03 30
50


0.06
0.11

 0.13
0.21


0.1
0.13

 0.22
0.41
 10000 6500 ≤20
≤20
 5.3 × 10⁻⁷ 0.017

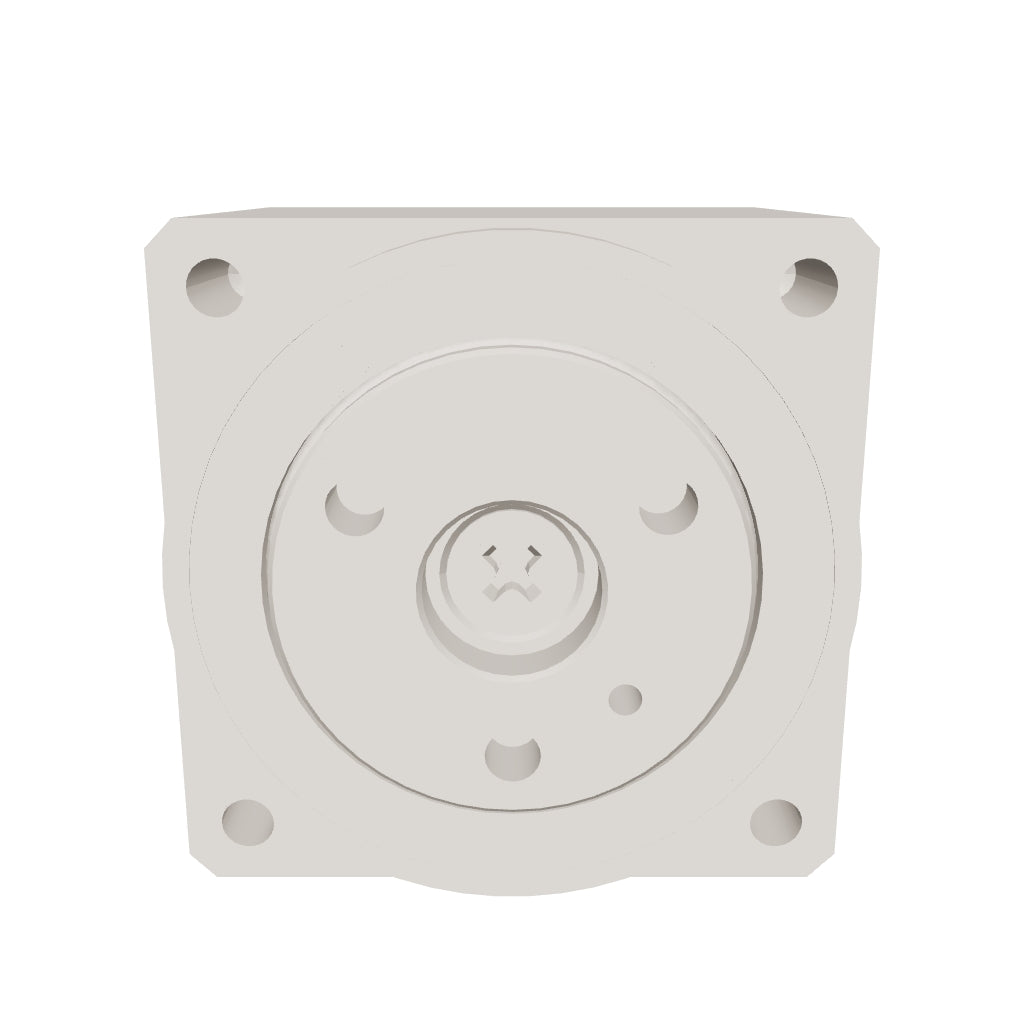

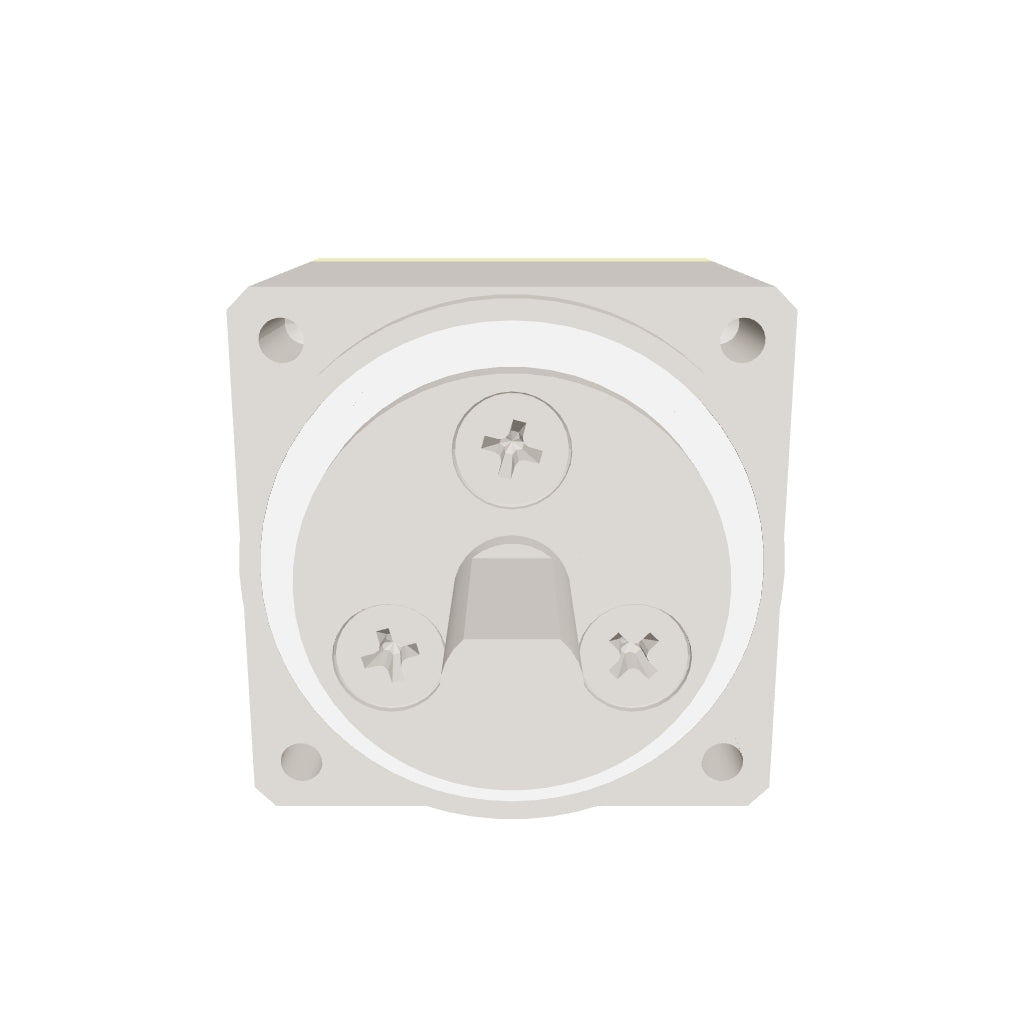

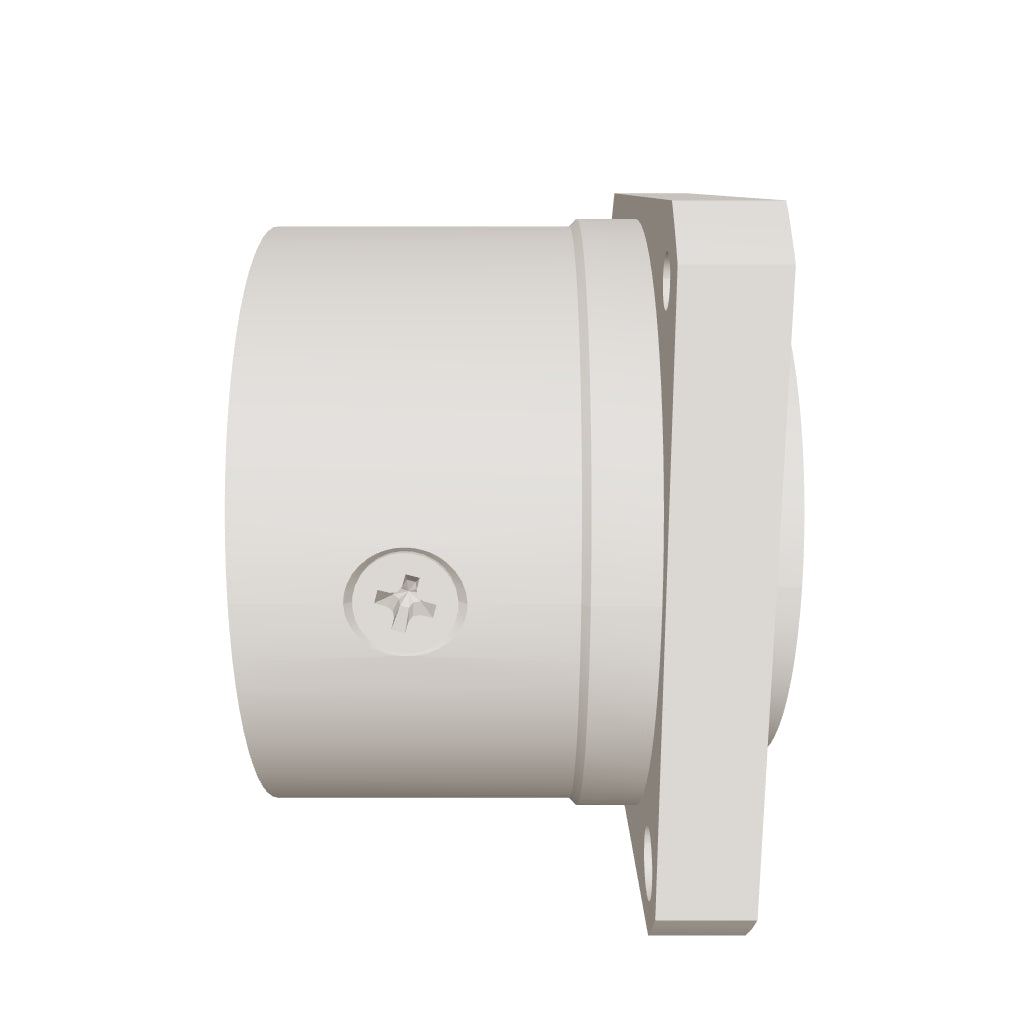

05 30
50
80
 0.25
0.4
0.52		 0.5
0.9
1.35 		0.38
0.53
0.84
 0.9
1.8
2.5
 10000 6500 ≤20
≤20
≤10
 2.5 × 10⁻⁴ 0.039

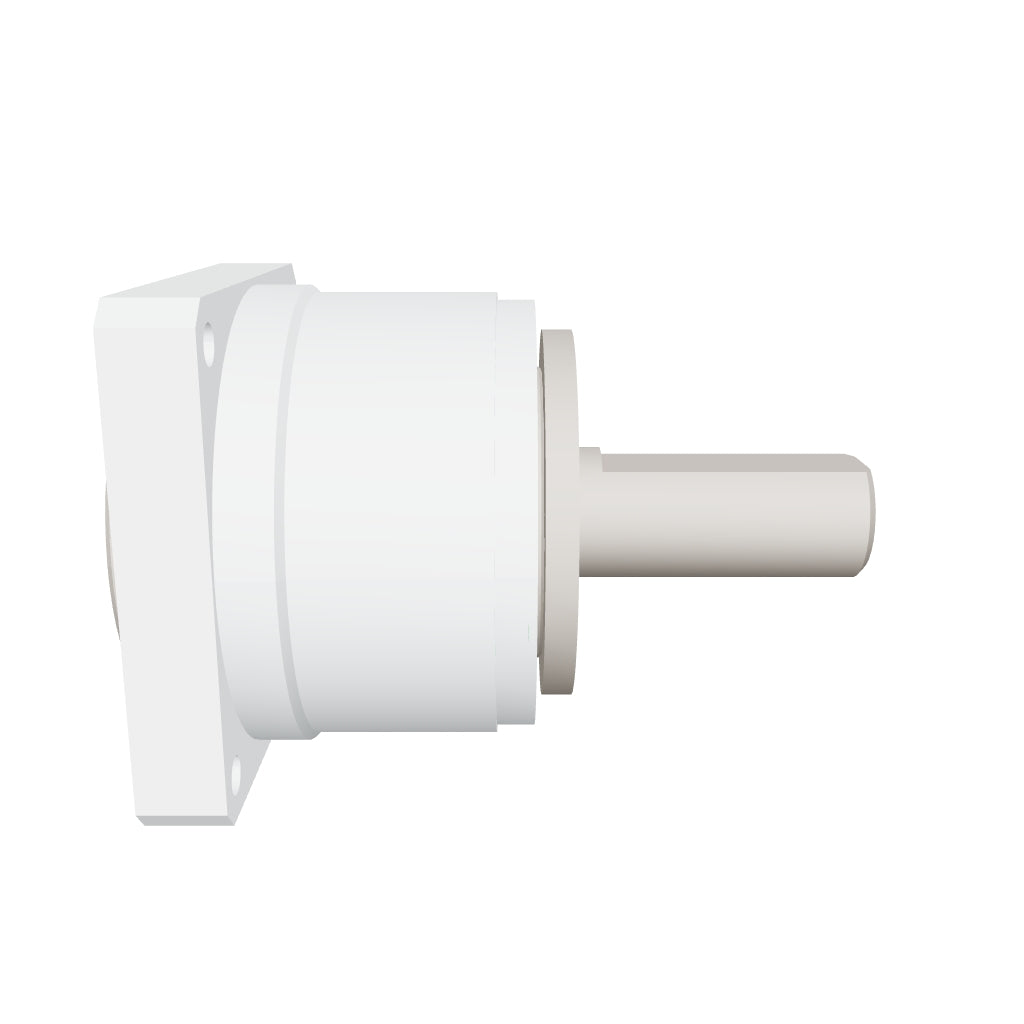

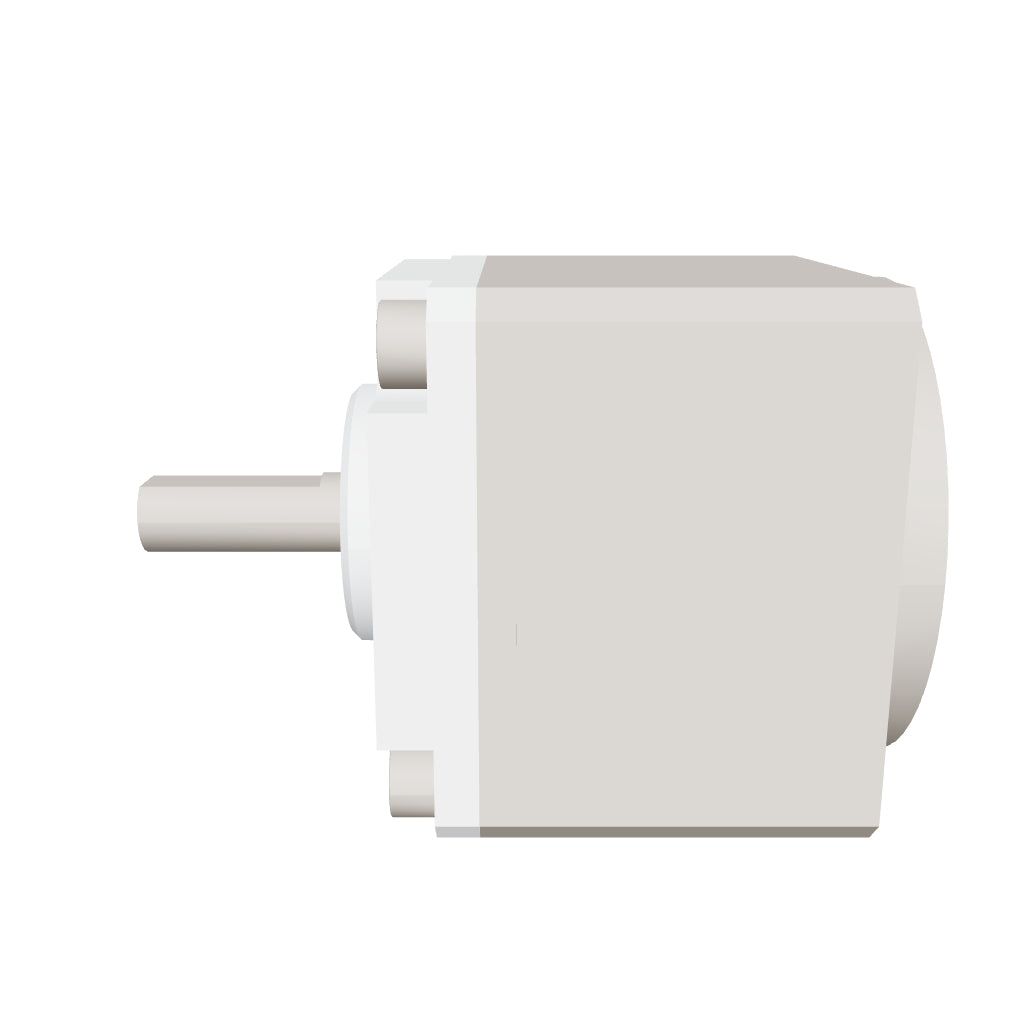

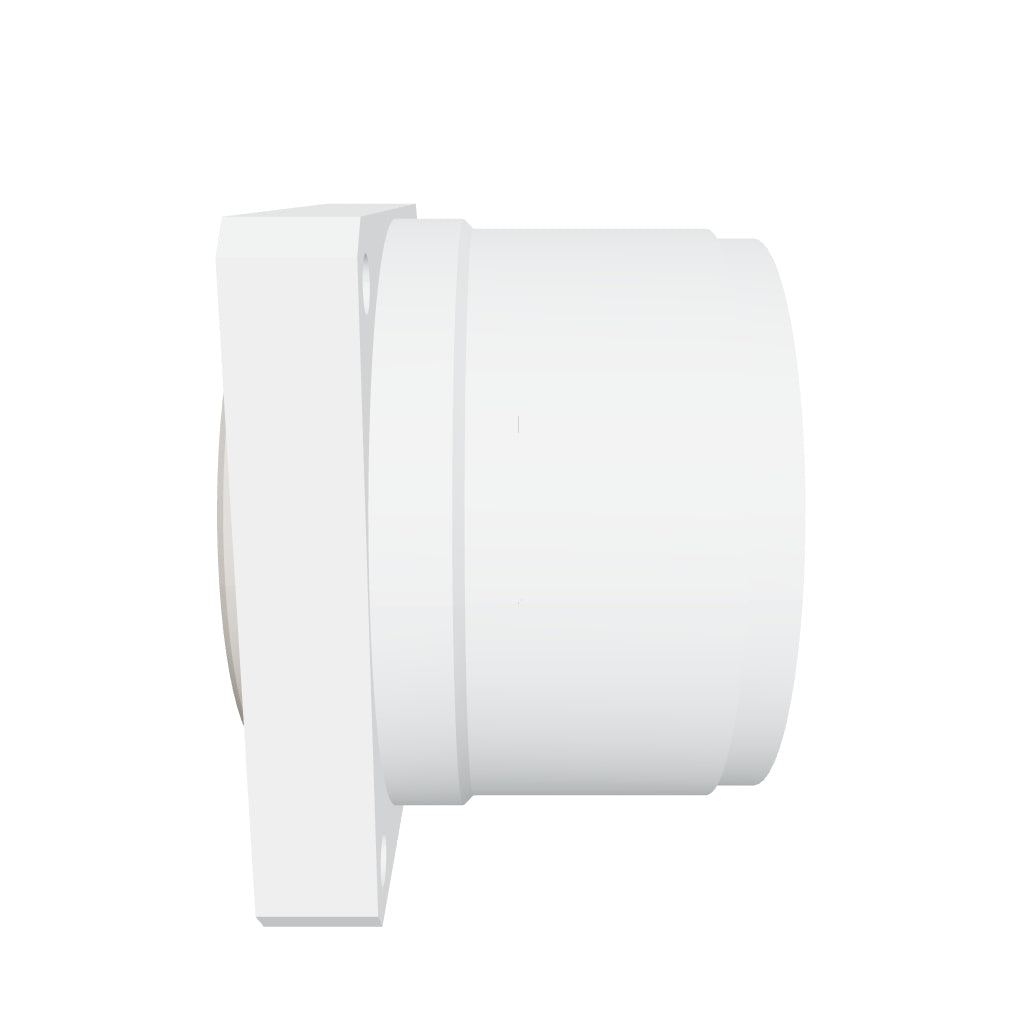

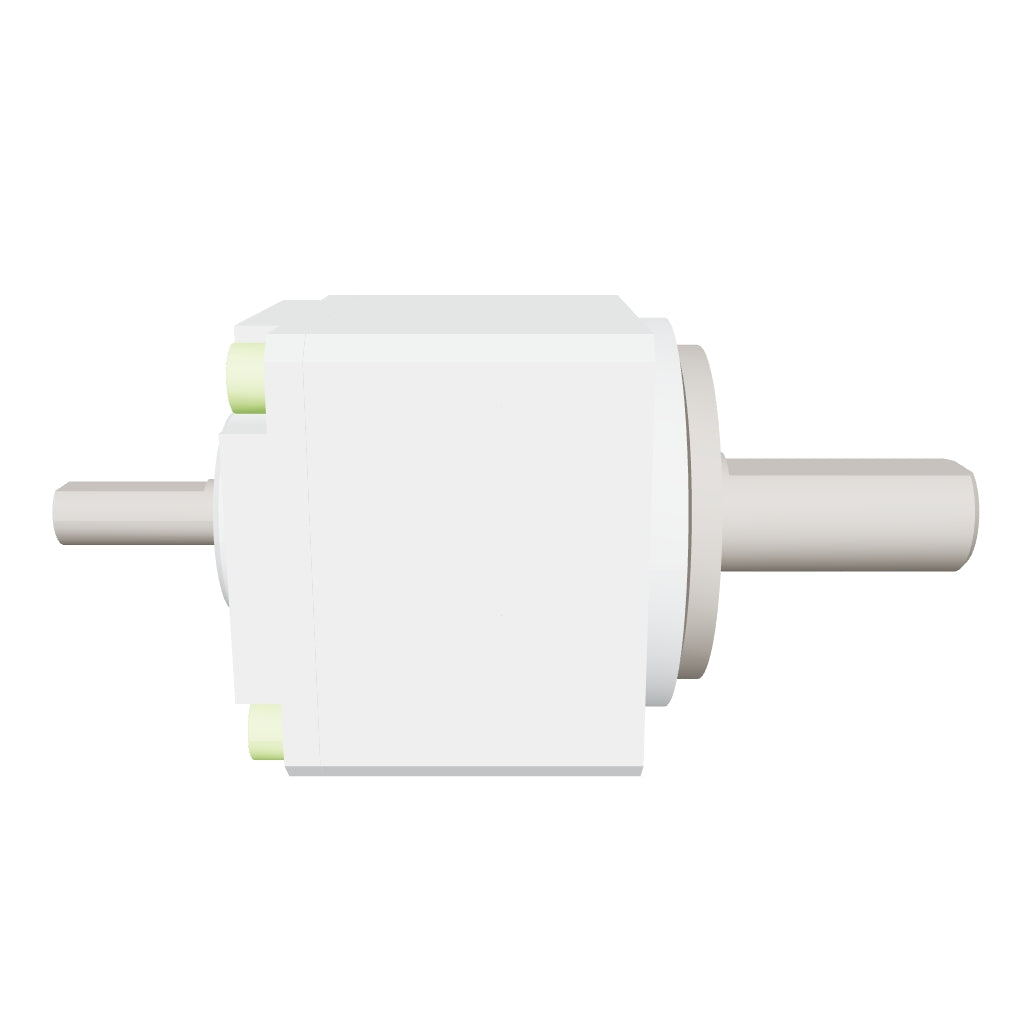

08 30
50
80
100
 0.9
1.8
2.2
2.4		 1.8
3.3
4..3
4.8		 1.4
2.3
2.9
3.3
 3.3
6.6
8
9
 8500 3500 ≤20
≤20
≤10
≤10
 3.2 × 10⁻³ 0.106

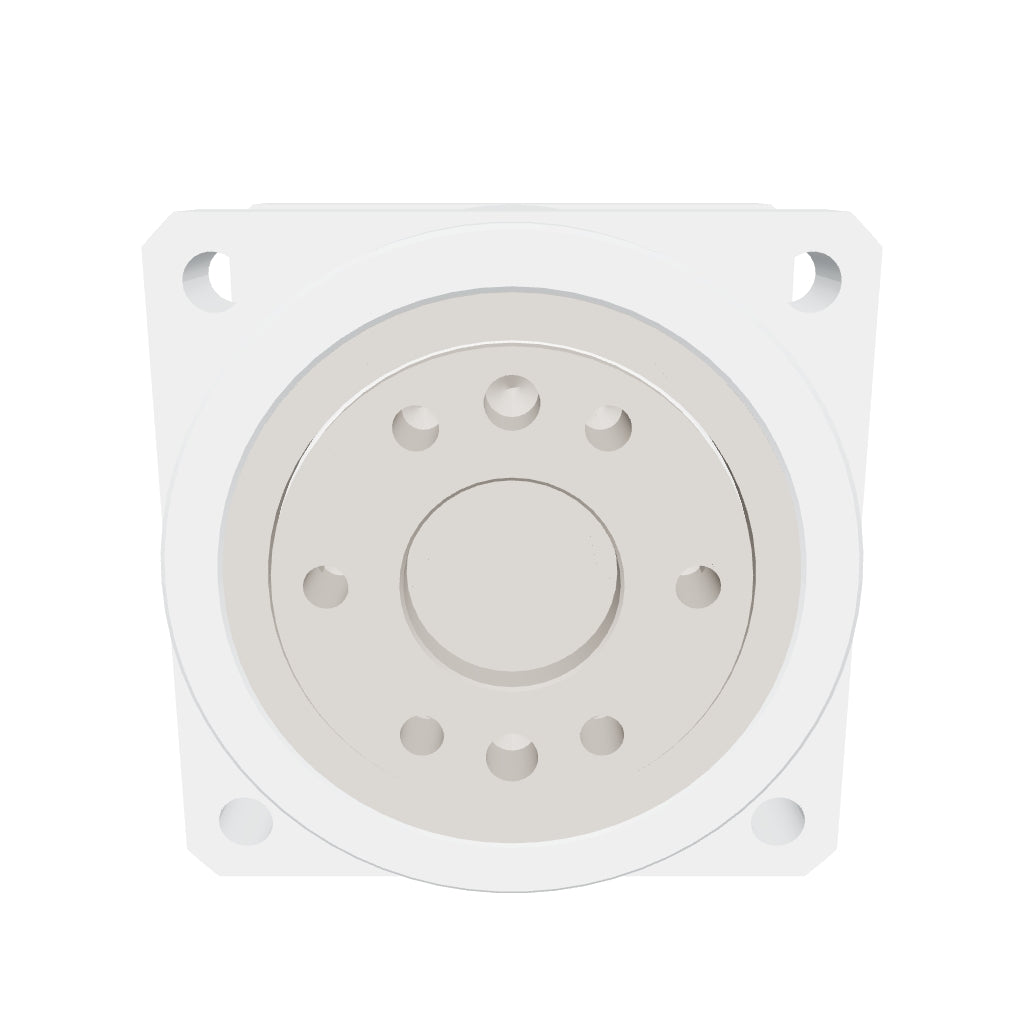

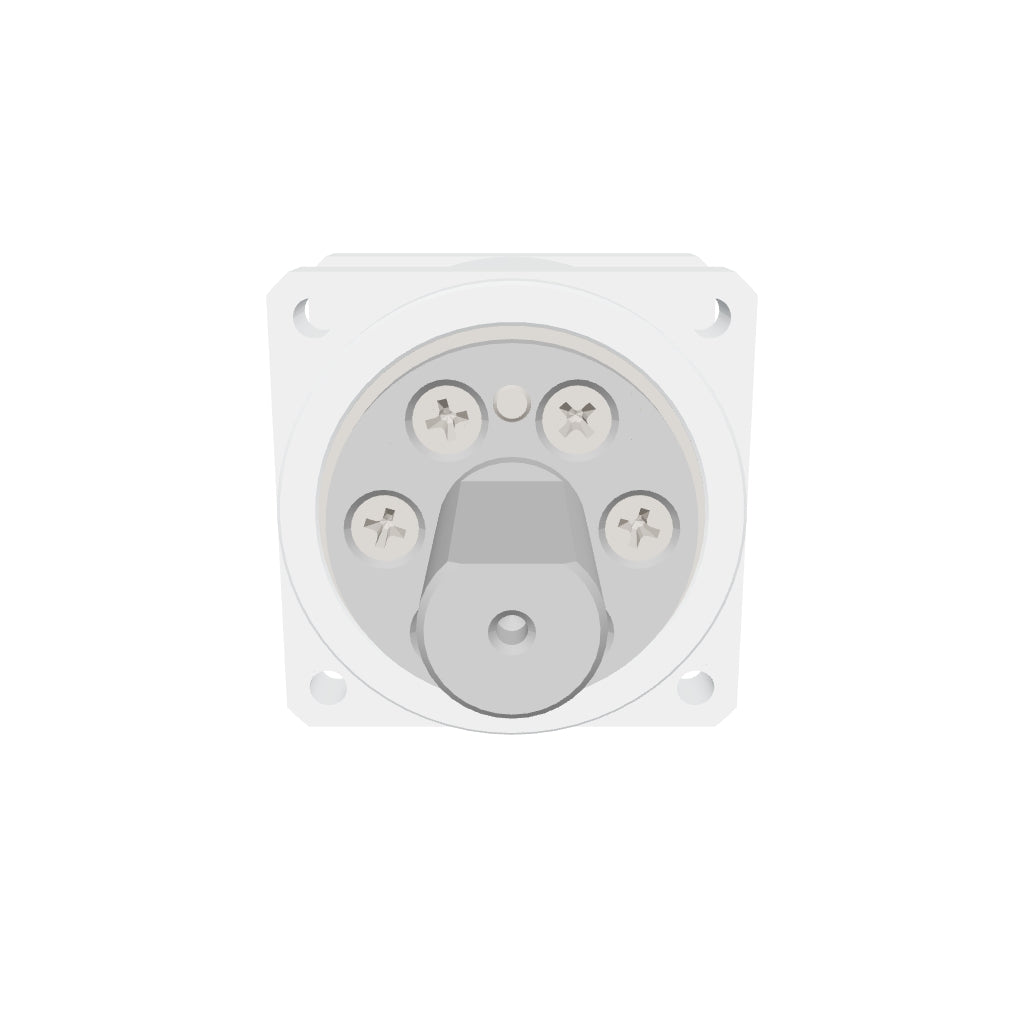

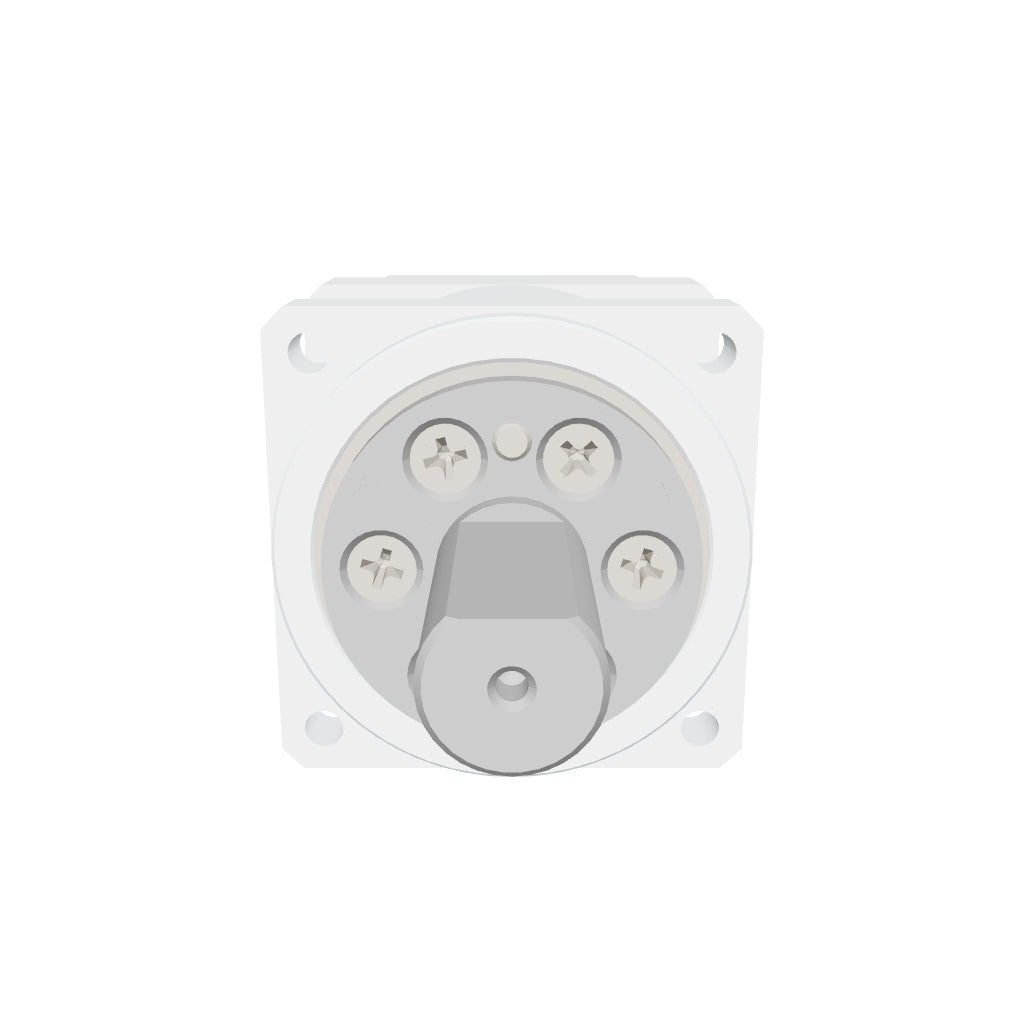

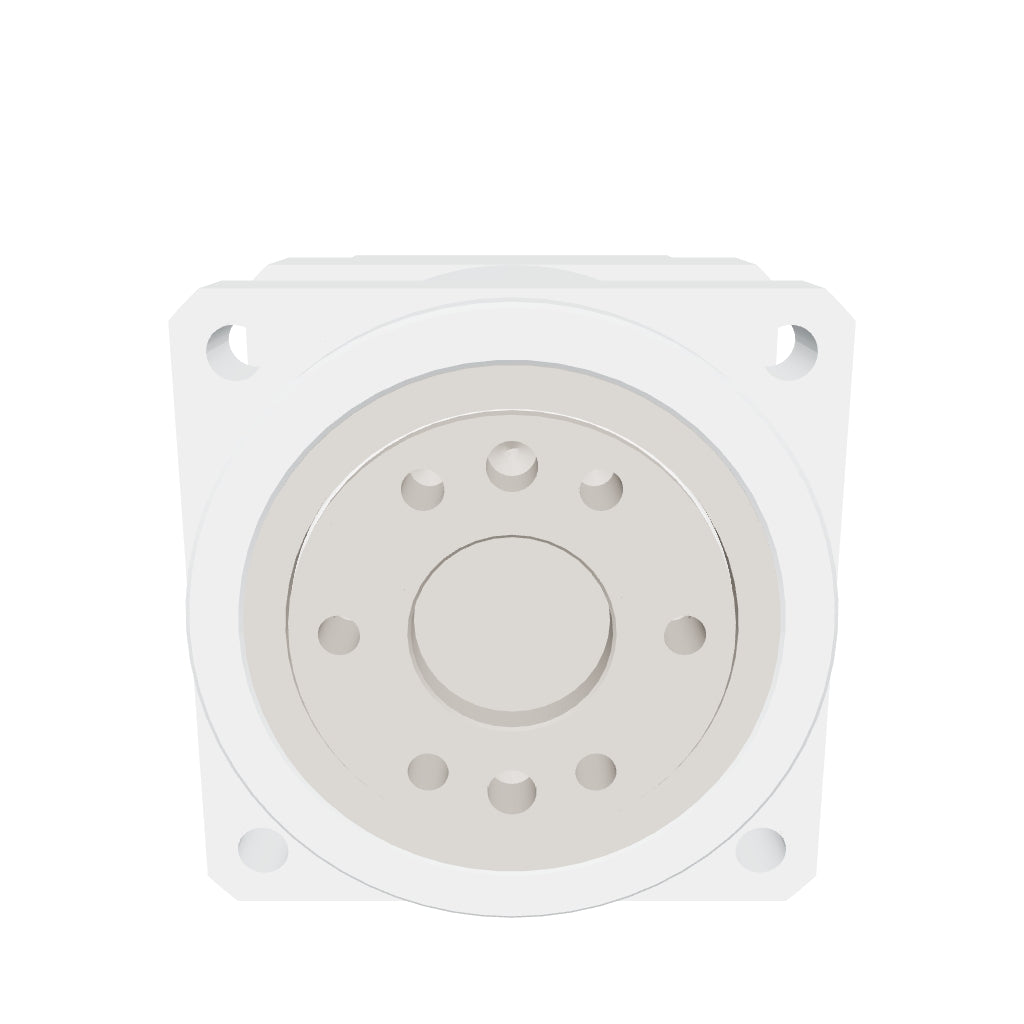

11 30
50
80
100
 2.1
3.5
4.5
5
 4.1
8.3
10.2
11
 3.1
5.5
8.5
8.9
 8.2
17
22
25
 8500 3500 ≤20
≤20
≤10
≤10
 1.4 × 10⁻² 0.2
