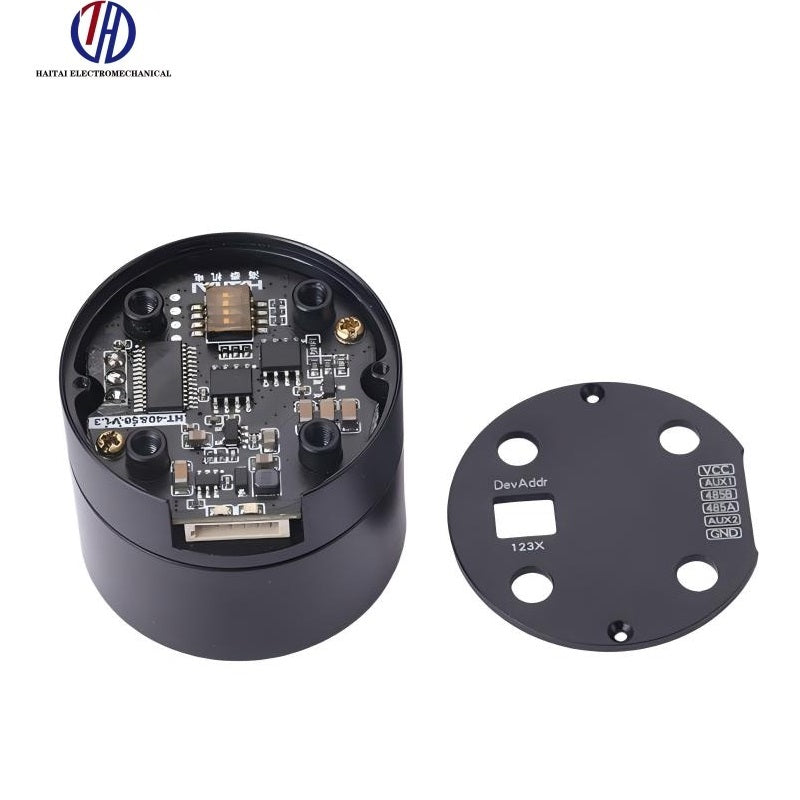

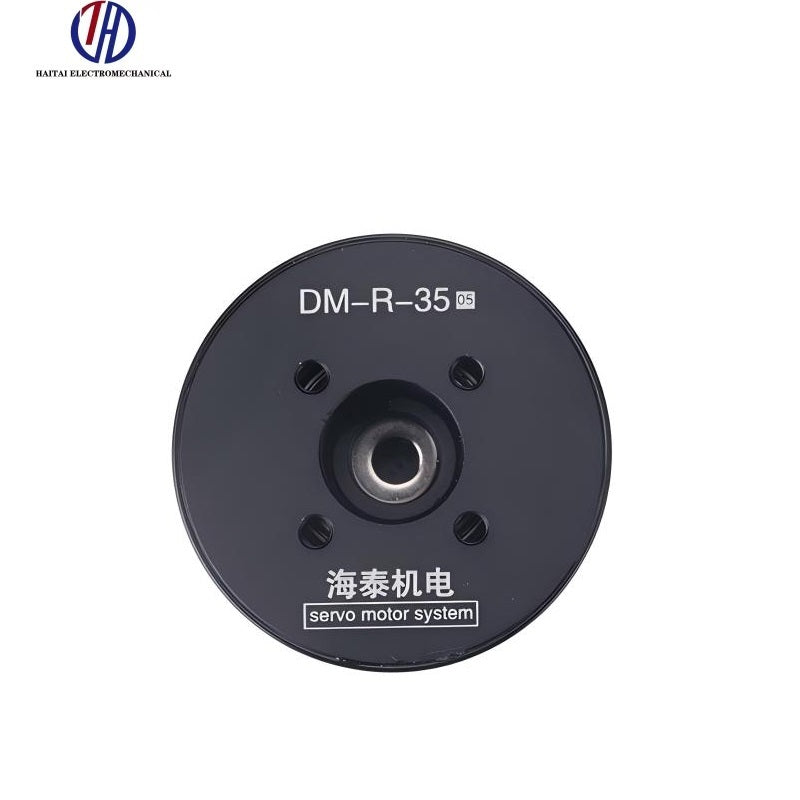

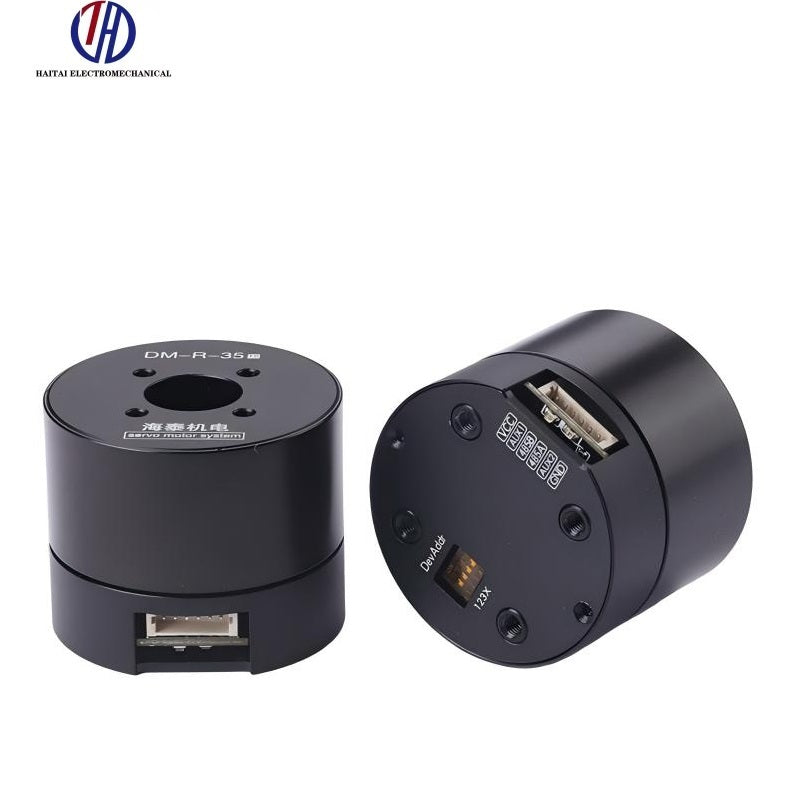

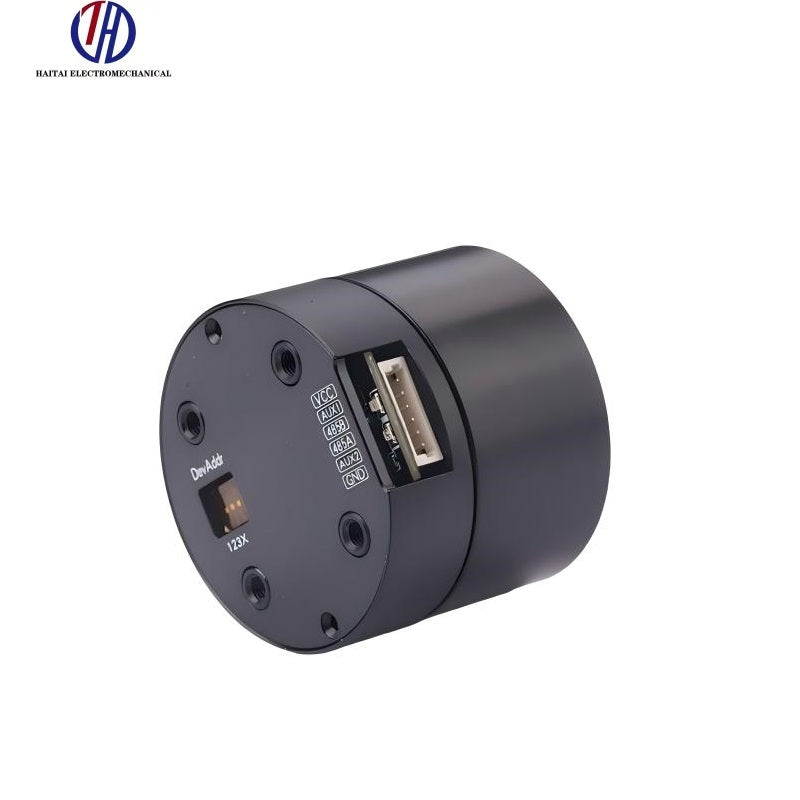

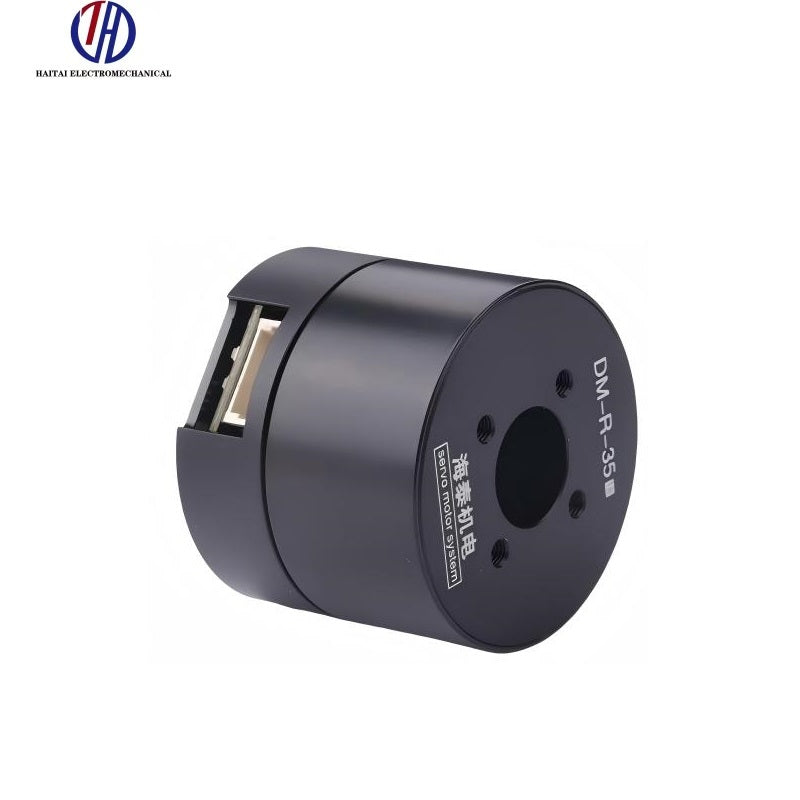

HAITAI DM-R-3515 Motor
Regular price
$105.00
Unit price
HAITAI DM-R-3515 Motor - DM-R-3515 (RS485) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI DM-R-3515 Motor
Regular price
$105.00
Unit price
HAITAI DM-R-3515 Motor - DM-R-3515 (RS485) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Turns | 36 |
| Wire Diameter*Strands | 0.21mm |
| Nominal Voltage | 24V |
| Nominal Current | 1.1A |
| Nominal Torque | 0.24N.M |
| Nominal Speed | 800rpm |
| Max No-load Speed | 1000rpm |
| Stall Torque | 0.5N.M |
| Stall Current | 1.5A |
| Line Resistance | 6.3Ω |
| Wiring Connection | Y |
| Phase to Phase Inductance | 1.05mH |
| Speed Constant | 42rpm/v |
| Torque Constant | 0.22N.M/A |
| Rotor Inertia | 109gcm^2 |
| Number of Pole Pairs | 11Pairs |
| Motor Weight | 120g |
| Connector | ZH1.5/6Pin |
| Drive Input Voltage Range | 12-24V |
| Drive Current Range | 0.01-1.5A |
| Communication | RS485 |
| Encoder Resolution | 14-bit/0.022° |
| Control Modes |
Torque Mode (Open Loop) Speed Mode Position Mode |
| Working Temperature | -40°C to 85°C |
| Max Demagnetize Temperature | 120°C |
