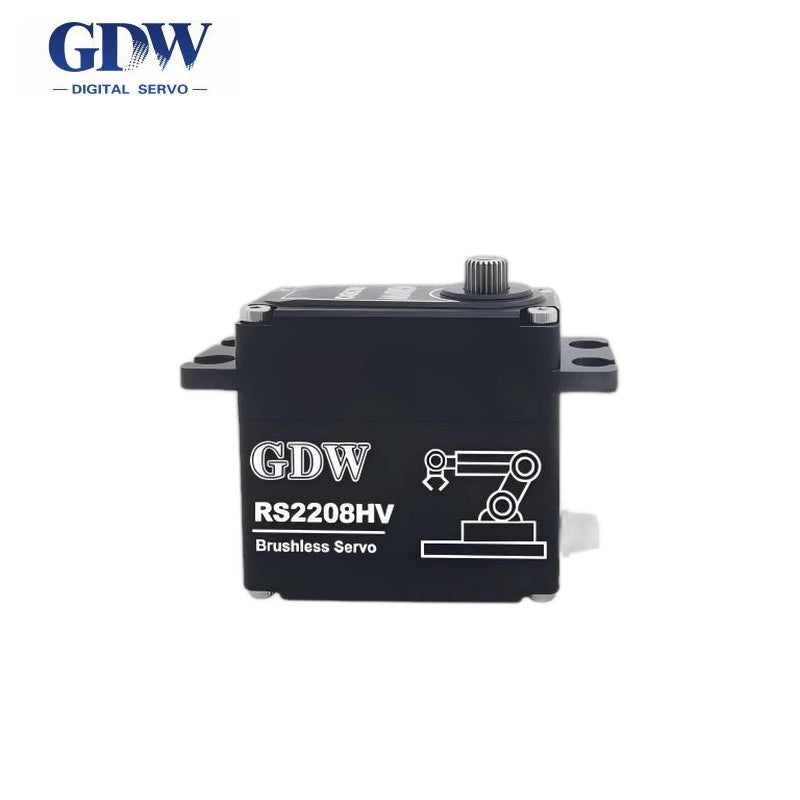

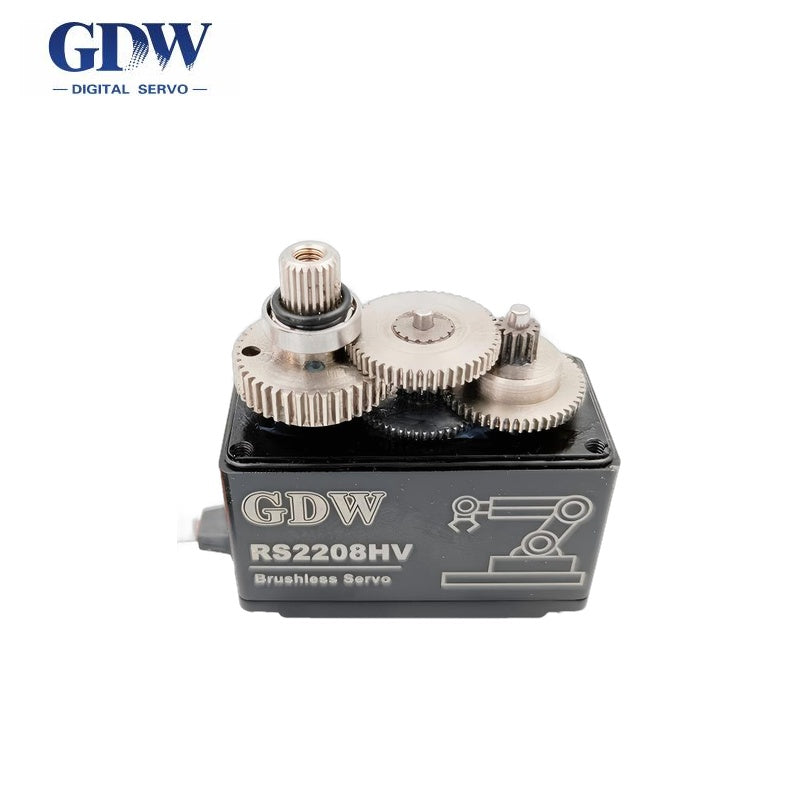

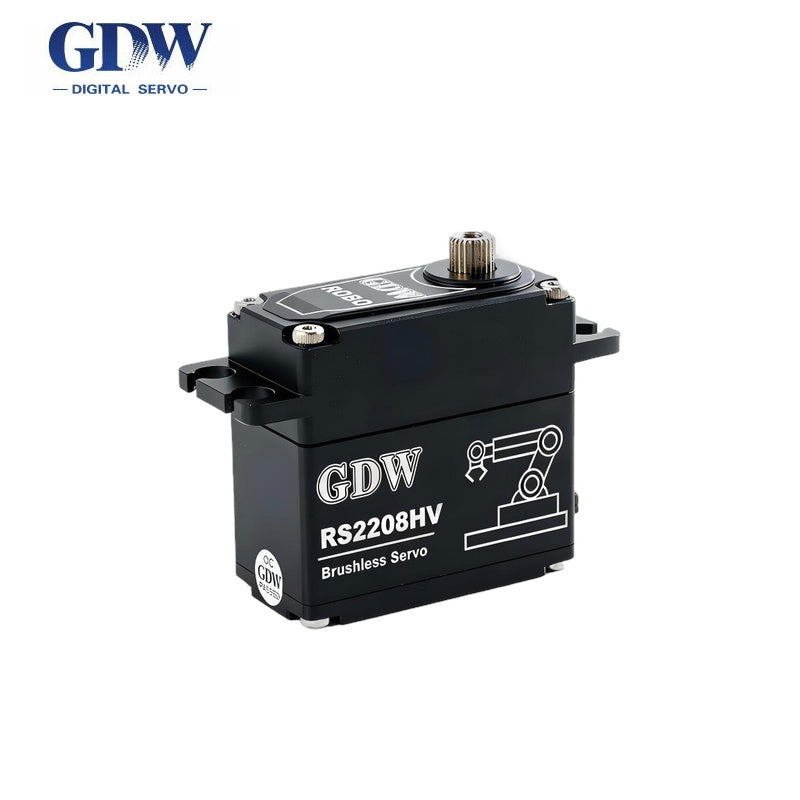

GDW RS2208 Servo Motor
Regular price
$85.00
Unit price
GDW RS2208 Servo Motor - RS2208 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GDW RS2208 Servo Motor
Regular price
$85.00
Unit price
GDW RS2208 Servo Motor - RS2208 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 6.0 V / 7.4 V / 8.4 V |
| Static Current | 20 mA / 25 mA / 30 mA |
| No‑load Current | 380 mA / 470 mA / 500 mA |
| Stall Current | 3.7 A / 4.6 A / 5.1 A |
| Dead Band | 3 µs / 3 µs / 3 µs |
| No‑load Speed (sec/60°) | 0.10 / 0.08 / 0.07 |
| Stall Torque | 20.0 kgf·cm / 22.0 kgf·cm / 26.0 kgf·cm |
| Rated Torque | 5.0 kgf·cm / 5.5 kgf·cm / 6.5 kgf·cm |
| Servo Type | RS2208HV |
| Voltage Range | DC 6.0 V – 8.4 V |
| Rated Voltage | DC 7.4 V |
| Signal (High / Low) | HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V |
| Gear Material | SUS303 |
| Communication Protocol | PWM |
| Shell Material | AL6061 T6 |
| Operating Temperature | -20°C ~ +60°C |
| Motor | Brushless Motor |
| Pulse Width Range | 500 µs – 1500 µs – 2500 µs |
| Potentiometer | Contact‑type |
| Operation Angle | 90° ±2° |
| Dimensions (L×W×H) | 40.5 × 20 × 38.50 mm |
| Working Frequency | 50 ~ 333 Hz |
| Bearing | 2BB |
| Mapping Direction | CW / CCW (optional) |
| Weight | 80 g ±5% |
GDW-RS2208HV-Drawing.pdf
