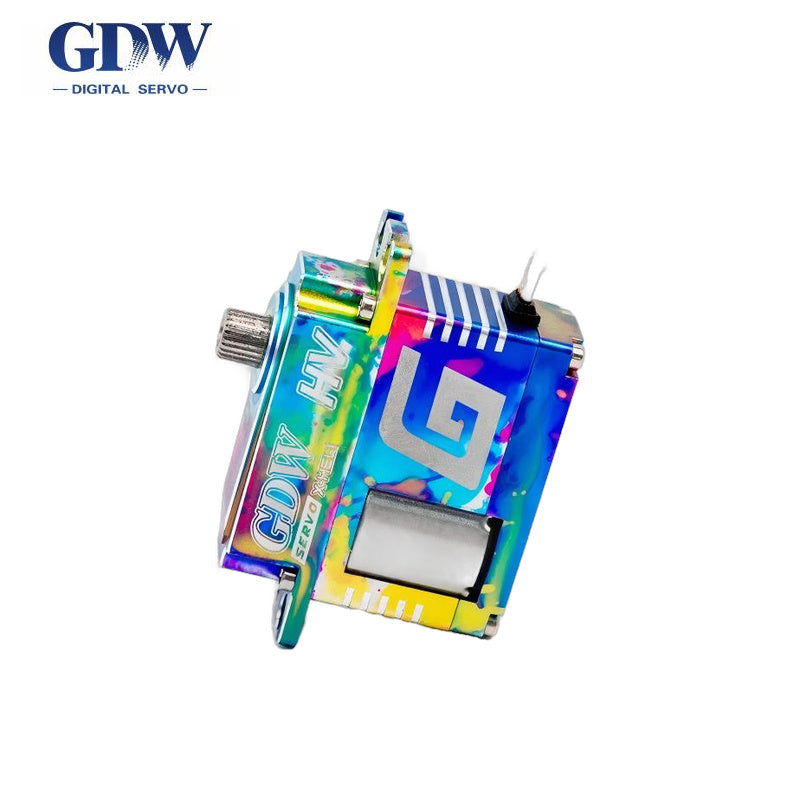

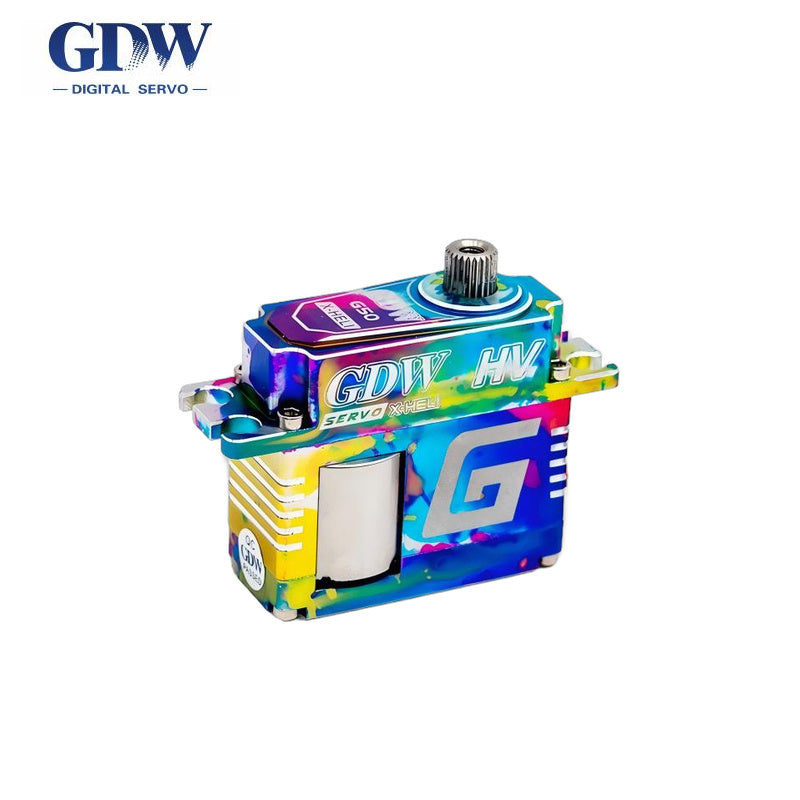

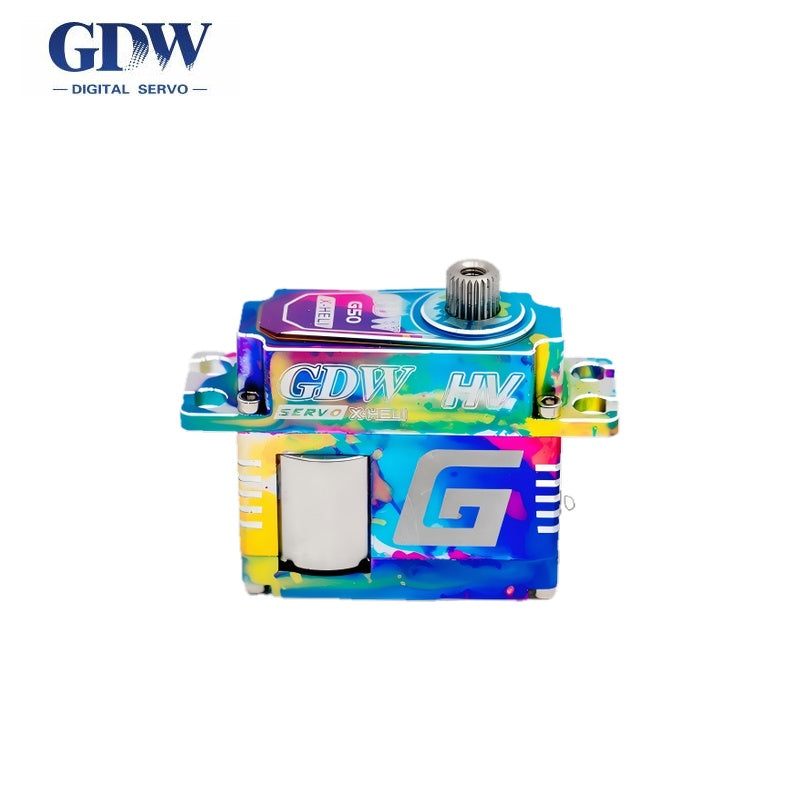

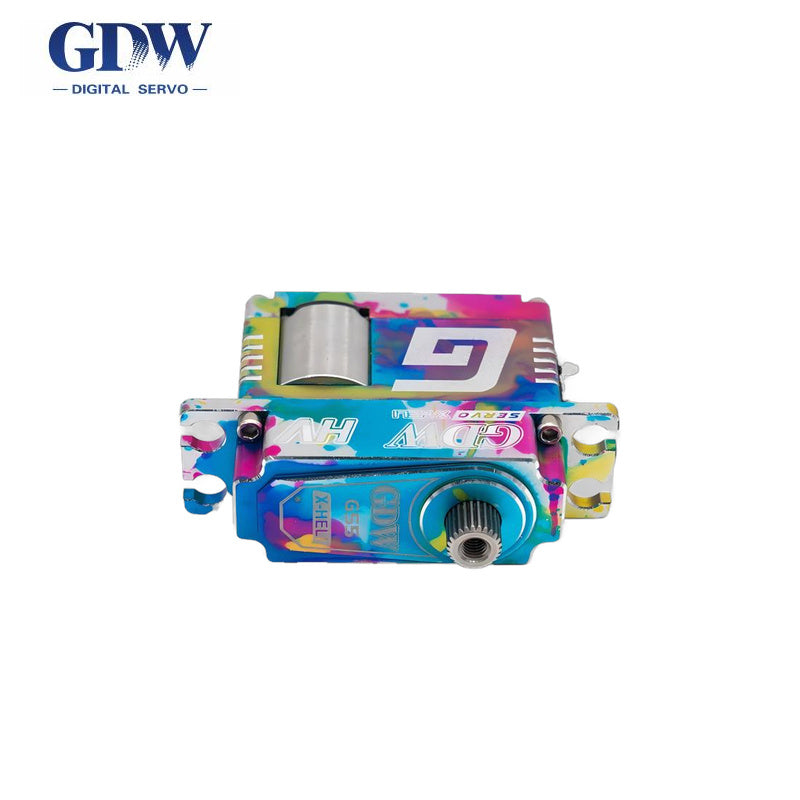

GDW G55 Servo Motor

$130.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Servo Type G55
Rated Voltage DC 4.8 – 8.4 V
Communication Protocol PWM
Operating Temperature -20°C ~ +60°C
Pulse Width Range 500 µs – 750 µs – 1000 µs
Working Frequency 333 Hz
Operation Angle 110° ± 5°
Mapping Direction CW / CCW √ (optional)
Gear Material SUS303
Shell Material AL6061 T6
Motor ∅17 × 15 mm Brushless Motor
Wiring 30 wire / 220 mm
Dimensions 36 × 15 × 33.8 mm
Bearing 2BB
Weight 48 g ± 5%
Wire Color — Orange PWM Signal
Wire Color — Red DC+ Supply Voltage
Wire Color — Brown DC− Supply Voltage
Working Voltage 6.0 V / 7.4 V / 8.4 V
Static Current 6.0V: 15 mA; 7.4V: 20 mA; 8.4V: 25 mA
No Load Current 6.0V: 250 mA; 7.4V: 320 mA; 8.4V: 400 mA
Stall Current 6.0V: 1.6 A; 7.4V: 2.4 A; 8.4V: 3.1 A
Dead Band 3 µs (all voltages)
No Load Speed 6.0V: 0.06 sec/60°; 7.4V: 0.05 sec/60°; 8.4V: 0.04 sec/60°
Stall Torque 6.0V: 4.5 kg; 7.4V: 5.5 kg; 8.4V: 6.5 kg
Rated Torque 6.0V: 1.2 kg·cm; 7.4V: 1.4 kg·cm; 8.4V: 1.7 kg·cm
Signal HIGH: min. 2.31 V, max. 5.0 V; LOW: min. 0.0 V, max. 0.99 V
