GDW

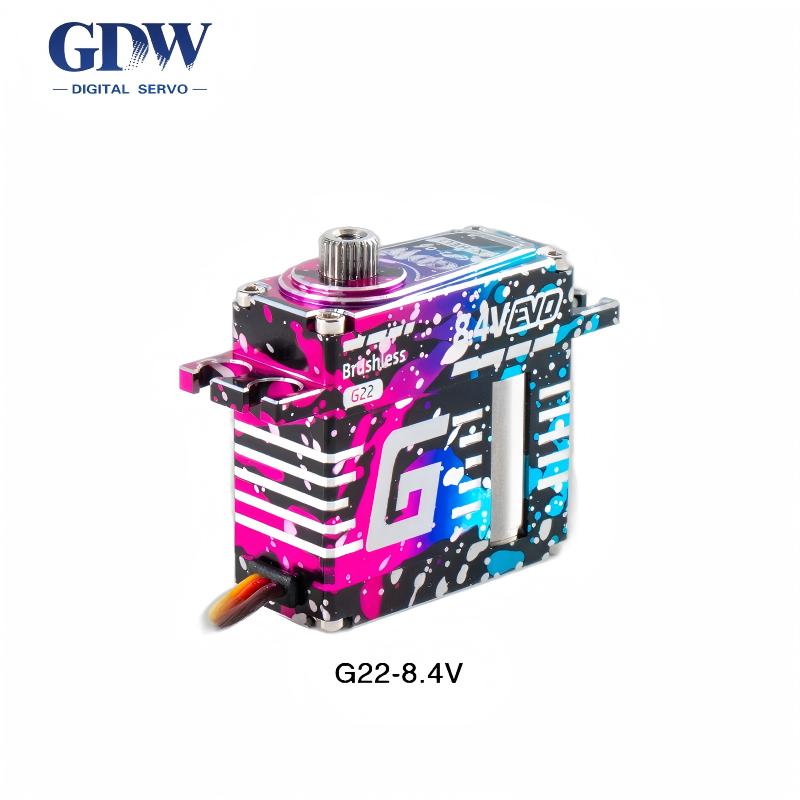

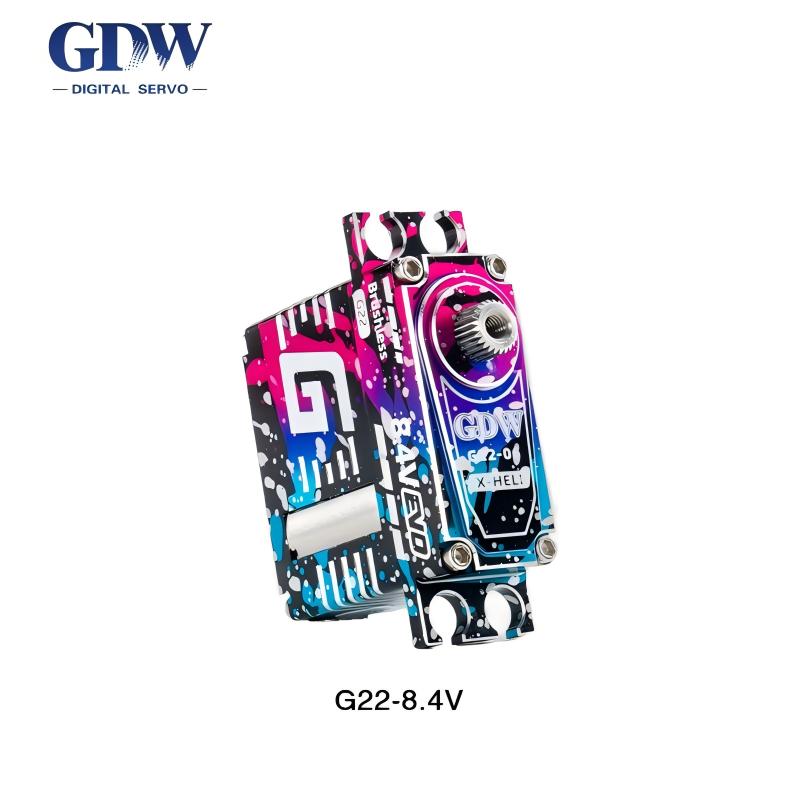

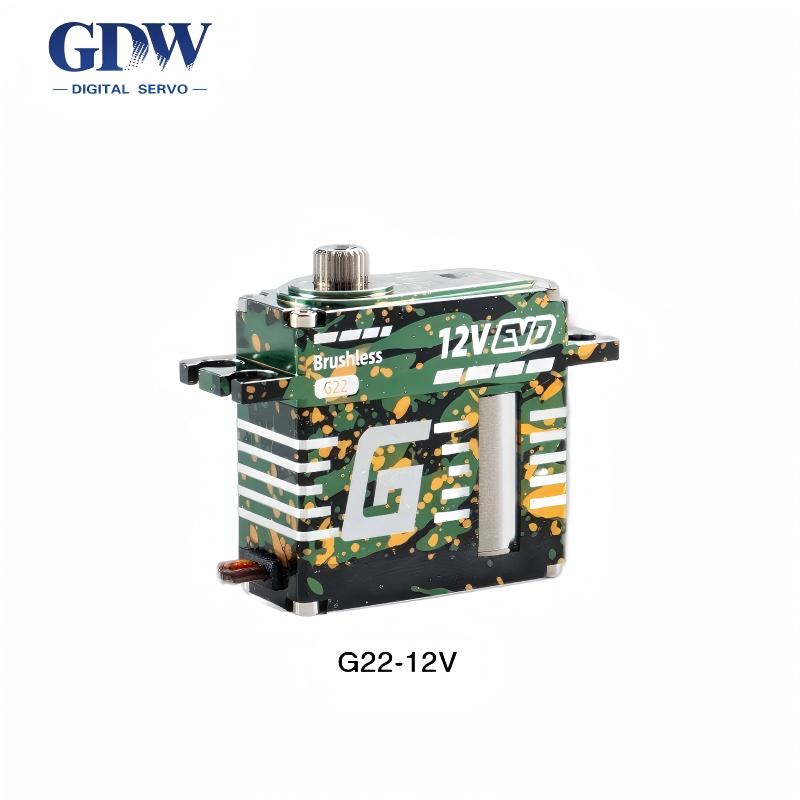

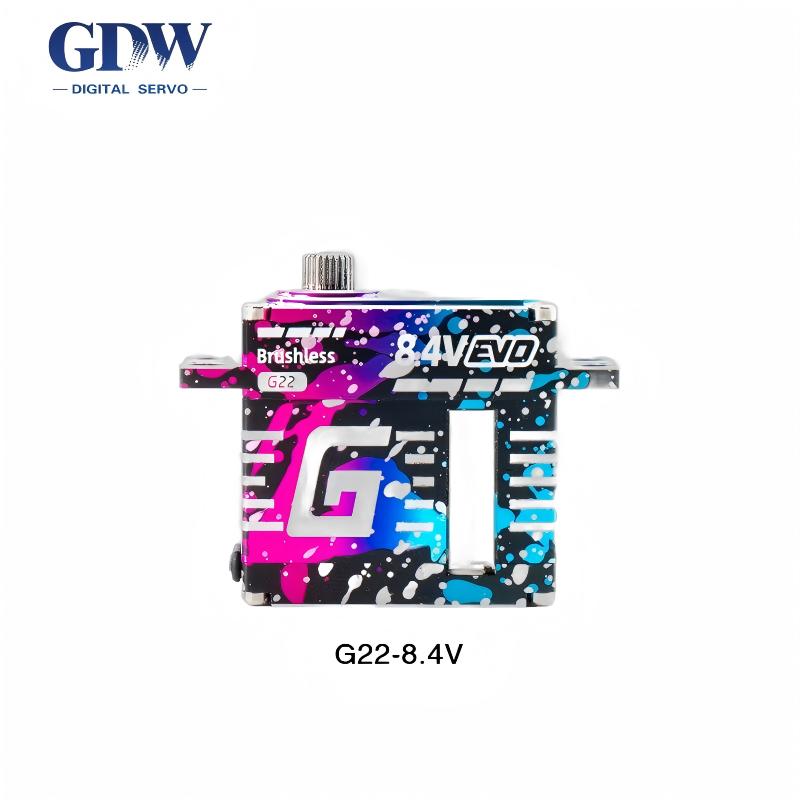

GDW G22 Servo Motor

$135.00
Version
Voltage

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model G22‑06‑8.4V G22‑06‑12V
Voltage Range DC 6.0 – 8.4 V DC 8.4 – 13 V
Rated Voltage DC 7.4 V DC 12 V
Pulse Width Range 800 µs – 1500 µs – 2200 µs 500 µs – 750 µs – 1000 µs
Operation Angle 70° ±2° 55° ±2°
Working Voltage 6.0 V / 7.4 V / 8.4 V 8.4 V / 11.0 V / 12.0 V
Static Current 10 mA / 15 mA / 20 mA 23 mA / 25 mA / 27 mA
No‑load Current 180 mA / 200 mA / 240 mA 350 mA / 400 mA / 500 mA
Stall Current 2.0 A / 2.8 A / 3.7 A 2.7 A / 3.4 A / 3.7 A
No‑load Speed (sec/60°) 0.09 / 0.07 / 0.06 0.10 / 0.08 / 0.07
Stall Torque 15.8 kgf·cm / 19.5 kgf·cm / 22.0 kgf·cm 15.0 kgf·cm / 20.0 kgf·cm / 22.0 kgf·cm
Rated Torque 4.0 kgf·cm / 5.0 kgf·cm / 6.5 kgf·cm 3.8 kgf·cm / 5.0 kgf·cm / 5.5 kgf·cm
Dead Band 2 µs
Operating Temperature -20°C ~ +60°C
Communication Protocol PWM
Signal Voltage Level HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V
Gear Material SUS303
Shell Material AL6061 T6
Motor Brushless Motor
Potentiometer Contact‑type
Dimensions (L×W×H) 35.5 × 15 × 34.75 mm
Weight 49 g ±5%
Bearing 2BB
Working Frequency 50 – 333 Hz
Mapping Direction CW / CCW (optional)
Wiring JR 2.5 30‑core / 220±5 mm
Cable Wire Definition Orange: PWM, Red: DC+, Brown: DC‑
