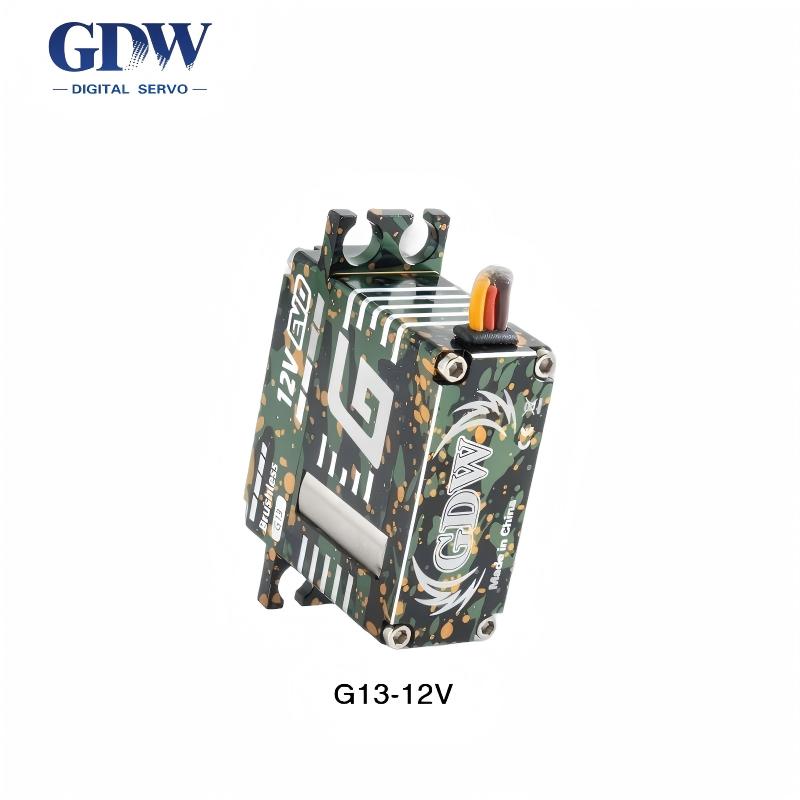

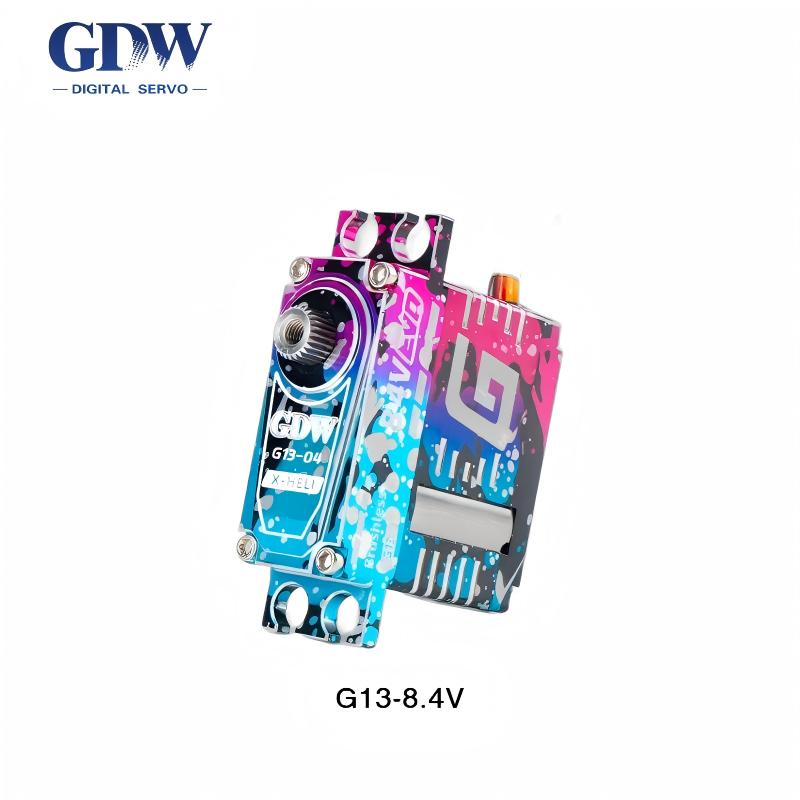

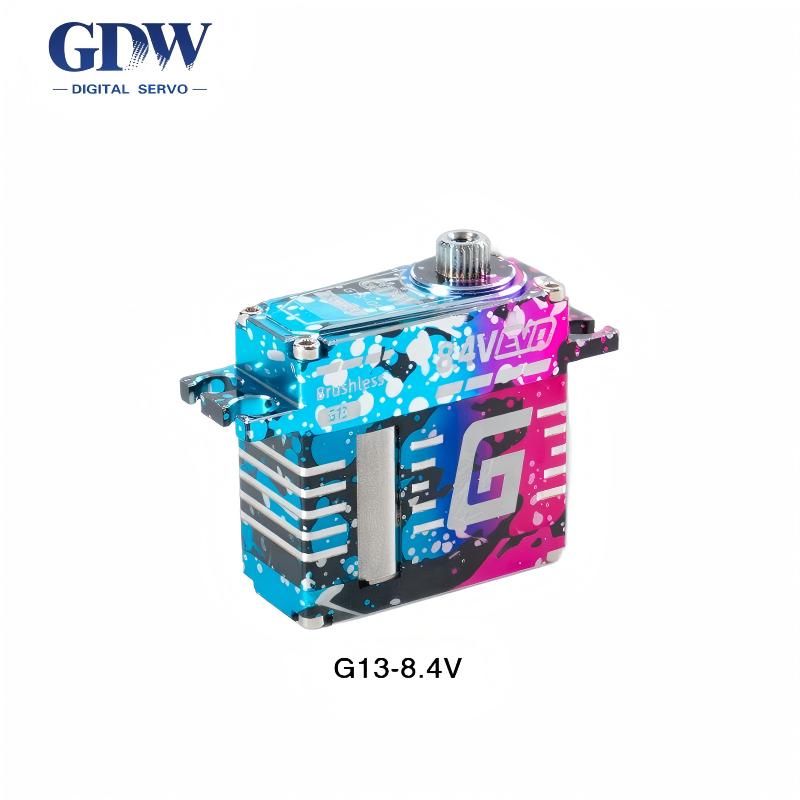

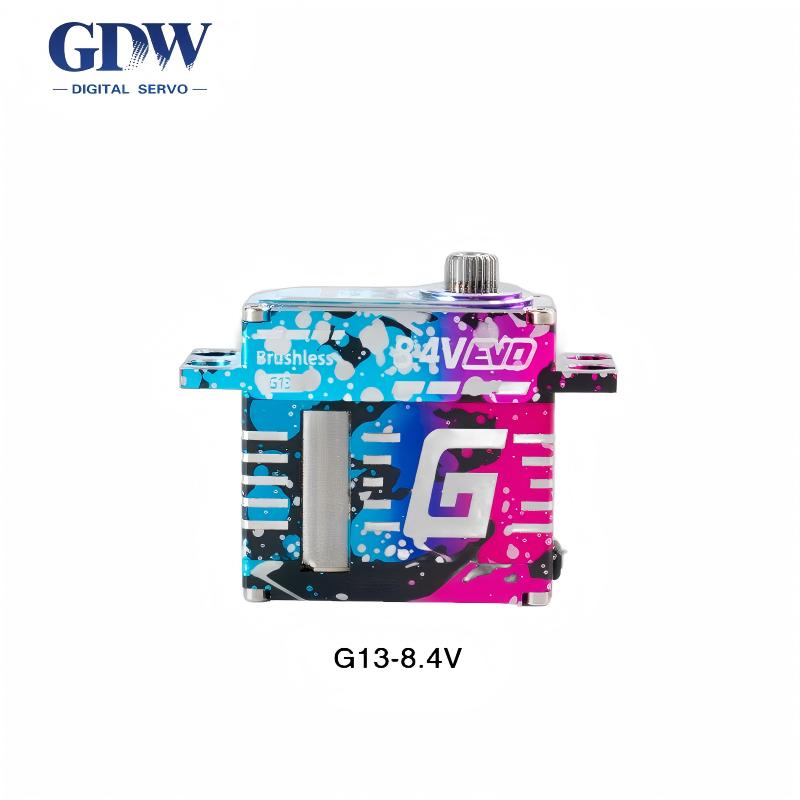

GDW G13 Servo Motor

$135.00
Version
Voltage

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model G13‑04‑8.4V G13‑04‑12V
Voltage Range DC 6.0 – 8.4 V DC 8.4 – 13 V
Rated Voltage DC 7.4 V DC 12 V
Working Voltage 6.0 V / 7.4 V / 8.4 V 8.4 V / 11.0 V / 12.0 V
Static Current 10 mA / 15 mA / 20 mA 23 mA / 25 mA / 27 mA
No‑load Current 160 mA / 190 mA / 240 mA 270 mA / 300 mA / 350 mA
Stall Current 1.9 A / 2.9 A / 3.7 A 2.7 A / 3.4 A / 3.7 A
No‑load Speed (sec/60°) 0.07 / 0.06 / 0.05 0.07 / 0.06 / 0.05
Rated Torque 10.0 kgf·cm / 12.5 kgf·cm / 13.0 kgf·cm 2.5 kgf·cm / 3.2 kgf·cm / 3.5 kgf·cm
Dead Band 2 µs
Operating Temperature -20°C ~ +60°C
Dimensions (L×W×H) 35.5 × 15 × 34.75 mm
Weight 49 g ±5%
Bearing 2BB
Gear Material SUS303
Shell Material AL6061 T6
Motor Brushless Motor
Potentiometer Contact‑type
Wiring JR 2.5 30‑core / 220±5 mm
Cable Wire Definition Orange: PWM, Red: DC+, Brown: DC‑
Signal Voltage Level HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V
Communication Protocol PWM
Pulse Width Range 500 µs – 750 µs – 1000 µs
Operation Angle 55° ±2°
Working Frequency 50 – 333 Hz
Mapping Direction CW / CCW (optional)
