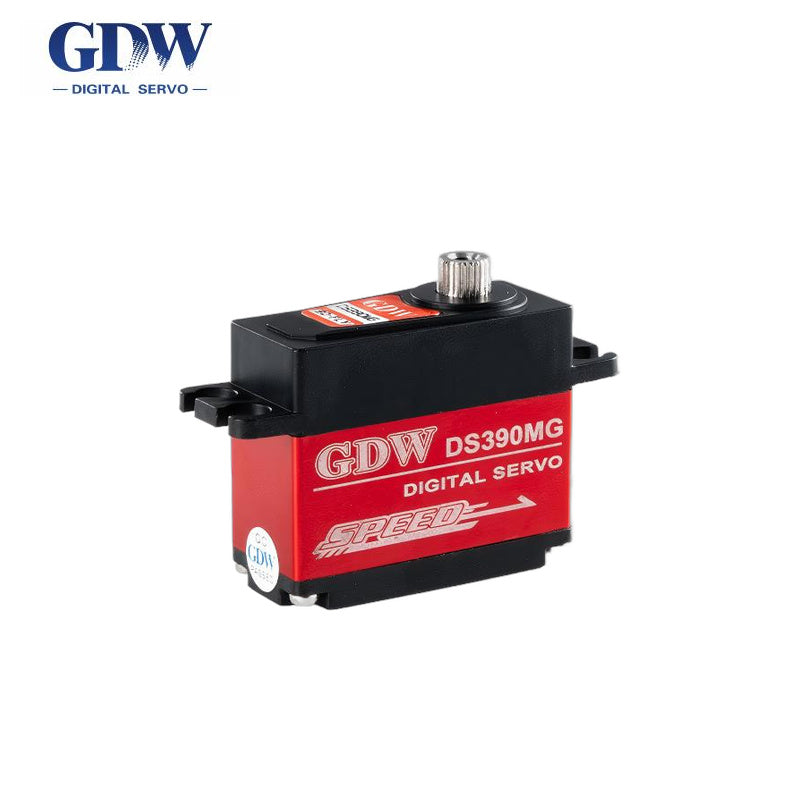

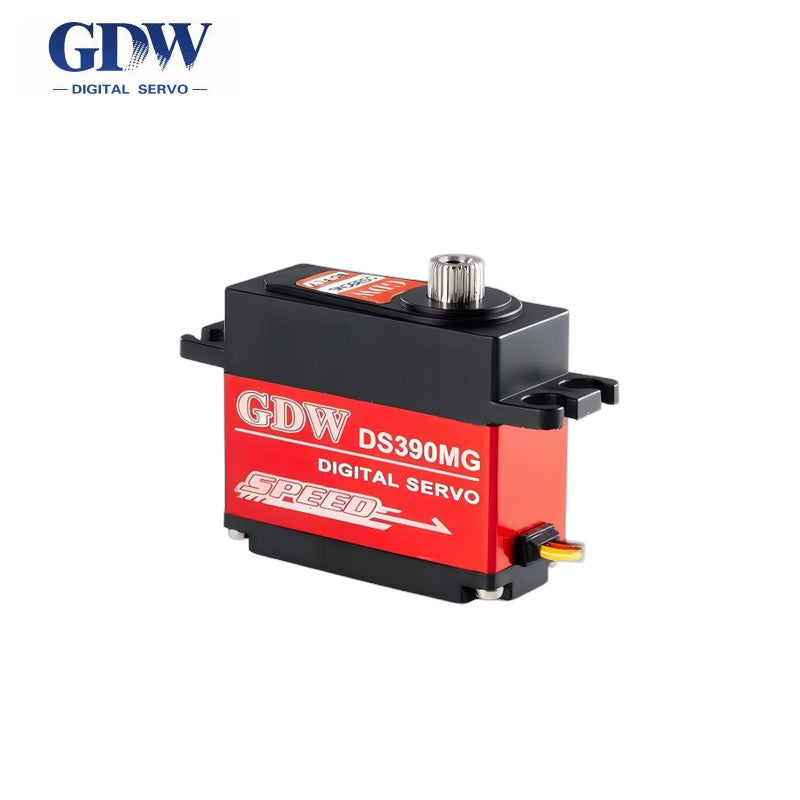

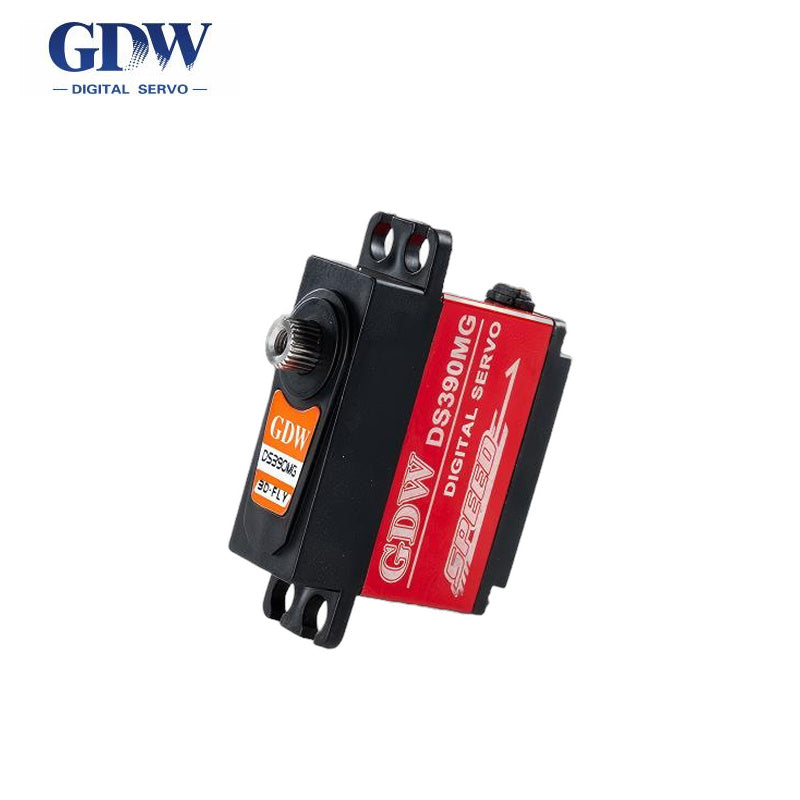

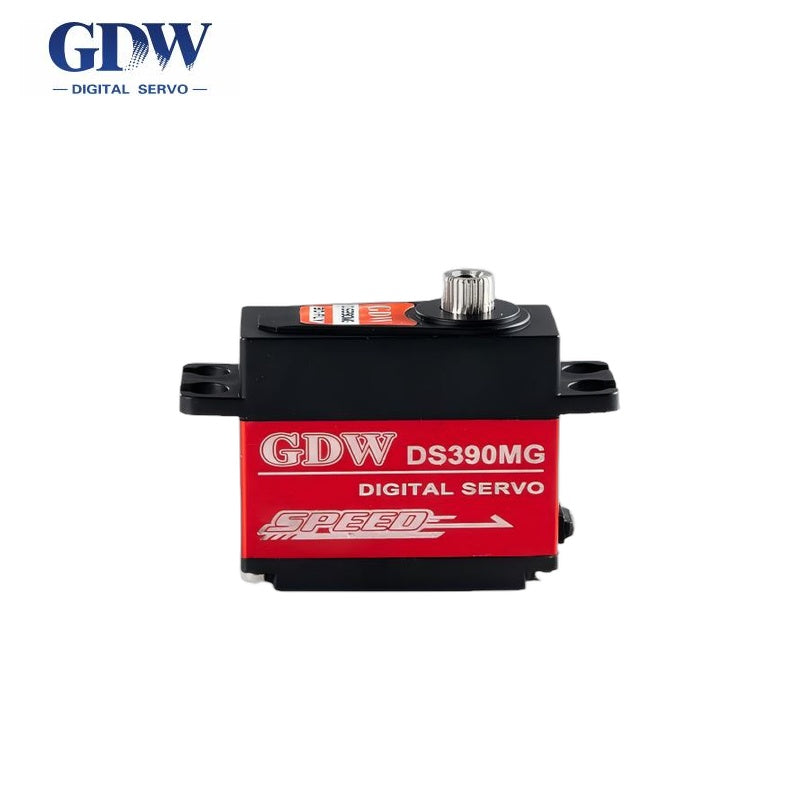

GDW DS390MG Servo Motor
Regular price
$50.00
Unit price
GDW DS390MG Servo Motor - DS390MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GDW DS390MG Servo Motor
Regular price
$50.00
Unit price
GDW DS390MG Servo Motor - DS390MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 6.0 V / 7.4 V / 8.4 V |
| Static Current | 10 mA / 15 mA / 20 mA |
| No‑load Current | 470 mA / 550 mA / 600 mA |
| Stall Current | 1.7 A / 2.1 A / 2.3 A |
| Dead Band | 3 µs / 3 µs / 3 µs |
| No‑load Speed (sec/60°) | 0.10 / 0.08 / 0.07 |
| Stall Torque | 6.5 kg / 8.0 kg / 9.0 kg |
| Rated Torque | 2.0 kg·cm / 2.5 kg·cm / 2.7 kg·cm |
| Servo Type | DS390MG |
| Rated Voltage | DC 4.8 – 8.4 V |
| Communication Protocol | PWM |
| Signal (High / Low) | HIGH: min. 2.31 V, max. 5.0 V; LOW: min. 0.0 V, max. 0.99 V |
| Pulse Width Range | 800 µs – 1500 µs – 2200 µs |
| Operation Angle | 140° ±5° |
| Working Frequency | 333 Hz |
| Mapping Direction | CW / CCW (optional) |
| Operating Temperature | -20°C ~ +60°C |
| Dimensions (L×W×H) | 35.5 × 15 × 32.10 mm |
| Weight | 35 g ±5% |
| Bearing | 2BB |
| Gear Material | SUS303 |
| Shell Material | AL6061‑T6 + Nylon 50F |
| Motor | Coreless Motor (∅12×15 mm) |
| Wiring | 30 wire / 330 mm |
| Mounting Hole | M3 × 7 mm |
| Cable Wire | Orange (PWM), Red (DC+), Brown (DC-) |
GDW-DS390MG-Drawing.pdf
