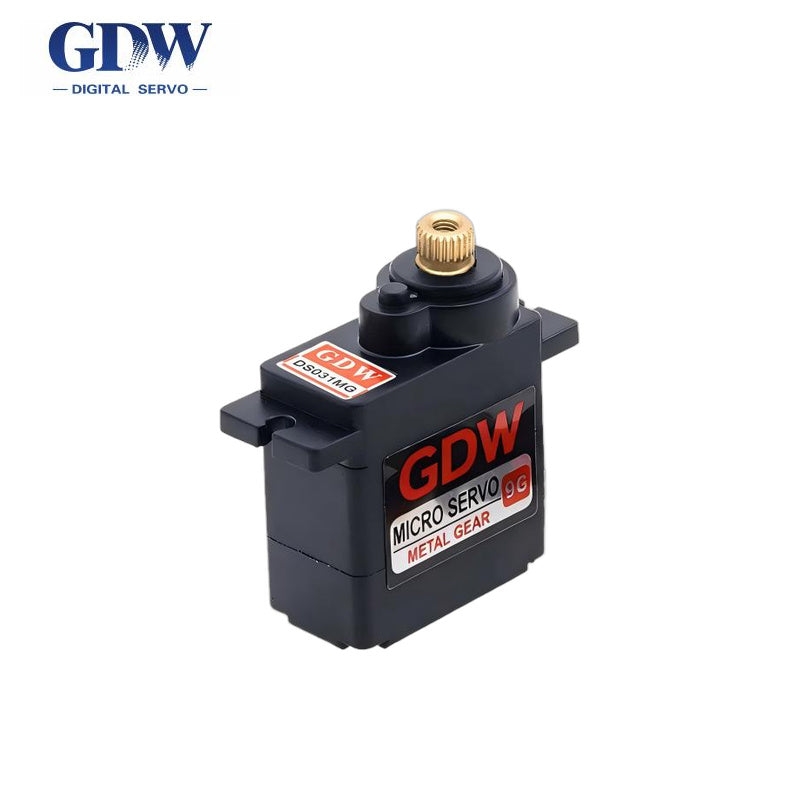

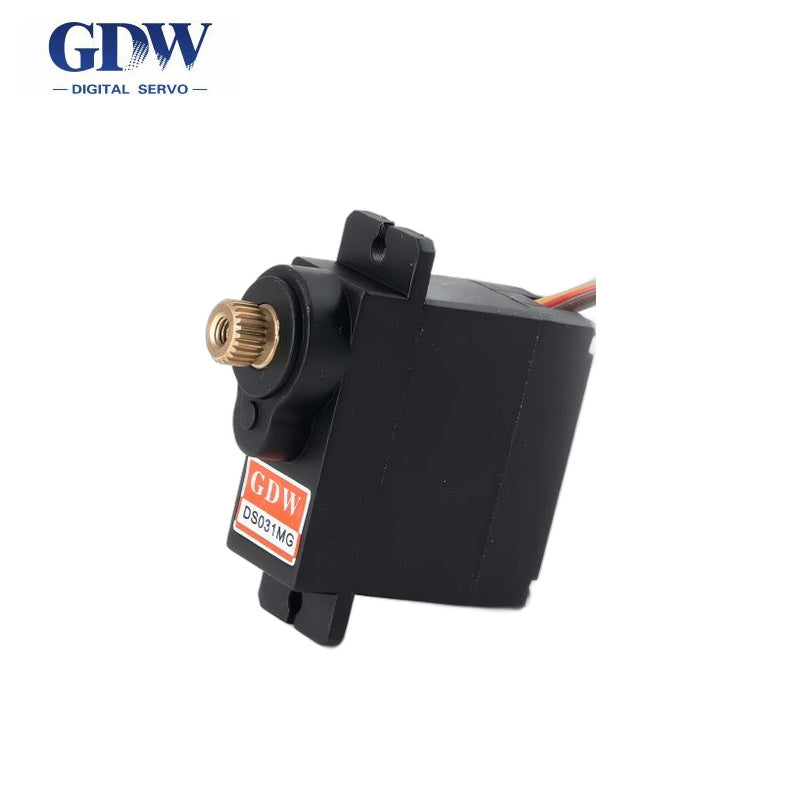

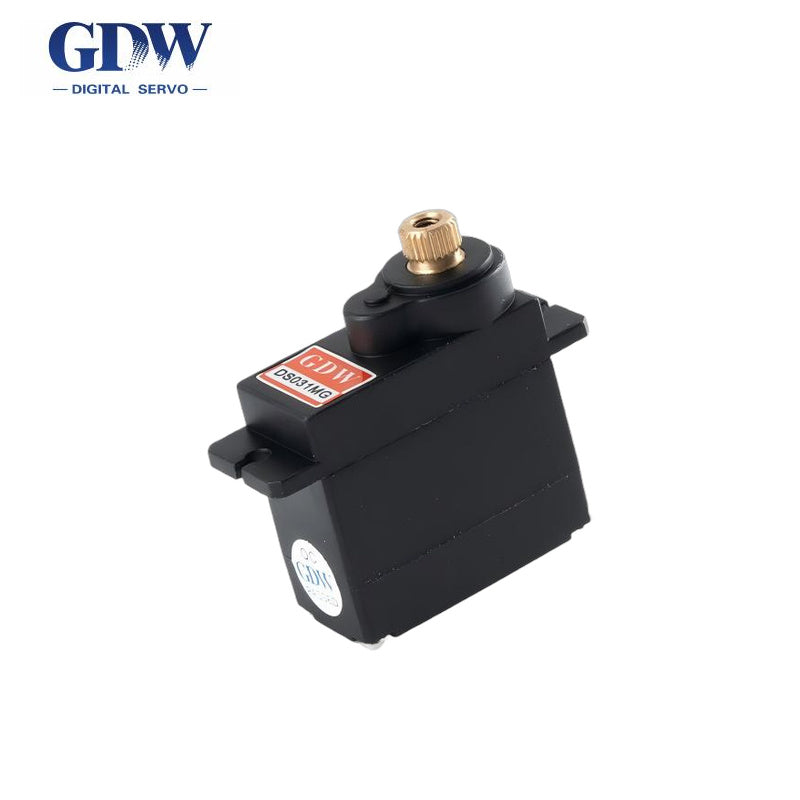

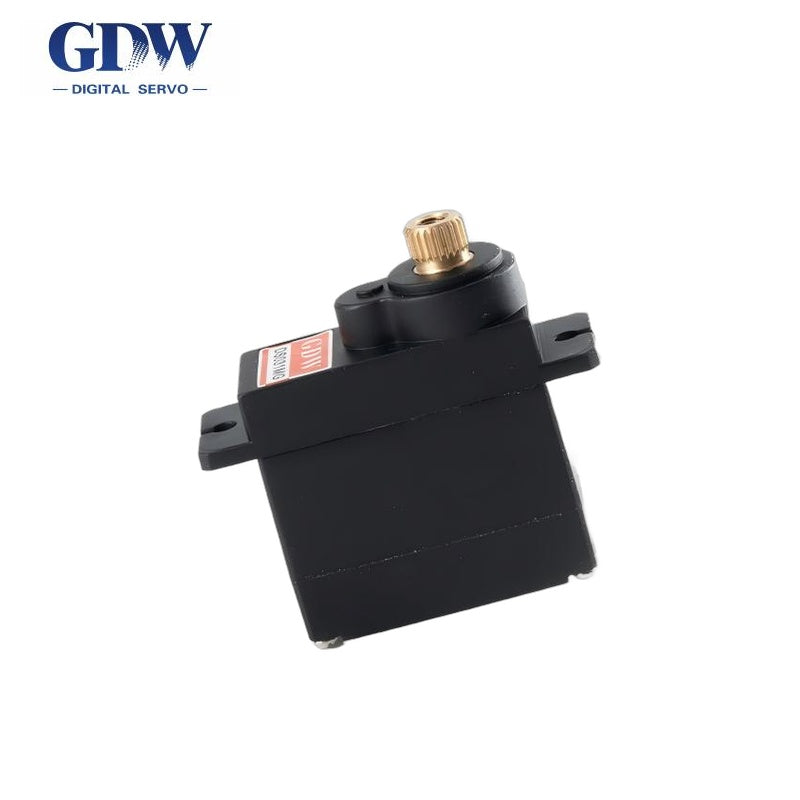

GDW DS031MG Servo Motor

$10.00
Version
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Working Voltage 4.8 V / 6.0 V / 7.4 V
Static Current 8 mA / 10 mA / 15 mA
No‑load Current 260 mA / 280 mA / 350 mA
Stall Current 1.2 A / 1.4 A / 1.7 A
Dead Band 3 µs / 3 µs / 3 µs
No‑load Speed (sec/60°) 0.13 / 0.11 / 0.09
Stall Torque 2.25 kg / 2.7 kg / 3.2 kg
Rated Torque 0.68 kg·cm / 0.8 kg·cm / 0.95 kg·cm
Servo Type DS031MG
Rated Voltage DC 4.8 – 7.4 V
Signal (High / Low) HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V
Communication Protocol PWM
Pulse Width Range 500 µs – 1500 µs – 2500 µs
Operation Angle 180° ±5°
Working Frequency 333 Hz
Mapping Direction CW / CCW (optional)
Operating Temperature -20°C ~ +60°C
Dimensions (L×W×H) 23.6 × 12 × 26.8 mm
Weight 14 g ±5%
Bearing 1BB
Gear Material C3604 (Brass)
Shell Material Nylon + 50% Glass Fiber
Motor Core Motor (∅10×12 mm)
Wiring 30 strand / 185 mm
Mounting Hole M2.3 × 4 mm
Spline / Gear Teeth 25T (∅4.92 mm)

GDW-DS031MG-Drawing.pdf
