GDW

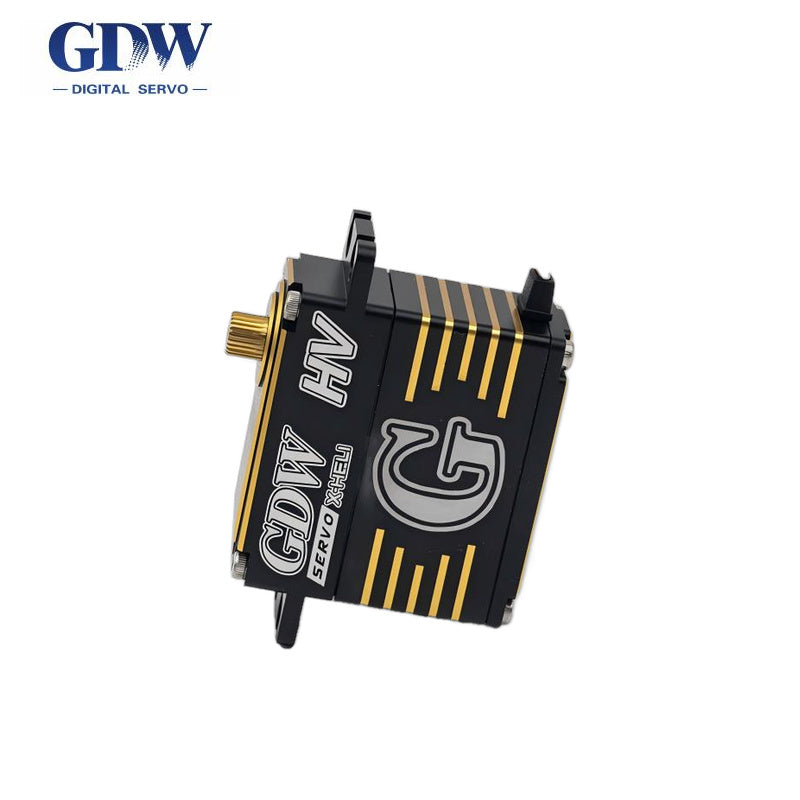

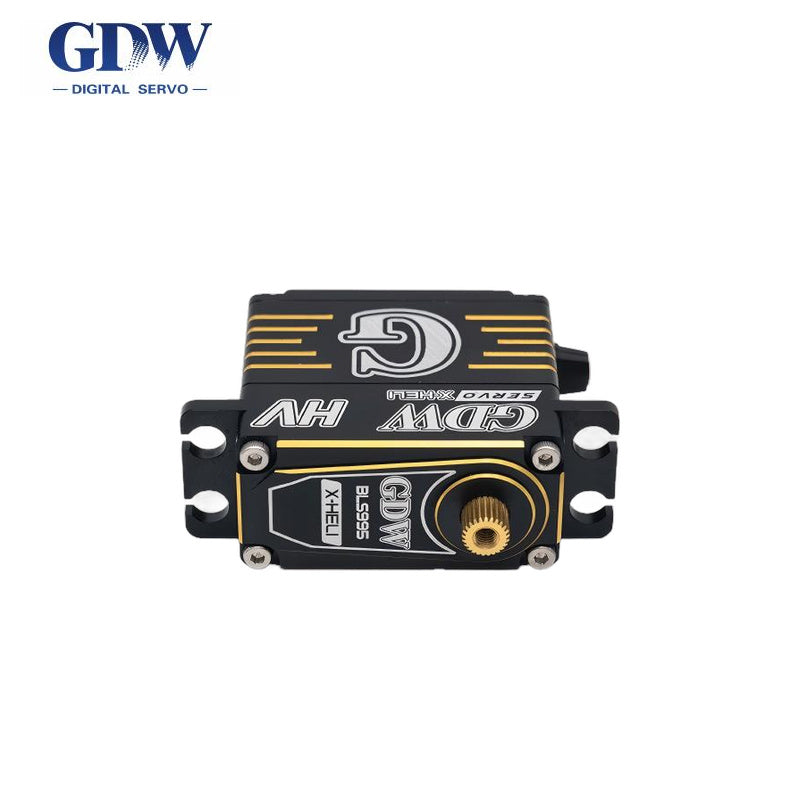

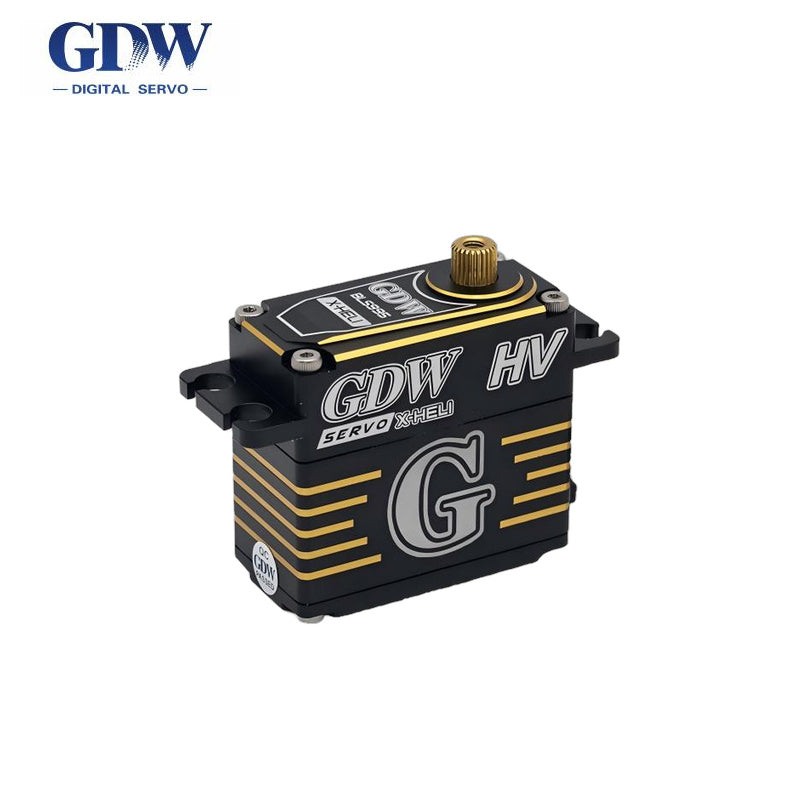

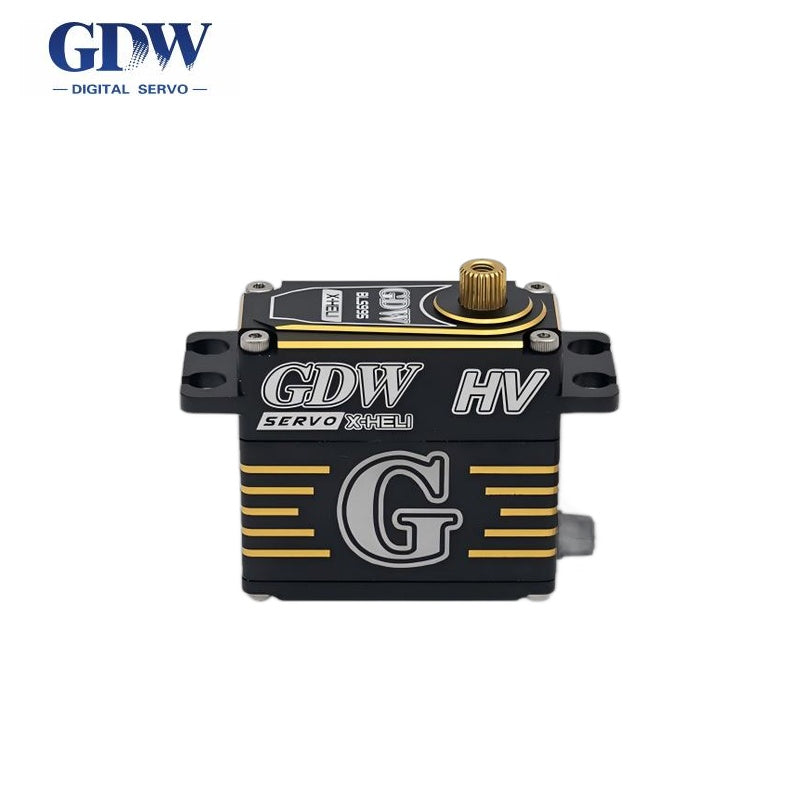

GDW BLS995 Servo Motor

$140.00

Version

BLS995

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Working Voltage	6.0 V / 7.4 V / 8.4 V
Static Current	15 mA / 20 mA / 25 mA
No‑load Current	280 mA / 360 mA / 450 mA
Stall Current	4.2 A / 7.2 A / 7.5 A
No‑load Speed (sec/60°)	0.06 / 0.05 / 0.04
Stall Torque	7.5 kgf·cm / 9.0 kgf·cm / 10.5 kgf·cm
Rated Torque	1.9 kgf·cm / 2.3 kgf·cm / 2.6 kgf·cm
Servo Type	BLS995HV
Voltage Range	DC 6.0 – 8.4 V
Rated Voltage	DC 7.4 V
Communication Protocol	PWM
Signal Voltage Level	HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V
Gear Material	SUS303
Shell Material	AL6061 T6
Motor	Brushless Motor
Potentiometer	Contact‑type
Bearing	2BB
Dimensions (L×W×H)	40.5 × 20 × 38.60 mm
Weight	72 g ±5%
Operating Temperature	-20°C ~ +60°C
Pulse Width Range	500 µs – 750 µs – 1000 µs
Operation Angle	55° ±2°
Working Frequency	50 – 333 Hz
Mapping Direction	CW / CCW (optional)
Dead Band	3 µs
Cable Wire	JR 2.5 60‑core / 330±5 mm Orange (PWM), Red (DC+), Brown (DC-)
