GDW | SKU:

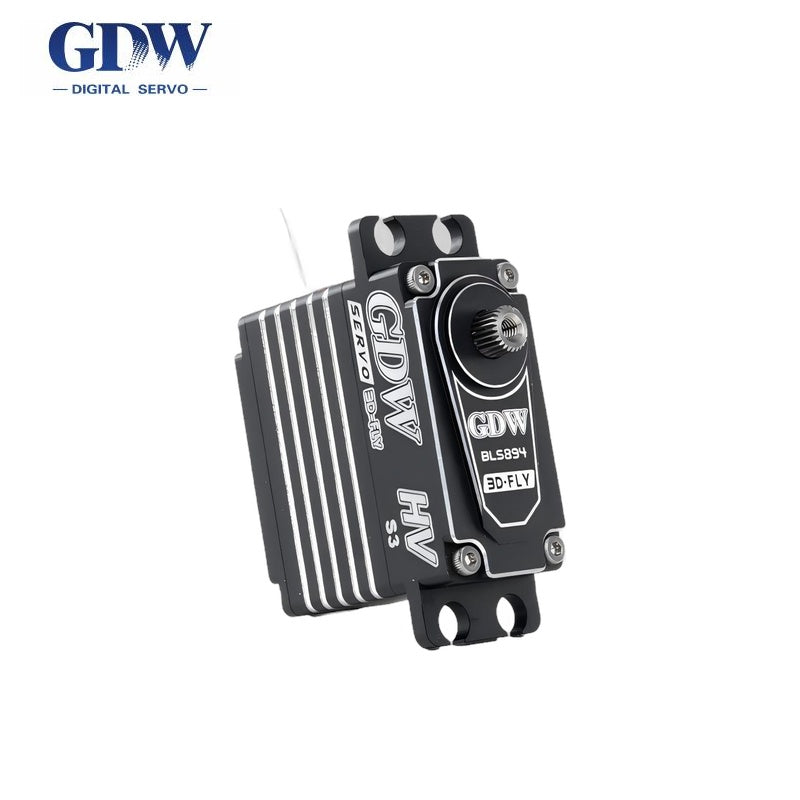

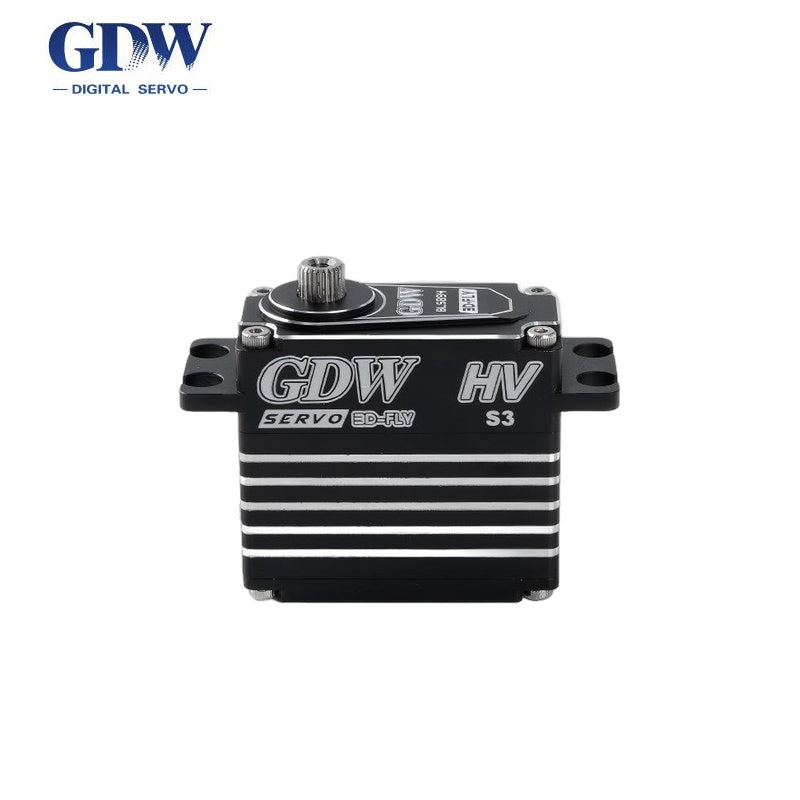

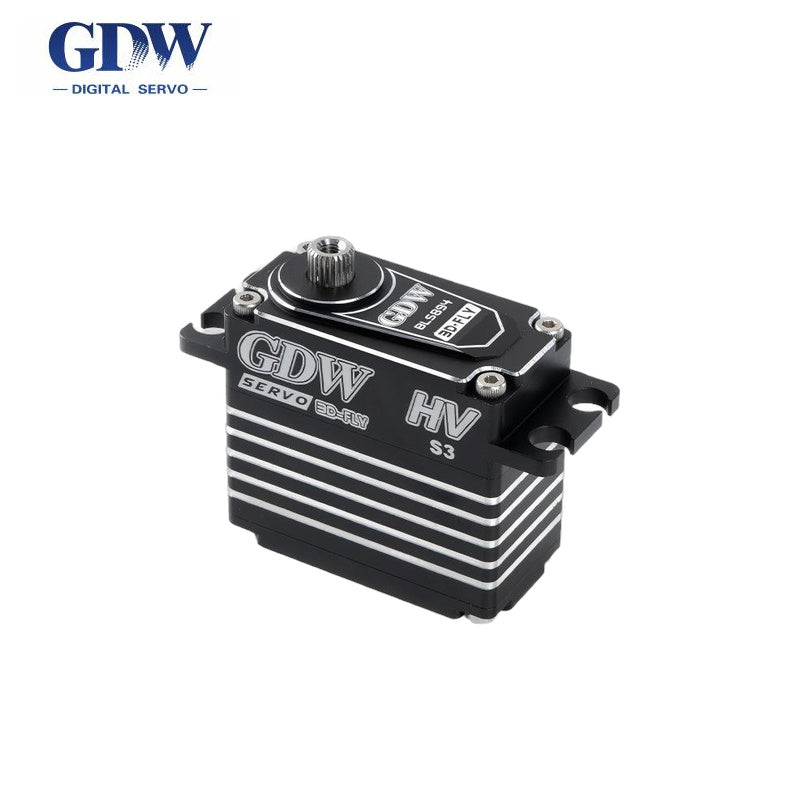

GDW BLS894 Servo Motor
Regular price
$130.00
Unit price
GDW BLS894 Servo Motor - BLS894 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GDW BLS894 Servo Motor
Regular price
$130.00
Unit price
GDW BLS894 Servo Motor - BLS894 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 6.0 V / 7.4 V / 8.4 V |
| Static Current | 25 mA / 28 mA / 30 mA |
| No‑load Current | 390 mA / 450 mA / 500 mA |
| Stall Current | 3.9 A / 4.8 A / 5.4 A |
| Rated Torque | 8.5 kgf·cm / 10.0 kgf·cm / 11.75 kgf·cm |
| Servo Type | BLS894HV |
| Voltage Range | DC 6.0 V – 8.4 V |
| Rated Voltage | DC 7.4 V |
| Signal Voltage Level | HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V |
| Gear Material | SUS303 |
| Communication Protocol | PWM |
| Shell Material | AL6061 T6 |
| Operating Temperature | -20°C ~ +60°C |
| Motor | Brushless Motor |
| Pulse Width Range | 1000 µs – 1500 µs – 2000 µs |
| Potentiometer | Contact‑type |
| Operation Angle | 45° 0° -45° (±2°) |
| Working Frequency | 50 ~ 333 Hz |
| Bearing | 2BB |
| Mapping Direction | CW / CCW (optional) |
| Dimensions (L×W×H) | 40.5 × 20 × 38.8 mm |
| Weight | 82 g ±5% |
| Dead Band | 3 µs |
GDW-BLS894HV-Drawing.pdf
