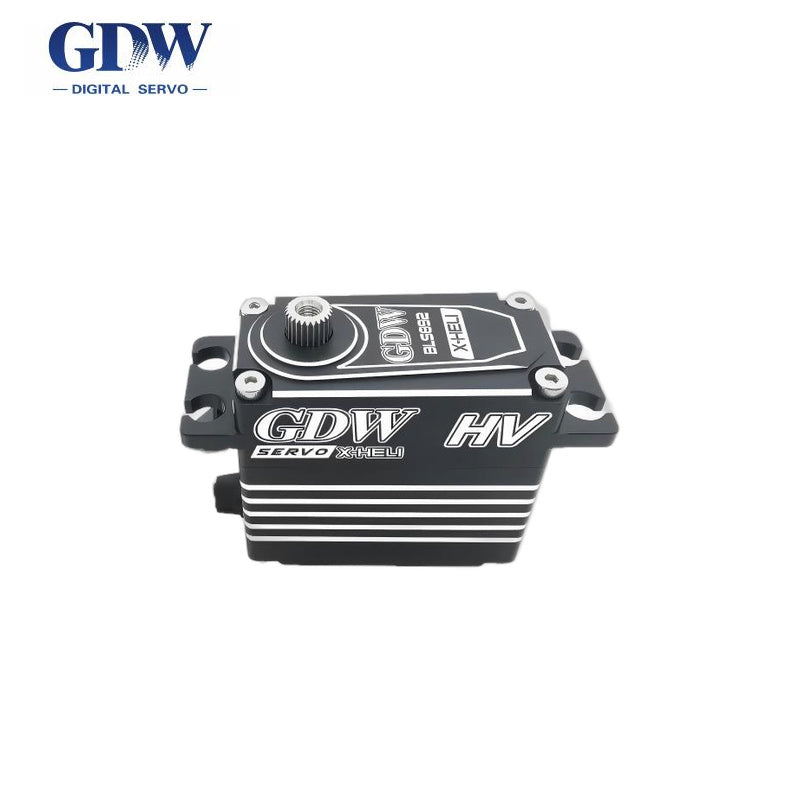

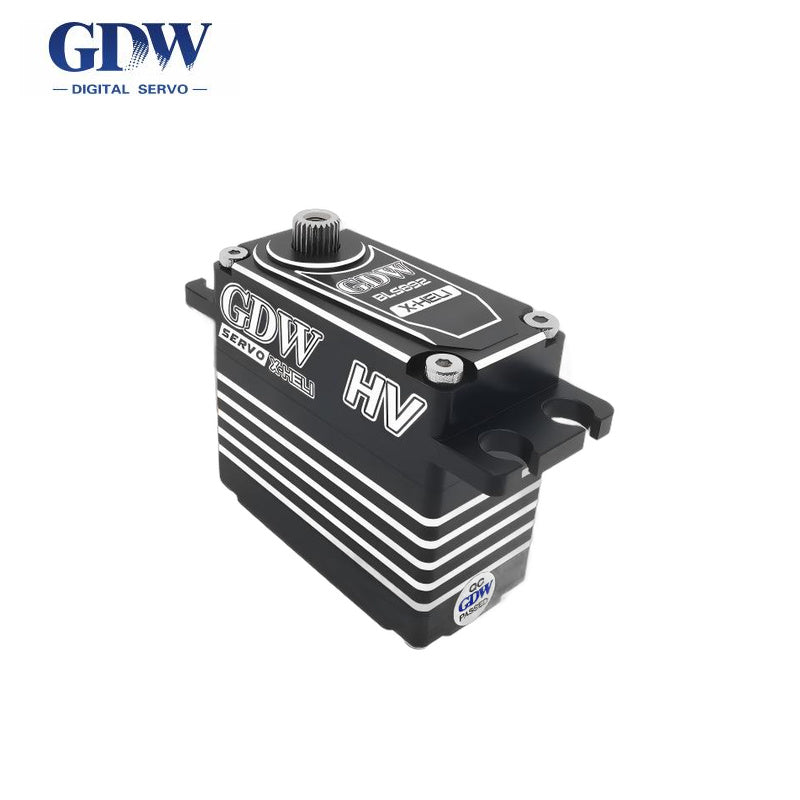

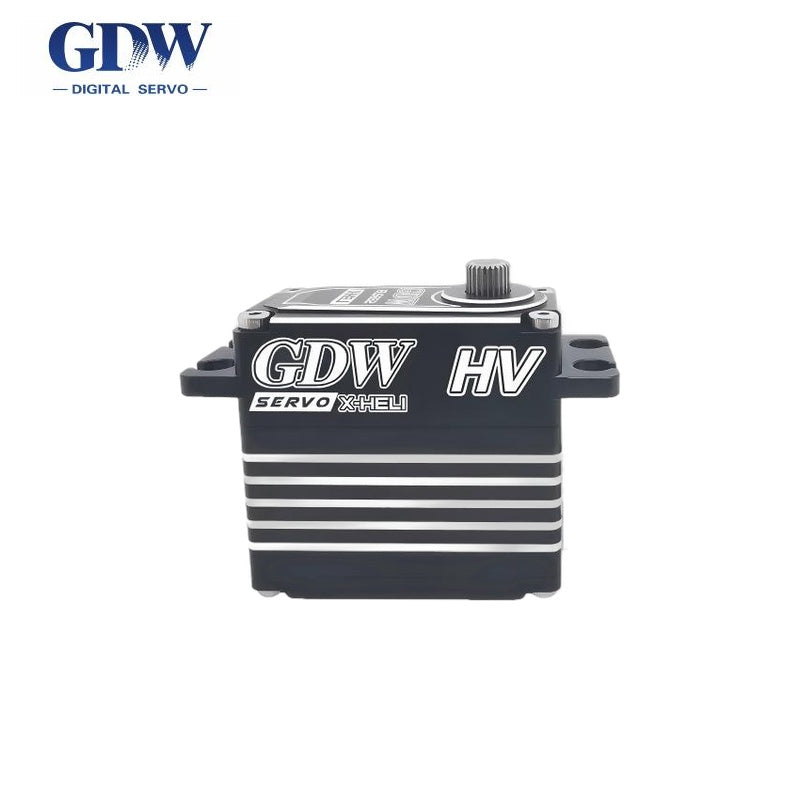

GDW BLS892 Servo Motor
Regular price
$105.00
Unit price
GDW BLS892 Servo Motor - BLS892 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GDW BLS892 Servo Motor
Regular price
$105.00
Unit price
GDW BLS892 Servo Motor - BLS892 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 6.0 V / 7.4 V / 8.4 V |
| Static Current | 20 mA / 25 mA / 30 mA |
| No‑load Current | 380 mA / 470 mA / 500 mA |
| Stall Current | 3.7 A / 4.6 A / 5.1 A |
| Dead Band | 3 µs / 3 µs / 3 µs |
| No‑load Speed (sec/60°) | 0.10 / 0.08 / 0.07 |
| Stall Torque | 20.0 kg·cm / 23.0 kg·cm / 26.0 kg·cm |
| Rated Torque | 6.0 kg·cm / 7.0 kg·cm / 7.8 kg·cm |
| Servo Type | BLS892HV |
| Rated Voltage | DC 4.8 – 8.4 V |
| Gear Material | SUS303 |
| Communication Protocol | PWM |
| Shell Material | AL6061 T6 |
| Operating Temperature | -20°C ~ +60°C |
| Motor | Brushless Motor ∅17×18 mm |
| Pulse Width Range | 1000 µs – 1500 µs – 2000 µs |
| Wiring | 60‑strand / 330 mm |
| Working Frequency | 333 Hz |
| Dimensions (L×W×H) | 40.5 × 20 × 38.70 mm |
| Operation Angle | 90° ±5° |
| Bearing | 2BB |
| Mapping Direction | CW / CCW (optional) |
| Weight | 80 g ±5% |
| Signal (High / Low) | HIGH: min. 2.31 V ~ max. 5 V; LOW: min. 0 V ~ max. 0.99 V |
GDW-BLS892HV-Drawing.pdf
