Direct Drive Tech | SKU:
Sold out

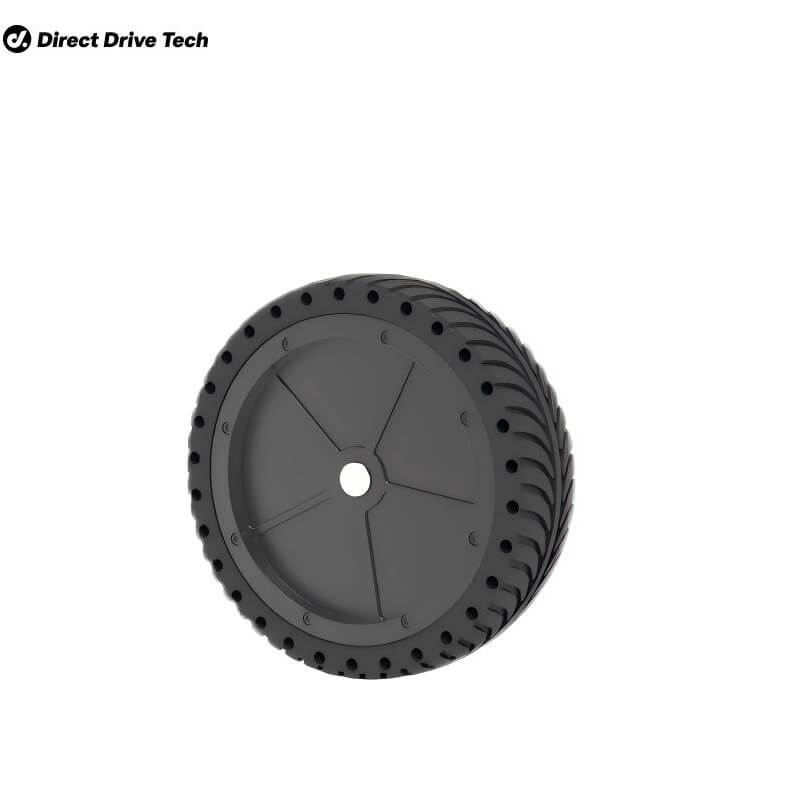

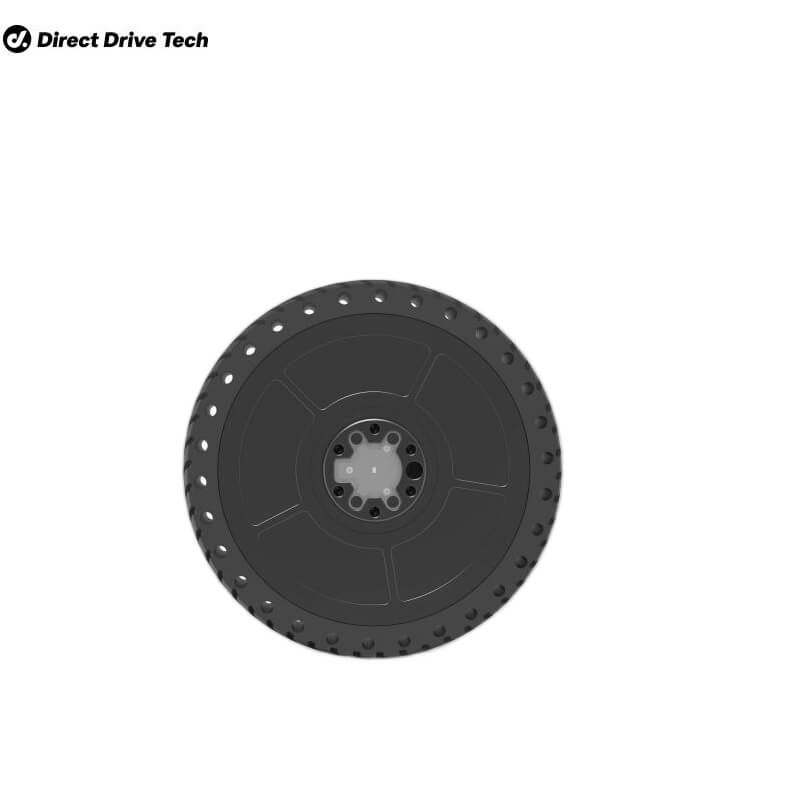

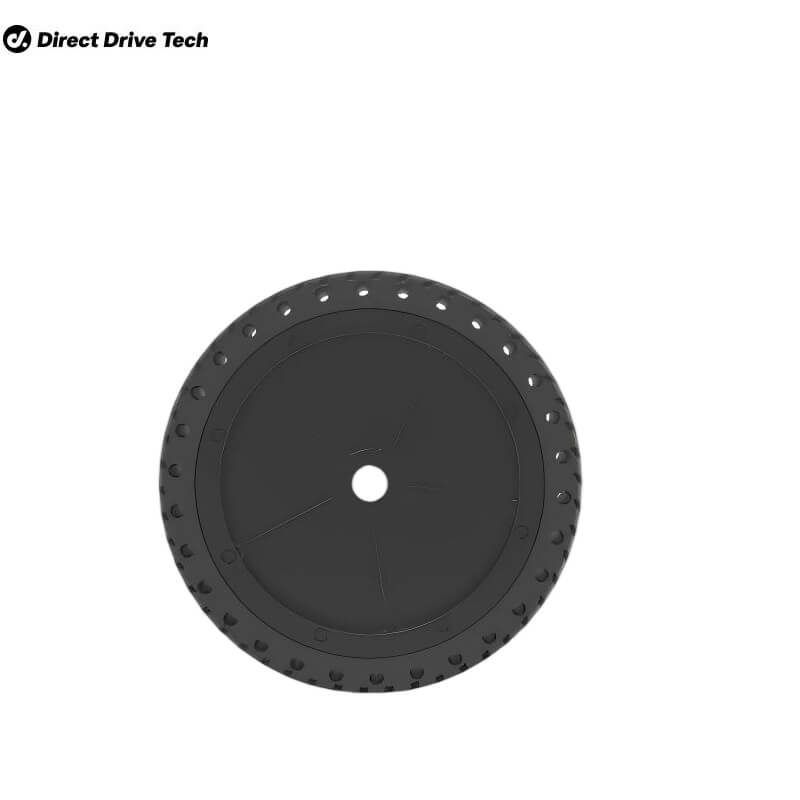

Direct Drive Tech M1502D_233 Directdrive Motor
Regular price
$335.00
Unit price
/
Unavailable
Direct Drive Tech M1502D_233 Directdrive Motor - M1502D_233 motor (tire version) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| ltem Name | Direct Drive Tech M1502D_233 Directdrive Motor |
| No-Load Speed |
≥200rpm
|
| No-Load Current |
≤0.5A
|
| Rated Speed | 115rpm |
| Rated Torque |
9.6N·m
|
| Rated Current |
≤11.5A
|
| Rated Voltage |
24VDC
|
| Maximum Efficiency |
≥72%
|
| Stall Torque |
≥17N·m
|
| StallCurrent |
≤21A
|
| Torque Constant |
0.88Nm/A
|
| Speed Constant |
8.3rpm/V
|
| Protection Rating (IP Rating) |
IP55
|
| Noise Level |
≤52dB
|
| Operating Ambient Temperature |
-20℃~45℃
|
| Motor Weight |
2.3KG
|
| Encoder Resolution |
16384
|
| Absolute Accuracy |
8192
|
M1502D_233-Installation_diagram.pdf
