Direct Drive Tech | SKU:
Sold out

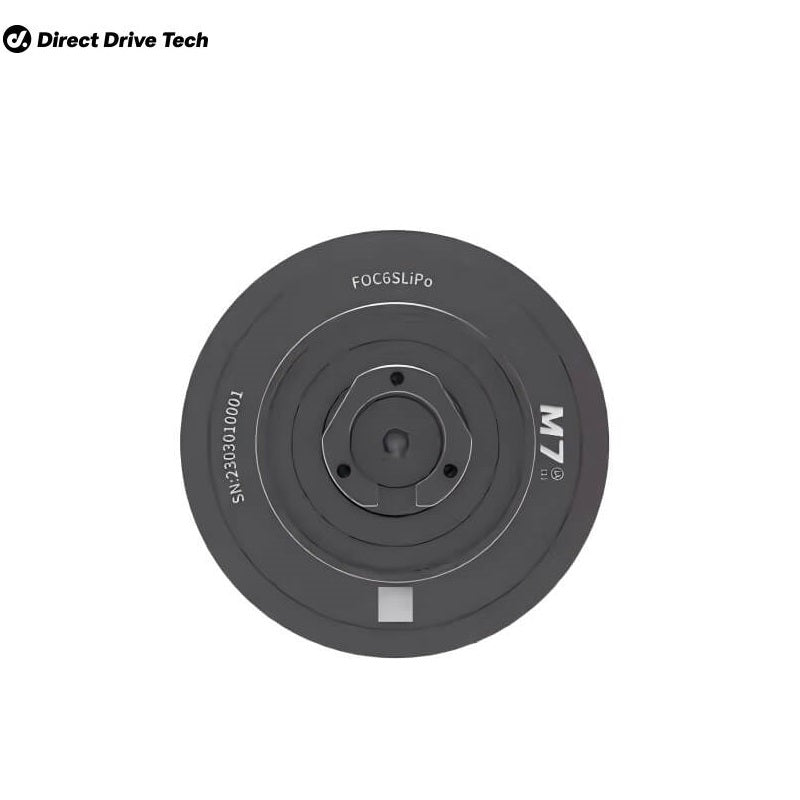

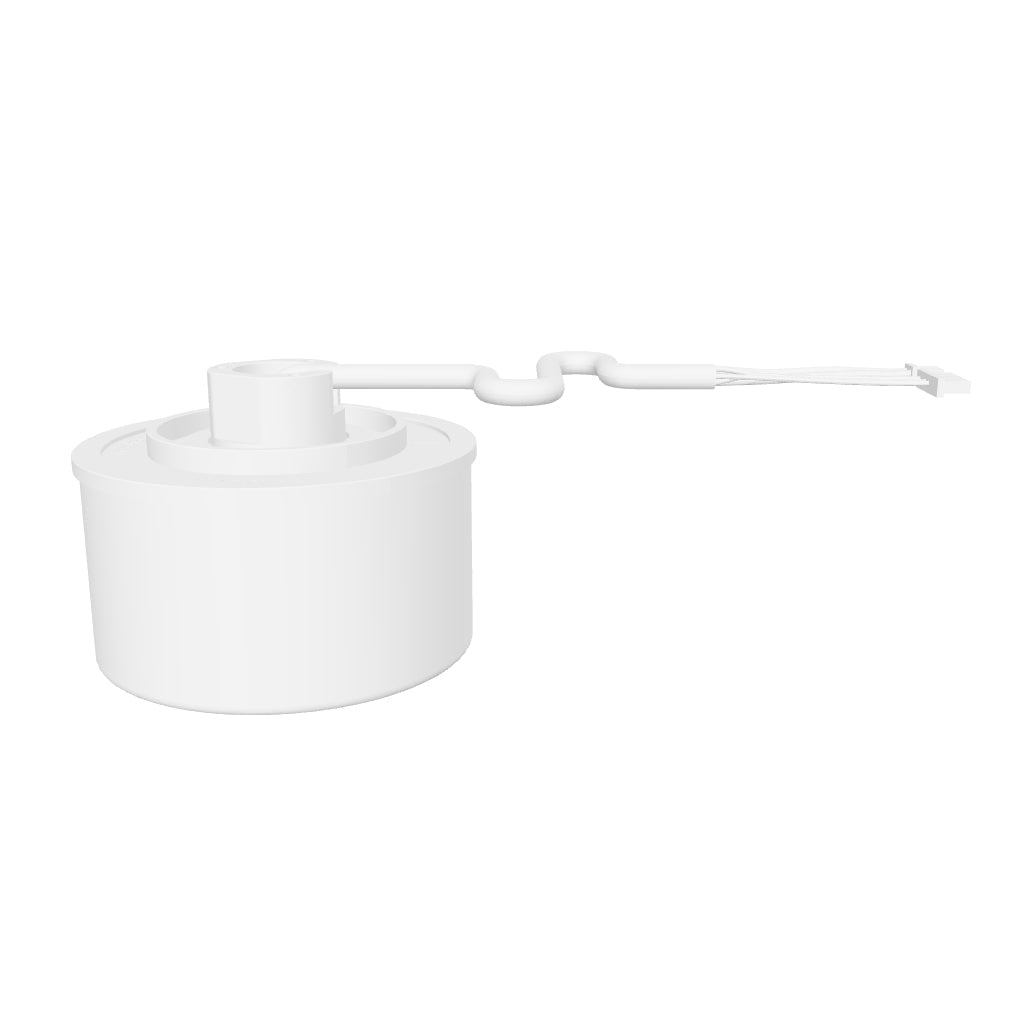

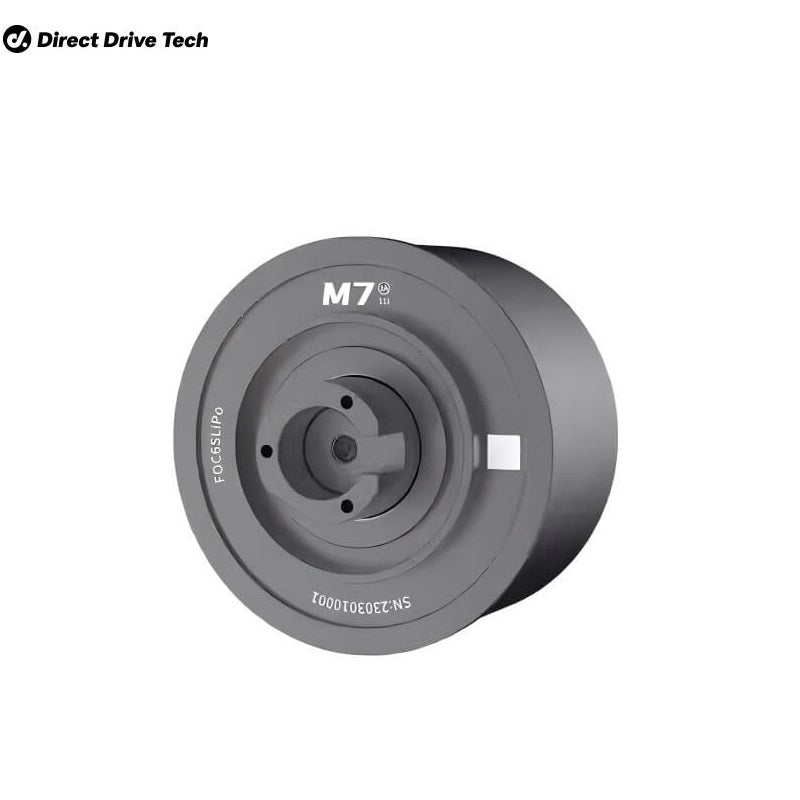

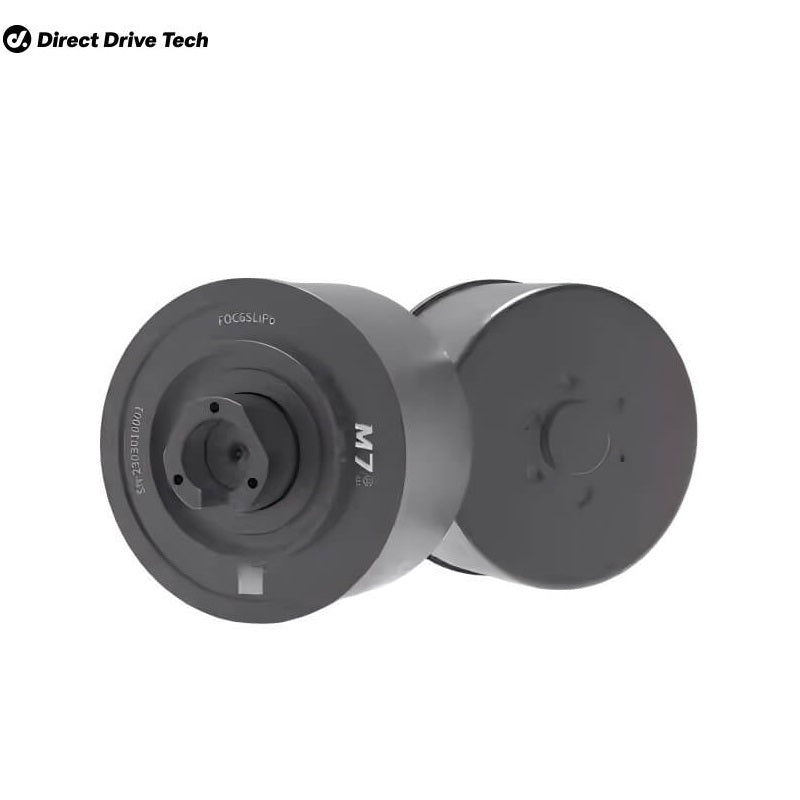

Direct Drive Tech M0701A_111 Directdrive Motor
Regular price
$135.00
Unit price
Direct Drive Tech M0701A_111 Directdrive Motor - M0701A_111 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech M0701A_111 Directdrive Motor - M0701A_111 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
M0701A_111
|
| No-load Speed | 300±10rpm |
| No-load Current | ≤0.25A |
| Rated Speed | 200±5rpm |
| Rated Torque | 1.2Nm |
| Rated Current | 1.55+0.15A |
| Rated Voltage | 24VDC |
| Voltage Range | 7.5~28VDC |
| Stall Torque | ≥4.5Nm |
| Stall Current | ≤8.5A |
| Torque Constant | 0.65Nm/A |
| Protection Level | IP54 |
| Noise | ≤40dB(A) |
| Insulation Class | B |
| Number of Pole Pairs | 10 |
| Number of Slots | 18 |
| Motor Weight | 730g |
| Encoder Resolution | 4096 |
| Motor Control Method | FOC |
