LSLIDAR | SKU:

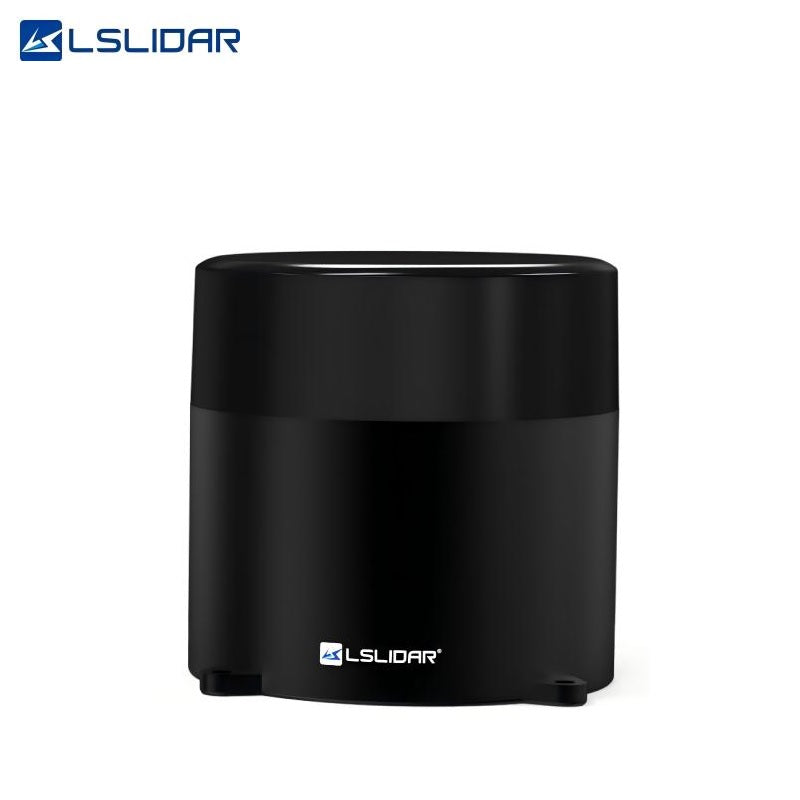

LSLIDAR N301 LiDAR
Regular price
$730.00
Unit price
LSLIDAR N301 LiDAR - N30101A (Detection range 10 meters) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR N301 LiDAR
Regular priceFrom
$730.00
Unit price
LSLIDAR N301 LiDAR - N30101A (Detection range 10 meters) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | N301 |
|---|---|
| Laser Wavelength | 905 nm |
| Detection Range | 0.02~12m@70% |
| Range Precision | ±3cm(0~6m); ±4.5cm(6-12m)@70% |

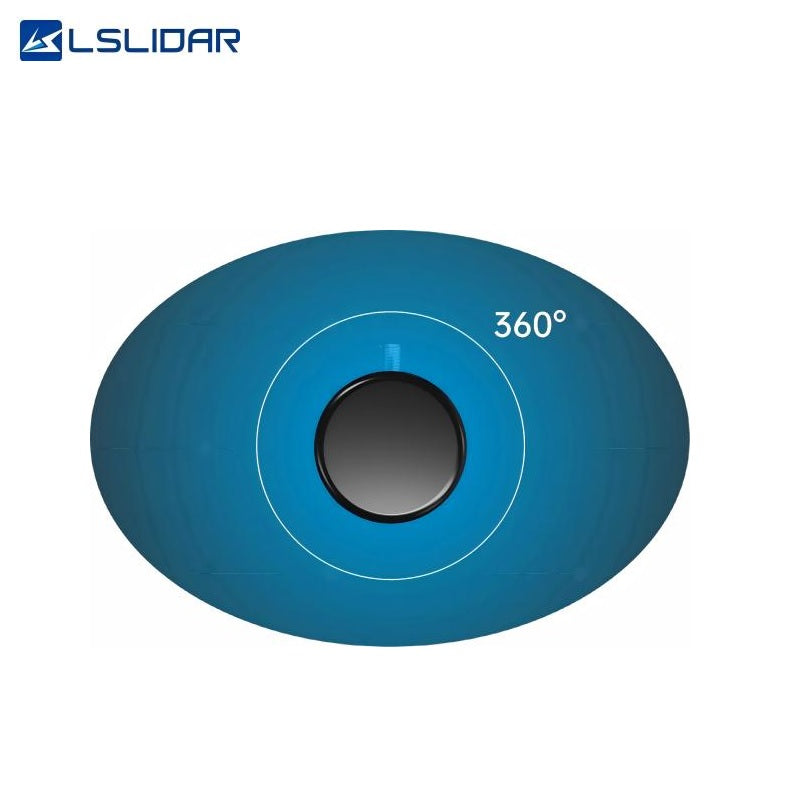

| FOV | 360° |
| Horizontal Resolution | 0.48°~0.96° |
| Data Points Generated | 4500 pts/sec |
| IP Grade | IPX-4 |
| Weight | 60g |
| Dimensions (D*H) | 52*36.1mm |
