LSLIDAR

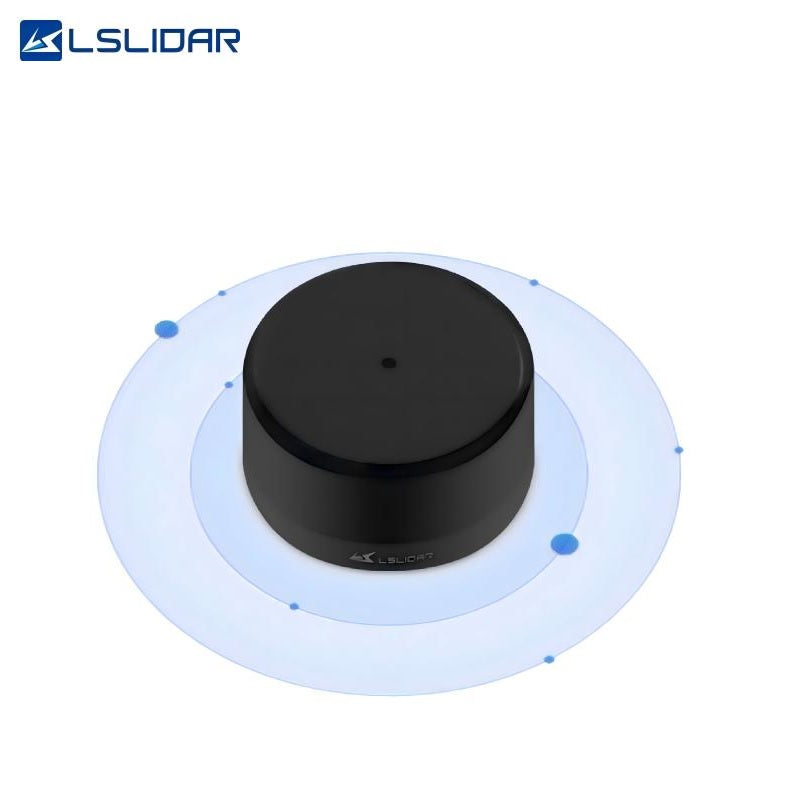

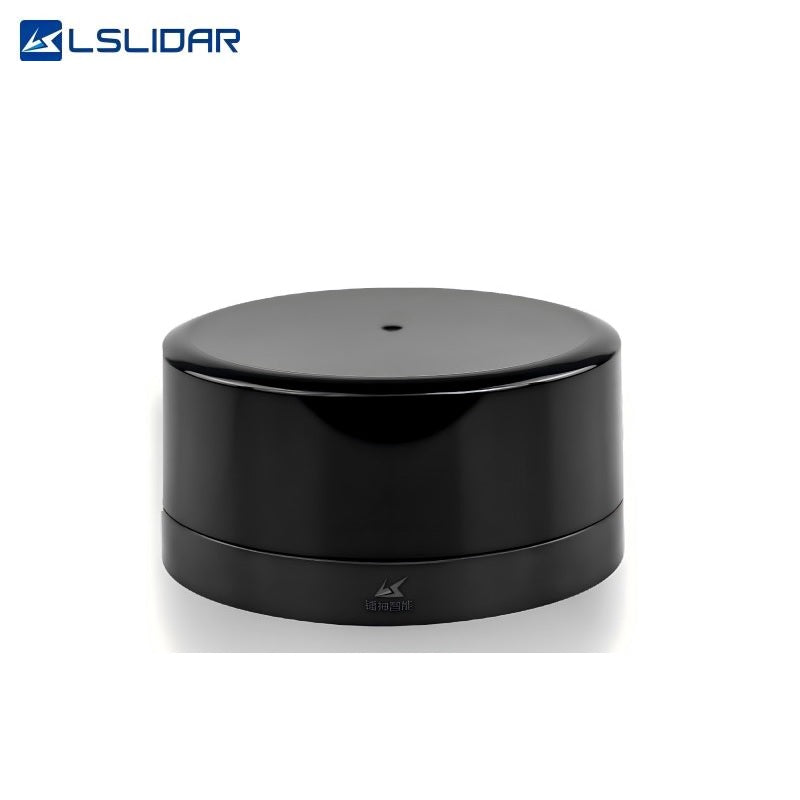

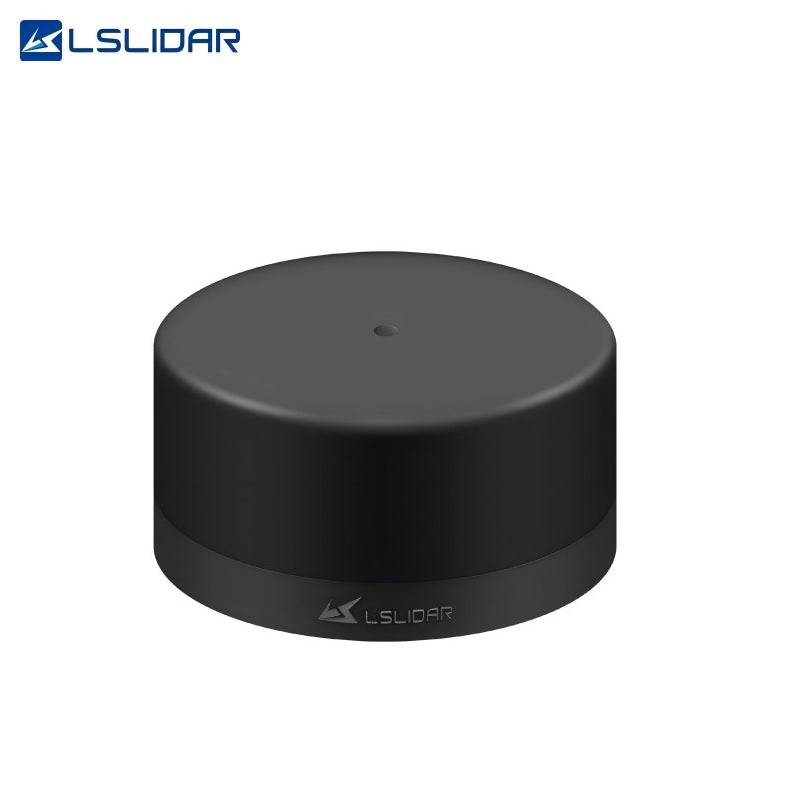

LSLIDAR M10 LiDAR

$295.00
Version

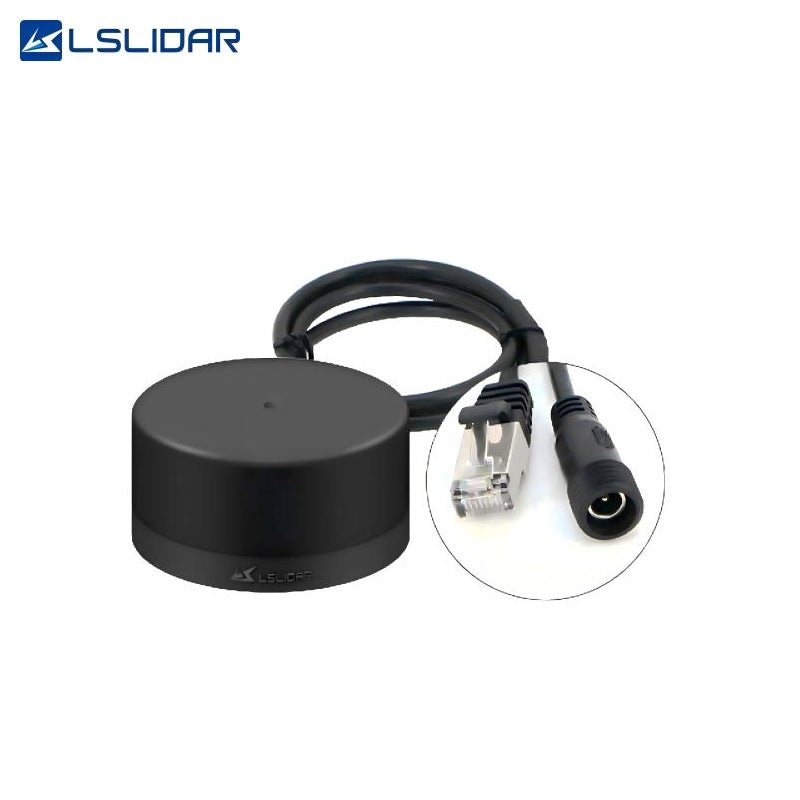

Adapter Module

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots

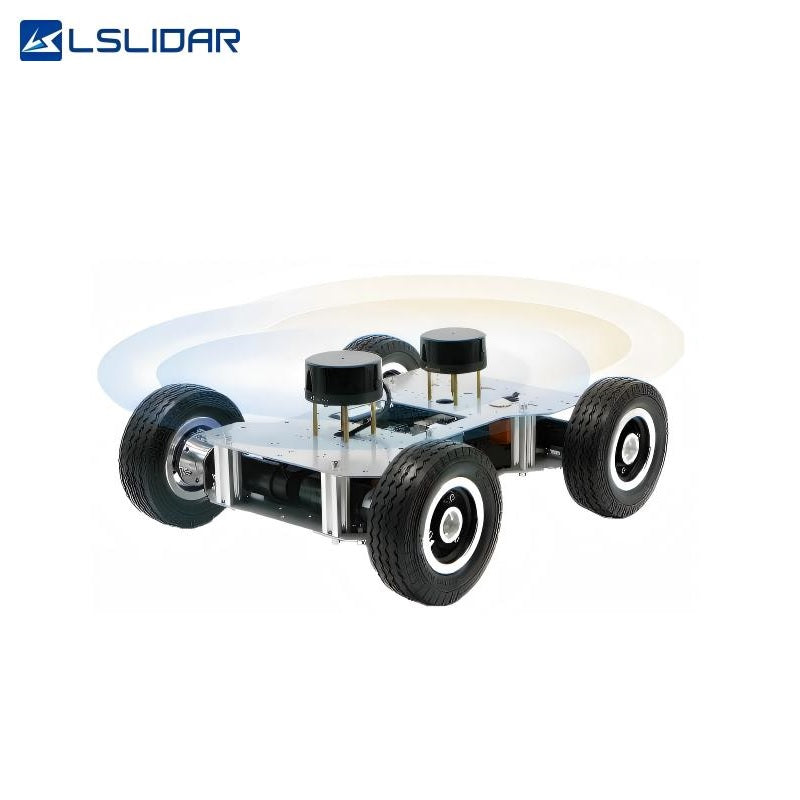

AGV Vehicles
ARU Robots

Technical Specifications

Parameter M10 M10P M10 PHY
Laser Wavelength 905 nm 905 nm 905 nm
Laser Class Class I (eye-safe) Class I (eye-safe) Class I (eye-safe)
Data Content Distance, angle Distance, angle Distance, angle
Detection Range 10m@10%, 25m@70% 10m@10%, 25m@70% 10m@10%, 25m@70%
Measurement Accuracy ±3 cm ±3 cm ±3 cm
Emission Repetition Rate 10 kHz 20 kHz 10 kHz
Scanning Frequency 10 / 20 Hz 12 Hz 10 Hz
Point Rate 10,000 points/s 20,000 points/s 10,000 points/s
Output Data Resolution 1 mm 1 mm 1 mm
Angular Resolution 0.36° / 0.72° 0.22° 0.36°
Power Supply Range 5–15V (Ethernet); 4.75–5.25V (Serial) 5–15 V (Ethernet) 9–32 V DC
Ingress Protection Rating IP65 IP65 IP65
Operating Temperature –20°C to +50°C –20°C to +50°C –10°C to +50°C
Communication Interface Standard serial port (baud rate: 460800 bps) Standard serial port (baud rate: 512000 bps) Ethernet
Shock Resistance 500 m/s², 11 ms duration 500 m/s², 11 ms duration 500 m/s², 11 ms duration
Ambient Light Immunity 80,000 Lux 80,000 Lux ——
Weight ≈200 g ≈200 g ≈200 g
Dimensions (D × H) Ø79.6 × 39 mm Ø79.6 × 39 mm Ø79.6 × 39 mm


LSLIDAR-M10-LiDAR-Product-Introduction.pdf
