LSLIDAR | SKU:

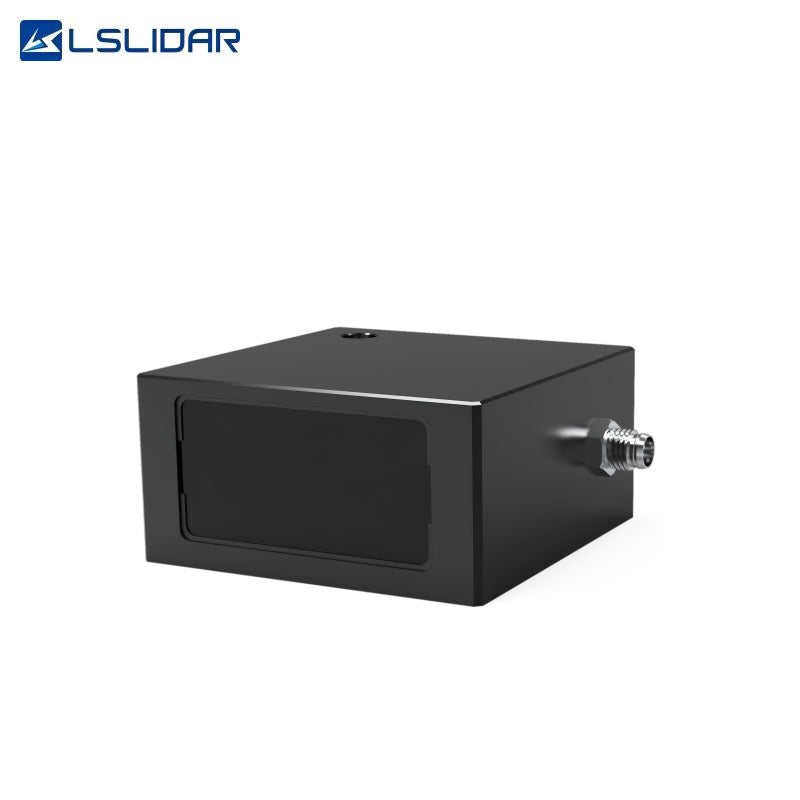

LSLIDAR LS72B LiDAR
Regular price
$730.00
Unit price
LSLIDAR LS72B LiDAR - LS72B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR LS72B LiDAR
Regular price
$730.00
Unit price
LSLIDAR LS72B LiDAR - LS72B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | LS72B |
|---|---|
| Wavelength | 905 nm |
| Laser Class | Class I |
| Detection Range | 0.05~ 150 m (@10%) |
| Range Precision | ±3 cm (1σ) |
| FPS | 10 Hz~ 200 Hz（Adjustable） |
| Echo Frequency | Single / Dual Echo |
| Communication Interface | CAN / RS232 |
| Power Consumption | 2W |
| Input Voltage | 6~18 V |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -50℃～105℃ |
| IP Grade |
IP67
|
| Weight | ≈230g |
| Dimensions (LxWxH) | 70*70*30mm（Interface Excluded） |
