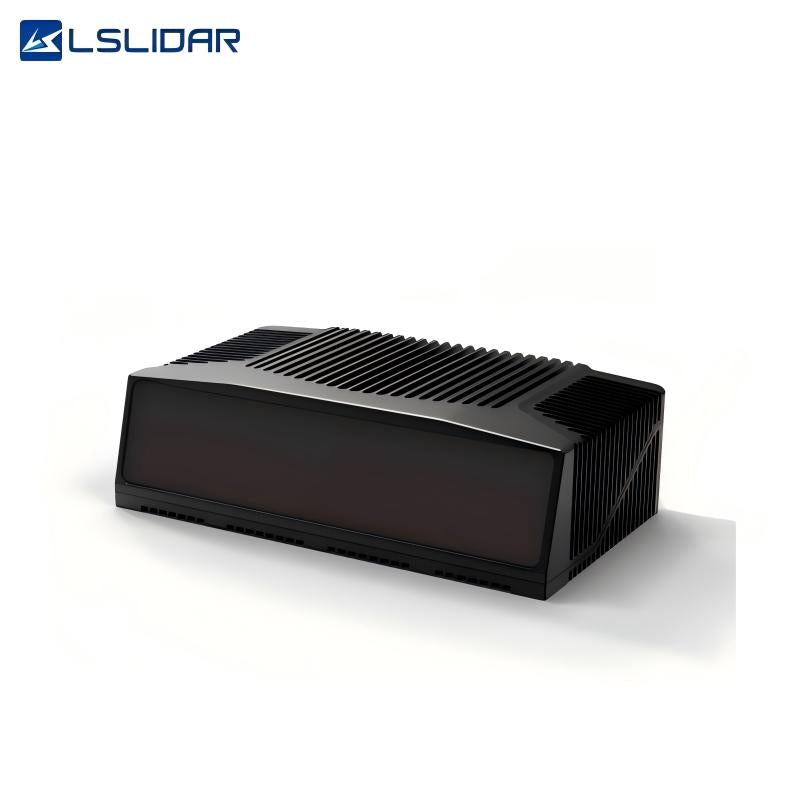

LSLIDAR LS500W1 LiDAR

$15,700.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter LS500W1
Wavelength 1550nm
Detection Range 2~150m
Range Precision ±2cm
FOV (H*V) 120°*73°(±36.5°)
Resolution (H*V) 0.155°*0.146°(10Hz)
IP Grade IP6K9K
Data Point Generated 3,700,000 pts/sec
Weight ≤3kg
Dimensions (L*W*H) 270*160*80mm
