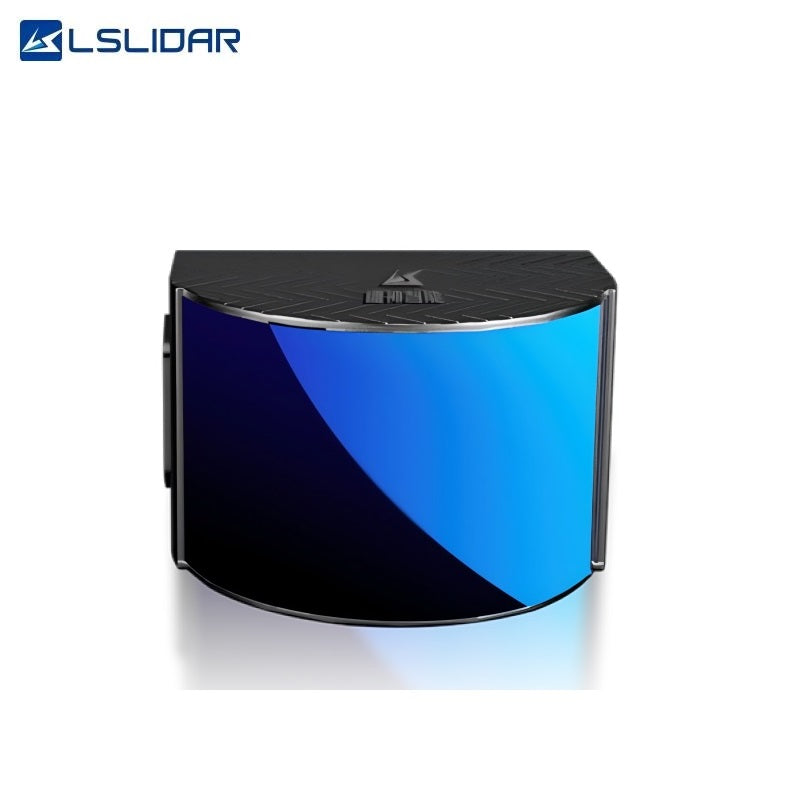

LSLIDAR CB64S1 LiDAR
Regular price
$2,950.00
Unit price
LSLIDAR CB64S1 LiDAR - CB64S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR CB64S1 LiDAR
Regular price
$2,950.00
Unit price
LSLIDAR CB64S1 LiDAR - CB64S1 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | CB64S1 |
|---|---|
| Wavelength | 905 nm |
| Laser Class | Class I (IEC-60825) |
| Channels | 64 |
| Detection Method | TOF |
| Detection Range | 100m(45m@10%) |
| Range Accuracy | ±3cm |
| Horizontal(FOV) | 180° |
| Vertical | 40°(-25°~15°) |
| Horizontal(Angular Resolution) | 0.12°:10Hz / 0.16°:10Hz / 0.24°:10Hz / 0.36°:10Hz |
| Vertical | 0.63° |
| FPS | 10Hz、20Hz |
| Data Point Generating Rate(pts/sec) | 1,010,000 l 760,000 l 500,000 l 330,000 |
| Communication Interface |
Automotive Ethernet
|
| Input Voltage | 9V~36V DC |
| Power Consumption | 15W |
| Anti-interference | Laser Code |
| AUTOSAR | Support (A) / Not support (I) |
| IP Grade | IP6K9K |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~105℃ |
| Vibration Test | 5Hz-2000Hz，3G rms |
| Shock Test | 500m/sec², lasting for 11ms |
| Weight | 1kg |
| Dimensions (LxWxH) | 116x90x76 mm |
