LSLIDAR | SKU:

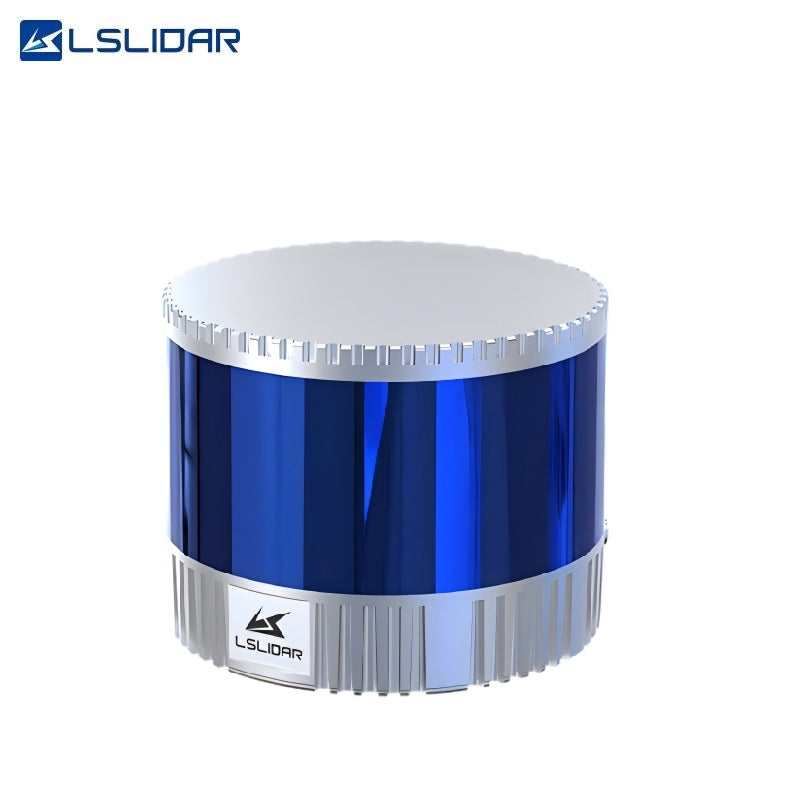

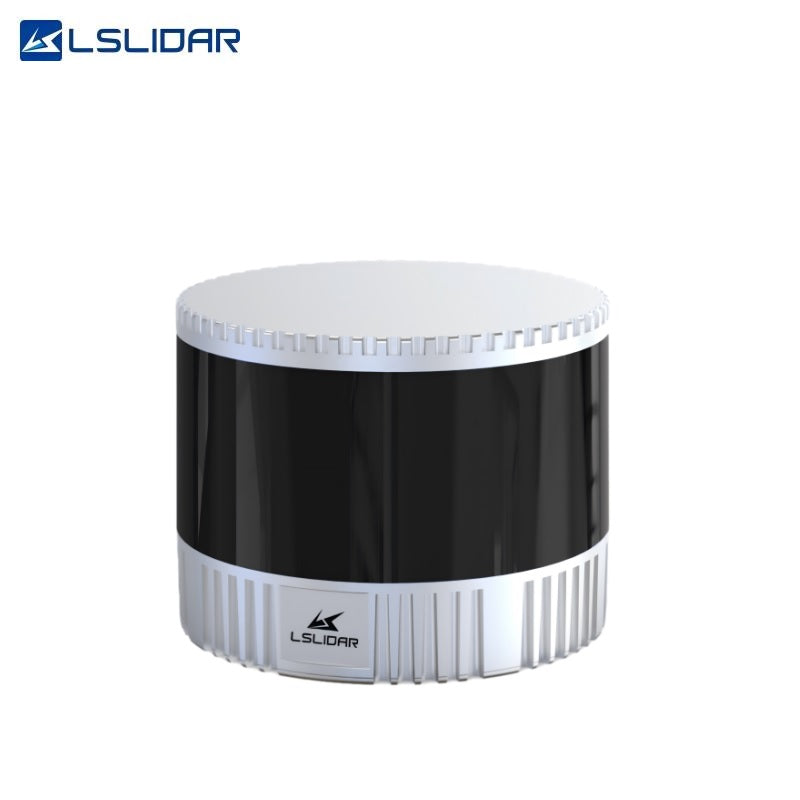

LSLIDAR C1 LiDAR
Regular price
$1,865.00
Unit price
LSLIDAR C1 LiDAR - C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR C1 LiDAR
Regular price
$1,865.00
Unit price
LSLIDAR C1 LiDAR - C1 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | C1 |
|---|---|
| Wavelength | 905 nm |
| Detection Range | 120m@70%，100m@10% |
| Range Precision | ±1cm（1σ） |
| FPS | 5 / 10 / 20Hz |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| IP Grade | IP67 |
| Data Points Generated | 20,000 pts/sec @Single |
| Input Voltage | 5V DC (4.75V~5.25V DC) |
| Weight |
1050g
|
| Dimensions (D*H) | 102x77.9mm |
| Echo | 40,000 pts/sec @Dual Echo |
