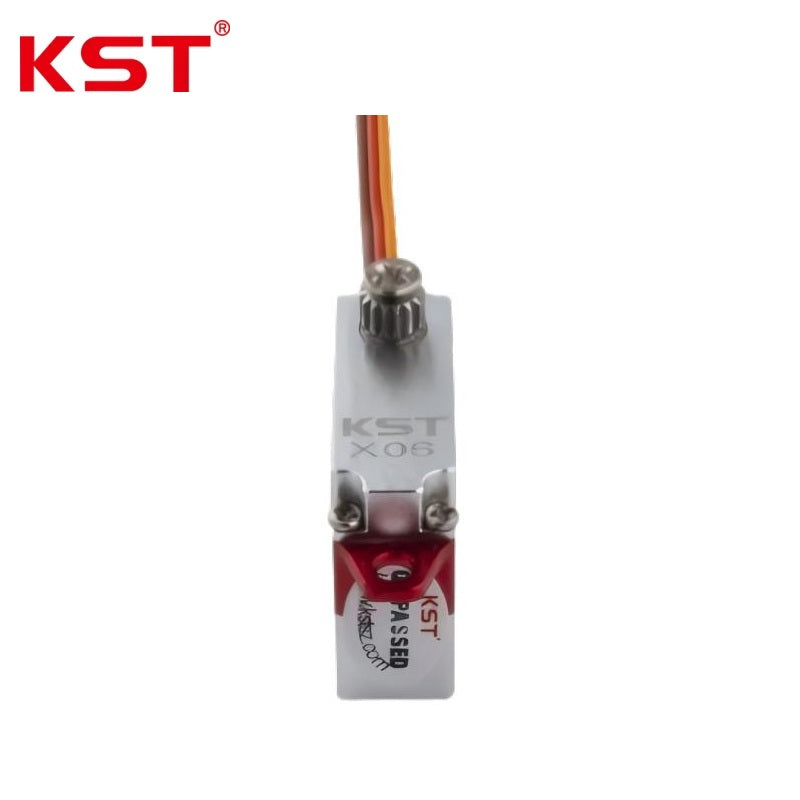

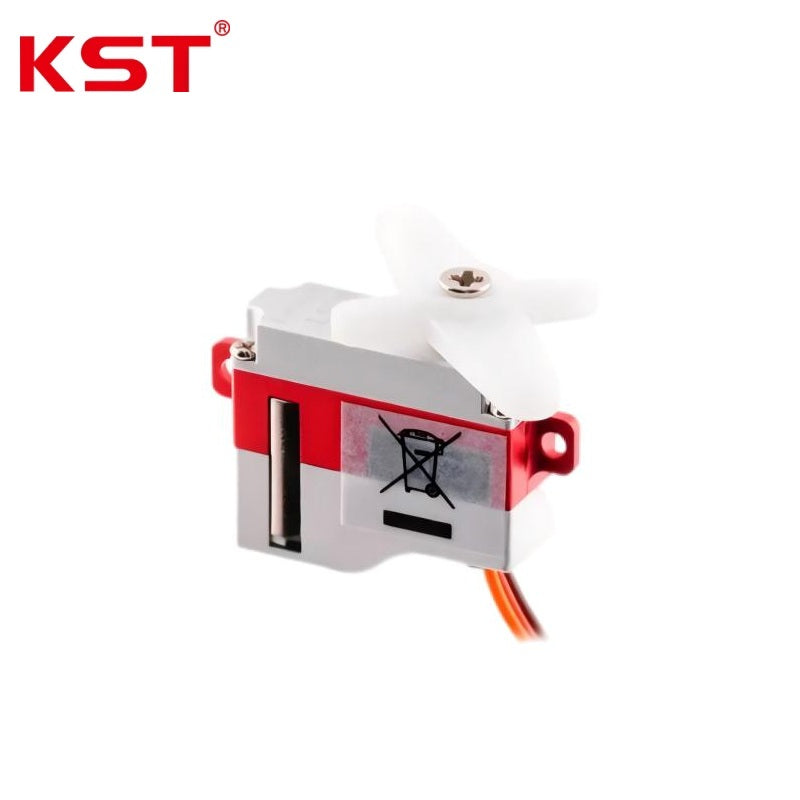

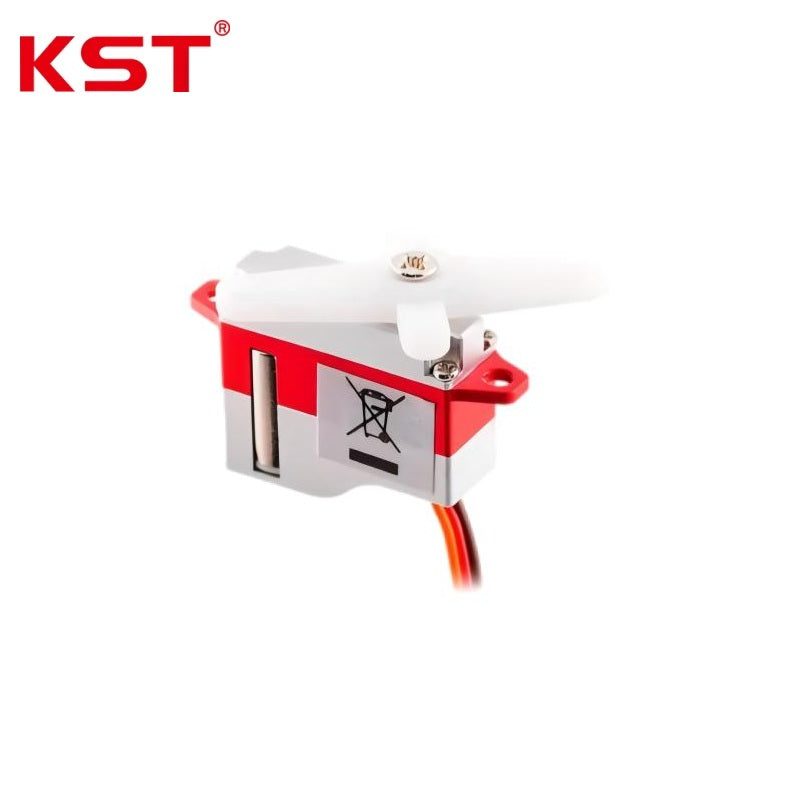

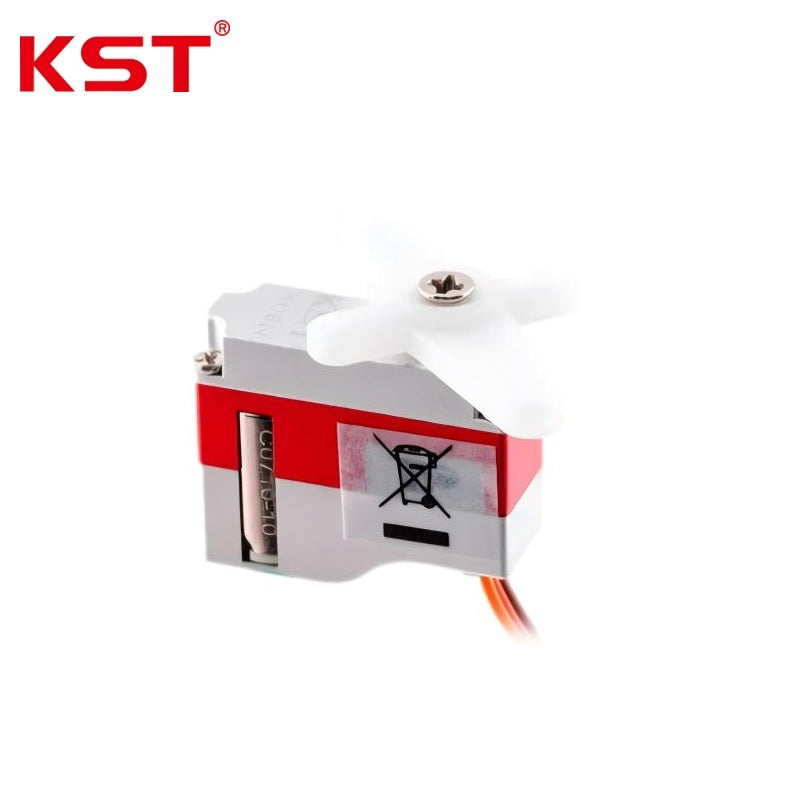

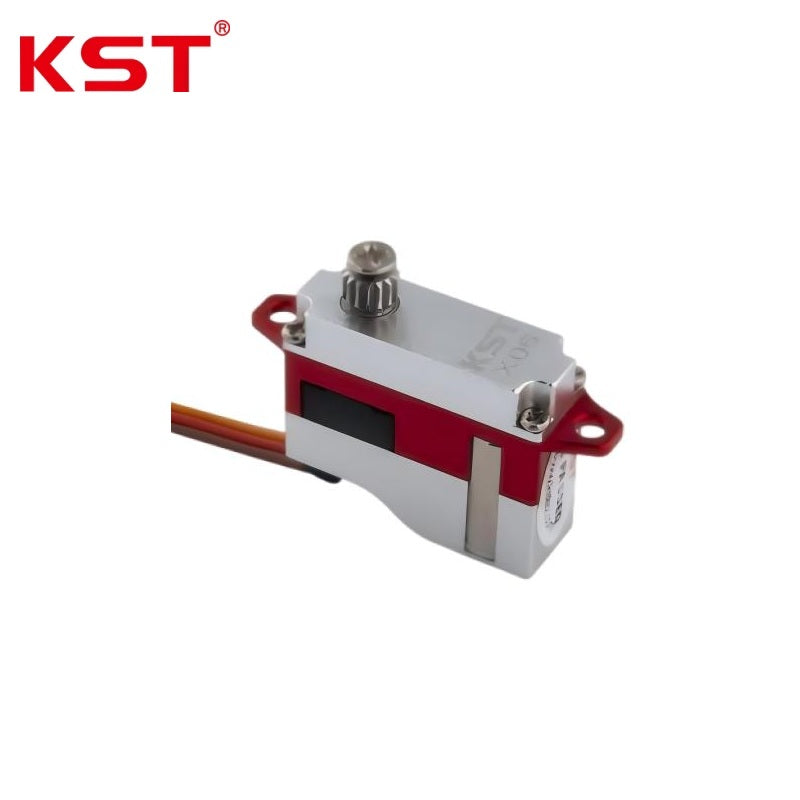

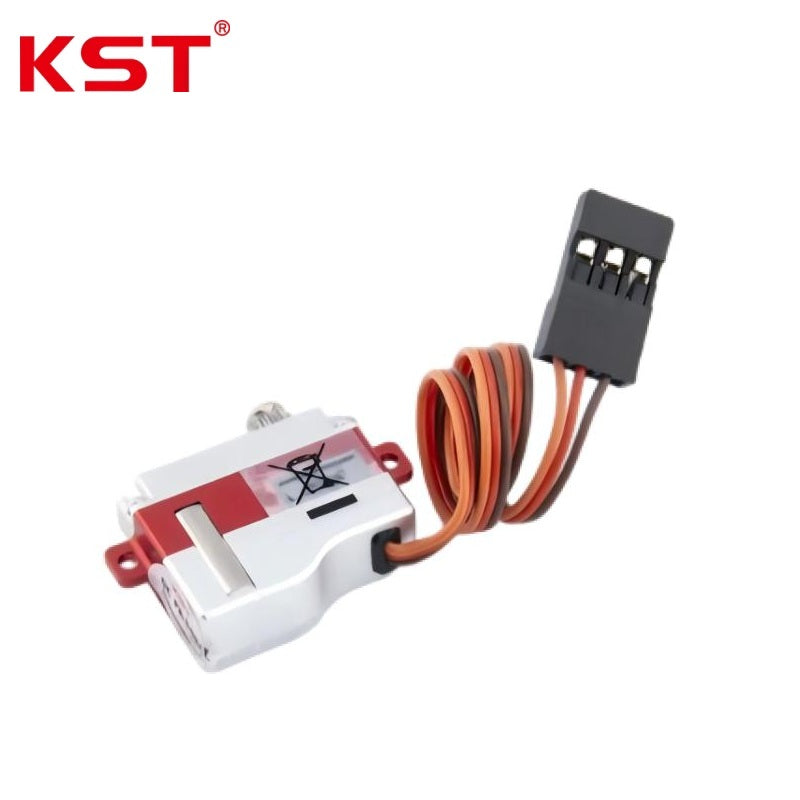

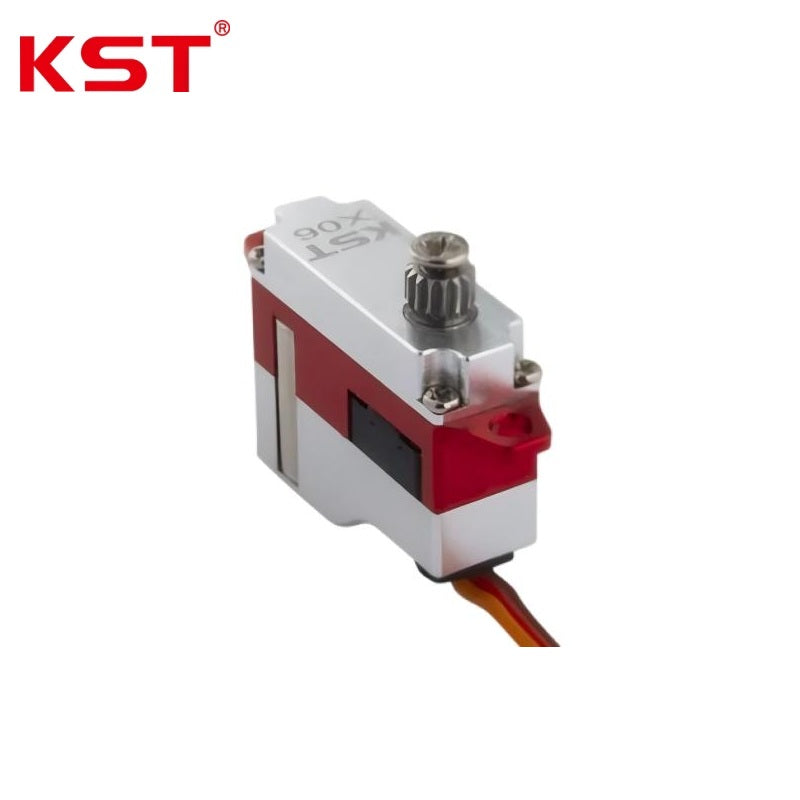

KST X06 Servo Motor

$39.99

Version

X06 X06H X06N

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 6.0 V
Operating Voltage Range	DC 3.8 V ~ 8.4 V
Stalling Torque	0.80 kgf.cm @ 3.8V; 1.50 kgf.cm @ 6.0V; 1.80 kgf.cm @ 8.4V
No-load Speed	0.12 sec/60deg @ 3.8V; 0.08 sec/60deg @ 6.0V; 0.07 sec/60deg @ 8.4V
Stalling / Rated Current (@6.0V)	0.58 A / 0.22 A
Rated Torque / Speed (@6.0V)	4 N.cm / 0.20 sec/60deg
Working Frequency	1520 us / 20 kHz
Control Specifications:
Default Travel Angle	+/-60deg (Total 120deg)
Control Signal Voltage	HIGH: 3.3 V - 5.0 V; LOW: 0.0 V - 1.5 V
Control Pulse Width Range	900 us ~ 2100 us
Pulse Width Reference (-60 / 0 / +60 deg)	1000 us / 1500 us / 2000 us
Soft Start / Programmable Support	Yes / Yes
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel
Position Sensor Type	Potentiometer
Physical & Environmental:
Housing Material	Aluminum Alloy
Overall Dimensions	20 mm x 7 mm x 16.6 mm +/- 0.2 mm
Weight	6 g +/- 10%
Operating Temperature Range	-10 deg C ~ +65 deg C
