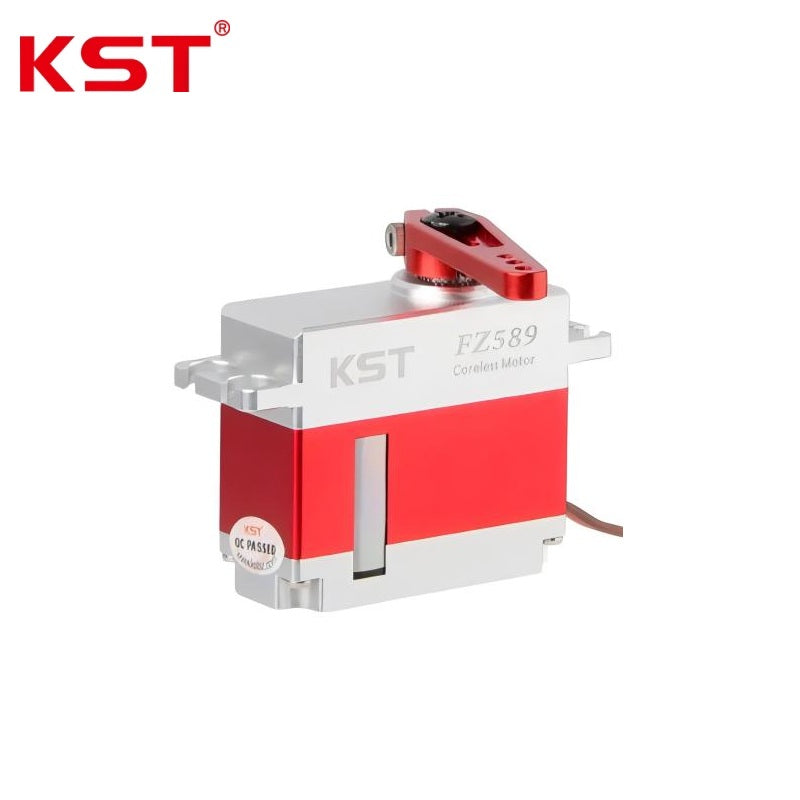

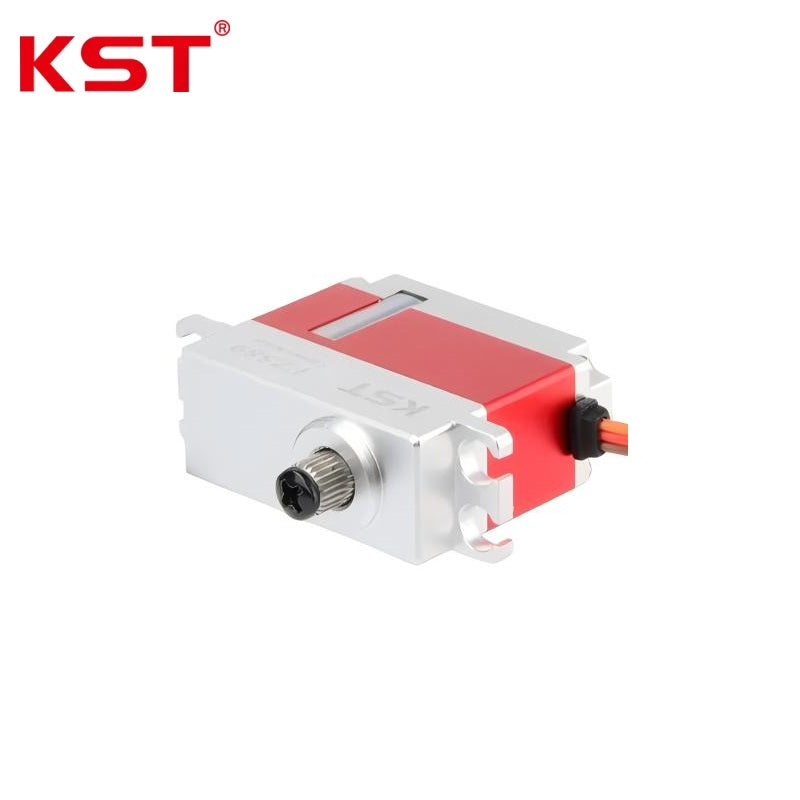

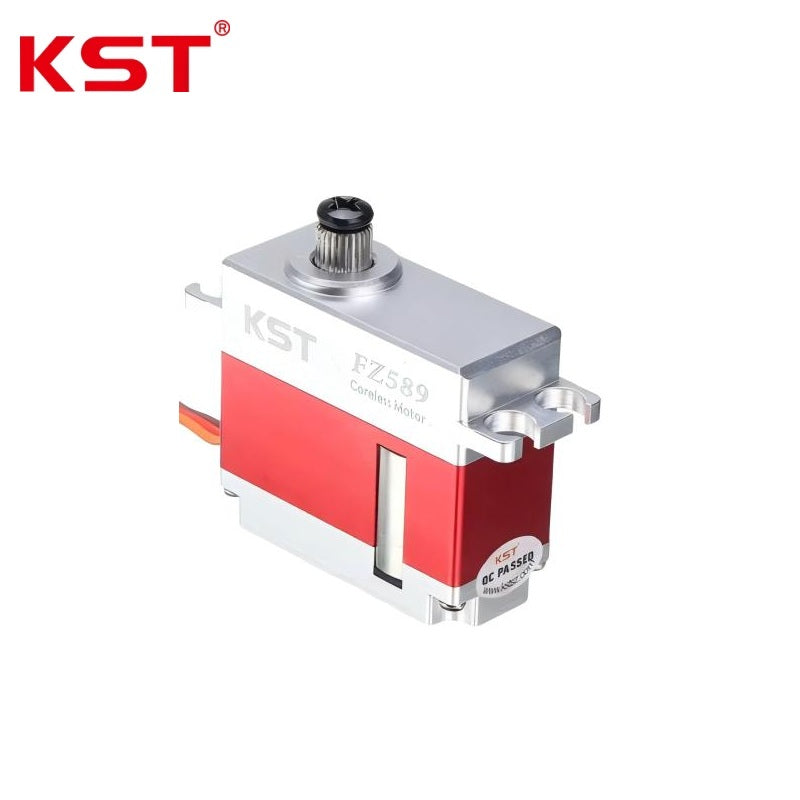

KST FZ589 Servo Motor
Regular price
$99.99
Unit price
KST FZ589 Servo Motor - FZ589 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST FZ589 Servo Motor
Regular price
$99.99
Unit price
KST FZ589 Servo Motor - FZ589 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Operating Voltage | DC 7.4 V |
| Operating Voltage Range | DC 6.0 V - 8.4 V |
| Torque (Typical Values) | 6.0 kg.cm @ 6.0 V; 7.0 kg.cm @ 7.4 V; 8.0 kg.cm @ 8.4 V |
| Angular Speed (Typical Values) | 0.12 sec/60deg @ 6.0 V; 0.11 sec/60deg @ 7.4 V; 0.10 sec/60deg @ 8.4 V |
| Control Specifications: | |
| Travel Angle | +/-45 deg (under 1000-2000 us PWM control) |
| PWM Signal High Level (TTL-compatible) | 3.3 V (minimum) to 5.0 V (maximum) |
| PWM Signal Low Level (TTL-compatible) | 0.0 V (minimum) to 1.5 V (maximum) |
| PWM Control Pulse Width Range | 1000-2000 us |
| PWM Pulse Width for Defined Positions (-45 deg/Center/+45 deg) | 1000 us / 1500 us / 2000 us |
| Control Resolution | < 2 us |
| Physical & Environmental: | |
| Operating Temperature Range | -20 deg C ~ +65 deg C |
