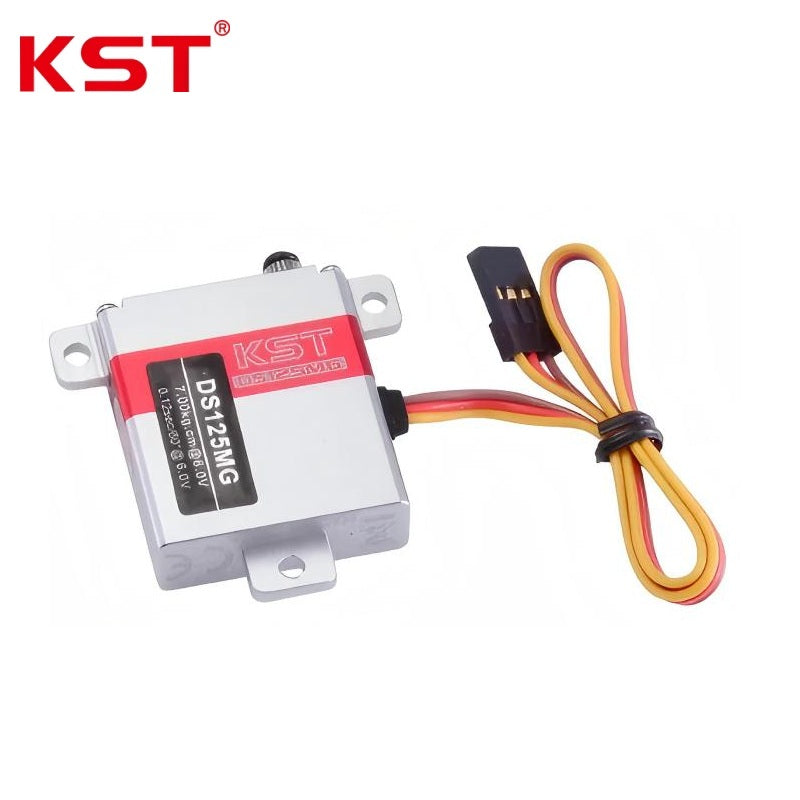

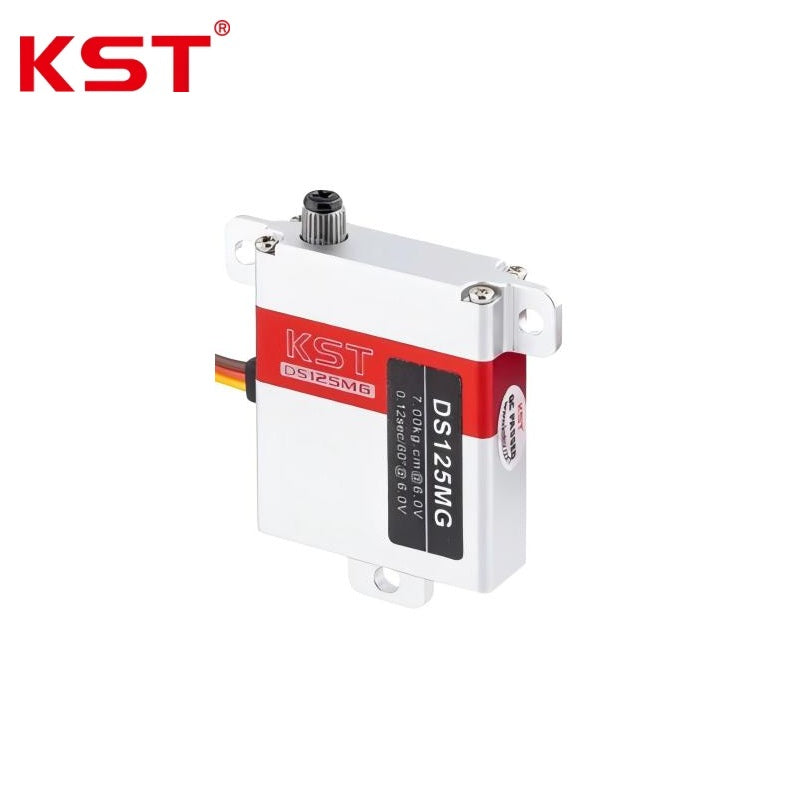

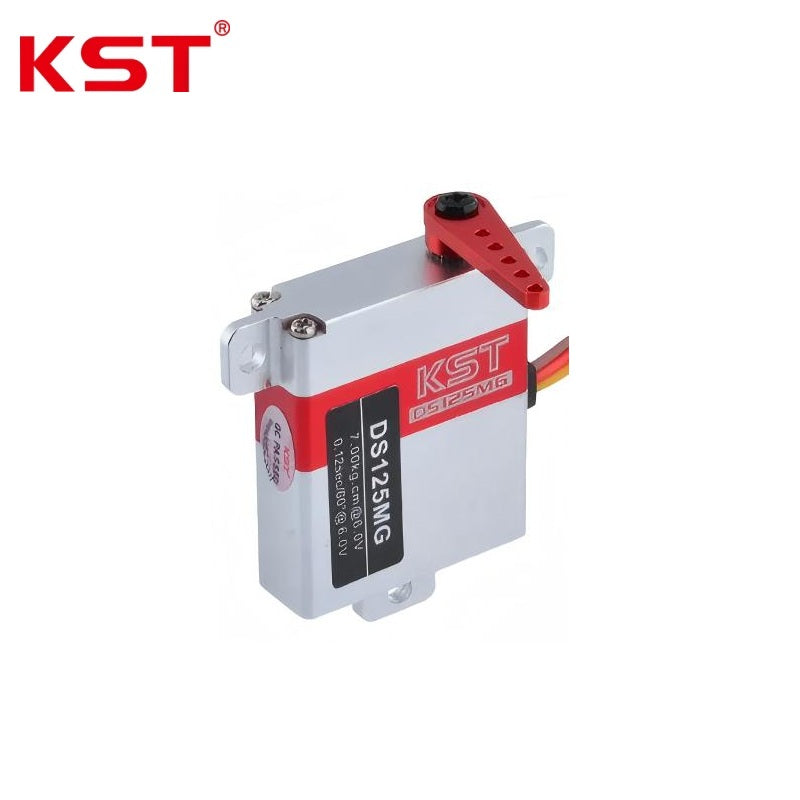

KST DS125MG Servo Motor
Regular price
$34.99
Unit price
KST DS125MG Servo Motor - DS125MG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST DS125MG Servo Motor
Regular price
$34.99
Unit price
KST DS125MG Servo Motor - DS125MG is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 4.8V |
| Operating Voltage Range | DC 4.8V - 6.0V |
| Stall Torque | 6.0 kgf.cm @ 4.8V; 7.0 kgf.cm @ 6.0V |
| Operating Speed (60deg Rotation) | 0.15 sec @ 4.8V; 0.12 sec @ 6.0V |
| Operating Frequency | 1520 us / 333 Hz |
| Control Specifications: | |
| Default Rotation Angle | +/-50 deg (100 deg Total) |
| Control Signal Voltage | HIGH: 3.3V (min.) - 5.0V (max.); LOW: 0.0V (min.) - 1.5V (max.) |
| Control Pulse Width Range | 800 us - 2200 us |
| Position Calibration Pulse Width (-50 / 0 / +50 deg) | 1000 us / 1500 us / 2000 us |
| Soft Start Function / Programmability | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Material | Hardened Steel |
| Position Feedback Device | Potentiometer |
| Physical & Environmental: | |
| Housing Material | Aluminum Alloy |
| Dimensions | 30 mm x 10 mm x 35.5 mm +/- 0.2 mm |
| Weight | 28 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
