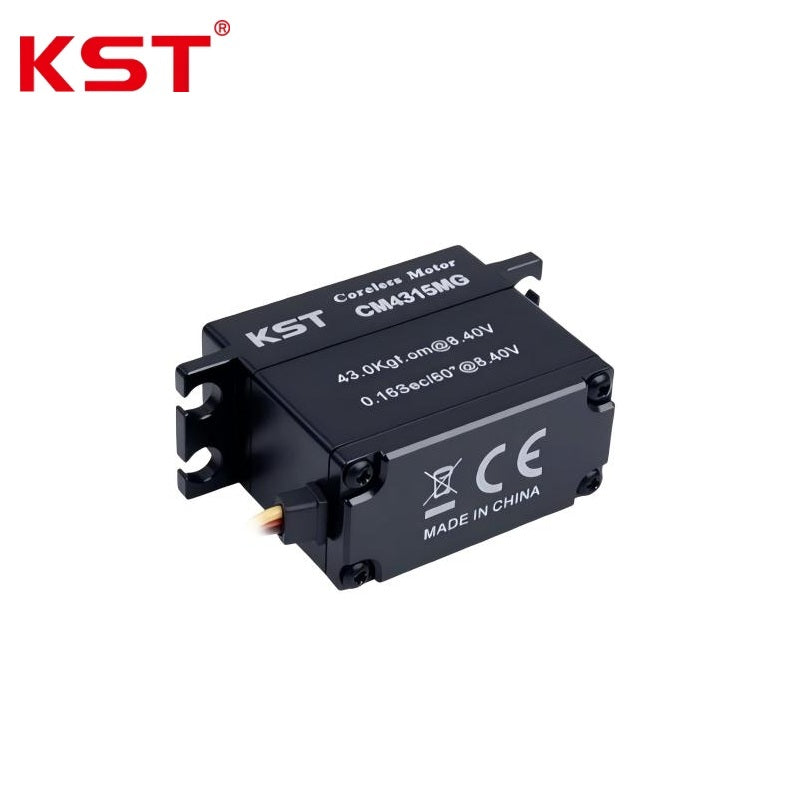

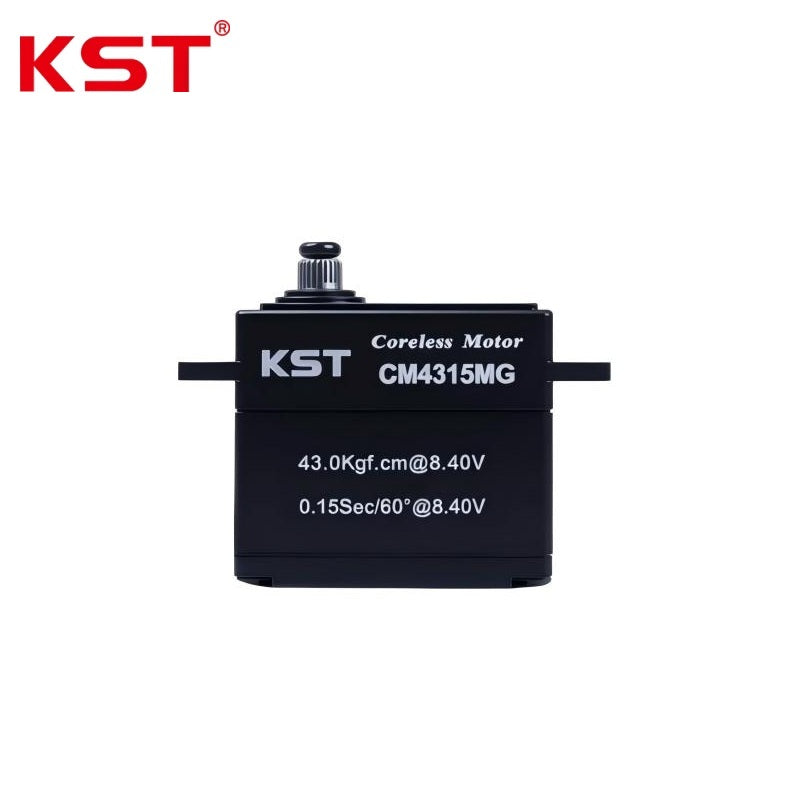

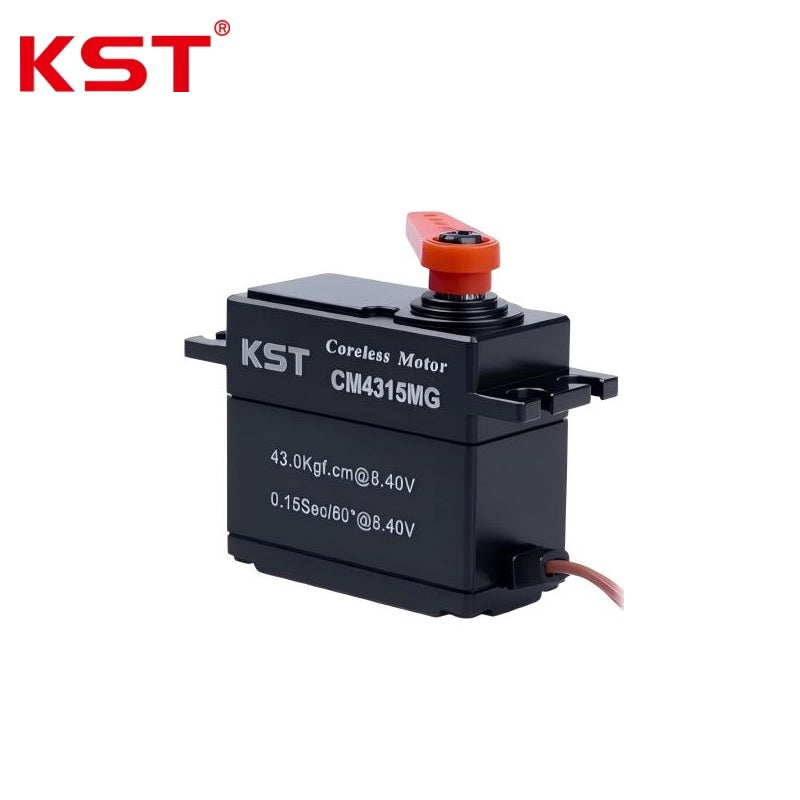

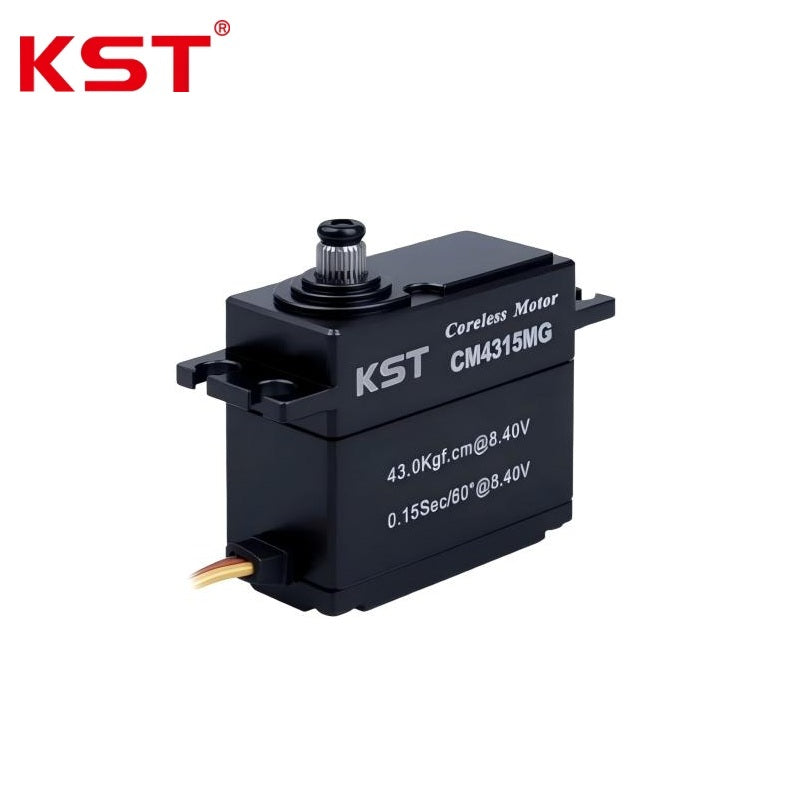

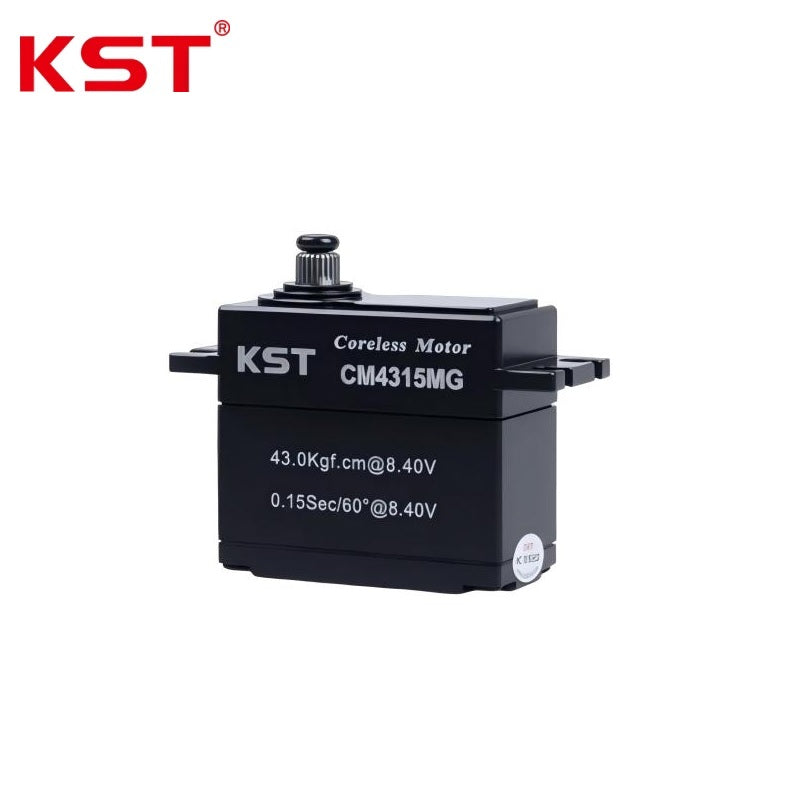

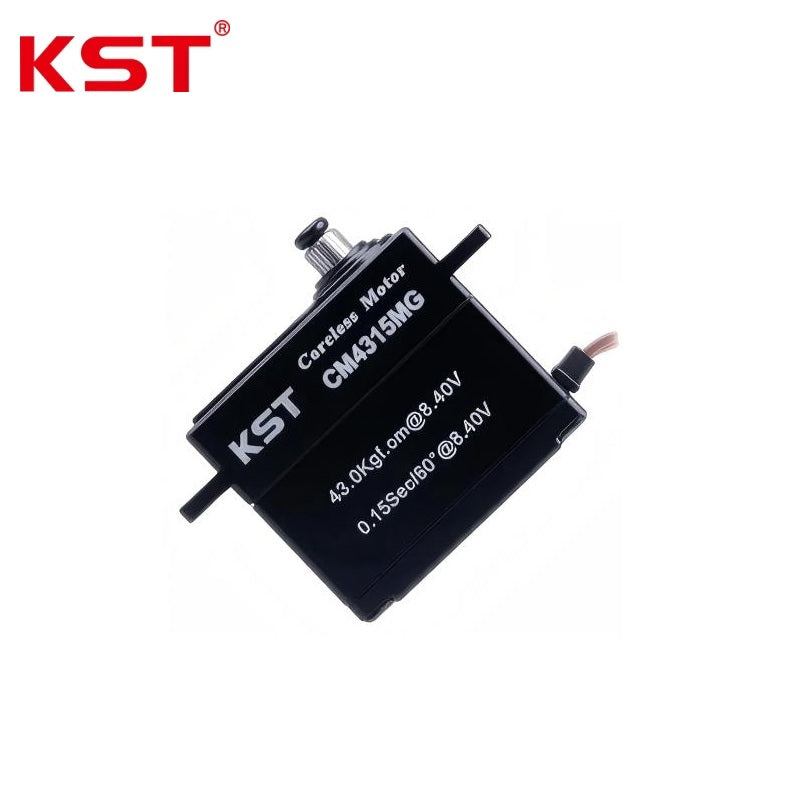

KST CM4315MG Servo Motor

$52.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 4.8 V - 8.4 V
Stall Torque (at different voltages) 25 kgf.cm @ 4.8 V; 30 kgf.cm @ 6.0 V; 36 kgf.cm @ 7.4 V; 43 kgf.cm @ 8.4 V
Operating Speed (time per 60deg rotation) 0.23 sec @ 4.8 V; 0.19 sec @ 6.0 V; 0.16 sec @ 7.4 V; 0.15 sec @ 8.4 V
Start Current (at different voltages) 3.00 A @ 4.8 V; 3.90 A @ 6.0 V; 4.80 A @ 7.4 V; 5.05 A @ 8.4 V
Working Frequency 1520 us / 333 Hz
Control Specifications:
Default Travel Angle Range +/-50 deg (Total 100 deg)
Control Signal High-Level Voltage Min. 3.3 V, Max. 5.0 V
Control Signal Low-Level Voltage Min. 0.0 V, Max. 1.5 V
Control Pulse Width Range 900 us - 2100 us
Position Reference Pulse Widths (-50 / 0 / +50 deg) 1000 us / 1500 us / 2000 us
Soft Start Function / Programmability Programmable / Yes
Internal Characteristics:
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Feedback Sensor Potentiometer
Ball Bearing Configuration 2 Ball Bearings (2BB)
Physical & Environmental:
Housing Material Aluminum Alloy
Ingress Protection Rating IP65
Housing Dimensions 40.5 mm x 20 mm x 38 mm +/- 0.2 mm
Weight 70 g +/- 10%
Operating Temperature Range -10 deg C ~ +65 deg C
