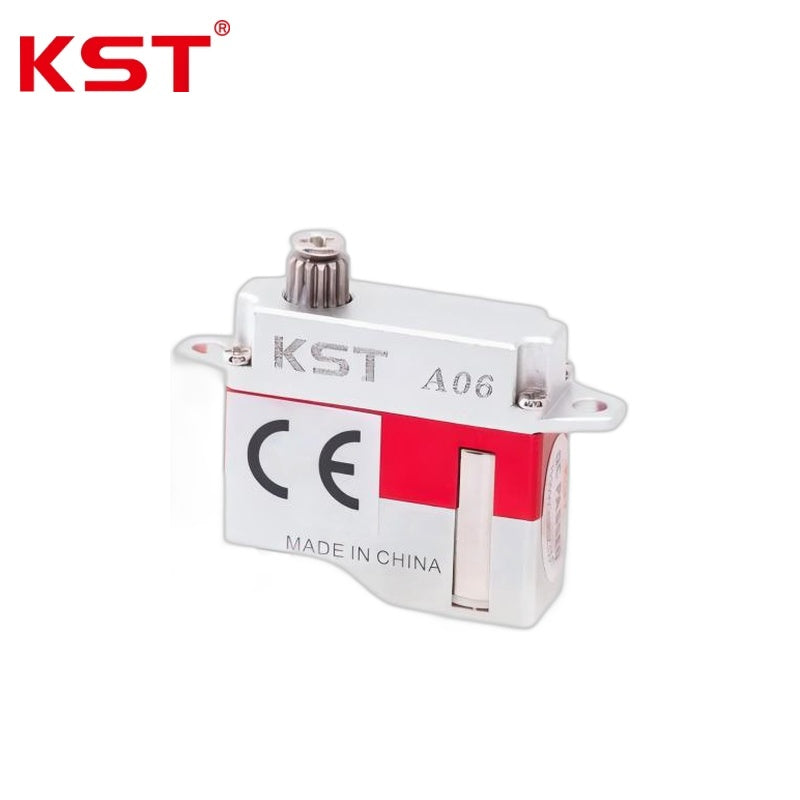

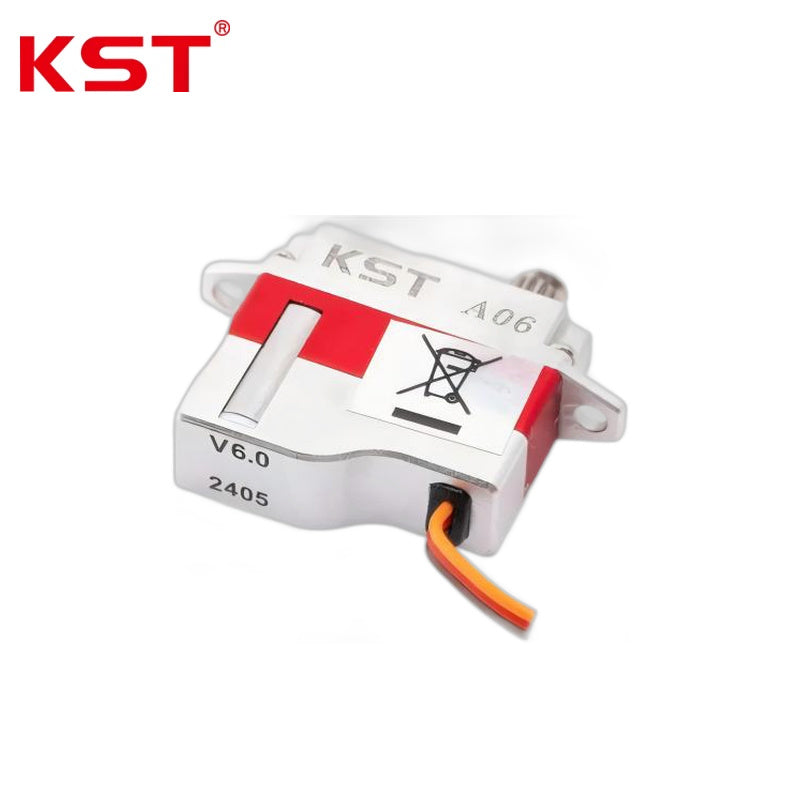

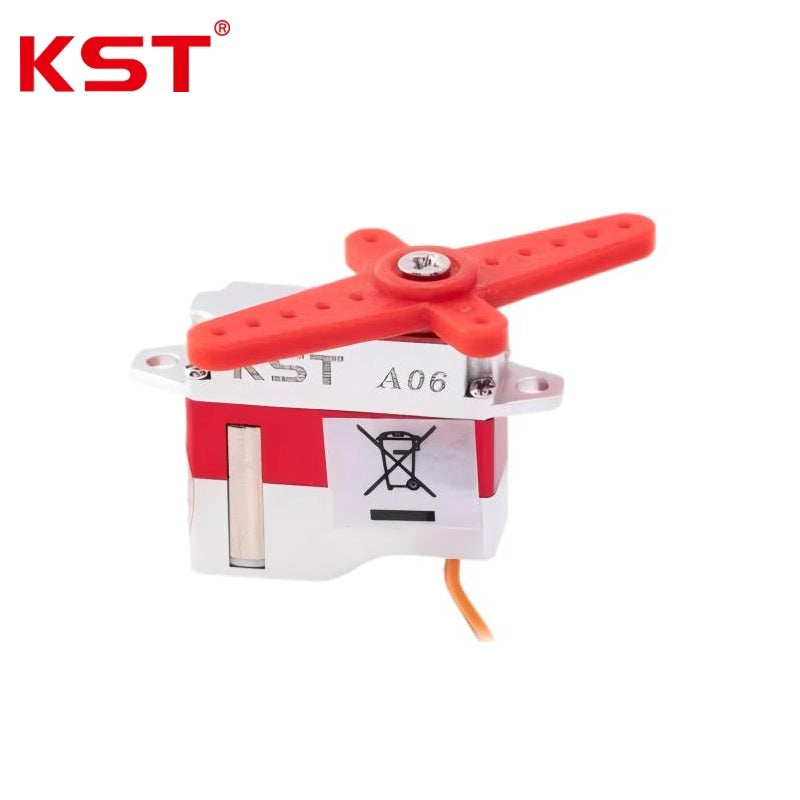

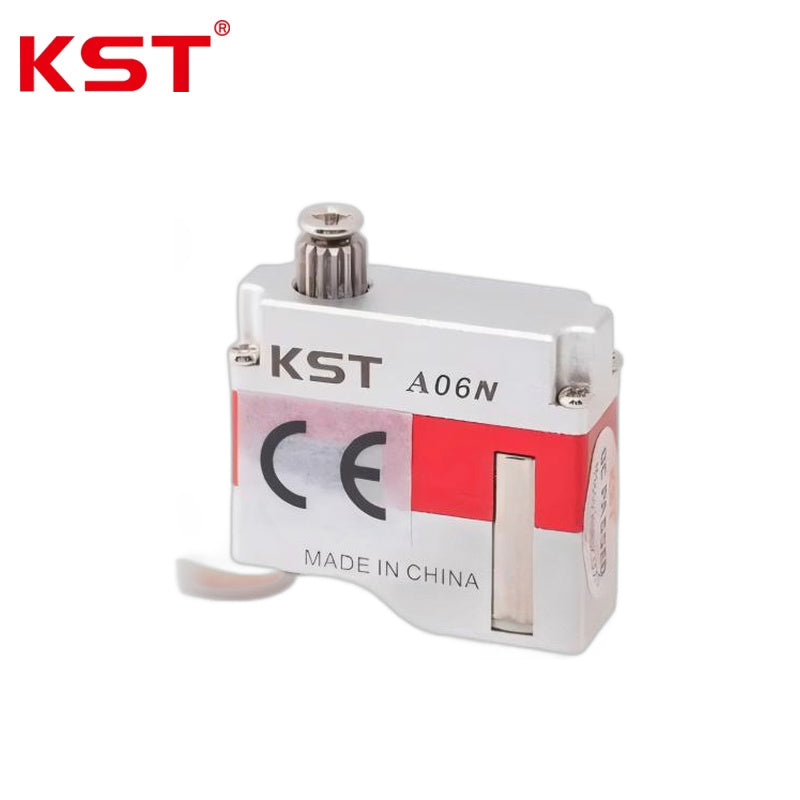

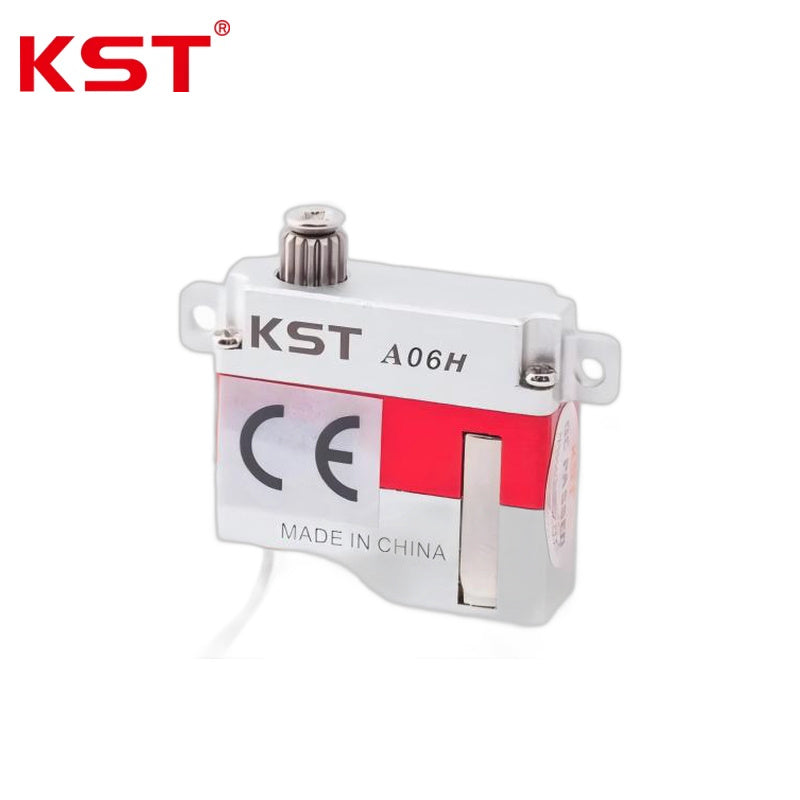

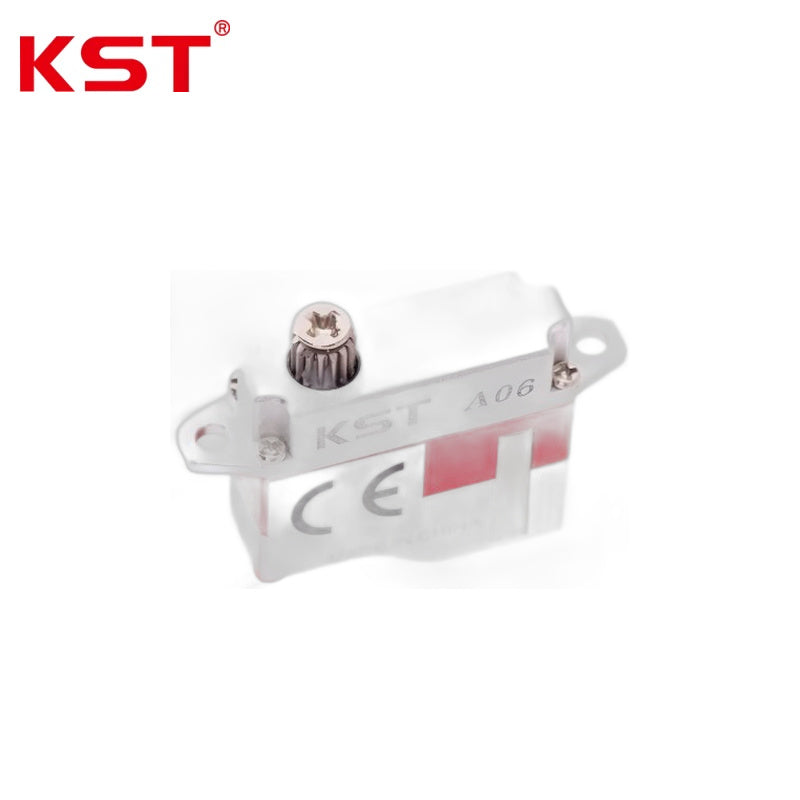

KST A06-LV Servo Motor
Regular price
$44.99
Unit price
KST A06-LV Servo Motor - A06-LV-V6.0 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 4.2V |
| Operating Voltage Range | DC 3.5V ~ 4.2V |
| Stall Torque | 1.1 kgf.cm @ 3.5V; 1.4 kgf.cm @ 4.2V |
| No-Load Speed | 0.14 s/60deg @ 3.5V; 0.11 s/60deg @ 4.2V |
| Working Frequency | 1520 us / 333 Hz |
| Default Travel Angle | +/-60deg (Total 120deg) |
| Control Specifications: | |
| Control Signal Voltage Level | HIGH: 3.3V (min)~5.0V (max); LOW: 0.0V (min)~1.5V (max) |
| Control Pulse Width Range | 900 us ~ 2100 us |
| Calibrated Pulse Width for Positions | 1000 us (-60deg); 1500 us (0deg); 2000 us (+60deg) |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor Type | Potentiometer |
| Ball Bearing Configuration | 2BB (Double Ball Bearings) |
| Housing Material | Aluminum Alloy |
| Physical & Environmental: | |
| Housing Dimensions | 20.5 mm x 7 mm x 18.8 mm +/-0.2 mm |
| Weight | 7 g +/-10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
