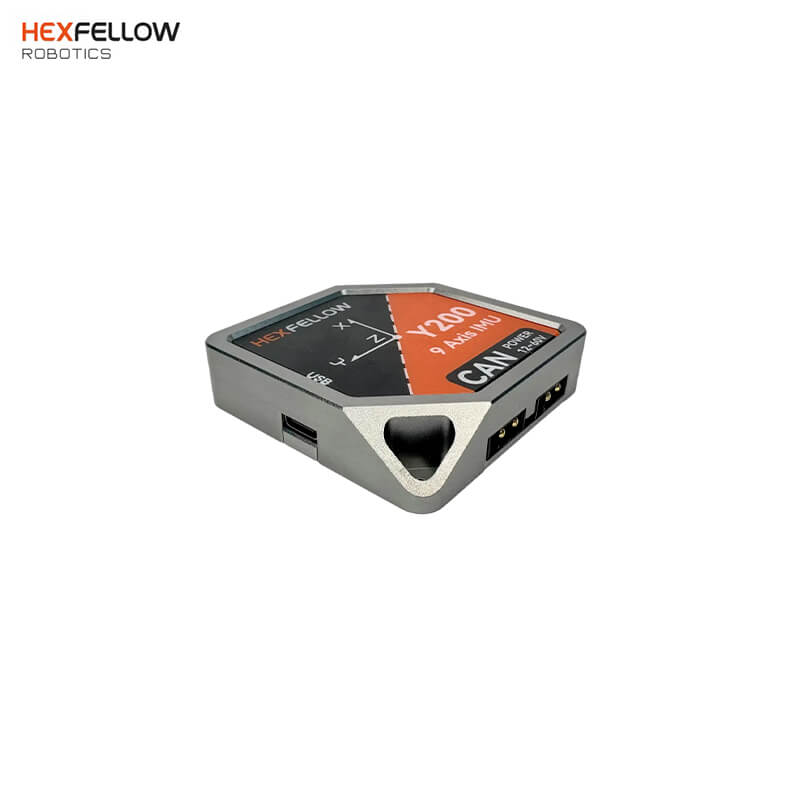

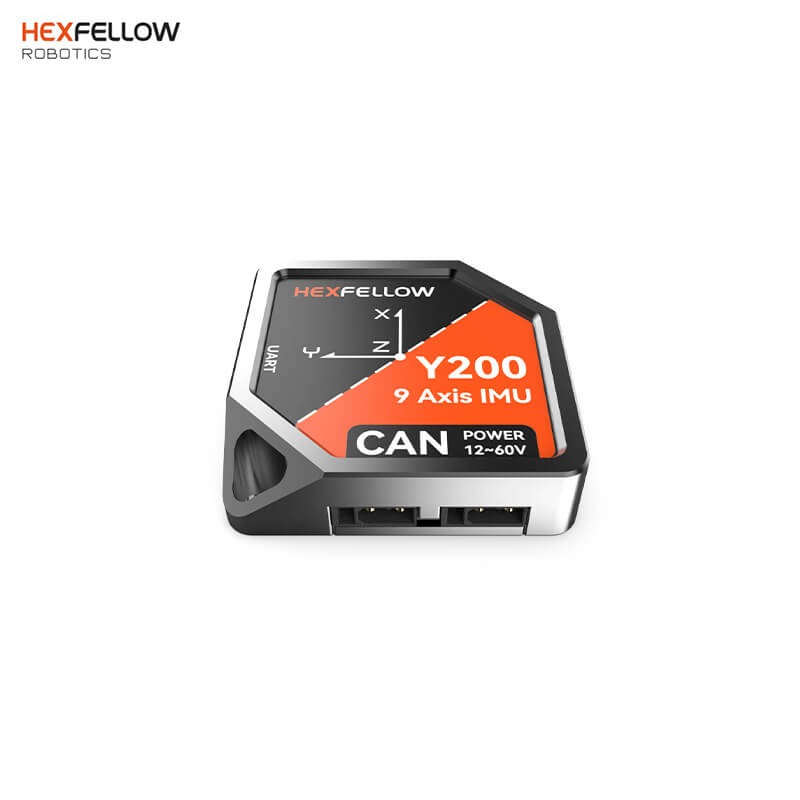

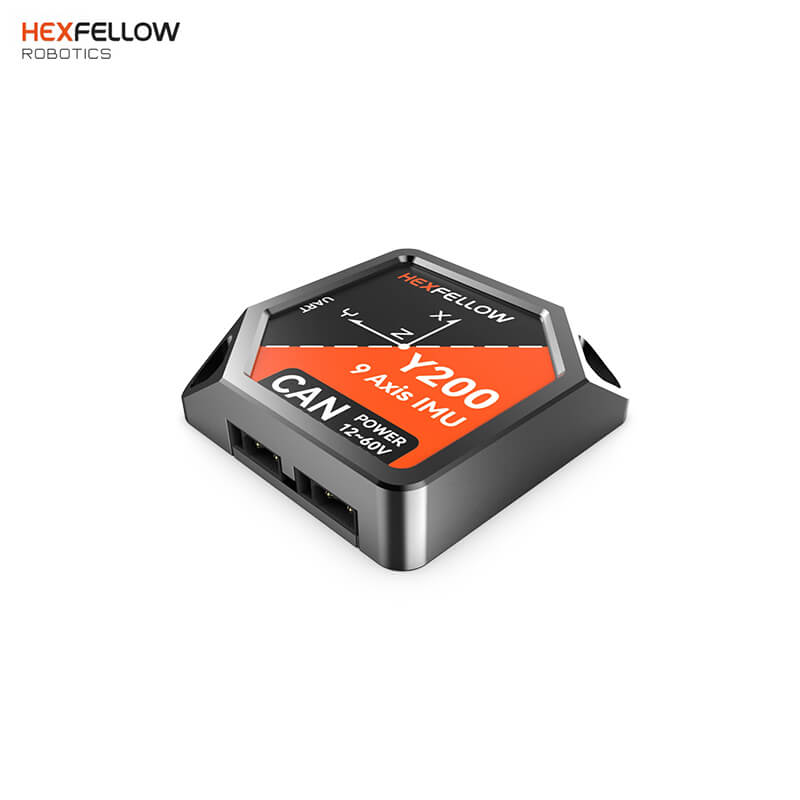

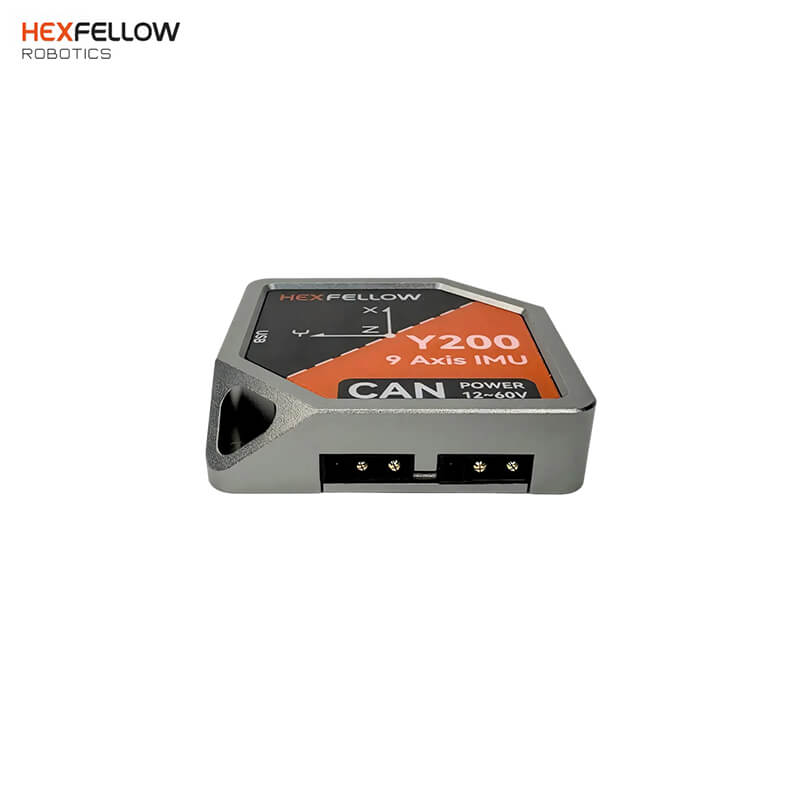

HexFellow HEXSENSE-Y200 IMU

$160.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Note
Gyro Parameters
Range ±2000°/s
Non-linearity ±0.05%FS
Noise Density 0.015°/s/√Hz
Bias Instability 5°/h Allan variance, 1σ
Bandwidth (-3dB) 50Hz
Zero Offset ±0.5°/s 1σ RMS
Temperature Drift ±1°/s 1σ RMS, -40~85°C
Accelerometer Parameters

Range ±12g
Non-linearity ±0.5%FS
Noise Density 190μg/√Hz
Bias Instability 0.05mg Allan variance, 1σ
Bandwidth (-3dB) 50Hz
Zero Offset ±20mg 1σ RMS
Temperature Drift ±20mg 1σ RMS, -40~85°C
Magnetometer Parameters

Range ±30 Gauss
Linearity 0.5%FS
Sensitivity 1000 LSB/G
Zero Offset ±10 mGauss
Sensitivity Temperature Coefficient ±0.05 %/°C -40~85°C
Other Parameters

Voltage Tolerance 12~60V For XT30 2+2. Not the USB-C. You can also use USB-C to power it
Communication Method CAN
Max Output Frequency 200Hz
Size 60 x 60 x 15 mm
Working Temperature -20~85°C
