Daimon Robotics | SKU:

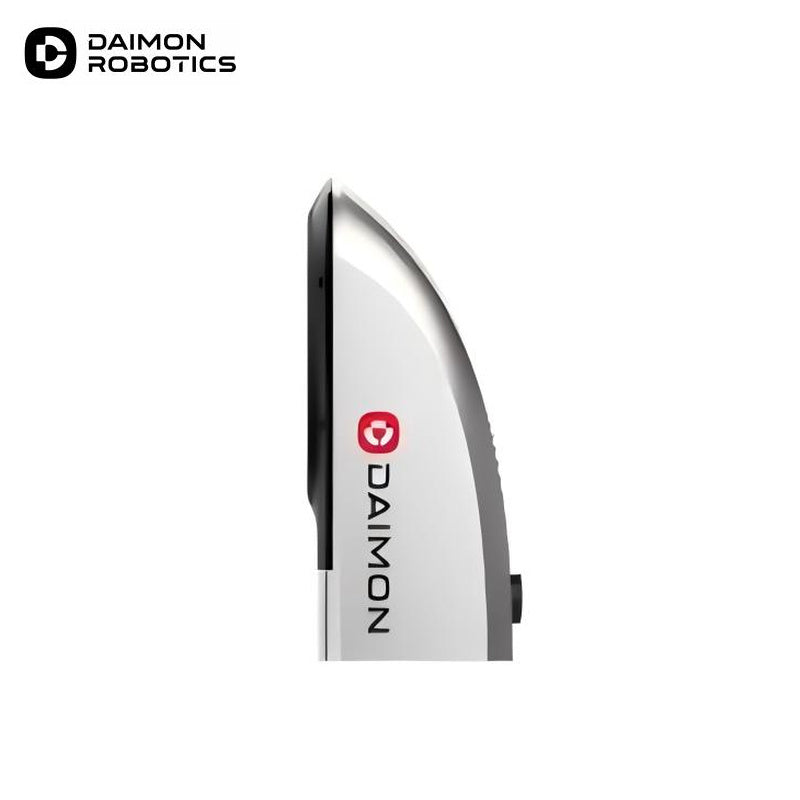

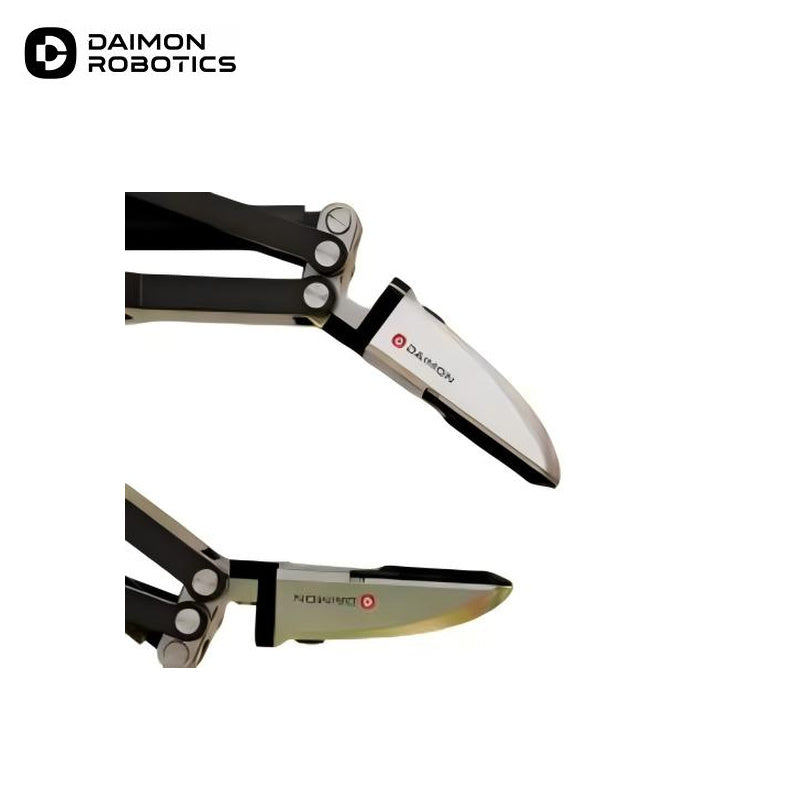

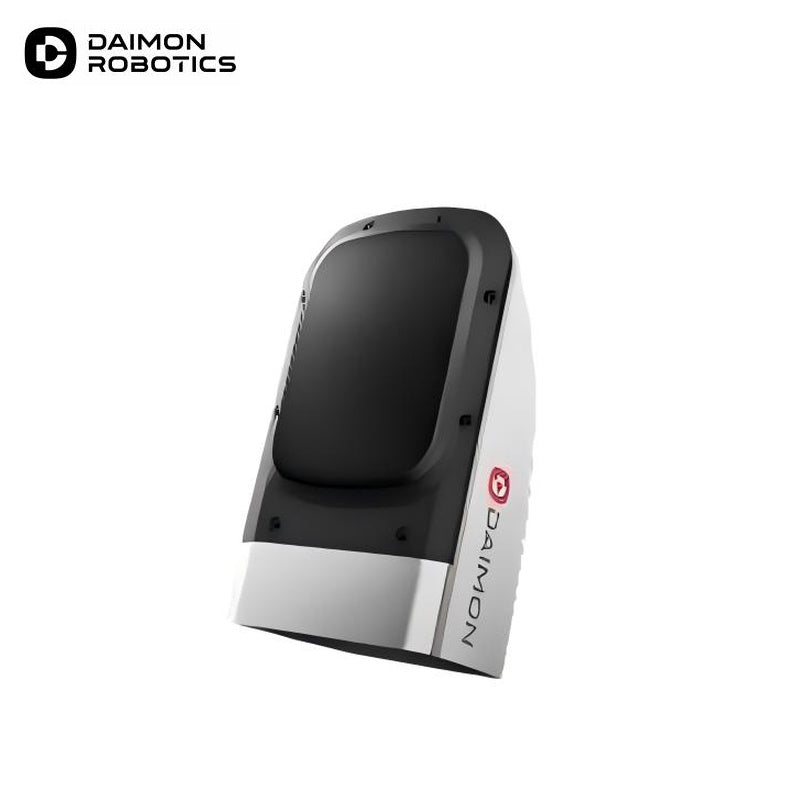

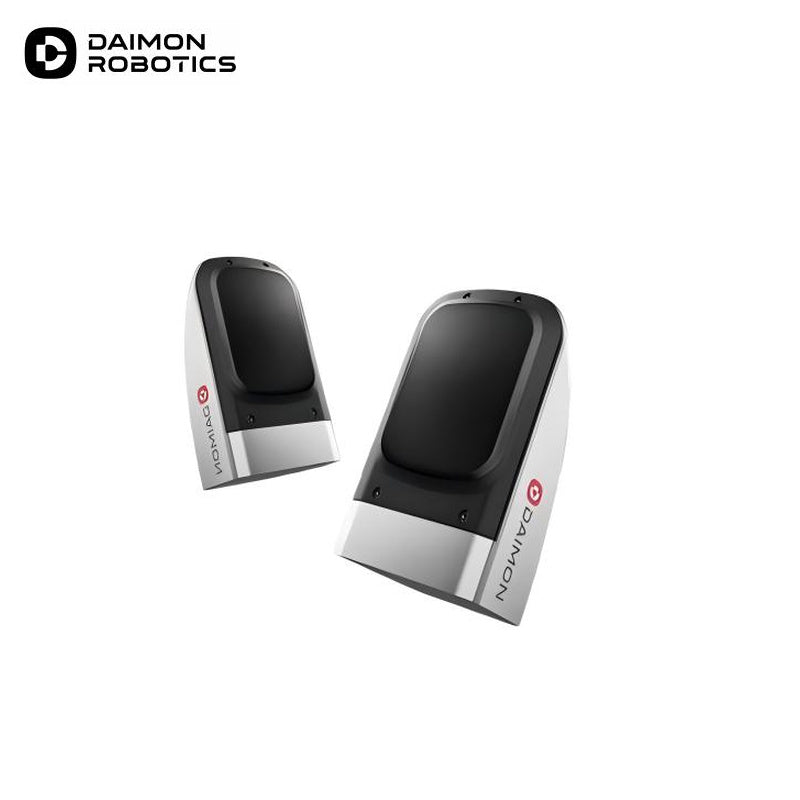

Daimon Robotics DM-Tac W2M Tactile Sensor
Regular price
$600.00
Unit price
Daimon Robotics DM-Tac W2M Tactile Sensor - DM-Tac W2M Tactile Sensor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Daimon Robotics DM-Tac W2M Tactile Sensor
Regular price
$600.00
Unit price
Daimon Robotics DM-Tac W2M Tactile Sensor - DM-Tac W2M Tactile Sensor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (mm) | 64(H) × 36(W) × 20(D) |
| Weight (g) | 72g |
| Sensing Area (mm²) | 24 × 18 |
| Sampling Frequency (Hz) | 120Hz |
| Power Consumption (Working Operating)(W) | 0.5W |
| Power Consumption (Standby)(W) | 0.1W |
| Camera Resolution | 640 × 480 |
| Effective Sensing Points | 110592 |
| Communication Interface | USB 2.0 |
| IP Rating | IP67 |
| Sensitivity (%FS) | <1%FS |
| Zero Drift (%FS) | <1%FS |
| Time Drift (%FS) | <2%FS |
| Non‑Linearity (%FS) | <3%FS |
