RUICOM | SKU:

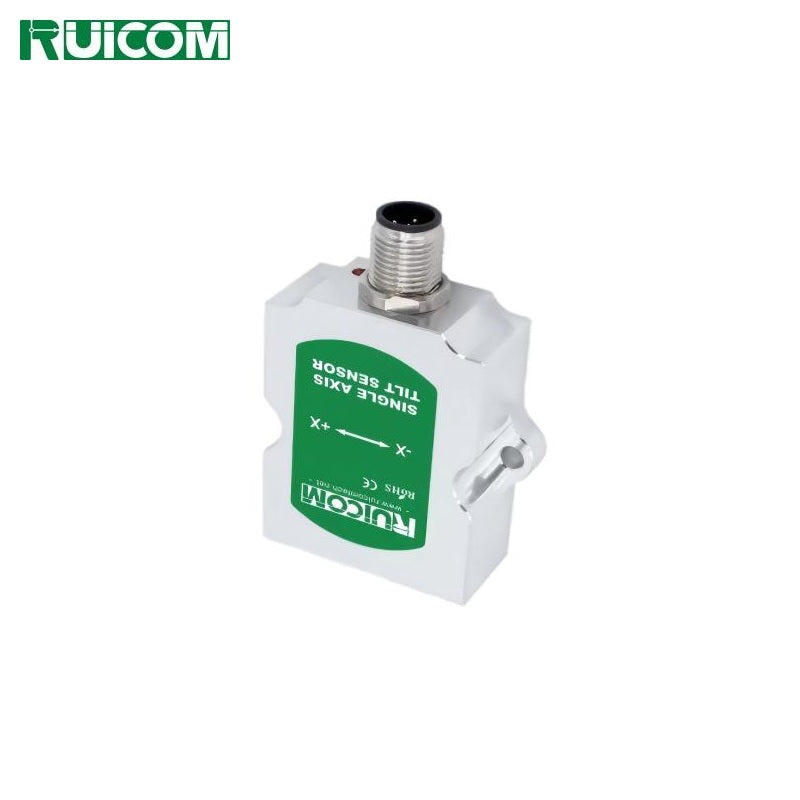

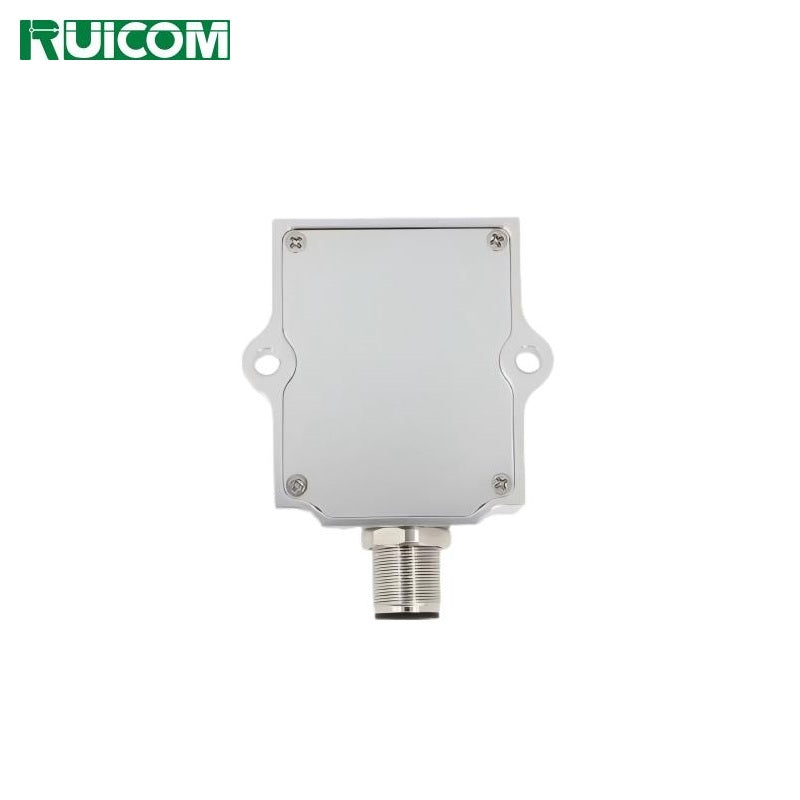

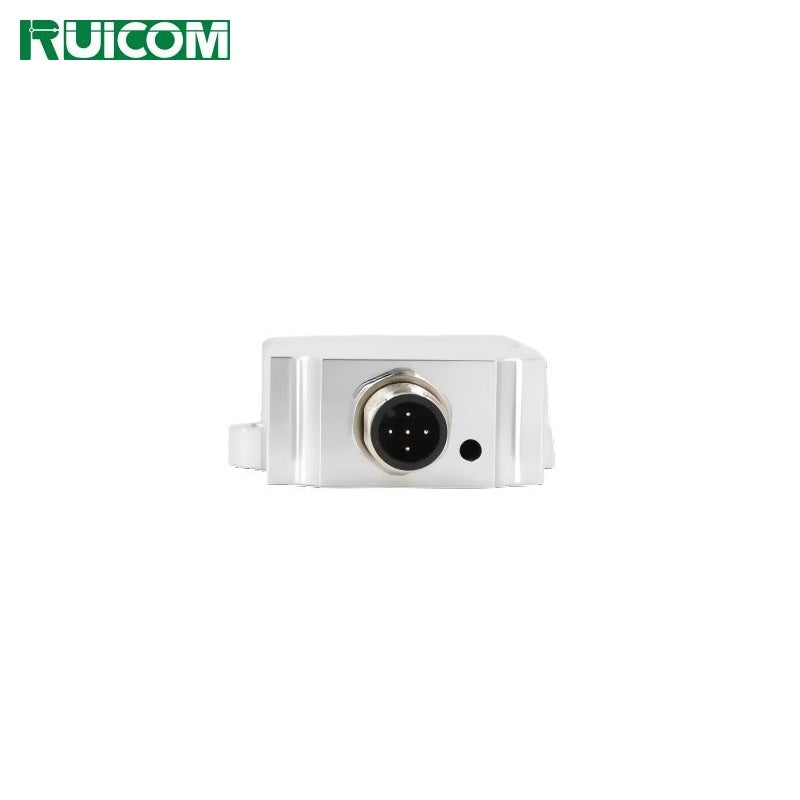

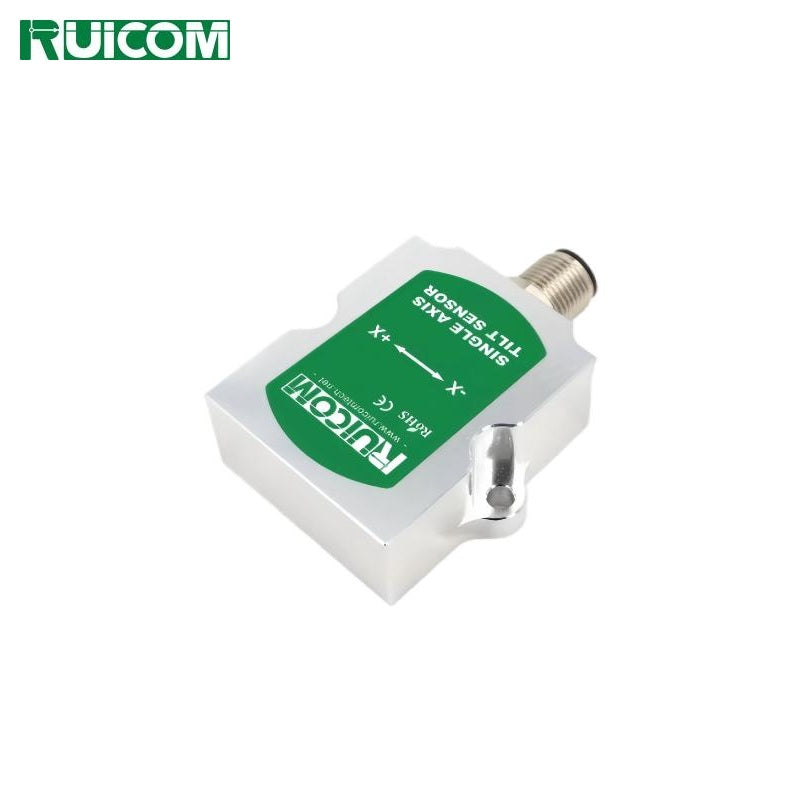

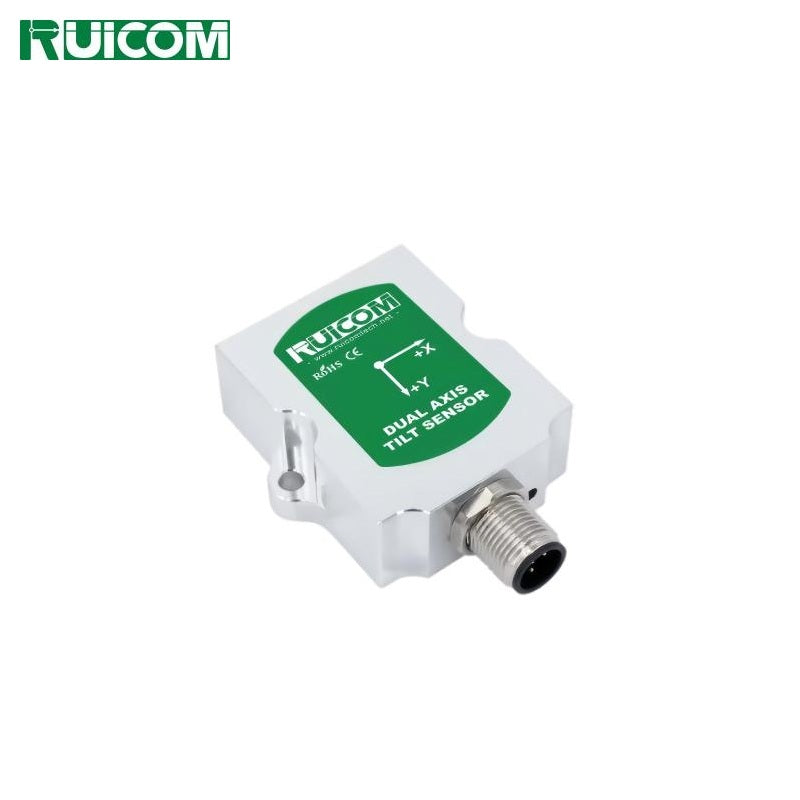

RUICOM LTS6 (Low-Power) Sensor
Regular price
$40.00
Unit price
RUICOM LTS6 (Low-Power) Sensor - LTS6 (Without Cable & Serial Communication Protocol) / X-axis / RS232 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUICOM LTS6 (Low-Power) Sensor
Regular priceFrom
$40.00
Unit price
RUICOM LTS6 (Low-Power) Sensor - LTS6 (Without Cable & Serial Communication Protocol) / X-axis / RS232 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 0.1° |
| Measurement Accuracy (@25°C) | ±0.2° |
| Output Signal | RS232 / RS485 / TTL / MODBUS |
| Response Time | 0.05s |
| Temperature Drift Characteristic (-40°C~+85°C) | ±0.5° |
| Output Load | >500 Ohms |
| Operating Time | 99999 hours/time (No Fault) |
| Insulation Impedance | >100 MΩ |
| Anti-Vibration | 10grms / 10~1000Hz |
| Anti-Impact | 100g @11ms, Tri-axial (Half-sine Wave) |
| Dimensions | L64.5 × W50 × H18.5mm |
| Weight | ≤200g |
| Protection Class | IP67 |
