RUICOM

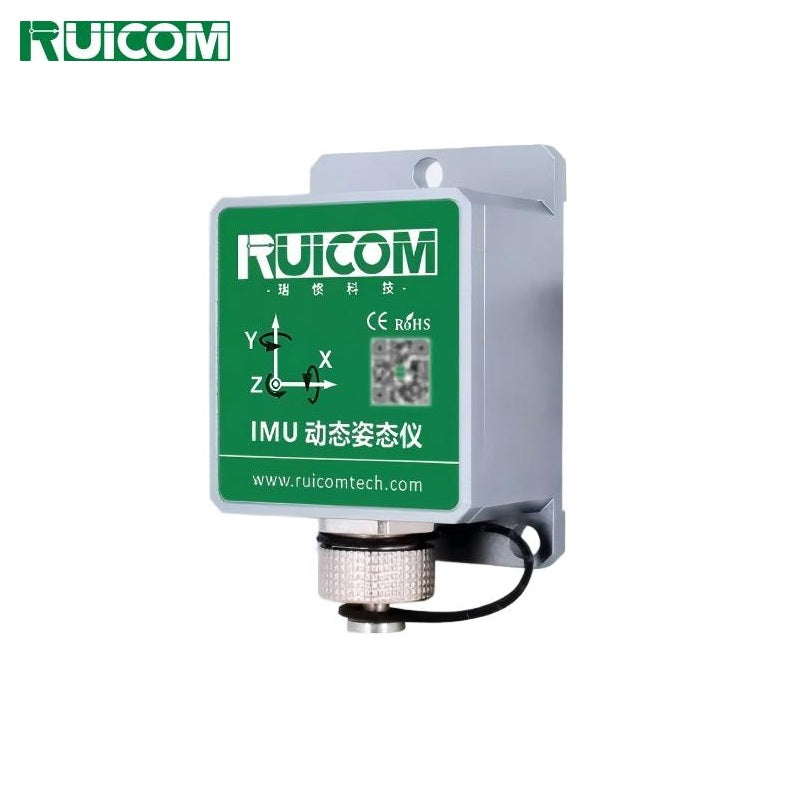

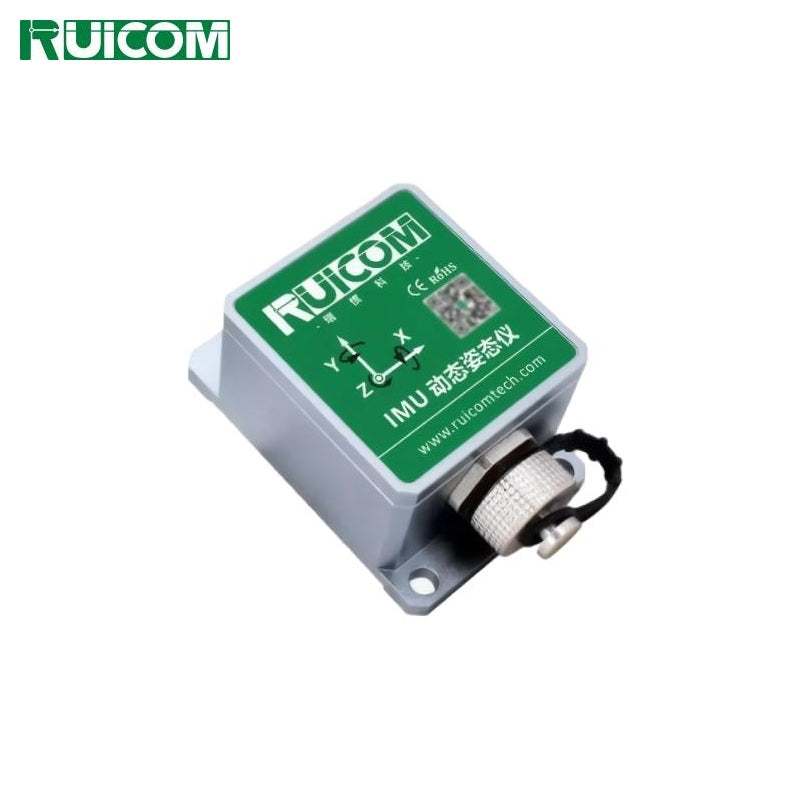

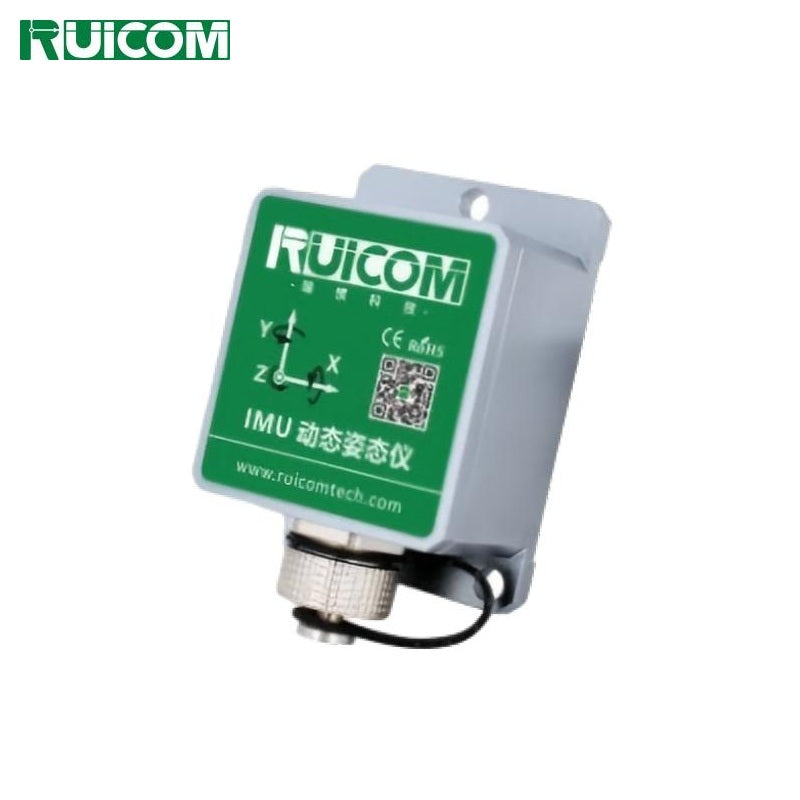

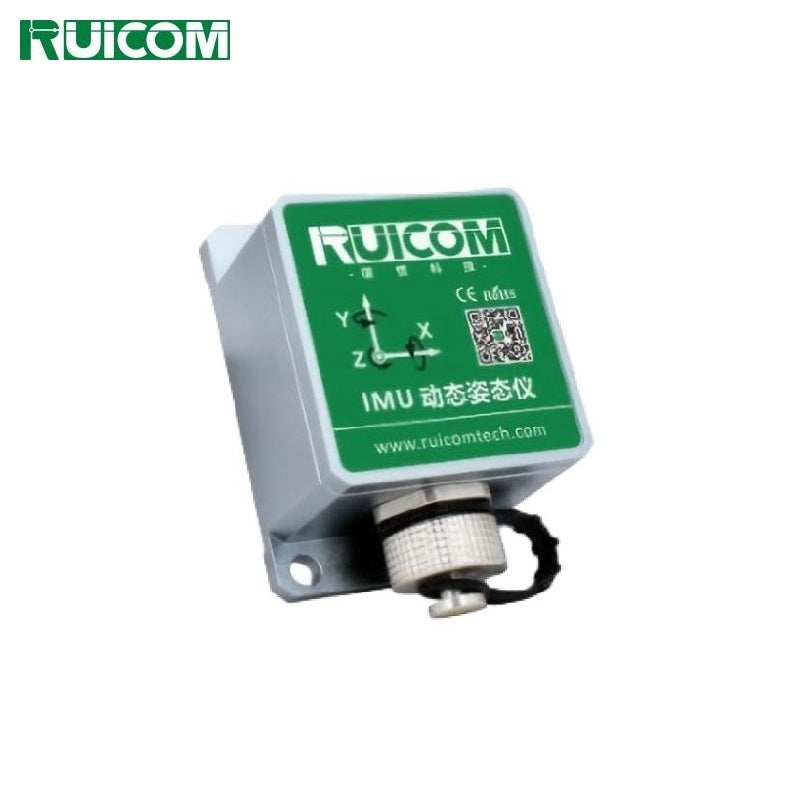

RUICOM GL720 Sensor

$100.00
Version
Signal output
Supply voltage

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Azimuth measurement axis Z-axis Azimuth angle (±180)°
Sampling bandwidth >100Hz
Nonlinearity 0.1% of FS
Acceleration range ±4g
Acceleration resolution 0.001g
Acceleration accuracy 5mg
Bias instability (Allan) 0.05mg
Velocity random walk coefficient (Allan) 0.015m/s/sqrt(h)
Bias stability (10s mean) 0.15mg
Gyroscope angular rate range ±250°/s
Angle random walk coefficient (Allan) 0.30°/sqrt(h)
Bias stability (10s smoothing) 10°/h
Startup time(AGV application) 5~6s
Startup time(AGM application) 1.5s
Supply voltage 9~36 VDC / 5 VDC (optional)
Operating current 30mA(12V)
Operating temperature -40 ~ +80℃
Storage temperature -40 ~ +85°C
Vibration 5g ~ 10g
Shock 200g pk，2ms，½sine
Operating life 10 years
Output data rate 5 Hz ~ 200 Hz configurable
Output signal RS232 or RS485
MTBF (Mean Time Between Failures) ≥98,000 hours
Insulation resistance ≥100 MΩ
Shock resistance 100g @ 11 ms, three axes (half-sine wave)
Vibration resistance 10 grms, 10~1000 Hz
Waterproof rating IP67
Weight ≤135 g (including 1 m standard cable)
Note: AGV application startup time requires 5 seconds of static rest.
