RUICOM

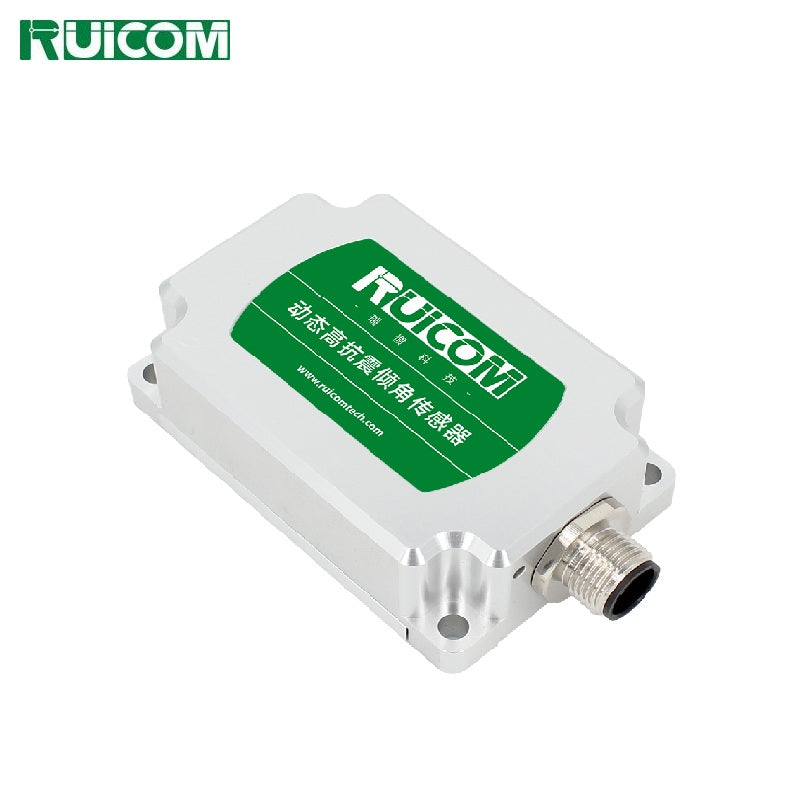

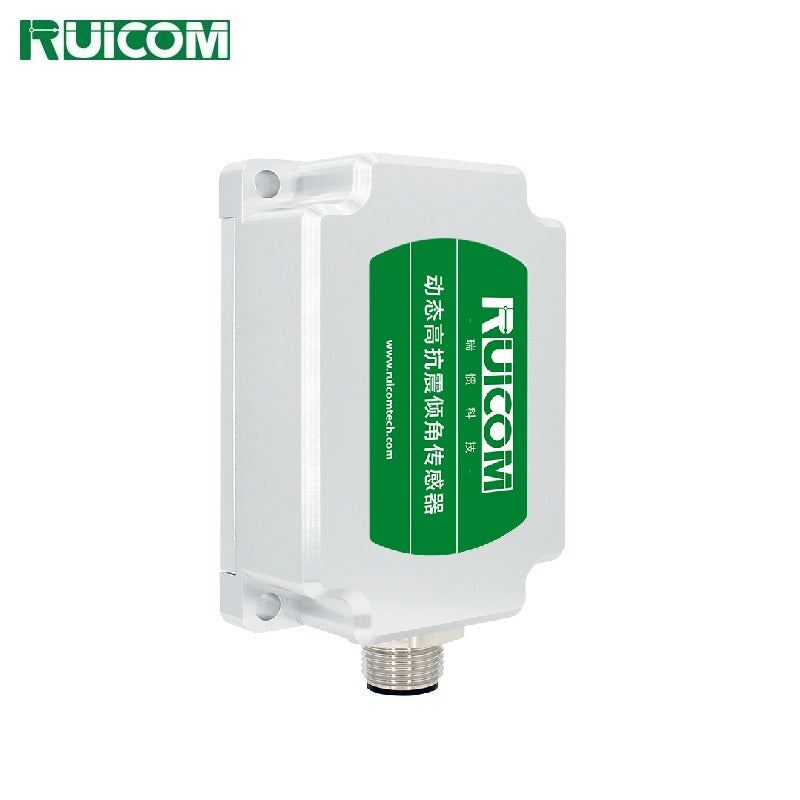

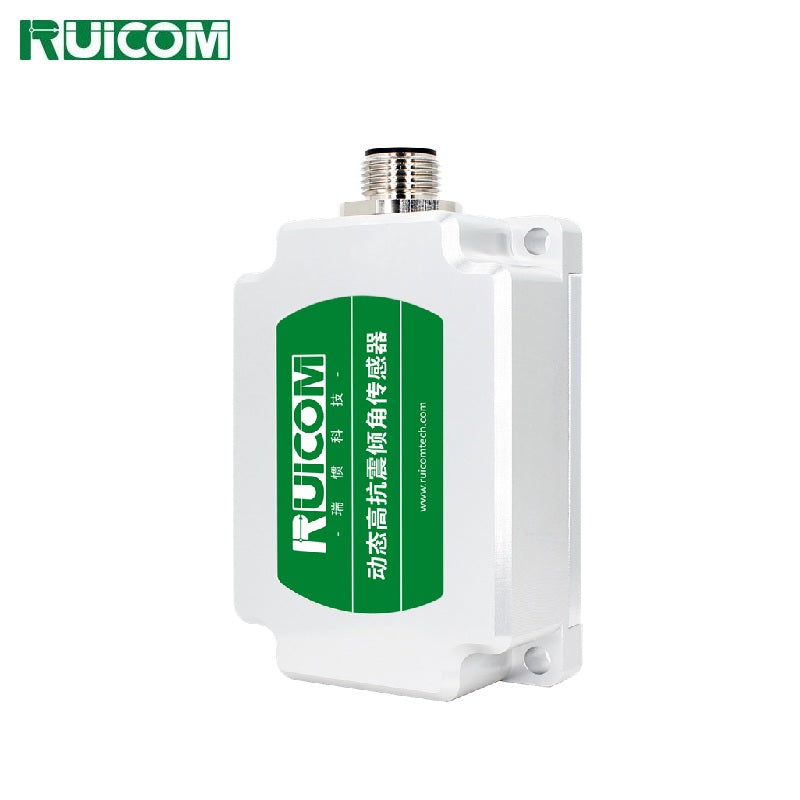

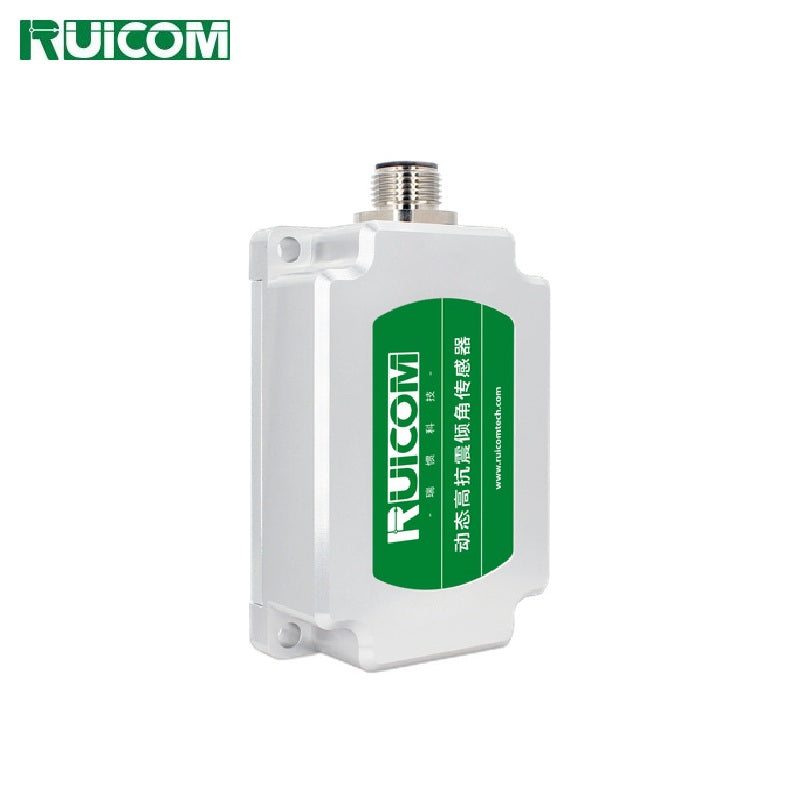

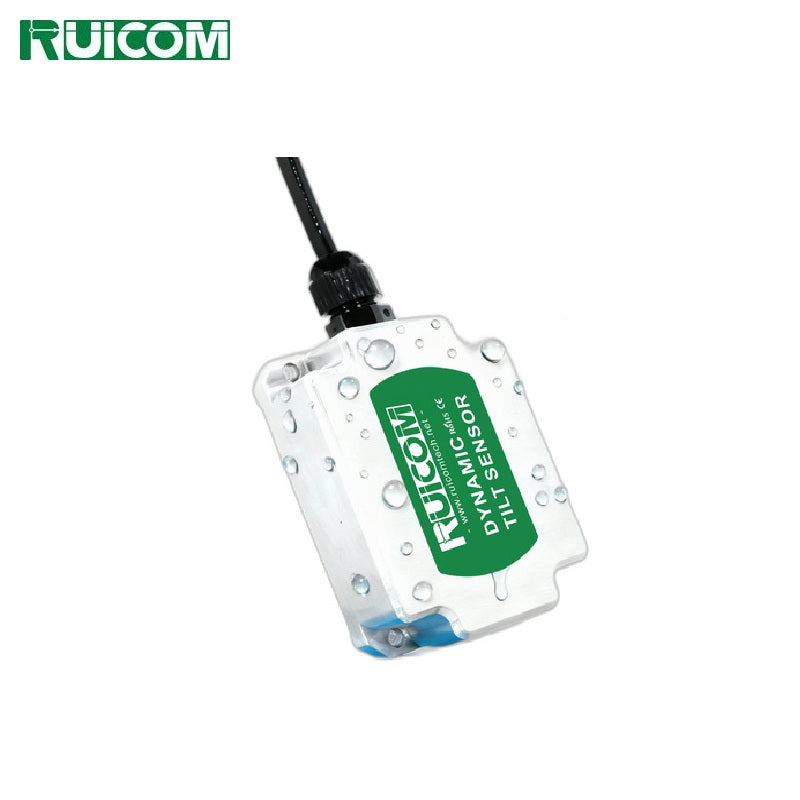

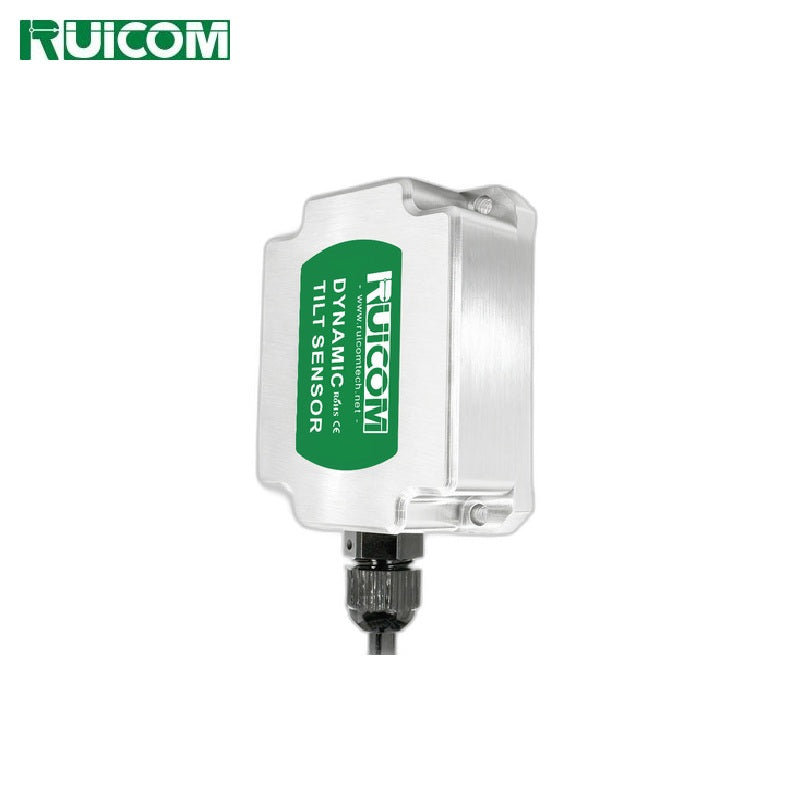

RUICOM DTS6 Sensor

$165.00
Version
Signal output
Installation direction

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Measurement Range (initial value 0° at power-on) Roll ±180°, Pitch ±90°, Azimuth ±180°
Measurement Axes X-axis / Y-axis / Z-axis
Roll/Pitch Resolution 0.01°
Roll/Pitch Static Accuracy @25°C ±0.05°
Roll/Pitch Dynamic Accuracy (rms) @25°C ±0.1°
Gyroscope Range ±300°/s
Bias Stability (10s mean) 8.5°/h
Bias Instability (Allan) 4.5°/h
Angular Random Walk (Allan) 0.25°/√h
Accelerometer Range ±4g / ±16g (selectable)
Bias Stability (10s mean) 0.02 mg
Bias Instability (Allan) 0.005 mg
Velocity Random Walk (Allan) 0.005 m/s/√h
Bias Temperature Coefficient @ -40 ~ 85°C
Sensitivity Temperature Coefficient ≤ 100 ppm/°C @ -40 ~ 85°C
Power-on Startup Time ≤ 3.5 s
Response Time 0.01 s
Communication Protocol RS485 / RS232 / TTL (selectable)
Electromagnetic Compatibility EN61000 & GBT17626
MTBF ≥ 98,000 hours
Insulation Resistance ≥ 100 MΩ
Shock Resistance 100g @ 11ms, 3 axes (half-sine)
Vibration Resistance 10 grms, 10 ~ 1000 Hz
Protection Rating IP67 / IP68 (selectable)
Weight (single connector, excl. cable) ≤ 165 g
Weight (dual connector, excl. cable) ≤ 180 g
