OAKChina | SKU:

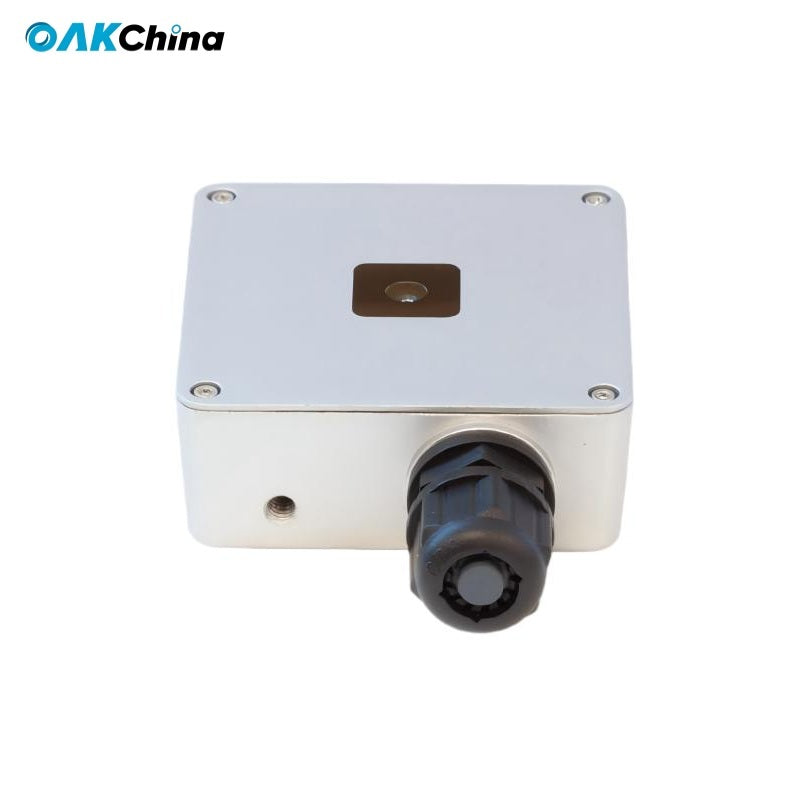

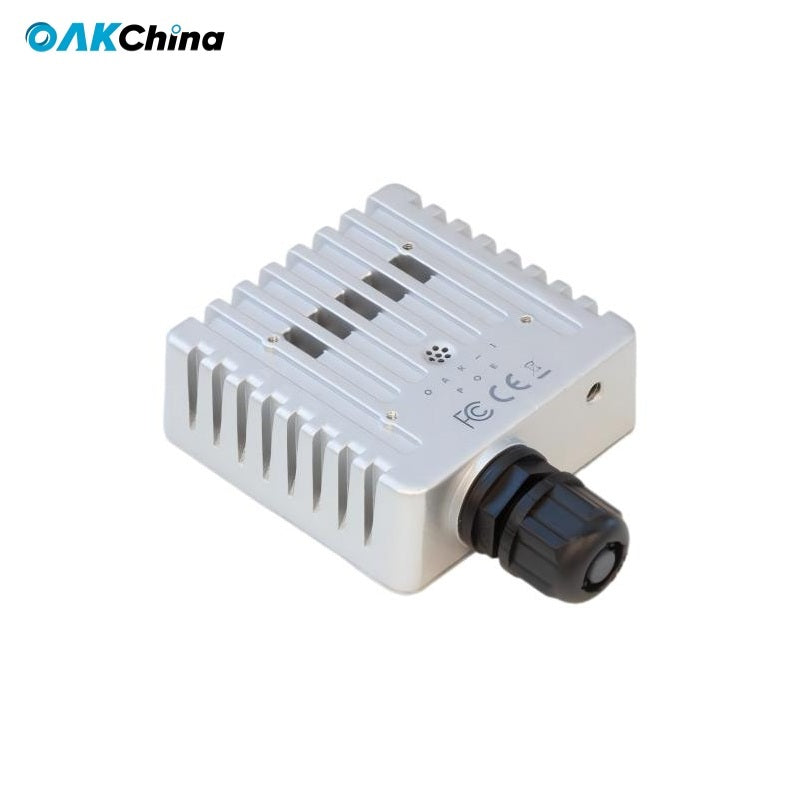

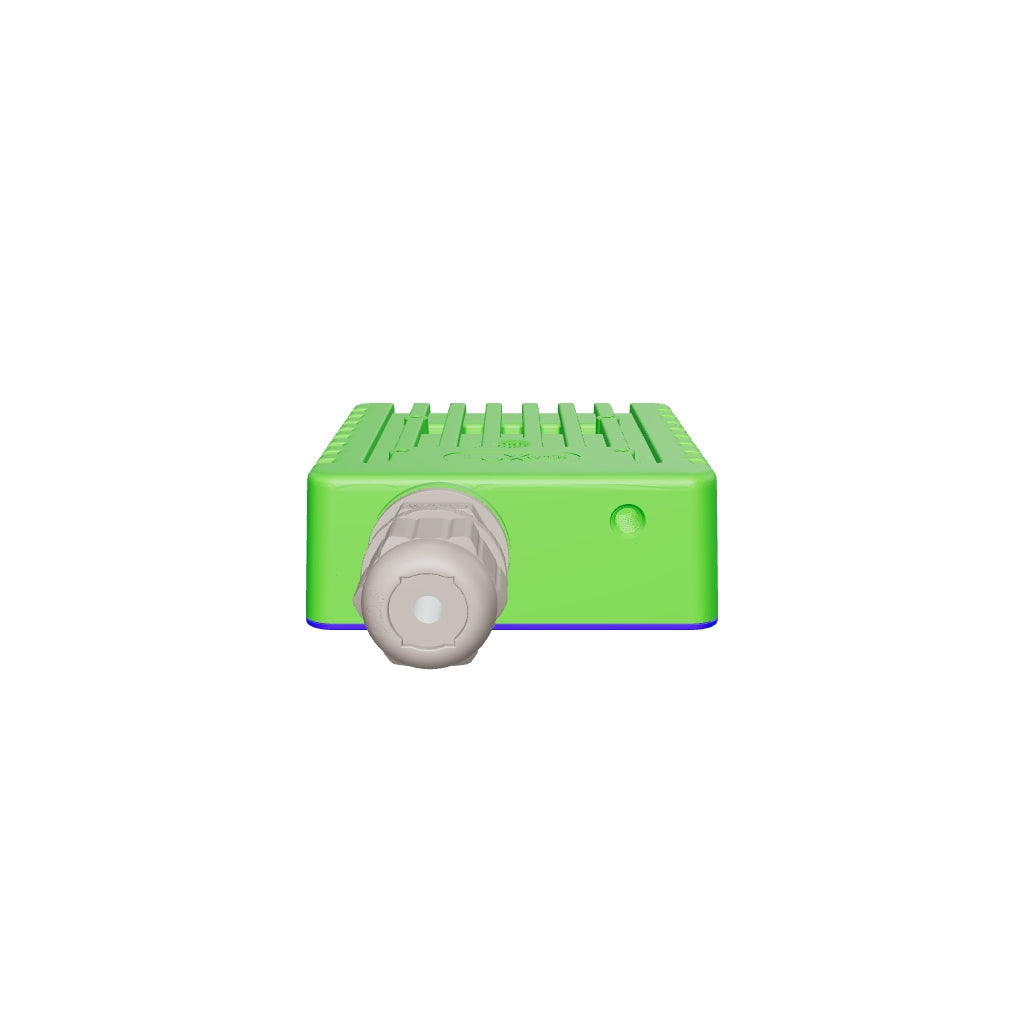

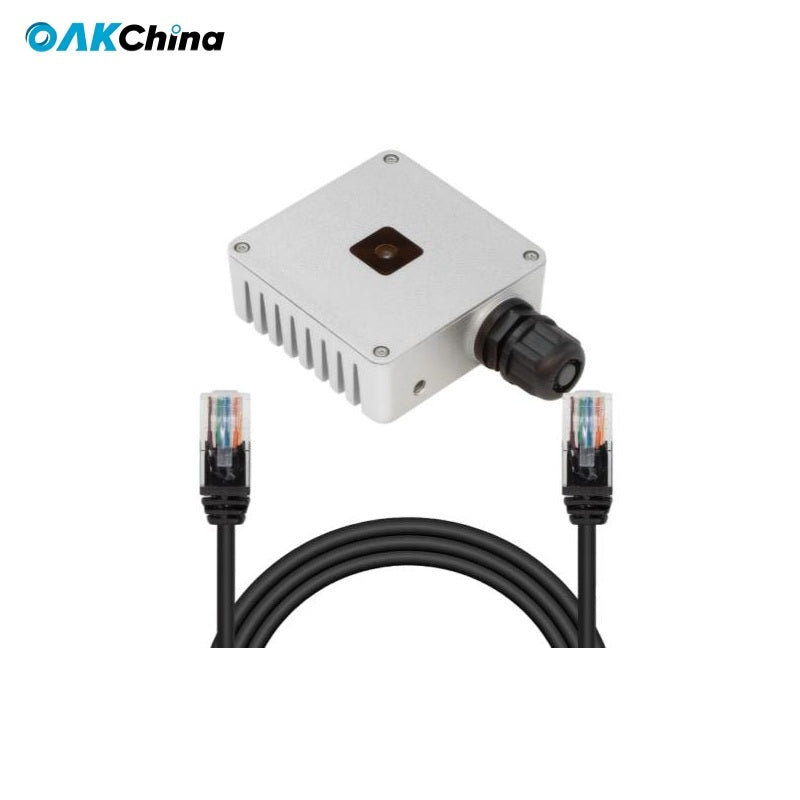

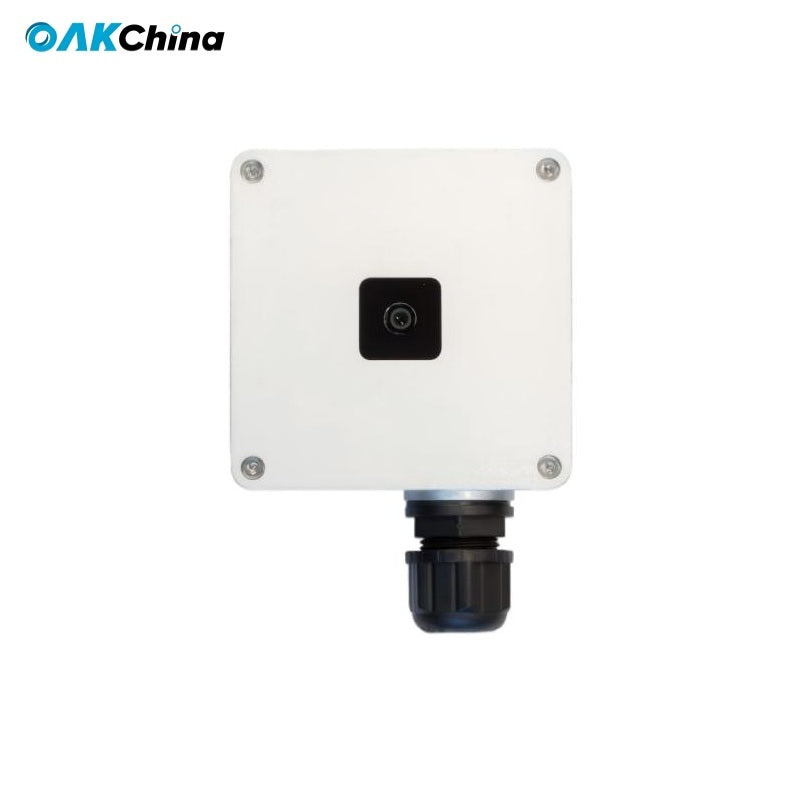

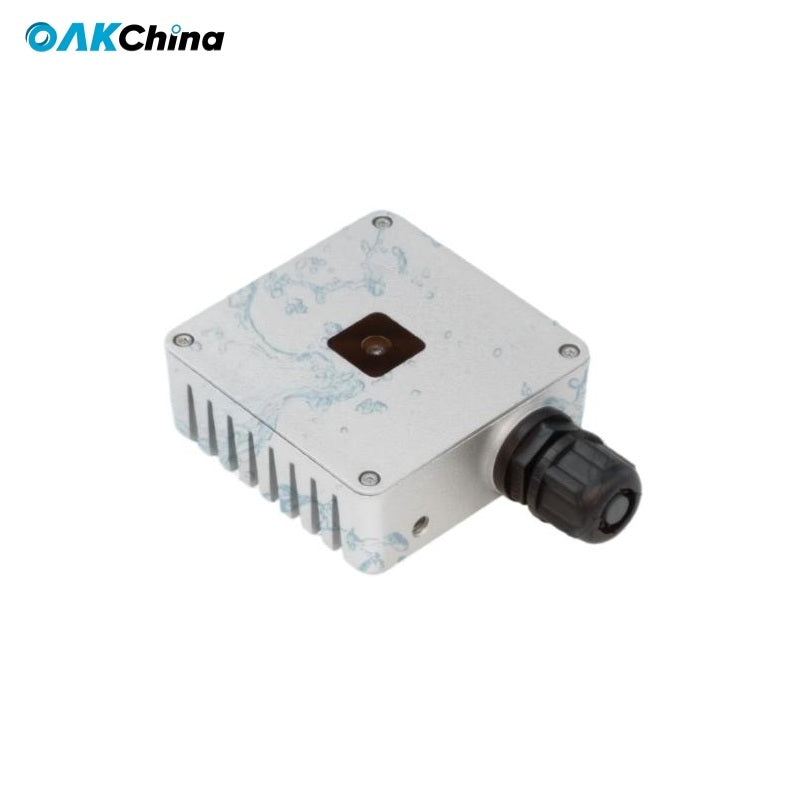

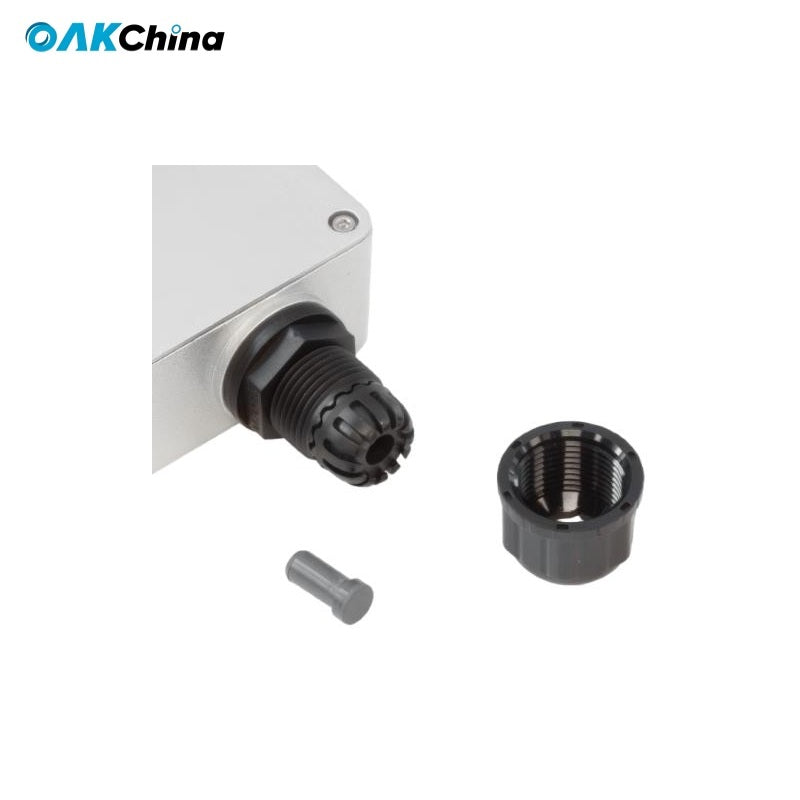

OAKChina OAK-1-PoE Camera
Regular price
$830.00
Unit price
OAKChina OAK-1-PoE Camera - OAK-1-PoE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-1-PoE Camera
Regular price
$830.00
Unit price
OAKChina OAK-1-PoE Camera - OAK-1-PoE is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | RGB Camera (AF) |
|---|---|
| Image Sensor | IMX378 |
| DFOV / HFOV / VFOV | 78° D / 66° H / 54° V |
| Resolution | 12MP (4032 × 3040) |
| Maximum Frame Rate | 60 FPS |
| Effective Focal Length (EFL) | 4.81 mm |
| Aperture (F.NO) | 1.8 ±5% |
| Focus Range | AF: 8cm - ∞ |
| Lens Size (Optical Format) | 1/2.3" |
| Pixel Size | 1.55 μm × 1.55 μm |
| Shutter Type | Rolling Shutter |
