OAKChina | SKU:

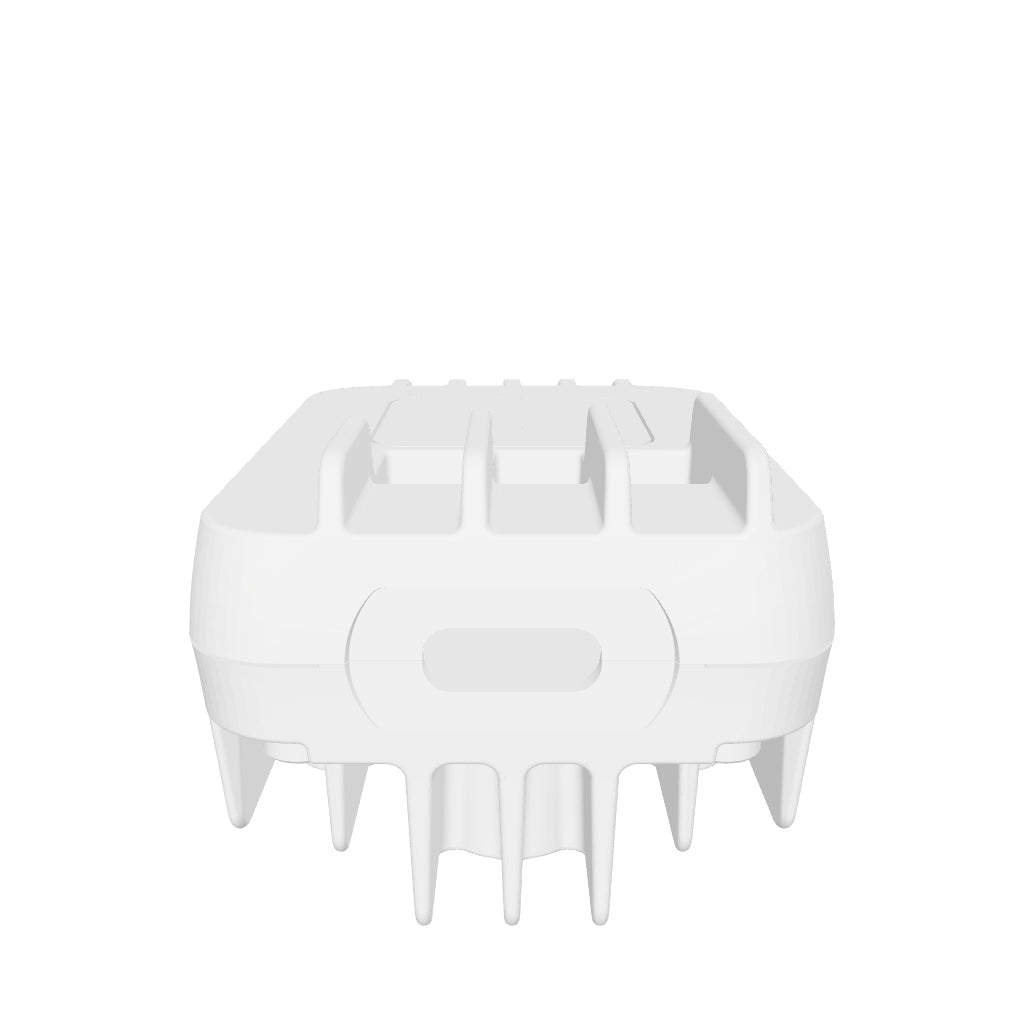

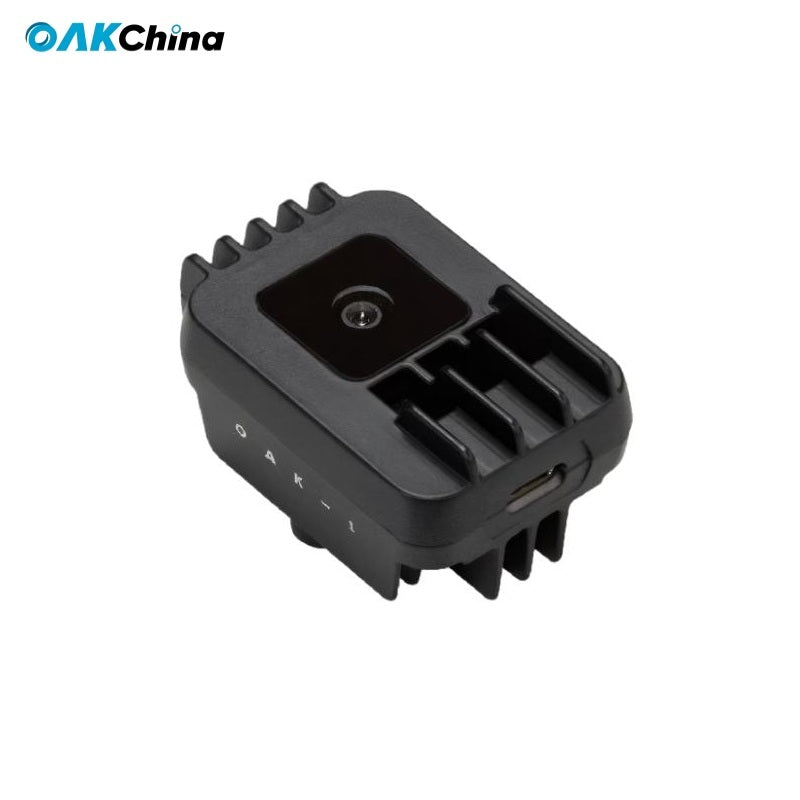

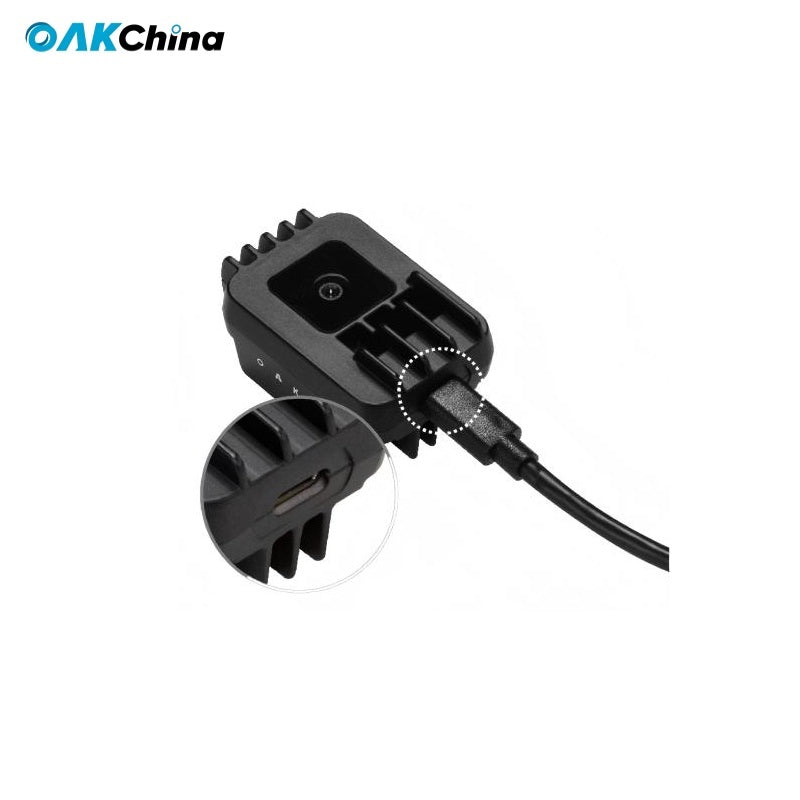

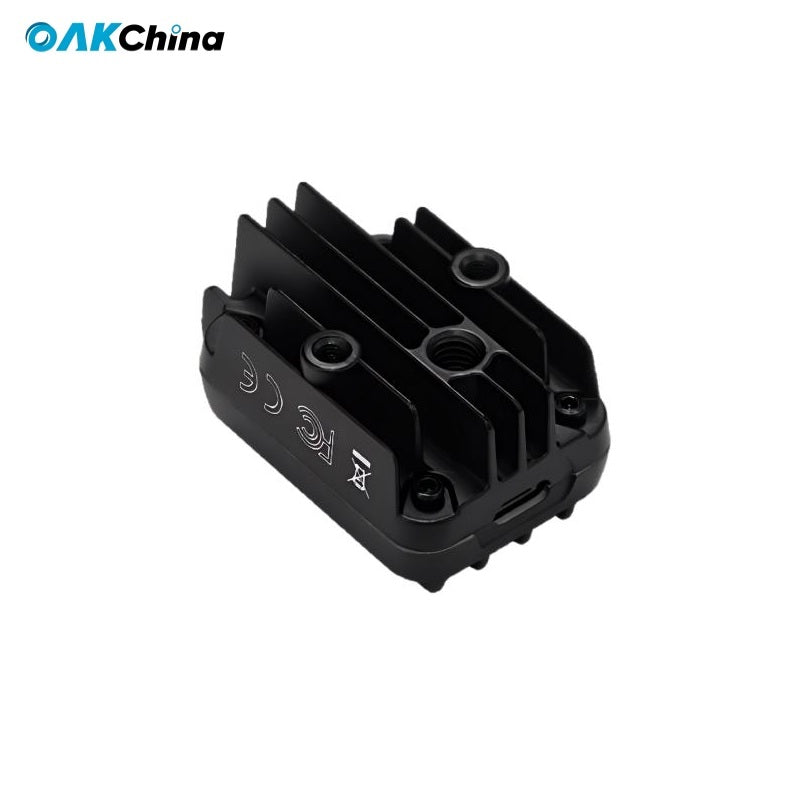

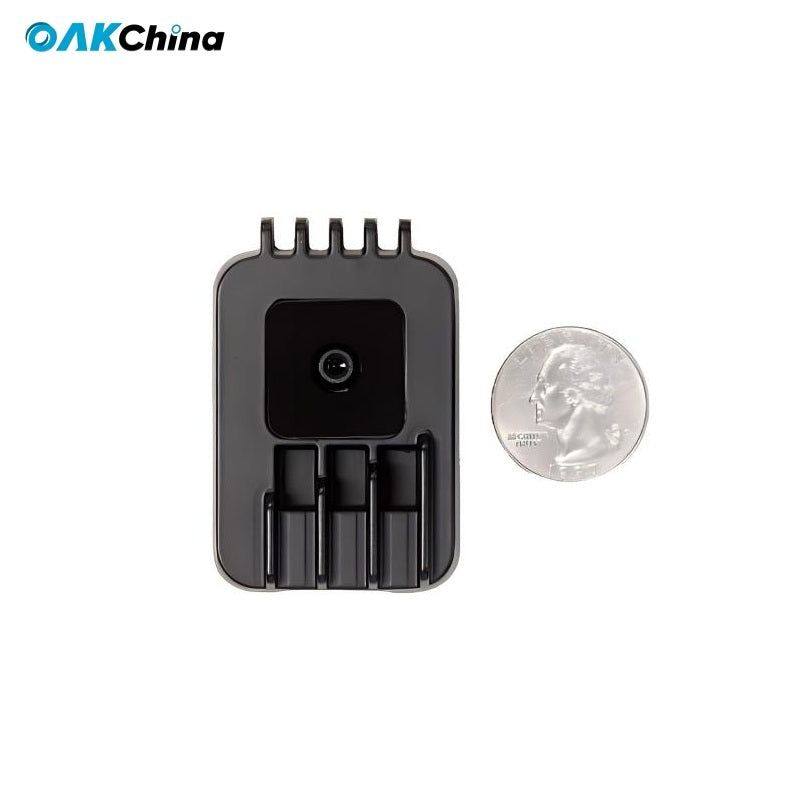

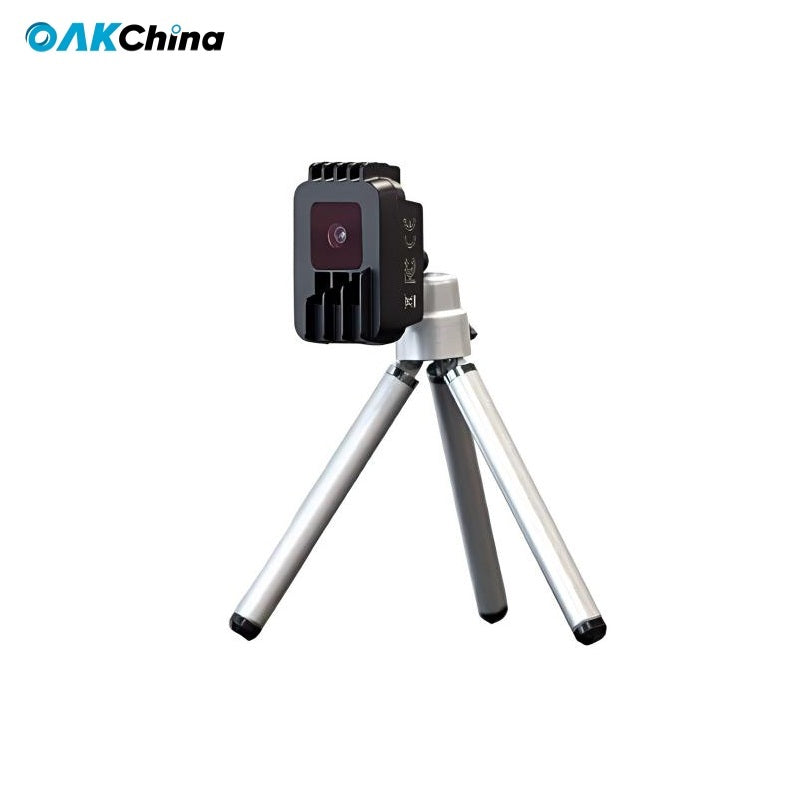

OAKChina OAK-1 Camera
Regular price
$450.00
Unit price
OAKChina OAK-1 Camera - OAK-1 / AF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-1 Camera
Regular priceFrom
$450.00
Unit price
OAKChina OAK-1 Camera - OAK-1 / AF is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | RGB Camera (AF) | RGB Camera (FF) | RGB Camera (Global Shutter) |
|---|---|---|---|
| Image Sensor | IMX378 | IMX378 | OV9782 |
| DFOV / HFOV / VFOV | 78° D / 66° H / 54° V | 82° D / 69° H / 55° V | 89.5° D / 80° H / 55° V |
| Resolution | 12MP (4056 × 3040) | 12MP (4056 × 3040) | 1MP (1280 × 800) |
| Maximum Frame Rate | 60 FPS | 60 FPS | 120 FPS |
| Effective Focal Length (EFL) | 4.81 mm | 4.81 mm | 2.35 mm |
| Aperture (F.NO) | 1.8 ±5% | 1.8 ±5% | 2.0 ±5% |
| Spectral Range | Visible Light | Visible Light | Visible Light |
| Focus Range | AF: 8cm - ∞ | FF: 50cm - ∞ | FF: 50cm - ∞ |
| Lens Size (Optical Format) | 1/2.3" | 1/2.3" | 1/4" |
| Pixel Size | 1.55 μm × 1.55 μm | 1.55 μm × 1.55 μm | 3 μm × 3 μm |
| Shutter Type | Rolling Shutter | Rolling Shutter | Global Shutter |
