LSLIDAR | SKU:

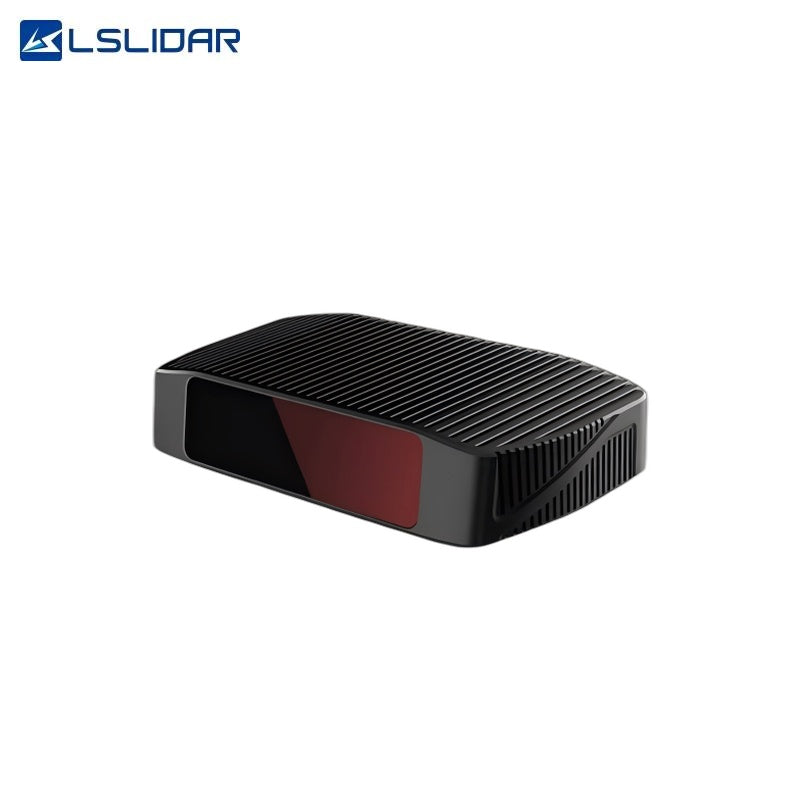

LSLIDAR LS-S3 Series LiDAR
Regular price
$4,450.00
Unit price
LSLIDAR LS-S3 Series LiDAR - LS128S3 1280 Lines is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR LS-S3 Series LiDAR
Regular priceFrom
$4,450.00
Unit price
LSLIDAR LS-S3 Series LiDAR - LS128S3 1280 Lines is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | LS128S3 | LS144S3 | LS160S3 | LS180S3 | LS320S3 | LS400S3 |
|---|---|---|---|---|---|---|
| Scan Channels | 128 channels | 144 channels | 160 channels | 180 channels | 320 channels | 400 channels |
| Lines per Second | 1280 lines/s | 1440 lines/s | 1600 lines/s | 1800 lines/s | 3200 lines/s | 4000 lines/s |
| Detection Range | 1.5~250m (@10%) | 1.5~180/210/250m (@10%) | 1.5~180/210/250m (@10%) | 1.5~180/210/250m (@10%) | 1.5~180/210/250m (@10%) | 1.5~180/210 (250m @10%) |
| Communication Interface | Industrial Ethernet | Industrial/Automotive Ethernet | Industrial/Automotive Ethernet | Industrial/Automotive Ethernet | Industrial/Automotive Ethernet | Industrial/Automotive Ethernet |
| Horizontal FOV | 120° | 120° | 120° | 120° | 120° | 120° |
| Vertical FOV | 25° (±12.5°) | 24° | 23° | 25° (±12.5°) | 25° (±12.5°) | 25° (±12.5°) |
| Horizontal Angular Resolution | A: 0.10368° | B: 0.103° | B: 0.103° | B: 0.13° | B: 0.0518° | A: 0.0648° |
| Vertical Angular Resolution | A: 0.2° | B: 0.2°, 0.0909°(@ROI, 4°) | B: 0.2°, 0.1°(@ROI-5.5°~2.5°) | B: 0.1°(@ROI) | B: 0.09°(@ROI), 0.2° (non-global) | A: 0.05° (non-global) |
| Measurement Rate | 1.48M pts/s | 1.65M pts/s | 1.85M pts/s | 1.65M pts/s | 1.85M pts/s | 1.85M pts/s |
| Laser Wavelength | 1550nm | 1550nm | 1550nm | 1550nm | 1550nm | 1550nm |
| Safety Class | Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) |
| Ranging Principle | TOF (Time of Flight) | TOF (Time of Flight) | TOF (Time of Flight) | TOF (Time of Flight) | TOF (Time of Flight) | TOF (Time of Flight) |
| Ranging Accuracy | ±2cm | ±2cm | ±2cm | ±2cm | ±2cm | ±2cm |
| Frame Rate | 10FPS | 10FPS | 10FPS | 10FPS | 10FPS | 10FPS |
| Power Supply Range | 9~36V DC | 9~36V DC | 9~36V DC | 9~36V DC | 9~36V DC | 9~36V DC |
| Power Consumption | ≤25 W | ≤25 W | ≤25 W | ≤25 W | ≤25 W | ≤25 W |
| IP Rating | IP6K9K | IP6K9K | IP6K9K | IP6K9K | IP6K9K | IP6K9K |
| Operating Temperature | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) | -40℃~85℃ (Automotive), -20℃~65℃ (Industrial) |
| Storage Temperature | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) | -40℃~105℃ (Automotive), -40℃~85℃ (Industrial) |
| Vibration | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², duration 11ms | 500m/sec², duration 11ms | 500m/sec², duration 11ms | 500m/sec², duration 11ms | 500m/sec², duration 11ms | 500m/sec², duration 11ms |
| Weight | ≤1600g | ≤1600g | ≤1600g | ≤1600g | ≤1600g | ≤1600g |
| Dimensions (LWH) | 229*132*46 mm | 229*132*46 mm | 229*132*46 mm | 229*132*46 mm | 229*132*46 mm | 229*132*46 mm |
