LSLIDAR | SKU:

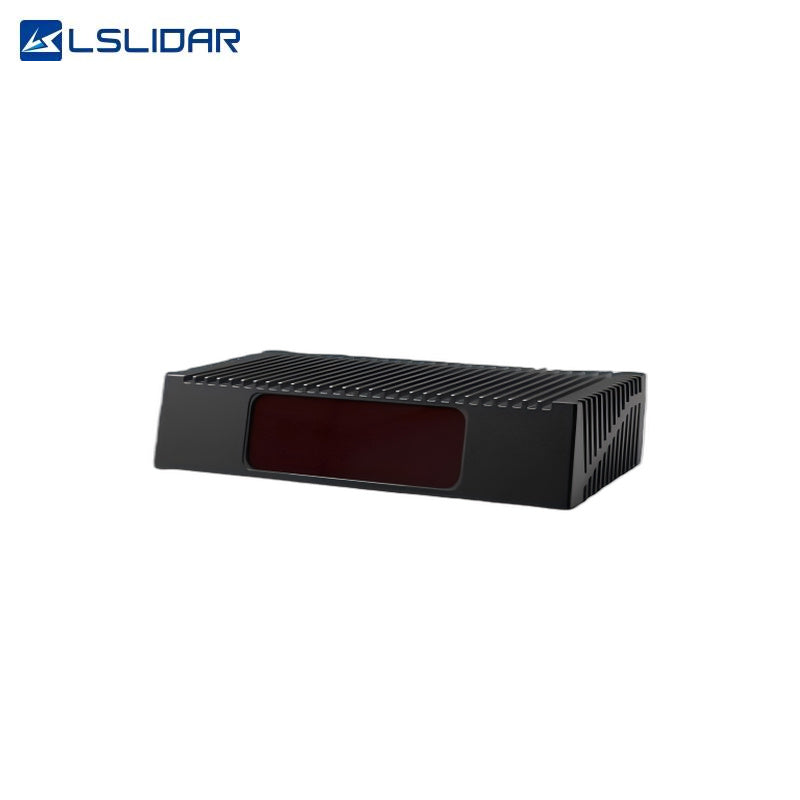

LSLIDAR LS-S2 Series LiDAR
Regular price
$4,450.00
Unit price
LSLIDAR LS-S2 Series LiDAR - LS128S2 1280 Line is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR LS-S2 Series LiDAR
Regular priceFrom
$4,450.00
Unit price
LSLIDAR LS-S2 Series LiDAR - LS128S2 1280 Line is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | LS128S2 | LS180S2 | LS320S2 | LS400S2 |
| Scanning Channels | 128 channels | 180 channels | 320 channels | 400 channels |
| Scan Lines per Second | 1280 lines | 1800 lines | 3200 lines | 4000 lines |
| Horizontal FOV | 120° | 120° | 120° | 120° |
| Vertical FOV | 25° (±12.5°) | 25° (±12.5°) | 25° (±12.5°) | 25° (±12.5°) |
| Horizontal Angular Resolution | B: 0.103° | B: 0.13° | B: 0.0518° | A: 0.0646° |
| Vertical Angular Resolution | B: 0.076° (ROI), 0.33° (non-ROI) | B: 0.1° (ROI) | B: 0.09° (ROI), 0.2° (full field) | A: 0.05° (non-full field) |
| Point Rate | 1.48 million points/sec | 1.65 million points/sec | 1.85 million points/sec | 1.85 million points/sec |
| Laser Wavelength | 1550 nm | 1550 nm | 1550 nm | 1550 nm |
| Safety Class |
Class I (Eye-safe) |
Class I (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) |
| Ranging Principle | TOF (Time-of-Flight) | TOF (Time-of-Flight) | TOF (Time-of-Flight) | TOF (Time-of-Flight) |
| Detection Range | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity | 1.5 m ~ 250 m @ 10% reflectivity |
| Ranging Accuracy |
±2 cm |
±2 cm | ±2 cm | ±2 cm |
| Frame Rate | 10 FPS | 10 FPS | 10 FPS | 10 FPS |
| Communication Interface | Automotive Ethernet | Automotive Ethernet | Automotive Ethernet | Automotive Ethernet |
| Power Supply Range | 12–36 V DC | 12–36 V DC | 12–36 V DC | 12–36 V DC |
| Power Consumption | ≤28 W | ≤28 W | ≤28 W | ≤28 W |
| IP Rating | IP6K9K | IP6K9K | IP6K9K | IP6K9K |
| Operating Temperature | -40°C ~ +75°C | -40°C ~ +75°C | -40°C ~ +75°C | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +105°C | -40°C ~ +105°C | -40°C ~ +105°C | -40°C ~ +105°C |
| Vibration | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms | 5 Hz ~ 2000 Hz, 3G rms |
| Shock | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration | 500 m/sec², 11 ms duration |
| Weight |
Base: ≤1800 g
|
Base: ≤1800 g
|
Base: ≤1800 g
|
Base: ≤1800 g
|
| Dimensions (L×W×H) |
Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
Base: 236×125×49 mm
|
