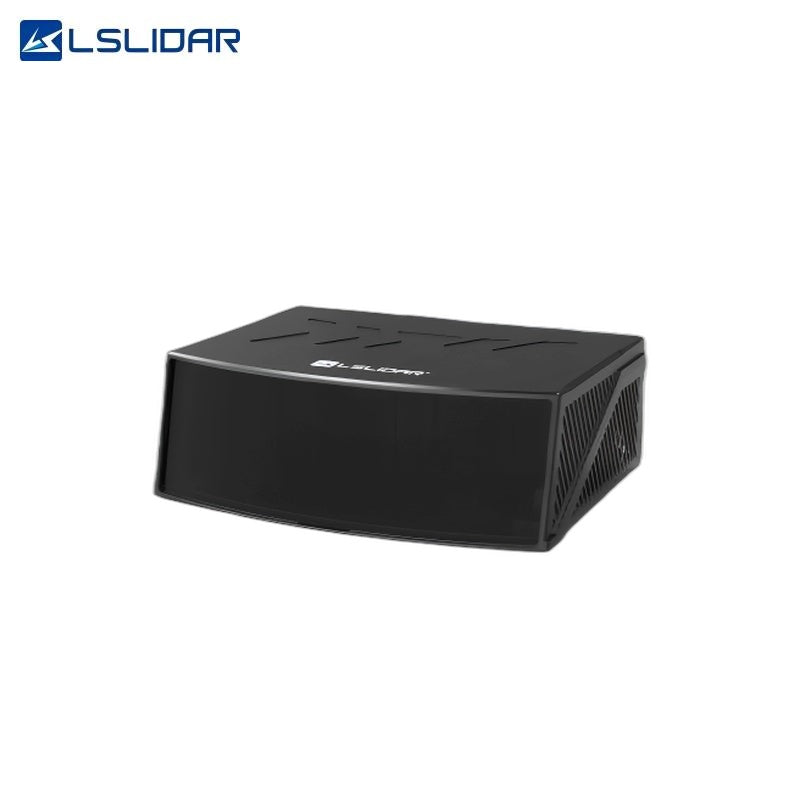

LSLIDAR CX128S2 LiDAR

$5,750.00

Model

CX128S2 (120° × 25°)

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	CX128S2
Wavelength	905nm
Safety Class	Class I (Eye-safe)
Scanning Channels	128 channels
Ranging Principle	TOF (Time-of-Flight)
Detection Range	200 m @ 10% reflectivity
Ranging Accuracy	±3cm
Horizontal FOV	120°
Vertical FOV	25° (-12.5° ~ 12.5°)
Horizontal Resolution	0.05° / 0.1° / 0.2°
Vertical Resolution	0.125° @ ROI, 0.25° @ non-ROI
Scan Frequency	5Hz / 10Hz / 20Hz
Point Rate	1530000 points/sec
Communication Interface	Industrial Ethernet
Power Supply Range	9V~32V DC
Power Consumption	15W
IP Rating	IP6K9K
Operating Temperature	-40°C ~ +85°C
Vibration	5Hz~2000Hz, 3G rms
Shock	500m/sec², 11ms duration
Weight	< 1000 g
Dimensions	139×115.7×47 mm (rear outlet, curved surface) 139×100.3×47 mm (rear outlet, flat surface) 139×114.2×47 mm (side outlet, curved surface)
