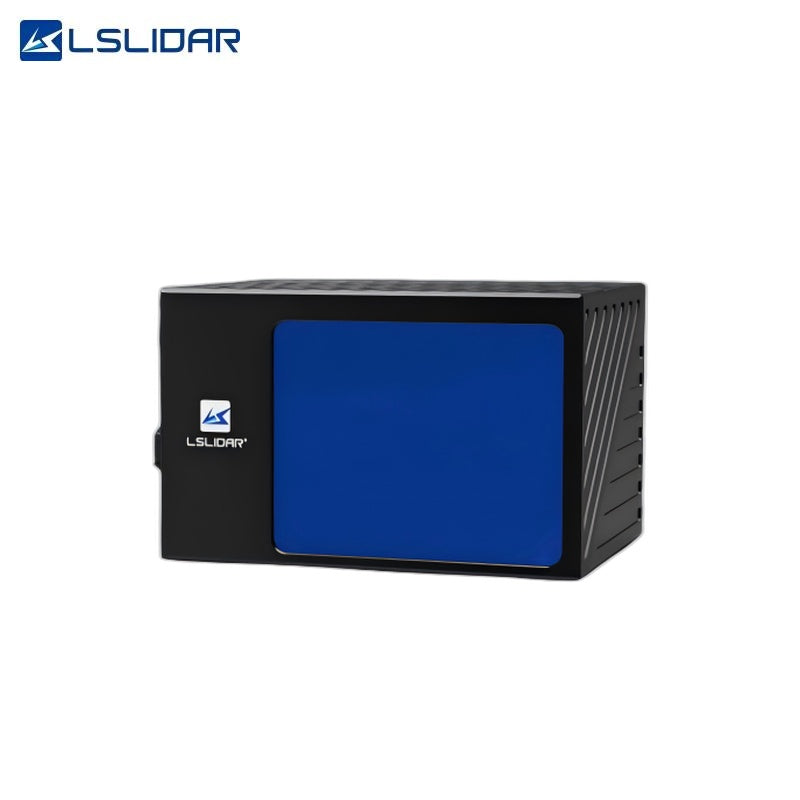

LSLIDAR CH16X1 LiDAR

$3,300.00
Model

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model CH16X1
Wavelength 905nm
Safety Class Class I (Eye-safe)
Scanning Channels 16 channels
Ranging Principle TOF (Time-of-Flight)
Detection Range 200 m (160 m @ 10% reflectivity)
Ranging Accuracy ±3cm
Horizontal FOV  120°
Vertical FOV  -2° ~ 2°
Horizontal Resolution 0.06° / 0.12° / 0.24° (Industrial Ethernet)

0.1° / 0.2° / 0.4° (Automotive Ethernet)
Vertical Resolution 0.25°
Scan Frequency 5Hz / 10Hz / 20Hz
Point Rate  95000 points/sec
Communication Interface Industrial 100M Ethernet / Automotive Ethernet
Power Supply Range 9V~36V DC
Power Consumption 12W
IP Rating IP6K9K
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +105°C
Vibration 5Hz~2000Hz, 3G rms
Shock 500m/sec², 11ms duration
Weight 1000 g (Standard)
Dimensions (L×W×H) 118 × 90 × 75 mm
