LSLIDAR

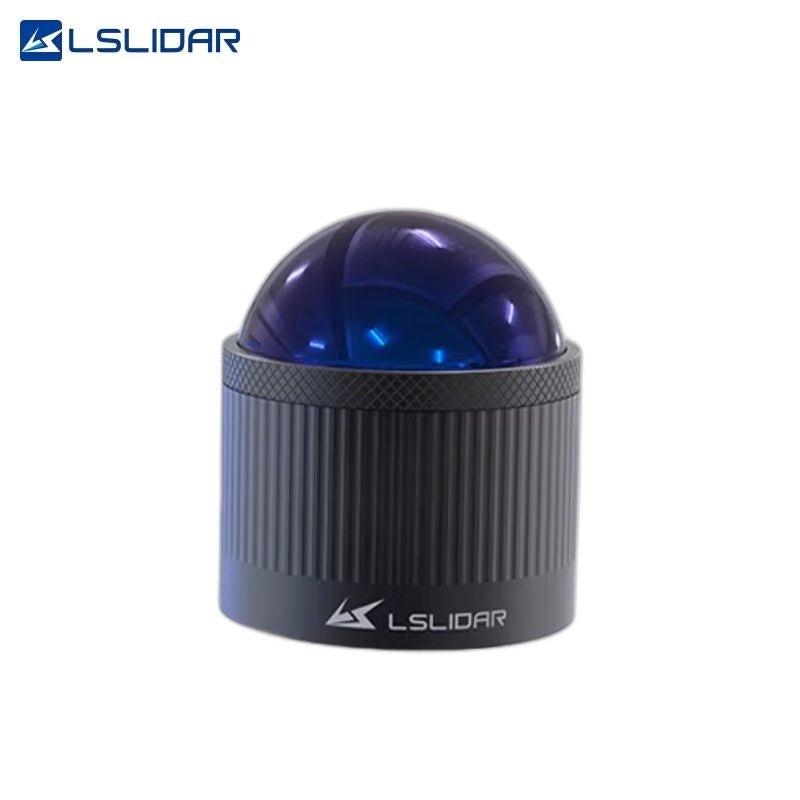

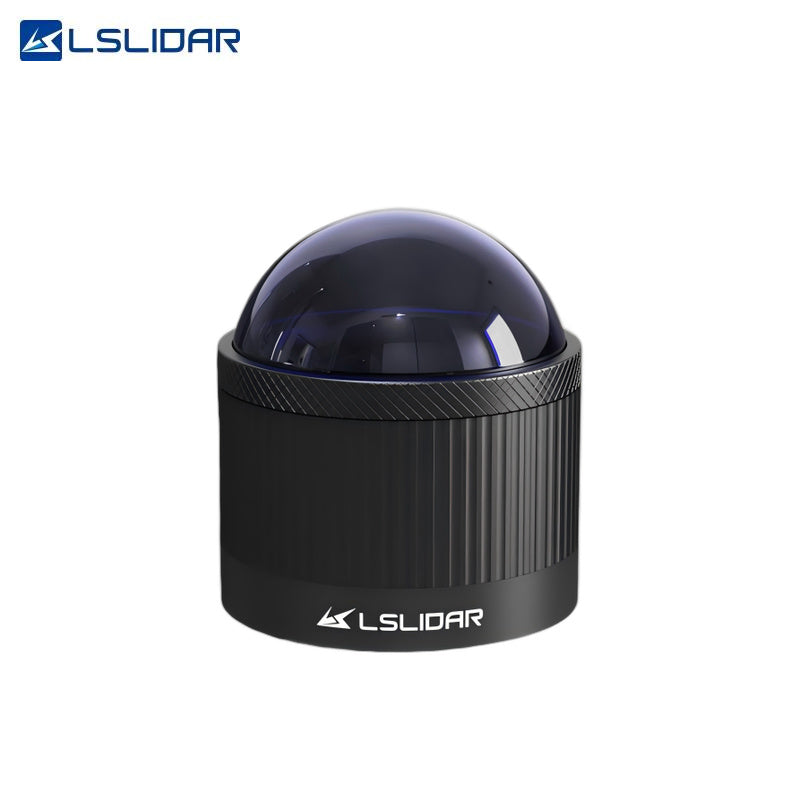

LSLIDAR CH16R/32R LiDAR

$2,400.00
Model

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model CH16R CH32R
Wavelength 905nm 905nm
Safety Class Class I (Eye-safe) Class I (Eye-safe)
Scanning Channels 16 channels 32 channels
Ranging Principle TOF (Time-of-Flight) TOF (Time-of-Flight)
Detection Range 120 m @ 70%, 30 m @ 10% 120 m @ 70%, 30 m @ 10%
Ranging Accuracy ±3cm ±3cm
Ranging Precision ±1cm (1σ) ±1cm (1σ)
Horizontal FOV  360° 360°
Vertical FOV  2.487° ~ 52.798° 2.487° ~ 89.105°
Horizontal Resolution 0.09° / 0.18° / 0.36° 0.09° / 0.18° / 0.36°
Vertical Resolution Min. 2.618° Min. 2.61°
Scan Frequency 5Hz / 10Hz / 20Hz 5Hz / 10Hz / 20Hz
Point Rate (Single Return) 320000 points/sec
 		640000 points/sec
Point Rate (Dual Return) 640000 points/sec 1280000 points/sec
Communication Interface 100BASE-TX Ethernet, PPS 100BASE-TX Ethernet, PPS
Power Supply Range 12V~32V DC 12V~32V DC
Power Consumption 10 W (Typical at 10 Hz) 12 W (Typical at 10 Hz)
IP Rating IP67 IP67
Operating Temperature -20°C ~ 60°C -20°C ~ 60°C
Vibration 5Hz~2000Hz, 3G rms 5Hz~2000Hz, 3G rms
Shock 500m/sec², 11ms duration 500m/sec², 11ms duration
Weight 1000 g (Standard) 1000 g (Standard)
Dimensions (D×H) Φ100 × 110 mm Φ100 × 110 mm
