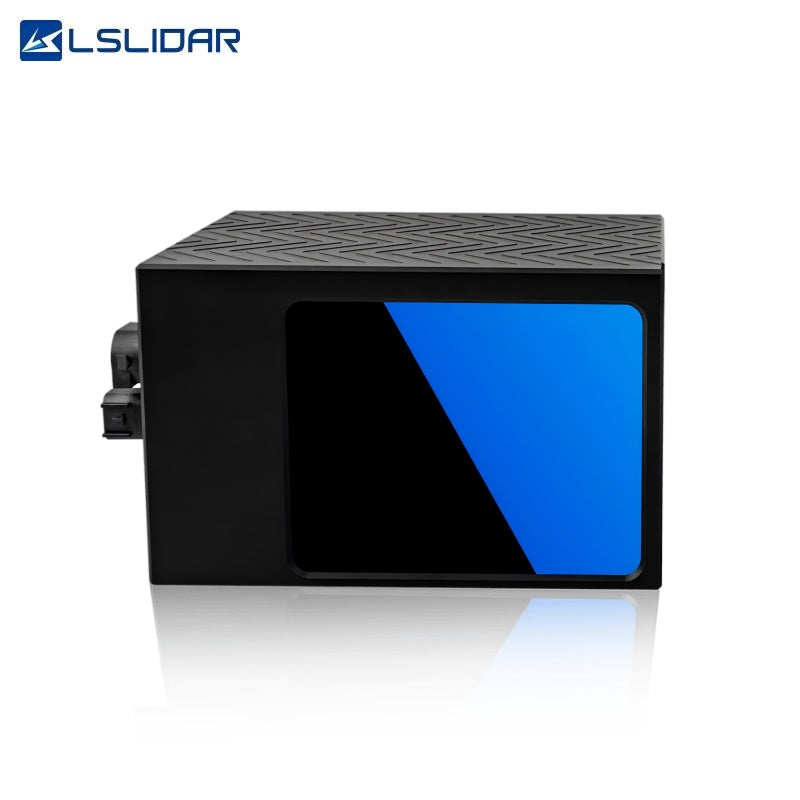

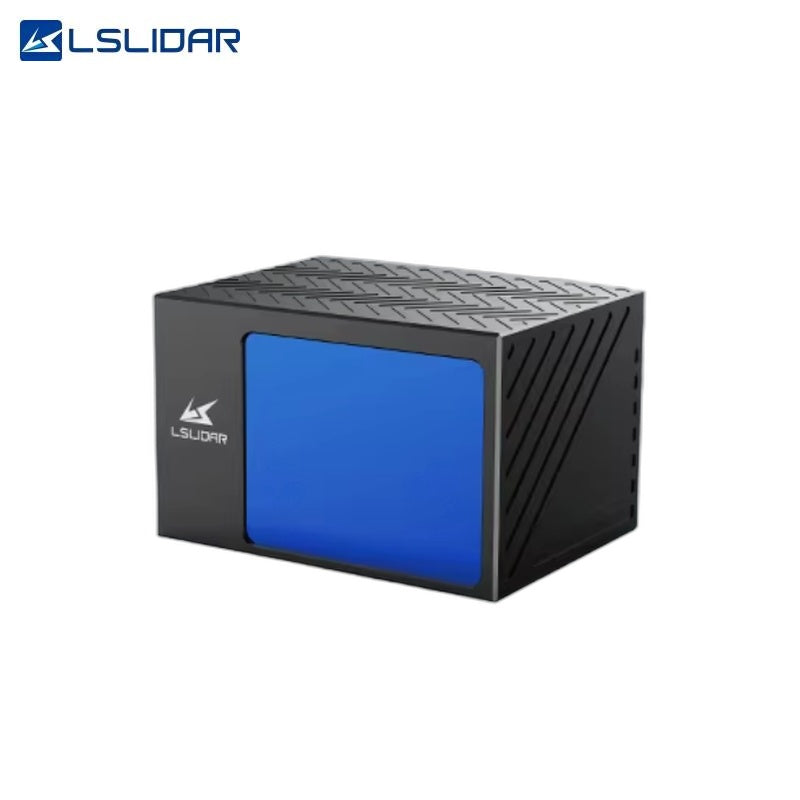

LSLIDAR CH128 Series LiDAR

$7,050.00

Model

CH128X1 [120° × 25°(-18°~7°)] CH128S1 [120° × 25°(-12.5°~12.5°)]

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value	Value
Model	CH128X1	CH128S1
Wavelength	905nm	905 nm
Safety Class	Class I (Eye-safe)	Class I (Eye-safe)
Scanning Channels	128 channels	128 channels
Ranging Principle	TOF (Time-of-Flight)	TOF (Time-of-Flight)
Detection Range	200 m (160 m @ 10% reflectivity)	200 m (160 m @ 10% reflectivity)
Ranging Accuracy	±3cm	±3cm
Horizontal FOV	120°	120°
Vertical FOV	25° (-18° ~ -7°)	25° (-12.5° ~ 12.5°)
Horizontal Resolution	0.1° / 0.2° / 0.4°	0.1° / 0.2° / 0.4°
Vertical Resolution	0.125° @ ROI, 0.25° @ non-ROI	0.125° @ ROI, 0.25° @ non-ROI
Scan Frequency	5Hz / 10Hz / 20Hz	5Hz / 10Hz / 20Hz
Point Rate	760000 points/sec	760000 points/sec
Communication Interface	Automotive Ethernet, Industrial Ethernet	Automotive Ethernet
Power Supply Range	9V~36V DC	9V~36V DC
Power Consumption	15W	12W
Functional Safety (AUTOSAR)	ASIL B	ASIL B
IP Rating	IP6K9K	IP6K9K
Operating Temperature	-40°C ~ +85°C	-40°C ~ +85°C
Vibration	10Hz~2000Hz, 3G rms	5Hz~2000Hz, 3G rms
Shock	500 m/sec², 11 ms duration	500 m/sec², 11 ms duration
Weight	1000 g	1000 g
Dimensions (L×W×H)	118 × 90 × 75 mm	118 × 90 × 75 mm
