LSLIDAR | SKU:

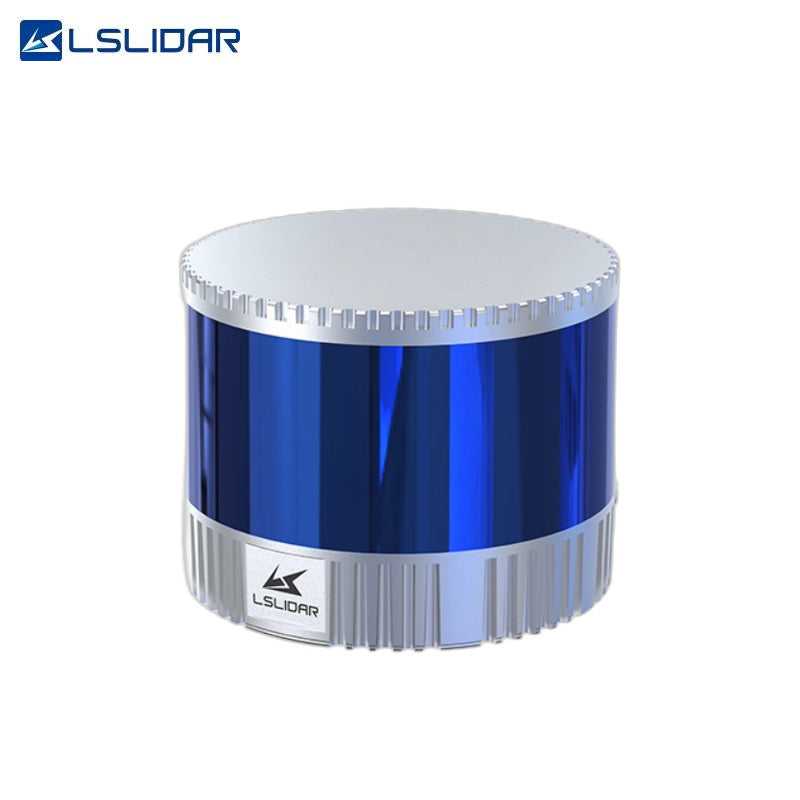

LSLIDAR C32 LiDAR
Regular price
$3,700.00
Unit price
LSLIDAR C32 LiDAR - C32 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR C32 LiDAR
Regular price
$3,700.00
Unit price
LSLIDAR C32 LiDAR - C32 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | C32 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 32 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range | 150m @ 70%, 100m @ 10% |
| Ranging Accuracy | ±3cm |
| Ranging Precision | ±1cm (1σ) |
| Horizontal FOV (Field of View) | 360° |
| Vertical FOV (Field of View) | -16° ~ 15° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Uniform 1° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate |
Single Return: 640000 points/sec
|
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 12V~32V DC |
| Power Consumption | 12W (Typical at 10Hz) |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | 1040g (Standard) |
| Dimensions (D×H) | Φ102×77.9 mm |
| Parameter | Value |
|---|---|
| Model | C32W |
| Wavelength | 905 nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 32 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range |
10~60 m (Channel 0-1: 10m, Channel 2-9: 20m, Channel 10-31: 60m) @10% reflectivity
|
| Ranging Accuracy | ±3 cm |
| Ranging Precision | ±1 cm (1σ) |
| Horizontal FOV | 360° |
| Vertical FOV | -54.7° ~ 15° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Non-uniform, minimum 1.5° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate | Approx. 600,000 points/sec (single return); 1,200,000 points/sec (dual return) |
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 9V~32V DC |
| Power Consumption | 12W |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | Approx. 1115g |
| Dimensions (D×H) |
Φ102×102 mm |
