LSLIDAR | SKU:

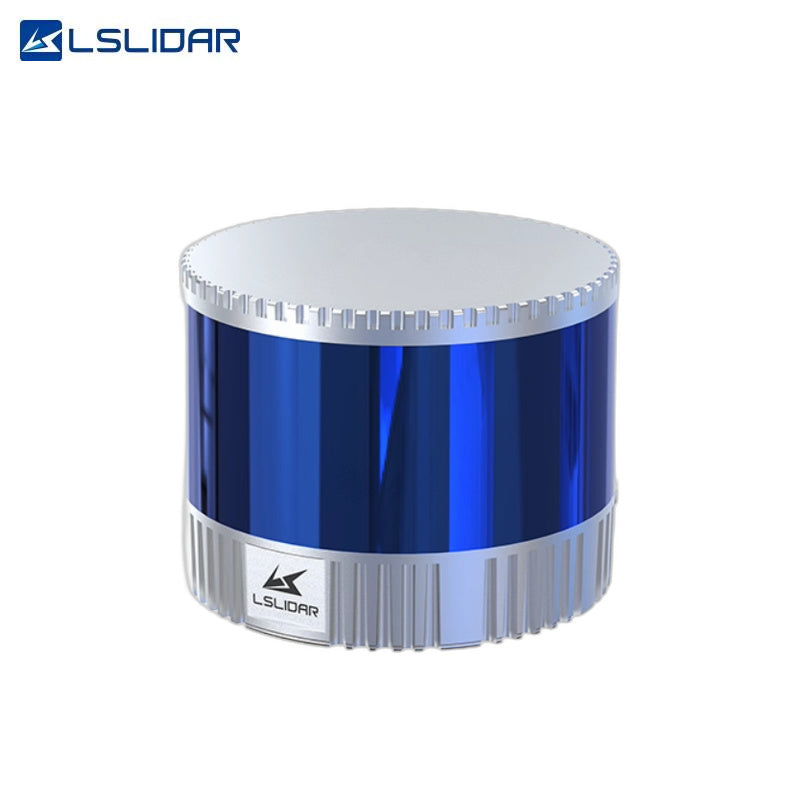

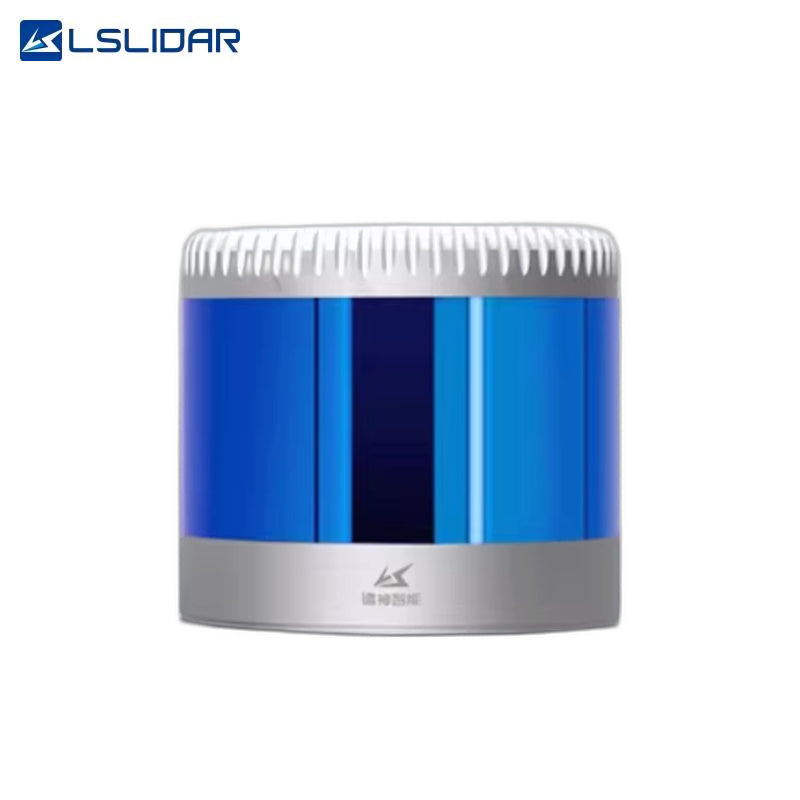

LSLIDAR C16 LiDAR
Regular price
$2,300.00
Unit price
LSLIDAR C16 LiDAR - C16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR C16 LiDAR
Regular priceFrom
$2,300.00
Unit price
LSLIDAR C16 LiDAR - C16 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | C16 |
| Wavelength | 905nm |
| Safety Class | Class I (Eye-safe) |
| Scanning Channels | 16 channels |
| Ranging Principle | TOF (Time-of-Flight) |
| Detection Range | 150m @ 70%, 100m @ 10% |
| Ranging Accuracy | ±3cm |
| Ranging Precision | ±1cm (1σ) |
| Horizontal FOV (Field of View) | 360° |
| Vertical FOV (Field of View) | -16° ~ 14° |
| Horizontal Resolution | 0.09° / 0.18° / 0.36° |
| Vertical Resolution | Uniform 2° |
| Scan Frequency | 5Hz / 10Hz / 20Hz |
| Point Rate |
Single Return: 320000 points/sec
|
| Communication Interface | Ethernet 100base-TX, PPS |
| Power Supply Range | 12V~32V DC |
| Power Consumption | 10W (Typical at 10Hz) |
| IP Rating | IP67 |
| Operating Temperature | -20°C ~ 60°C |
| Vibration | 5Hz~2000Hz, 3G rms |
| Shock | 500m/sec², 11ms duration |
| Weight | 1040g (Standard) |
| Dimensions (D×H) | Φ102×77.9 mm |
| Parameter | Value |
|---|---|

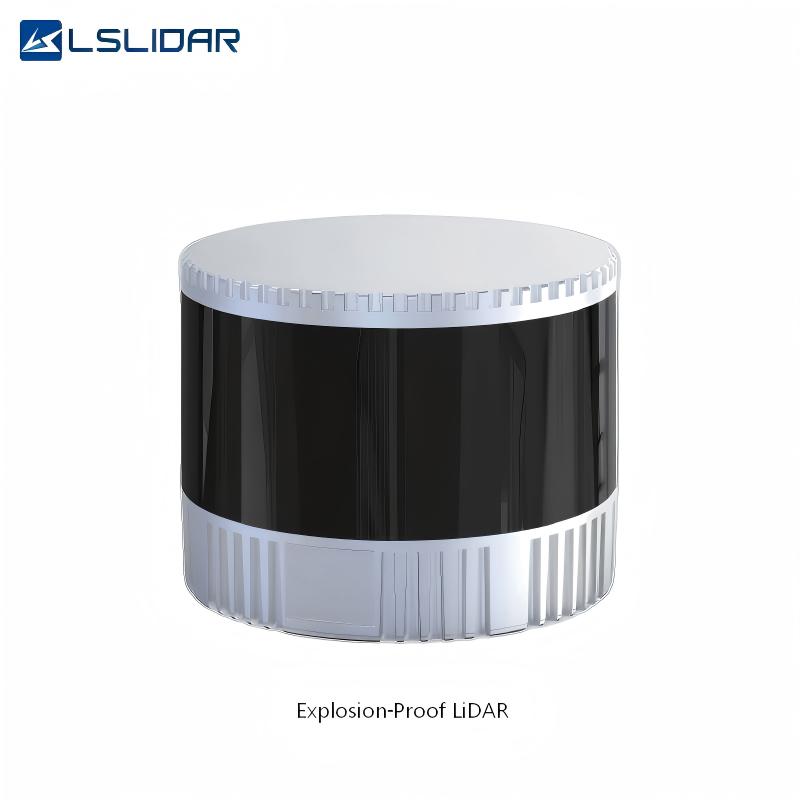

| Model | C16 (Explosion-Proof & Flameproof LiDAR) |
| Ranging Method | Time-of-Flight (TOF) |
| Laser Wavelength | 905 nm |
| Laser Class | Class I (Eye-safe) |
| Laser Channels | 16 channels |
| Detection Range | 100m @ 10%; 150m @ 70% |
| Ranging Accuracy | ±3 cm |
| Ranging Precision | ±1 cm |
| Single Return Data Rate | Approx. 320000 points/sec |
| Dual Return Data Rate | Approx. 640000 points/sec |
| Vertical FOV | -16° ~ +14° |
| Horizontal FOV | 360° |
| Vertical Angular Resolution | Uniform 2° |
| Horizontal Angular Resolution | 0.09° / 0.18° / 0.36° |
| Scan Rate | 5Hz / 10Hz / 20Hz |
| Data Transmission Interface | Ethernet, PPS |
| Time Source | GPS, gPTP |
| Power Supply Range (Intrinsically Safe / Flameproof) | 12~32 V DC / 9~30 V DC |
| Power Consumption (Intrinsically Safe / Flameproof) | 10W / 10W (Typical) |
| Operating Temperature (Intrinsically Safe / Flameproof) | -20°C ~ +60°C / -40°C ~ +50°C |
| Shock | 500 m/sec², 11 ms duration |
| Vibration | 5 Hz ~ 2000 Hz, 3G rms |
| Intrinsically Safe Protection Rating | IP67 |
| Flameproof Enclosure Protection Rating | IP66 |
| Compliance Standards |
GB/T 3836.1-2021
|
| Explosion-Proof Marking (Flameproof Type) | Ex d II CT6 Gb |
| Explosion-Proof Marking (Intrinsically Safe Type) | Ex ib I Mb |

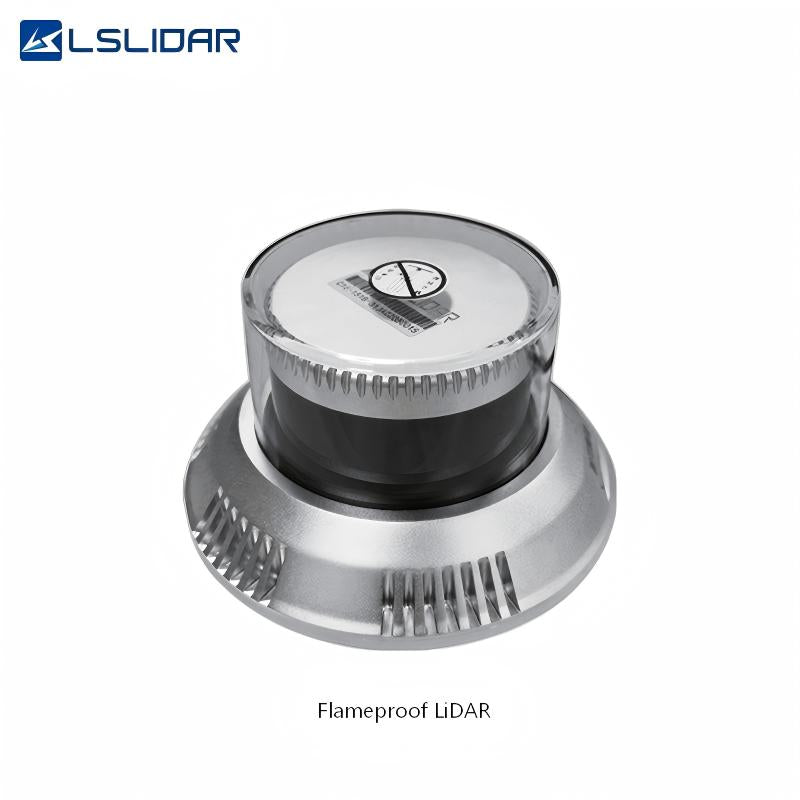

| Dimensions (Flameproof Type) |
Φ152 mm * 127 mm (bottom outlet)
|
| Dimensions (Intrinsically Safe Type) | Φ102 x 77.9 mm (side outlet) |
