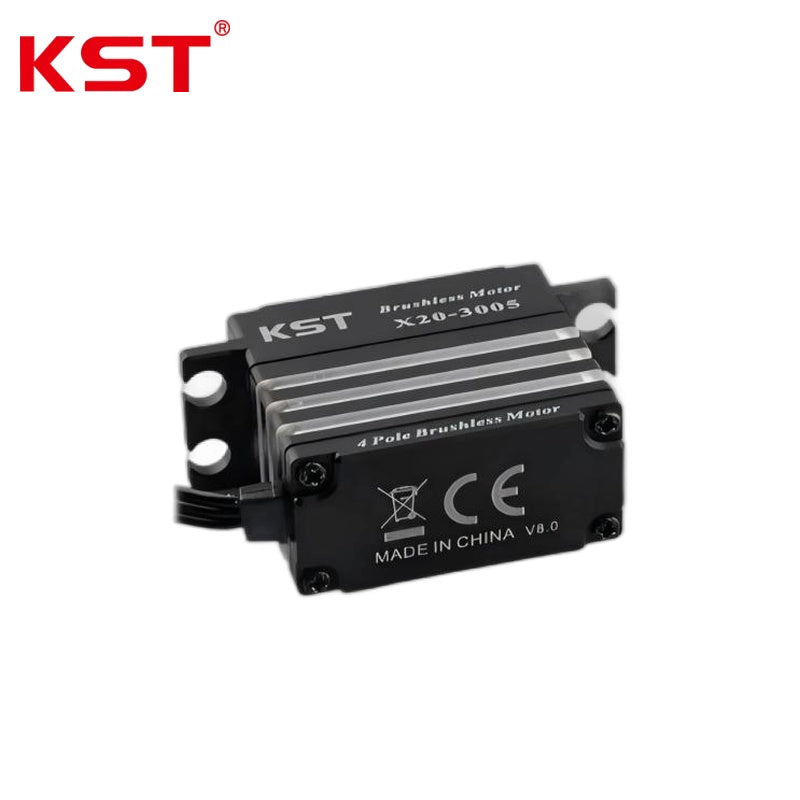

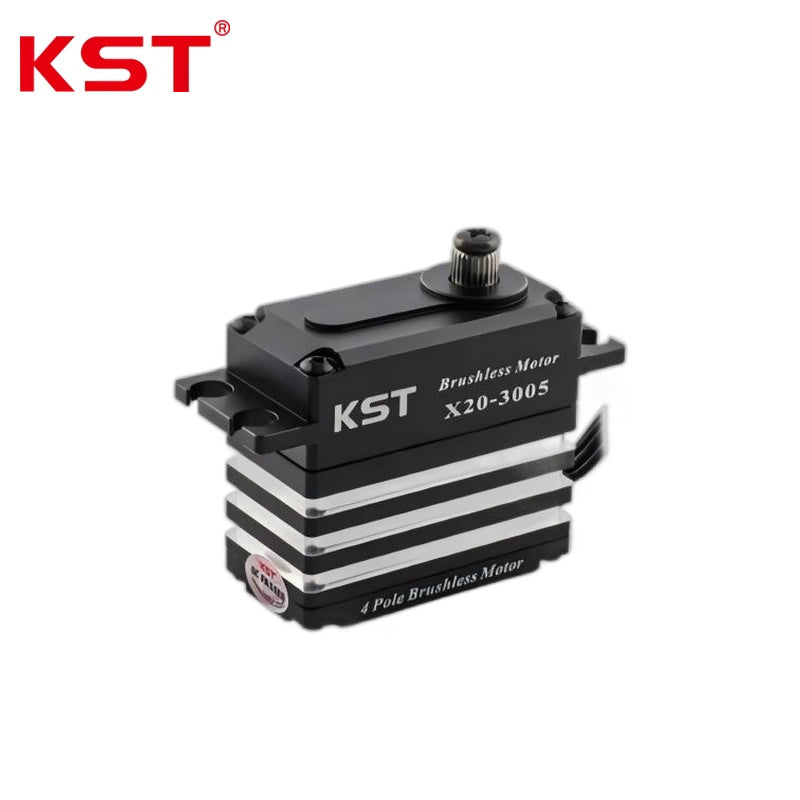

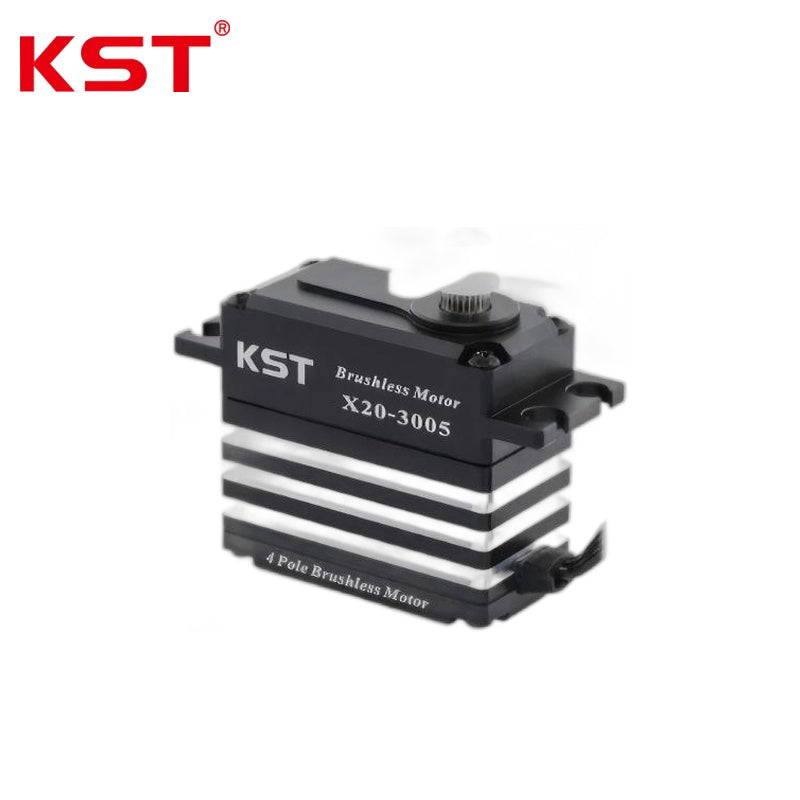

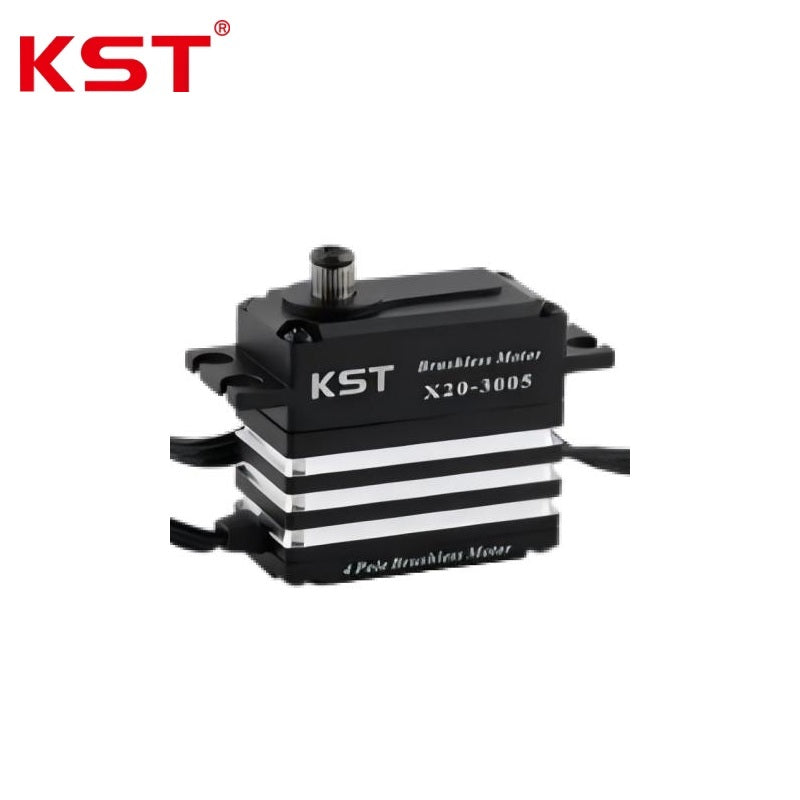

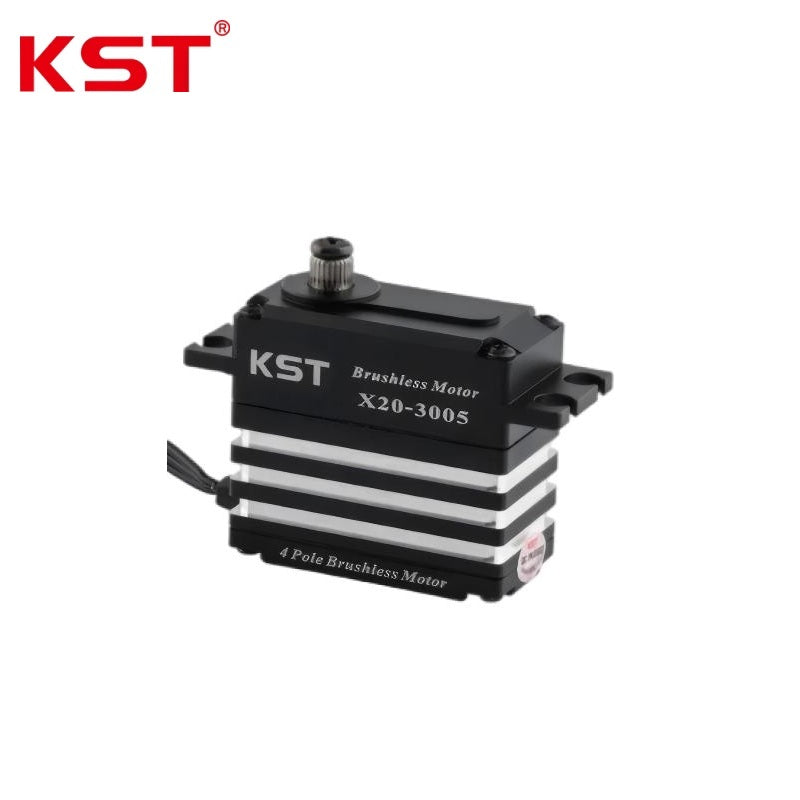

KST X20-3005 Servo Motor

$119.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 6.0 V - 8.4 V
Torque 24 kgf.cm @ 6.0 V; 30 kgf.cm @ 7.4 V; 32 kgf.cm @ 8.4 V
Speed (60deg Rotation Time) 0.067 sec @ 6.0 V; 0.052 sec @ 7.4 V; 0.047 sec @ 8.4 V
Stalling Current 8.80 A @ 6.0 V; 10.8 A @ 7.4 V; 12.3 A @ 8.4 V
Working Frequency 1520 us / 333 Hz
Control Specifications:
Default Travel Angle +/-50deg (Total 100deg)
Control Signal Voltage HIGH: 3.3 V - 5.0 V; LOW: 0.0 V - 1.5 V
Control Pulse Width Range 900 us - 2100 us
Position Pulse Width (-50 / 0 / +50 deg) 1000 us / 1500 us / 2000 us
Internal Characteristics:
Motor Type 4-Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Type Potentiometer
Ball Bearing Configuration 2BB (2 Ball Bearings)
Soft Start / Programmable Yes / Yes
Physical & Environmental:
Case Material Aluminum Alloy
Case Dimensions 40.5 mm x 20 mm x 38 mm +/- 0.2 mm
Ingress Protection (IP) Rating IP65 (Waterproof)
Weight 70 g +/- 10%
Operating Temperature Range -20 deg C - +65 deg C
